Plastic Polypropylene Compressiondn18 18mm PP Pipe Fittings Coupling PE Pipe Female Furniture Tank U

Model NO.	EKK8003
Head Code	Round
Angle	90 Degree
Wall Thickness	Sch80s
Material	Plastic
Technics	Casting
Certification	GB, ISO
Color	Black or Blue
Finish	Anti Rust Oil
Pressure Rating	150lbs
Working Pressure	Pn10/ Pn16
Diameter	20mm-110mm
Feature	Easy Installation
Certificate	ISO9001
MOQ	1000 PCS
Carton Size	40*40*30cm
Weight	73.6g
OEM	Wlecome
Lift Span	More Than 50 Years
Samples	Available
Delivery Time	15 Days
Transport Package	Carton
Specification	20mm-75mm
Trademark	Erikeke
Origin	Xiamen, China
HS Code	3917400000
Production Capacity	500000PCS

Plastic  Polypropylene  CompressionDN18 18mm PP Pipe Fittings  Coupling PE Pipe Female Furniture Tank Union Connectors

PP Compression Fittings have been designed for kinds of fluids transport under high pressure, irrigation and other applications. They are fully compatible with all PELD, PEHD, PE40,PE80 and PE100 pipes.

The performance standard of PP fittings about working pressure can match ISO14236 or DIN8076, the standard about threads can match ISO7,DIN EN 10226, ASME B1.20, or BS21.

The maximum working pressure of PP compression fitting, which diameter is from 20 to 63, can match PN16, and PN10 can be matched for the diameter, which is from 75 to 110, at temperature of 20°C.

The clamp saddles have been designed for side outputs on PE and they are available in the large range of sizes. The clamp saddles are fit for conveying food fluids because its materials are conform to the domestic and international standards.

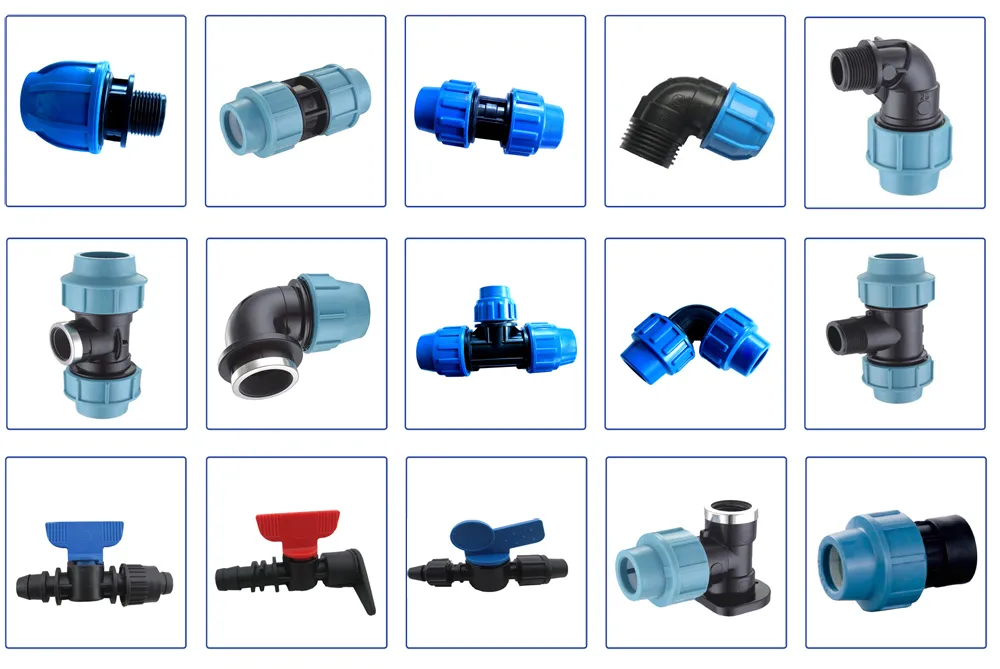

Product list and Dimensions

PP Compression Fittings Item NumberDescriptionDimension Available 1PP ADDING EXIT25,32,40,50,63,75,90,110,125,160,200,250 2PP COUPLING 20,25,32,40,50,63,75,90,110 3 PP 90 DEG ELBOW20,25,32,40,50,63,75,90,110 4PP Elbow Wall Plated20,25,32,40,50,63,75,90,110 5 PP End  Cap20,25,32,40,50,63,75,90,110 6 PP Female Adapter20x1/2",20x3/4",25x1/2",25x3/4",25x1",32x1",40x1-1/4",50x1-1/2",63x2", 75x2-1/2",90x3",110x4" 7PP Female Elbow20x1/2",20x3/4",25x1/2",25x3/4",25x1",32x1",40x1-1/4",50x1-1/2",63x2", 75x2-1/2",90x3",110x4" 8 PP Female Tee20x1/2",20x3/4",25x1/2",25x3/4",25x1",32x1",40x1-1/4",50x1-1/2",63x2", 75x2-1/2",90x3",110x4" 9 PP Male Tee20,25,32,40,50,63,75,90,110 10PP Flange 40x1-1/2",50x1-1/2",50x2",63x2",63x2-1/2",75x2-1/2",75x3",90x3",90x4",110x4" 11PP Male Adapter20,25,32,40,50,63,75,90,110 12PP Tee 20,25,32,40,50,63,75,90,110 13 PP Reducing Coupling25x20,32x20,32x25,40x25,40x32,50x25,50x32,50x40,63x32,63x40,63x50,75x50,75x63,90x63,
90x75,110x90 14  PP Male Elbow20x1/2",25x3/4",32x1",40x1-1/4",50x1-1/2",63x2",75x2-1/2",90x3",110"x4" 15PP Reducing Tee25x20x25,32x20x32,32x25x32,40x25x40,40x32x40,50x25x50,50x32x50,50x40x50,63x50x63,
75x50x75,75x63x75,90x63x90,90x75x90,110x90x

Features

Match with PE pipe

PP Compression fittings for PE pressure piping networks.

Fast & Reliable Connection:

Split ring opening has been optimized to make pipe insertion even easier. Turning of pipe can be prevented by inner threaded during installation.

Perfect Sealing in all Conditions:

When tightened and due to seat be compacted, o-ring makes pressure against pipe, superior water tightness was provided.

Fields of Applications

* Piping networks for water supply of public works
* Piping networks for underground water supply system of living areas or factories
* Piping networks for water treatment systems
* Piping networks for irrigation of gardening or farming
