| Model NO. | MR-FB-40k |
| Color | Black |
| Usage | Air Conditioning, Construction, Chemical Industry |
| After-Sales Service | Online Tecnical Service |
| Warranty | One Year |
| Refractoriness | -50-105℃ |
| Diameter | Other |
| Apparent Density | 40-65kg/M³ |
| Surface Treatment | Plain/Aluminum Foil |
| Base Material | Foamed Nitrile Rubber |
| Combustion Performance | B1 |
| Compression Rebound Rate | ≥70% |
| Use Temperature | -50-105℃ |
| Transport Package | Cartons/Plastic |
| Specification | ID: 6-114mm |
| Trademark | ArmaFlex |
| Origin | China |
| HS Code | 4009410000 |
| Production Capacity | 40000cbm/Year |
Basic Info.
Product Description
foam rubber material is an elastic closed cell foam material, on the basis of continuing our company's consistent high-quality performance, the product foam is more uniform, the bubble hole is more fine, can effectively reduce cold and heat loss, and no fiber, no dust, no formaldehyde, no chlorofluorocarbons and other ozone layer destruction of the working medium.The "built-in" steam barrier effectively reduces the risk of pipe corrosion and ensures the "air tightness" of the entire insulation system. It has the advantages of low thermal conductivity, fire retardant, moisture resistance, vibration and noise reduction, environmental protection and health, long service life, simple and elegant appearance, convenient installation and so on.
Widely used in central air conditioning, construction, chemical, medicine, textile, metallurgy, ships, automobiles, electrical appliances and other related hot and cold medium pipes or containers. In addition, the construction is simple, the appearance is clean and beautiful, and the product does not contain fiber dust, will not breed mold and other harmful substances, so it is a high-quality new generation of thermal insulation material.
Our Advantages
1. Low thermal conductivity
rubber and plastic is a high-quality heat preservation and energy-saving material, is the Nemesis of cold insulation, heat insulation and dew prevention, the heat conductivity is low and remains stable, and the insulation effect on any thermal medium. When the average temperature is 0 ° C, the thermal conductivity of rubber and plastic insulation material can be as low as 0.033w/m·k, and its surface heat release coefficient is high, so under the same external conditions, the use of rubber and plastic insulation material, about half the thickness of other insulation materials, that is, the same insulation effect can be achieved, thereby saving the space above the ceiling of the floor and saving investment.
2. Good fire and flame retardant performance
rubber and plastic insulation materials contain a large number of flame retardant and smoke reduction raw materials, the smoke concentration generated when burning is very low, and the fire does not melt, will not drop the fire ball, and quickly extinguish after leaving the fire source. According to GB8624-1997 "Classification Method for Combustion Performance of Building Materials", rubber and plastic insulation products are B1 grade flame retardant materials to ensure safety and reliability.
3. Moisture-proof and moisture-proof

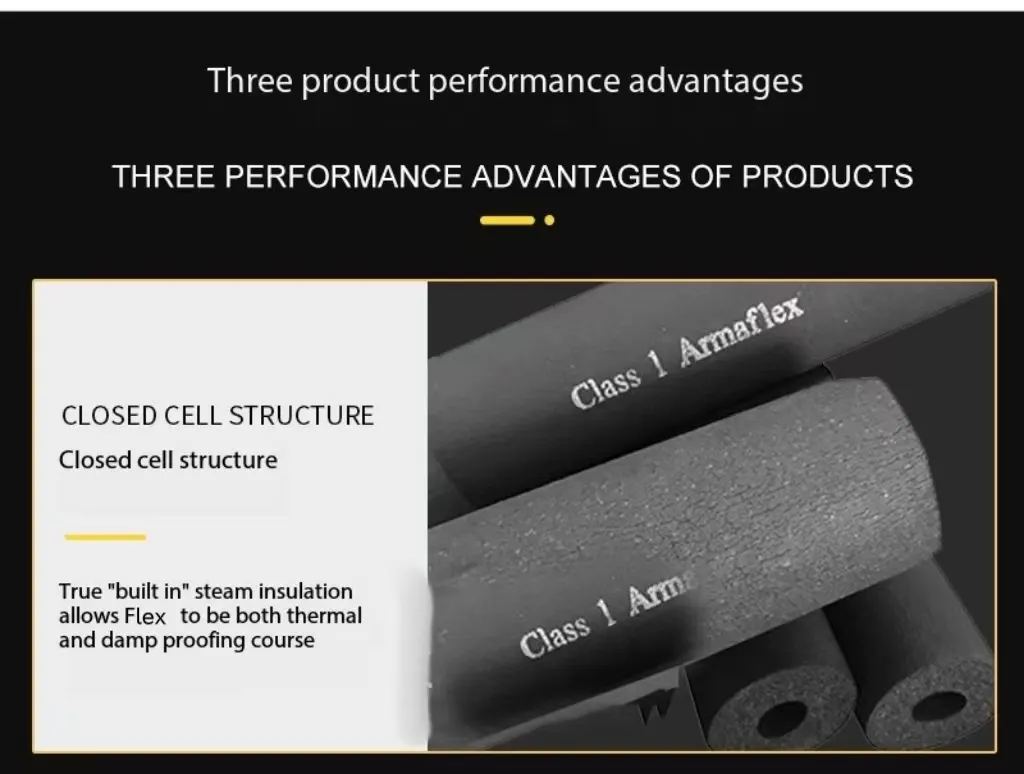

using fine control micro-foaming technology, the foam closure rate is greatly improved, and the thermal conductivity of the product is lower; The bubble hole is also more uniform and fine, strong resistance to water vapor penetration, prolong the service life of the rubber is a closed bubble structure, the water in the outside air is difficult to penetrate into the material, has excellent resistance to water vapor penetration, and the cold insulation layer does not need to add steam insulation layer on the surface. The moisture resistance factor μ value of rubber and plastic is greater than 3500(ISO9346), which constitutes the built-in water vapor protection layer, even if the product scratch does not affect the overall steam insulation. Rubber and plastic is both insulation layer and moisture barrier layer.
4. Shock absorption and noise reduction
The spongy structure of rubber and plastic insulation material makes it highly elastic, has the effect of reducing vibration and absorbing noise, and thus can minimize the vibration and resonance of chilled water and hot water pipes in the process of use.
5. Environmental health
Rubber and plastic insulation materials are very safe to use, first of all rubber and plastic does not contain harmful materials in the atmosphere, in line with ISO14000 international environmental certification requirements, followed by rubber and plastic materials no fiber dust, neither stimulate the skin, nor harm health, while they can prevent mold growth, so in the installation and application will not produce any harmful pollutants to the human body.
6. Easy installation
Due to the softness of rubber and plastic products, easy to install. The sheet can be cut and bonded according to different types of packages to ensure the tightness of the entire system, thus ensuring the insulation of the entire system. Because of the smooth and flat appearance of rubber, as well as its own excellent performance, there is no need to add steam insulation layer, protective layer, reduce the trouble in construction, but also to ensure the appearance of beautiful and smooth.
Application Area
Production Details
