| Model NO. | AD |
| Surface Treatment | No |
| Application | Cable Sleeve |
| Material | PA |
| Certification | CE, RoHS, ISO |
| Function | Motors, Railway Locomotive |
| Working Temperature | -40℃~+125℃ Short Term 140℃ |
| Customized | Open Type |
| Withstand Capacity | Remains Undistorted When Stepped on |
| Transport Package | Carton |
| Specification | Standard Specifications or Customized |
| Trademark | HXYY |
| Origin | Zhejiang, China |
| HS Code | 3917310000 |

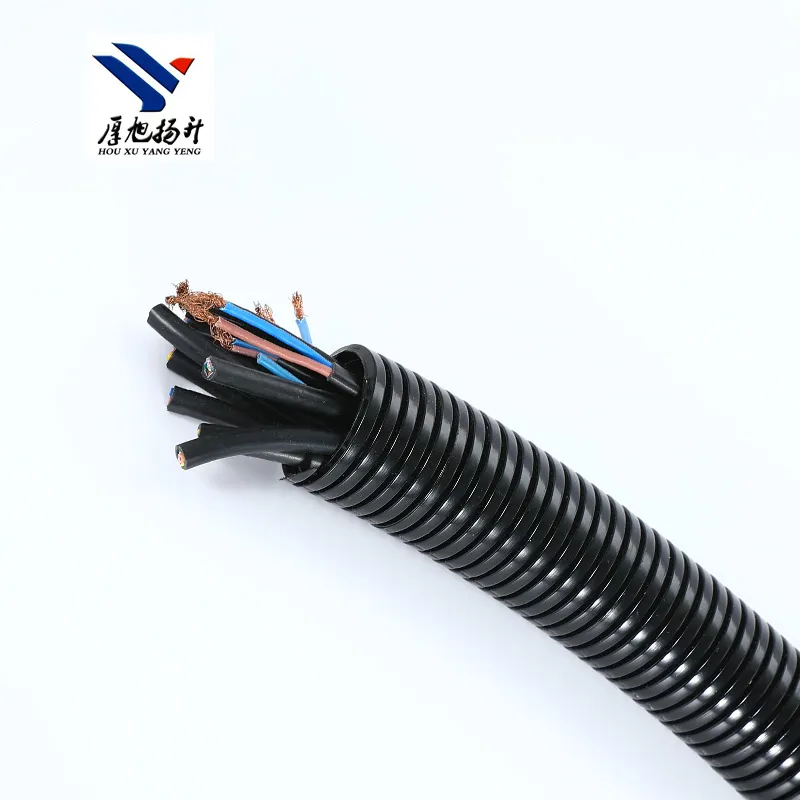

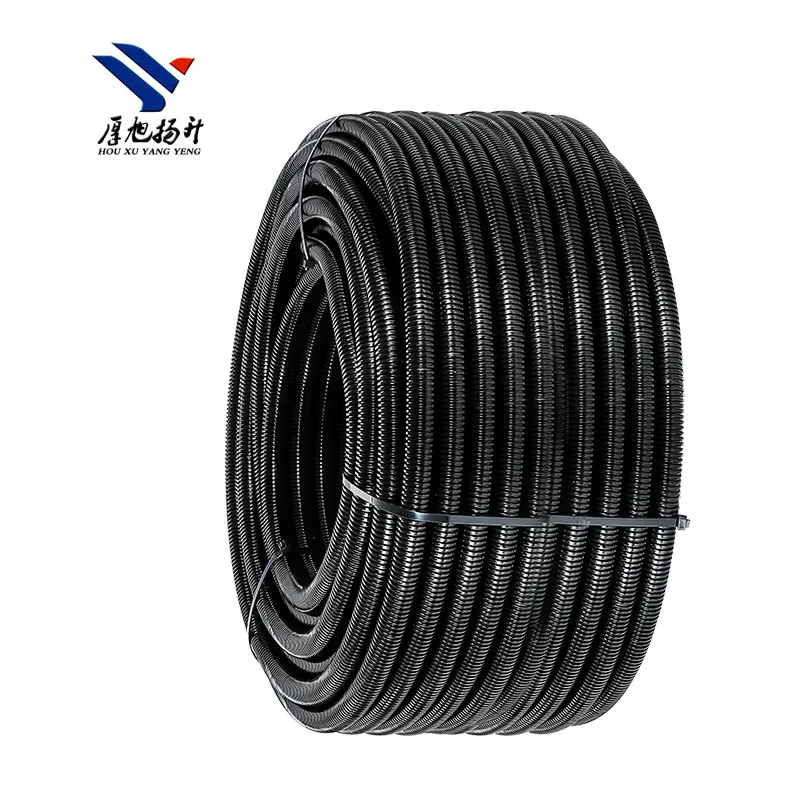

Corrugated tube(PA66, PP, PE)
1.Product material: PA66 (nylon), PP (polypropylene), PE (polyethylene).
2.Operating temperature:
For PA66: -40℃ to 120℃, and can reach 140℃ for a short time.
For PP and PE: -30℃ to 100℃, and can reach 110℃ for a short time.
3.Product structure: Non-split and split.
4.Product features: Excellent flexibility, anti-twisting, and good bending performance, capable of bearing heavy loads; resistant to acid, lubricating oil, coolant, etc.; glossy surface and wear-resistant.
5.Color options: Black, other colors can be customized.
6.Application fields: Machinery manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automation control and other industries.
7.Usage method: Insert the wires and cables into the tube, then use with the corresponding model of the hose connector.
Our company
1.Certificate:ISO 9001, CE, IP68, Design Patent Certificate.
2.Material Performance Test Report:UL-94V1, RoHS, SGS approved materials.
3.Main products: corrugated tube ; corrugated tube connector ; waterproof gland ; flexible conduit bracket ; cable gland ; three way connector.
4.7-10 days fast delivery on urgent requirements.
20 years' Rich exporting experience to make you easy and happy with custom work.
Product Name
PA66 Corrugated tube
Keywords
Corrugated tube, flexible conduit, plastic bellows
Feature
Motors, Railway Locomotive, Electrical Equipment
Sample
Free Samples
Working Temperature
-40℃ to 120℃, 140℃ short time
Installation
Simple Manual Process Requiring No Special Tools
Customization
split Type
Unit Of Measurement
Meter
Model
Inch
Inner Diameter × Outer Diameter(mm)
Curved Radius(mm)
Std.Pkg(meters)
AD7
5.0×7.0
16
200
AD8
5.5×8.0
16
200
AD10
1/4"
6.5×10.0
16
100
AD11
8.0×11.0
16
100
AD13
5/16"
10.0×13.0
20
100
AD15.8
3/8"
12.0×15.8
30
100
AD18.5
14.3×18.5
40
100
AD21.2
1/2"
17.0×21.2
45
100
AD25
20.0×25.0
45
50
AD28.5
3/4"
23.0×28.5
50
50
AD31.5
26.0×31.5
55
50
AD34.5
1"
29.0×34.5
60
50
AD42.5
1 1/4"
36.0×42.5
70
25
AD54.5
2"
48.0×54.5
90
25
AD67.2
2 1/2"
57.0×67.2
130
10
AD80
3"
67.0×80.0
170
10
AD106
4"
92.0×106.0
225
10
1.Made from new imported nylon materials
We guarantee that the raw materials are made of new nylon, with no recycled materials added.
2.Flame retardant rating: UL-94V2
We have passed the test report for the UL-94V2 rating.
3.High temperature resistant
Operating from -40℃ to 120℃,
with short-time tolerance up to 140℃.
Packaging & Shipping
After Sales Service
1.Real-time update of cargo status
2.Timely track the customer's receipt status and collect customers' feedback and questions about the products.
3.Provide matching manuals for other components, and even assist in testing the combined performance.

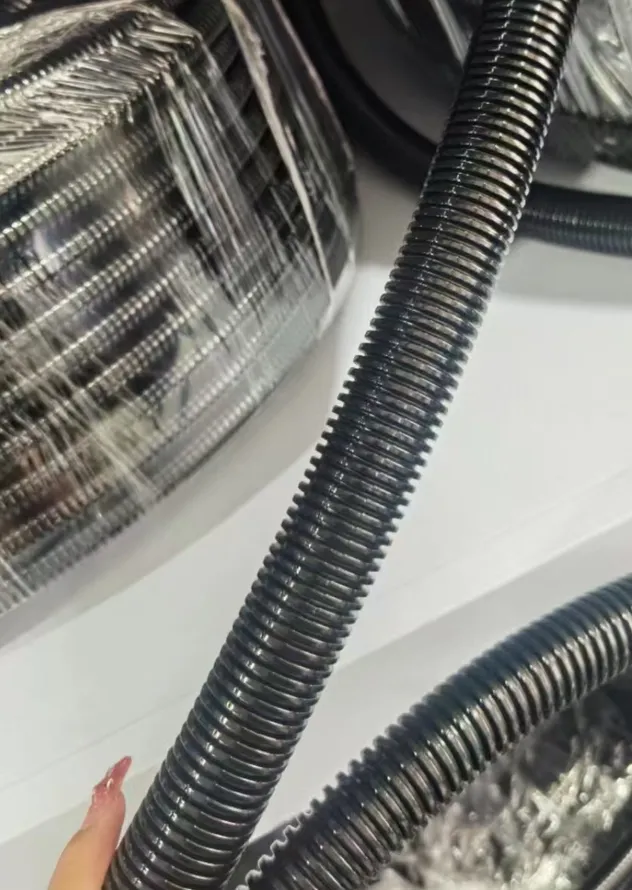

Detailed Photos

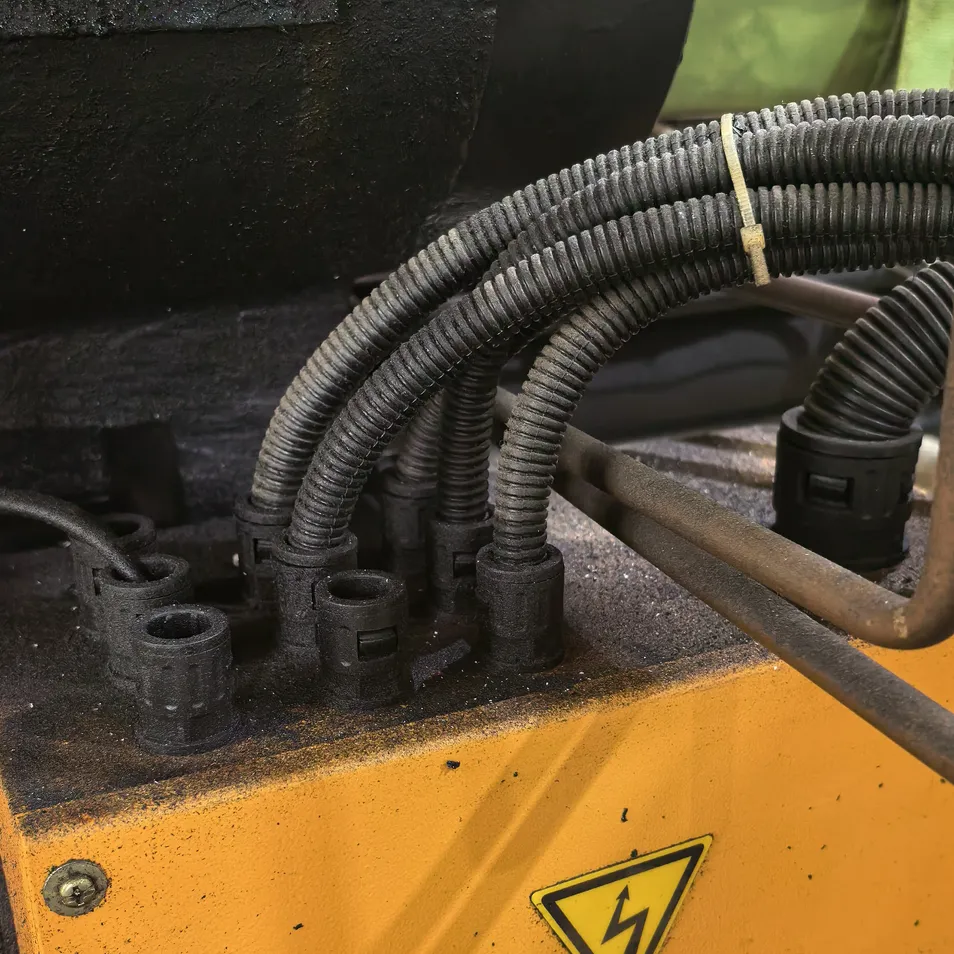

Application
