PVC Pipe Manufacturing Process PVC Pipe Making Machine

Model NO.SJSZ65/132Screw No.Double-screwAutomationAutomaticComputerizedComputerizedCertificationCE, ISO9001:2008Customiz

« Previous

QINGDAO DING KUN PLASTIC MACHINERY CO., LTD. Qingdao Dingkun Plastic Machinery Co., LtdProduct Range: *WPC machine(wood plastic composite): WPC machinry, WPC production line, WPC floor/decking/fence/wall panel/post/door frame machine*Plastic Pipe/Tube MachinePVC pipe machine, HDPE pipe machine, PPR

UPVC CPVC Conduit Plastic Extrusio

＄35000.00/ Piece View details

PVC Pipe Manufacturing Process PVC

＄33000.00/ Meters View details

Send your message to this supplier

Include product specification, quantity, destination port and packing needs to receive a faster and more accurate quotation.

Model NO.	SJSZ65/132
Screw No.	Double-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Provide Lifelong Service, on Site Repair and Upgra
Plastic Machine	PVC Pipe Extrusion Machine
Main Extruder	Sjsz65/132 Double-Screw Extruder
Pipe Diameter	20-110mm or 75-160mm
Main Motor	Siemens Beide
Output Capacity	180-250kg/Hr
Total Installed Power	About 50kw
Overall Dimension	About 24m2m2m
Raw Material	PVC Powder
Power Supply	380V 3phase 50Hz or as Your Demand
Operator	1-2 Persons Per Shift
Inverter	ABB
Temperature Meter	Omron
Relay / Switch	Schneider
Transport Package	Mold: Wooden Package. Outside: Stretch Film
Specification	SJSZ65/132
Trademark	DINGKUN
Origin	Qingdao of Shandong
HS Code	847209000

PVC Pipe Production Line / PVC Pipe Extrusion Making Machine

Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Main Composition

ItemQuantity 1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)One set 2.Die and MoldOne set 3.Vacuum calibration unitOne set 4.Haul-off unitOne set 5.Cutter UnitOne set 6.StackerOne set Optional auxiliary machines for your choice 1.PrinterOne set 2.MixerOne set 3.CrusherOne set 4.Milling machineOne set 5.PVC pipe belling machineOne set

Technical parameter

Diameter(mm)16-40dual20-63dual20-6375-200160-315315-630 Extruder modeSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ80/156SJZ92/188 Extruder power (kw)18.5AC37AC18.5AC37AC55AC110DC Max lineal speed (m/min)0.5-100.5-150.5-100.5-80.5-60.5-4 Max capacity (kg/h)12025080-120180-250280-350500-600 Installation area 24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 m

1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)

2. Vacuum calibration unit

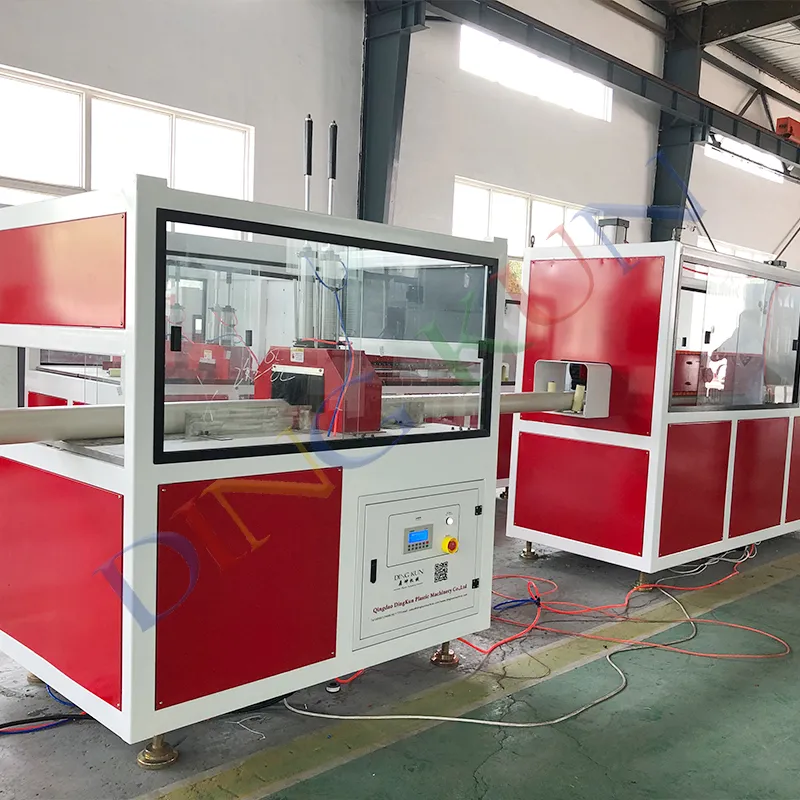

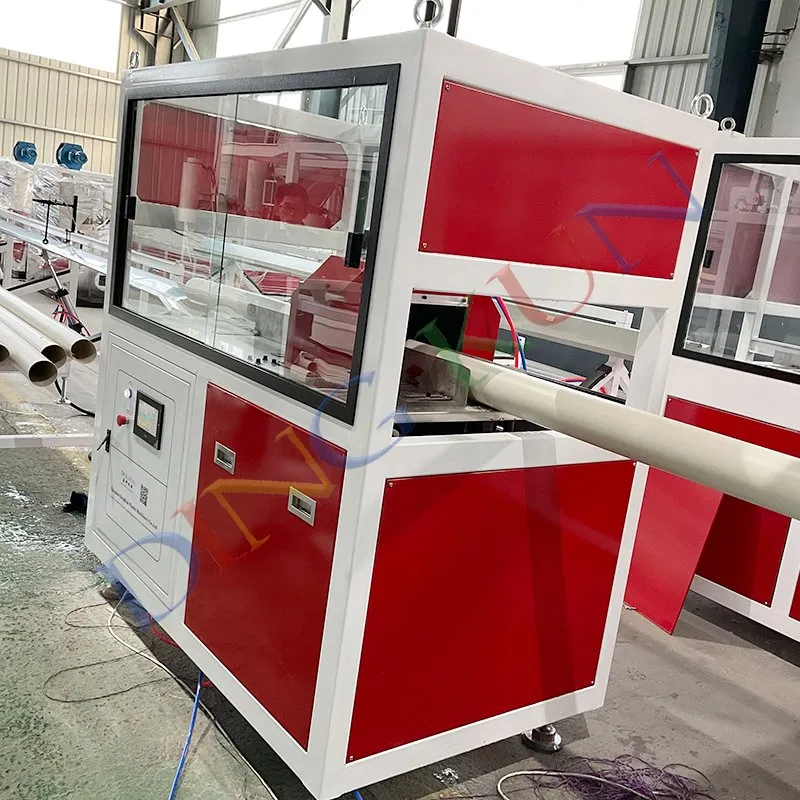

3. Haul-off unit + cutter unit

4. Stacker

SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm Pipe

PVC DOUBLE PIPE MACHINE

Loading Container & Delivery

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
