| Model NO. |
C1-F-032 |
| Feature |
Heat-resistant, Cold-resistant |
| Max. Service Temperature |
+105 °c |
| Min. Service Temperature |
-50 °c |
| Thermal Conductivity |
0.039W/(M·K) |
| Water Vapour Diffusion Resistance Factor |
≥ 10,000 |
| Warranty |
1 Year |
| After-Sale Service |
Online Technical Support, Other |
| Transport Package |
Cartons |
| Specification |
ID 108 * Tkn 13mm, Length 2m/pc |
| Trademark |
armacell |
| Origin |
China, Suzhou |
| HS Code |
4009410000 |
| Production Capacity |
600000PCS/Month |

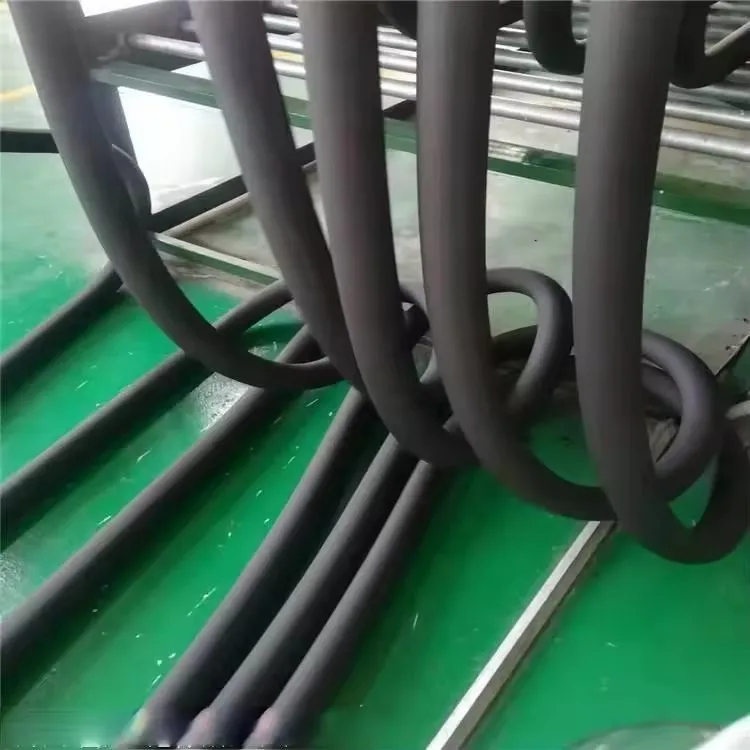

ArmaFlex Class 0 is a flexible insulation material that reliably protects against water vapour ingress due to its closed-cell structure.
No additional water vapour barrier is required.
| Property | Value /Assessment | Standard / Test Method |
| Temperature Range |
| Service Temperature | Max. service temperature | | | + 105 ºC | + 85ºC if sheet or tape is glued to the object with its whole surface. | When the service temperature is under -200ºC, please contact our technical department |
| Min. service temperature | | | - 50 ºC | |
| Thermal Conductivity |
| | θm | -20 | +/- 0 | +40 | [ ºC ] | | GB/T 10294, GB/T 10296 DIN52612, DIN52613 |
| λ ≤ | 0.032 | 0.034 | 0.039 | [ W/(m·k) ] | |
| Water Vapour Diffusion Resistance |
| Water vapour diffusion resistance factor | μ > 10,000 | GB/T 17146 DIN52615 |
| Water vapour permeability | ≤ 1.96 x 10-11g/(m·s·Pa) |
| Fire Performance & Approvals |
| Surface spred of flame | Class 1 | BS 476 Part 7: 1997 |
| Fire performance according to building regulations | Class 0 | BS 476 Part 6: 1989 |
| Burning Behaviour of Building materials and products | Class B1 | GB 8624 - 2012 |
| Flammability | V-0, FM Approved | UL 94, FM 4924 |
| Practical fire behaviour | Does not generate flaming droplets | |
| others | Registered by the Fire Services Department of Hong Kong for the entire range of thickness. | |
| Product conforms to the requirements for building products under the Fire Safety and Shelter Department, | |
| Singapore. | |
Paper Carton or plastic bags
Minimum order quantities and different lead times may apply.Please confirm with our customer service representative when place an order. Self-adhesive option available upon request. Minimum order quantities and different lead times may apply.
