| Model NO. | PE 100 |
| Color | Black, Blue, Gray, Green, Orange, Red, White |
| Diameter | Customized |
| Length | Custom Length |
| Material | PE |
| Pressure Rating | 0.4MPa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2 |
| Outside Diameter | DN20-1600 |
| Usage | Supply Water or Drainage, Gas Transportation |
| Water Absorption | Less Than 0.01% |
| Contraction Percentage | Less Than0.4% |
| Tensile Strength | 41~50MPa |
| Pressure | Pn4 Pn5 Pn6 Pn8 Pn10 Pn12.5 Pn16 Pn20 Pn25 |
| Transport Package | Outside with Film |
| Origin | China |
| HS Code | 3917210000 |
| Production Capacity | 500000mt |
Product Description

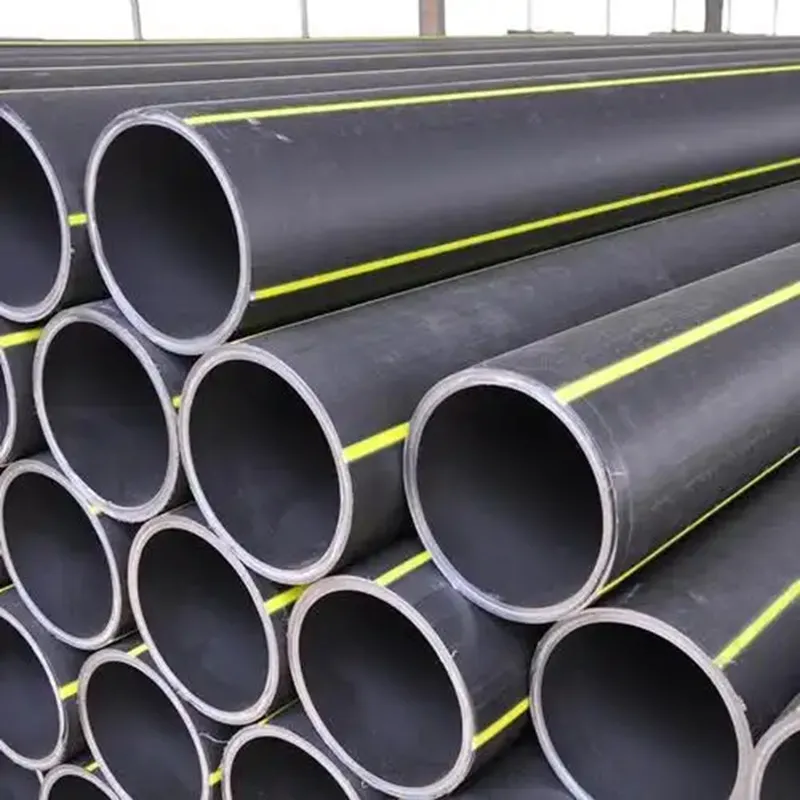

High-Density Polyethylene (HDPE) pipes have emerged as a versatile and reliable solution for a wide range of applications in modern infrastructure. Renowned for their exceptional durability, corrosion resistance, and flexibility, HDPE pipes have become the preferred choice for various industries, including water supply, gas distribution, industrial processes, and more.
Producing Details
Pressure
OD
(mm)
PN0.6MPa SDR 26
Thickness
(mm)
PN0.8MPa SDR 21
Thickness
(mm)
PN1.0MPa SDR 17
Thickness
(mm)
PN1.25MPa SDR 13.6
Thickness
(mm)
PN1.6MPa SDR 11
Thickness
(mm)
63
3.7
4.7
5.8
75
4.5
5.6
6.8
90
4.3
5.4
6.7
8.2
110
4.2
5.3
6.6
8.1
10.0
125
4.8
6.0
7.4
9.2
11.4
140
5.4
6.7
8.3
10.3
12.7
160
6.2
7.7
9.5
11.8
14.6
180
6.9
8.6
10.7
13.3
16.4
200
7.7
9.6
11.9
14.7
18.2
225
8.6
10.8
13.4
16.6
20.5
250
9.6
11.9
14.8
18.4
22.7
280
10.7
13.4
16.6
20.6
25.4
315
12.1
15.0
18.7
23.2
28.6
355
13.6
16.9
21.1
26.1
32.2
400
15.3
19.1
23.7
29.4
36.3
450
17.2
21.5
26.7
33.1
40.9
500
19.1
23.9
29.7
36.8
45.4
560
21.4
26.7
33.2
41.2
50.8
630
24.1
30.0
37.4
46.3
57.2
710
27.2
33.9
42.1
52.2
800
30.6
38.1
47.4
58.8
900
34.4
42.9
53.3
1000
38.2
47.7
59.3
1200
45.9
57.2
Flexibility: The flexibility of HDPE pipes allows for easy installation around obstacles and in challenging terrains. This characteristic is particularly advantageous in projects that require adaptable solutions, ensuring efficient and cost-effective installations.
Corrosion Resistance: Unlike traditional metal pipes, HDPE pipes are immune to corrosion, rust, and degradation caused by harsh environmental conditions. This resistance ensures a reliable and sustainable infrastructure system over time.
Leak-Free Joints: The heat-fused joints of HDPE pipes create a seamless, leak-free system. This welding technique not only enhances the overall integrity of the pipeline but also eliminates the risk of leaks, ensuring a safe and efficient fluid or gas transportation system.
Versatility: HDPE pipes are suitable for a wide range of applications, including potable water distribution, wastewater management, industrial processes, and more. Their versatility makes them an excellent choice for diverse infrastructure projects.
Material: The inherent toughness and resilience of our HDPE pipes are attributed to the top-tier raw materials we incorporate into our manufacturing processes. This not only enhances the overall performance of our pipes but also ensures they withstand the harshest environmental conditions without compromising structural integrity.
