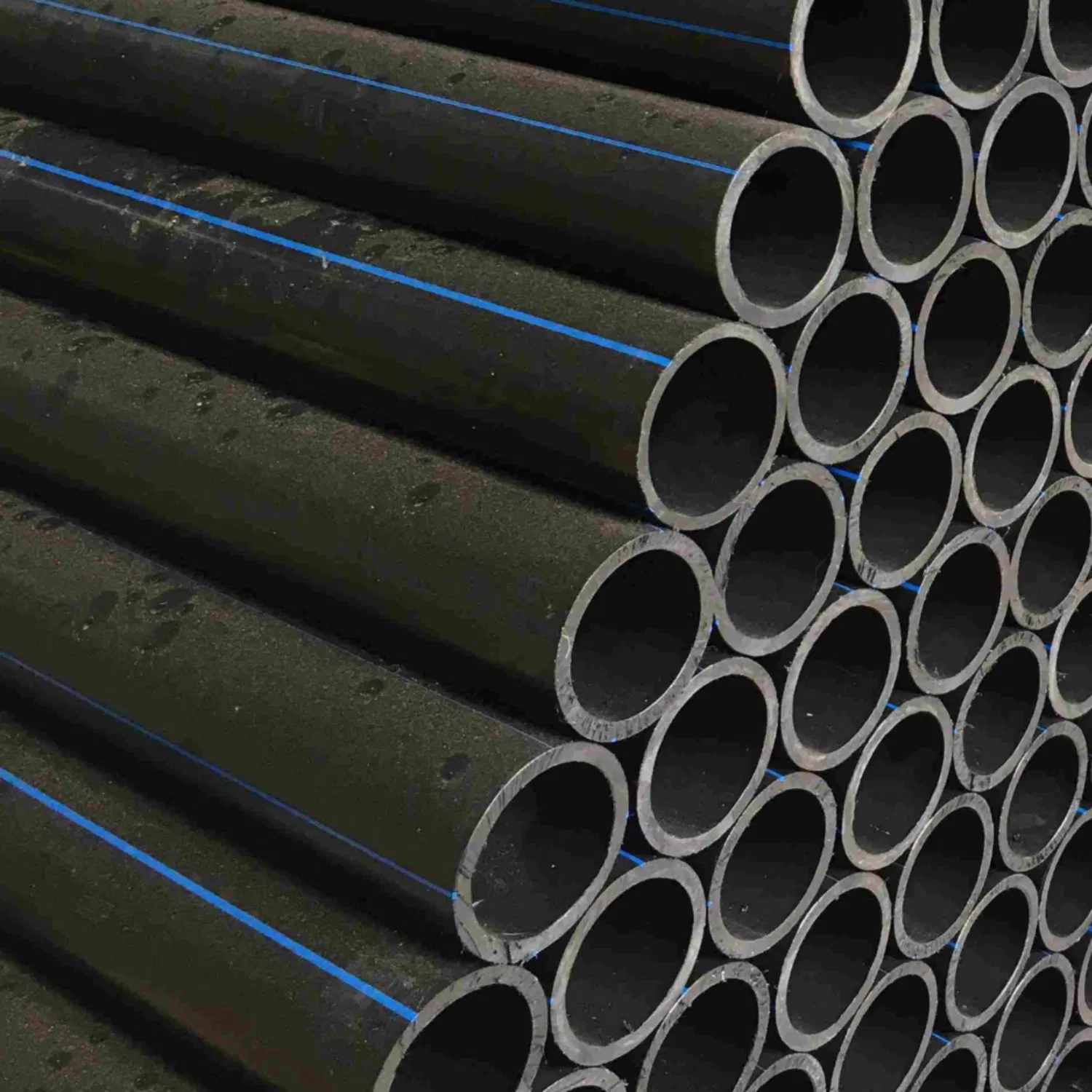

32mm-110mm PE Water Pipe for Drinking

Contraction Percentage	＜0.4%
Tensile Strength	41~50MPa
Model No.	HDPE Pipe
Product Name	PE 100 High Density Polyethylene Pipe PE HDPE Wate
Package	20 or 40 Container
Working Pressure	0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2.0MPa
Lifespan	Over 50 Years
Strip Line	Blue
Usage	Drinking Water, Drainpipe, Water Supply Pipe, Wire
Characteristic	Good Flexibility, Corrosion Resistance Excellent
Color	Black with Blue Stripe or as Required
Length	6m, 9m, 12m or as Your Request
Application	HDPE Pipe for Water Supply
Working Temperature	- 40ºC to 40ºC
Raw Material	HDPE
Shape	Round
Transport Package	Standard Export Packing
Specification	DN20-1200mm or Customized
Trademark	Qiaotai pipes
Origin	China
HS Code	39172100

Product Description

Product Description



HDPE pipe introduce

Product introduction: PE water supply pipes are made of high-density polyethylene, extruded and vacuum-formed, with smooth inner and outer surfaces. small friction resistance, energy saving,Good hygienic performance, no additives, no possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.

Application of PE Pipe:PE water supply pipe can be used for general purpose pressure water transmission and drinking water transmission.There are mainly municipal buried water supply, building water supply (drainage), farmland irrigation, waterscape engineering and so on.

Product Parameters


DN
(mm) en/mm SDR41SDR33SDR26SDR21SDR17SDR13.6SDR11SDR9 MPa 0.4MPa0.5MPa0.6MPa0.8MPa1.0MPa1.25MPa1.6MPa2MPa mmmmmmmmmmmmmmmm 20------2.3 2.3  25-----2.3 2.3 3.0  32----2.3 2.4 3.0 3.6  40---2.3 2.4 3.0 3.7 4.5  50--2.3 2.4 3.0 3.7 4.6 5.6  63--2.5 3.0 3.8 4.7 5.8 7.1  75--2.9 3.6 4.5 5.6 6.8 8.4  90--3.5 4.3 5.4 6.7 8.2 10.1  110--4.2 5.3 6.6 8.1 10.0 12.3  125--4.8 6.0 7.4 9.2 11.4 14.0  140--5.4 6.7 8.3 10.3 12.7 15.7  160--6.2 7.7 9.5 11.8 14.6 17.9  180--6.9 8.6 10.7 13.3 16.4 20.1  200--7.7 9.6 11.9 14.7 18.2 22.4  225--8.6 10.8 13.4 16.6 20.5 25.2  250--9.6 11.9 14.8 18.4 22.7 27.9  280--10.7 13.4 16.6 20.6 25.4 31.3  3157.7 9.7 12.1 15.0 18.7 23.2 28.6 35.2  3558.7 10.9 13.6 16.9 21.1 26.1 32.2 39.7  4009.8 12.3 15.3 19.1 23.7 29.4 36.3 44.7  45011.0 13.8 17.2 21.5 26.7 33.1 40.9 50.3  50012.3 15.3 19.1 23.9 29.7 36.8 45.4 55.8  56013.7 17.2 21.4 26.7 33.2 41.2 50.8 62.5  63015.4 19.3 24.1 30.0 37.4 46.3 57.2 70.3  71017.4 21.8 27.2 33.9 42.1 52.2 64.5 79.3  80019.6 24.5 30.6 38.1 47.4 58.8 72.6 89.3  90022.0 27.6 34.4 42.9 53.3 66.2 81.7 - 100024.5 30.6 38.2 47.7 59.3 72.5 90.2 - 120029.4 36.7 45.9 57.2 67.9 88.2 --



Product Display

Material Certification
Compliant with ISO  & ASTM
Manufactured from 100% virgin HDPE (PE100/PE100RC) without heavy metal additives. Certified per ISO 12162 classification. Materials meet EU REACH and NSF/ANSI 61 drinking water safety standards for global potable water systems.

 Physical Properties
High Strength & Impact Resistance
- Density: ≥0.95 g/cm³ (ASTM D792)
- Tensile Strength: ≥25 MPa (ISO 527)
- Elastic Modulus: 800-1000 MPa
- Elongation at Break: >350% withstands ground settlement impacts


Chemical Resistance
Zero Corrosion , 50-Year Service Life
Resists acids, alkalis, salts, and organic solvents (pH 1-14) , Ideal for desalination and chemical transport with no electrochemical corrosion risk.

Eco-Safety
 Eco-Certified
- Zero toxic gas emission (EN ISO 18562)
- ISO drinking water approvals
- 100% recyclable; lower carbon footprint than metal pipes.

Hydraulic Efficiency
30% Energy Savings | Ultra-Low Friction
Smooth interior (roughness coefficient: 0.007), Hazen-Williams C=150 (vs. C=100 for metal pipes). Maintains high flow rates while reducing pumping costs.

Installation Technology
Zero-Leakage Electrofusion/Thermal Fusion
- Automated butt welding
- Trenchless installation
- Freeze-thaw bending radius: 25×OD

Pressure Rating
PN4-PN20 Full Range
- Standard Dimension Ratio: SDR9-SDR41
- Pressure test: 1.5× working pressure for 100hr
- 50-year hydrostatic strength at 20°C: ≥10 MPa

Applications
Municipal/Industrial/Mining Solutions
- Potable water systems (AWWA C901/C906)
- Mine tailings transport (abrasion class ≥L)
- UV-stabilized irrigation pipes
- Firefighting networks (FM approved)
