Slurry Conveying Wear-Resistant Excellent Hydraulic Performance Reliable Connection Dfps PE HDPE Com
Detailed specification for Slurry Conveying Wear-Resistant Excellent Hydraulic Performance Reliable Connection Dfps PE HDPE Com
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | DF- SRCP- DC |
| Colour | Black/White/Custom Colors |
| Diameter Speicifcation | DN50-630mm |
| Max Nominal Pressure | 12MPa |
| Oxidation Induction Time | ≥40min |
| Melt Flow Rate(Mfr) | ≤20% |
| Resistant to Slow Crack Growth | 80℃,500h,No Crack ; No Leakage |
| Srcp Use | Tailing, Municipal, Chemical |
| Transport Package | Bundled Package; End Cap Protected |
| Trademark | DFPS |
| Origin | China |
| HS Code | 391739 |
| Production Capacity | 500000 Kilometers /Year |
Ultra-High Pressure Resistance (Inheriting Steel Pipe Strength): Designed to withstand pressures up to 15 MPa (150 bar).
Wear- and Corrosion-Resistant (Modified PE Matrix): Excellent resistance to abrasion, acids, and alkalis with zero maintenance requirements.
Hygienic & Safe: Compliant with standards for drinking water and industrial media transportation.
Flexible & Easy to Install: Lightweight per meter, easy to transport on-site, adaptable to complex terrains, and highly efficient to install.
Long Service Life: Engineered for 50+ years of stable operation.
Convenient Maintenance: Outstanding flexibility allows flatten-and-recover repair, enabling quick restoration after water cut-off. Lower Total Lifecycle Cost: Reduced maintenance requirements and extended service life result in significantly lower overall cost compared to metal pipelines.
1. Dia: DN50-630mm(1 1/2 inch-24.8 inch).
2. Pressure Class: SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4 (more specs available upon request)
3. Pressure Class: PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN30, PN35 PN40 PN50 PN60 PN68 ~PN120
4. Pressure Class: PSI 87.0226 ~ PSI 1740.45
5. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
6. Delivery: 5-10 days depending on the total quantity.
7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.
Dongfang Pipeline is China's first manufacturer of SRCP (Steel Wire Reinforced PE Composite Pipe) with over 27 years of expertise in composite pipeline technology. As a national standard drafting company, we lead the industry in product quality and technical capability.
We supply a complete system of pipes, fittings and high–medium–low pressure connections, providing reliable solutions for municipal water supply, firefighting networks, mining slurry, industrial fluids, trenchless construction and more.
With strong corrosion resistance, high pressure performance and long service life, our products offer a superior alternative to traditional steel and concrete pipelines—delivering stable quality, fast delivery and professional support for global customers.

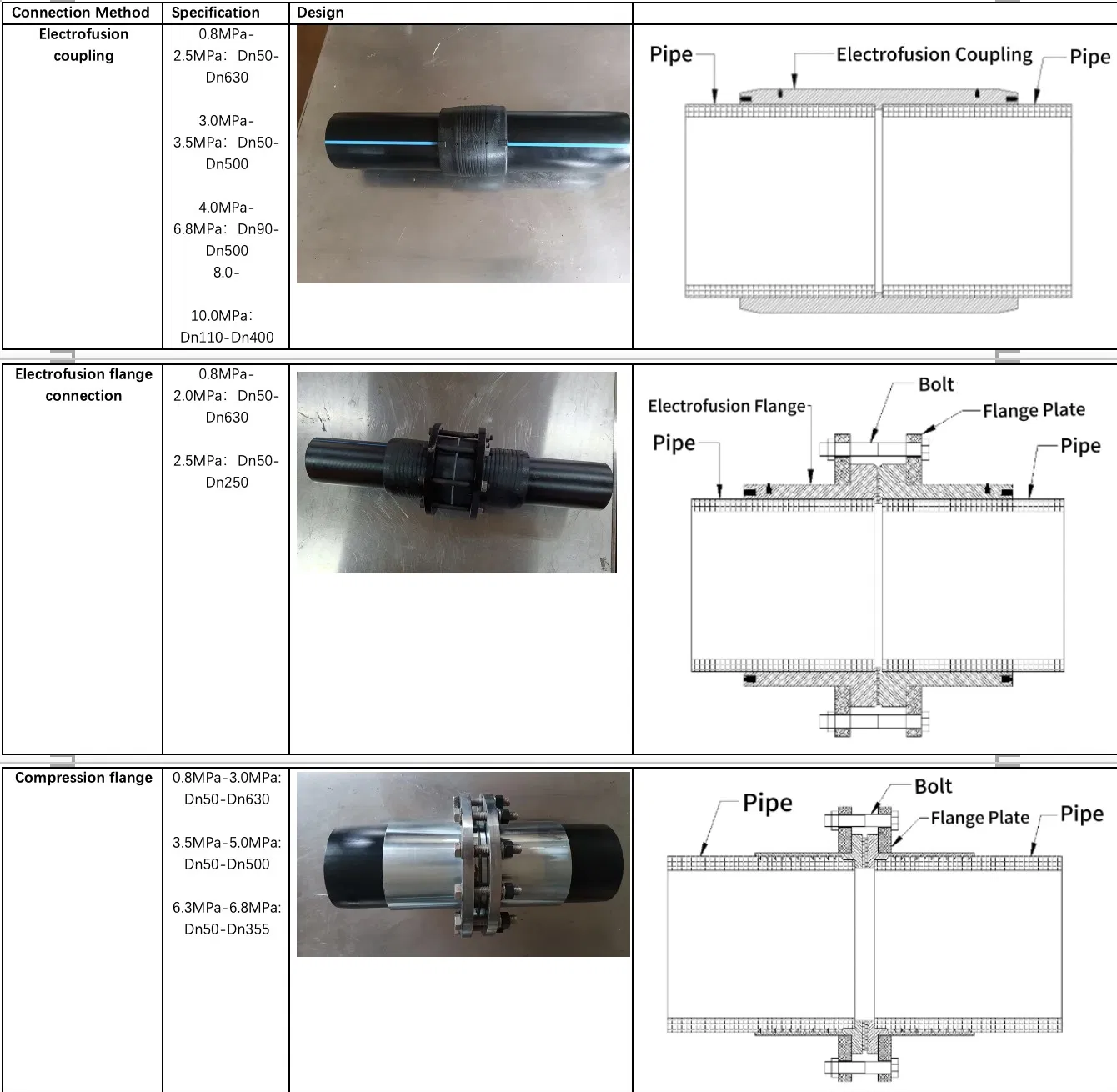

Connection Methods
Check buyer reviews and ratings to quickly assess product quality and service experience.
Accurate specifications, smooth surface finish, and secure packaging. Fast response and quick dispatch.
Stable tolerances and good batch consistency. Shipping was a bit slow, but support followed up promptly.
We ordered after sample approval, and the delivered goods matched the sample. Great value and we will reorder.
Documentation in English was complete and easy for overseas coordination. Suggest adding more testing reports.
Plenty of stock, reliable lead times, and quick after-sales response. Overall a great cooperation experience.
Transparent pricing and reasonable MOQ, suitable for project-based sourcing. Please add more application cases.
