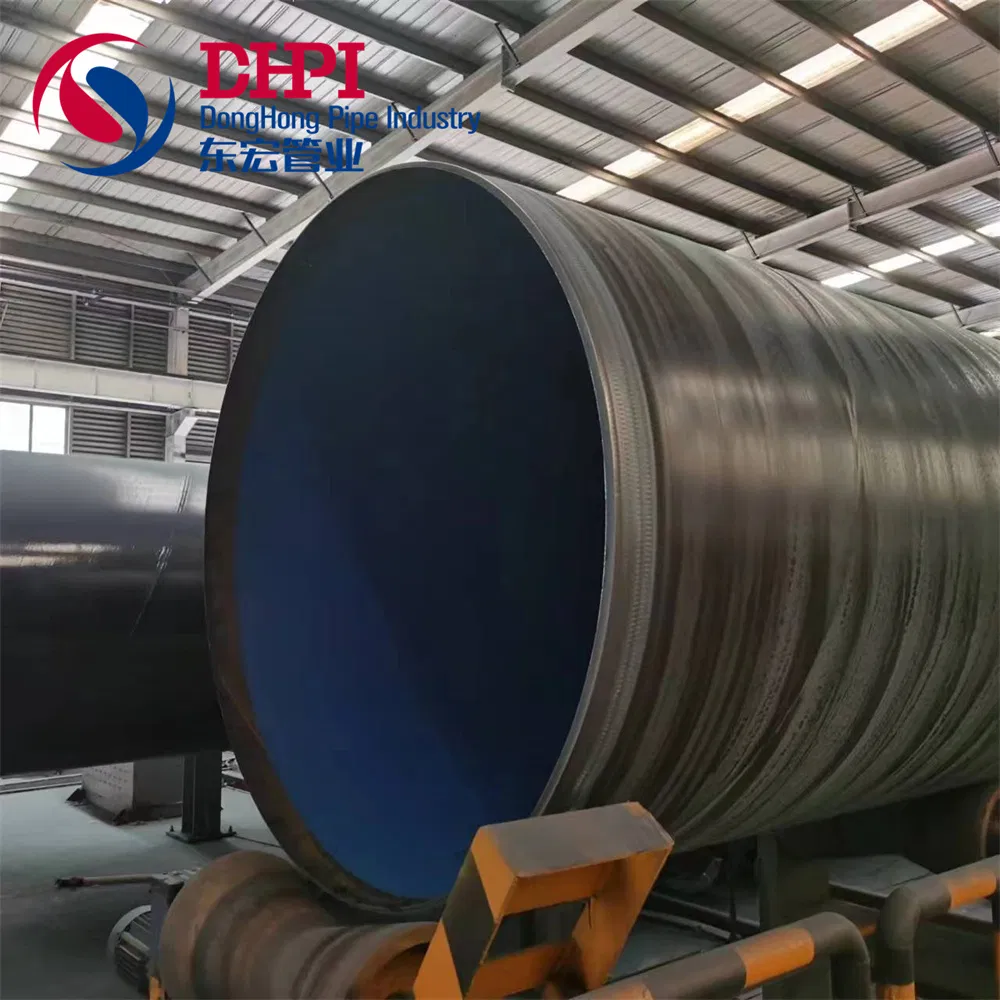

Factory Price API5l Carbon Steel Welded Pipe with 3PE/3lpe/Tpep Coating for Petroleum Pipeline Secur

Hot Selling Pipes Steel Wire Reinforced PE Composite Pipe Fiberglass Steel Wire Reinforced Composite Pipe HDPE Pipe PVC Pipe Antistaic Flame Redartant Composite Pipe for Mining Anti-corrosion Composite Pipe Thermal Insulated Pipe Big Carliber Composite Steel Pipe

Product Description

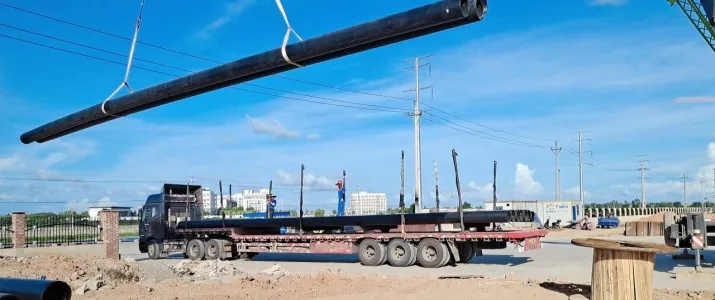

Transportation: Pipes are indispensable for the efficient long-distance transportation of oil, gas, and a variety of other essential commodities. Large-diameter transmission pipelines are critical in transferring crude oil, natural gas, and refined products from their production origins to refineries, processing facilities, and key distribution hubs.

Epoxy & Plastic Coated Anti-Corrosion Steel Pipe: Engineered to withstand diverse working conditions, these adaptable pipes can be customized with an array of robust anticorrosive solutions. Ideal for buried installations, trenchless traction, pipe jacking, and open-air applications, available anticorrosion solutions include:
- Buried: Inner epoxy with outer PE, inner epoxy with outer 3PE, inner epoxy with outer 3PP, and fully coated with inner & outer epoxy.
- Pipe Jacking: Inner epoxy with outer 3PE, inner epoxy with outer 3PP, and inner epoxy complemented by double-layer epoxy.
- Trenchless Traction: Inner epoxy paired with outer 3PE, inner epoxy paired with outer 3PP, and inner epoxy paired with double-layer epoxy.
- Open-Air Application: Inner epoxy with an outer anti-UV coating.

Inner Epoxy Resin Outer Polyethylene Coating Composite Steel Pipe: This meticulously pre-treated steel pipe boasts an inner surface shielded with fusion-bonded epoxy powder and an outer surface fortified with polyethylene powder. The outcome is a high-performance, corrosion-resistant steel-plastic composite product.

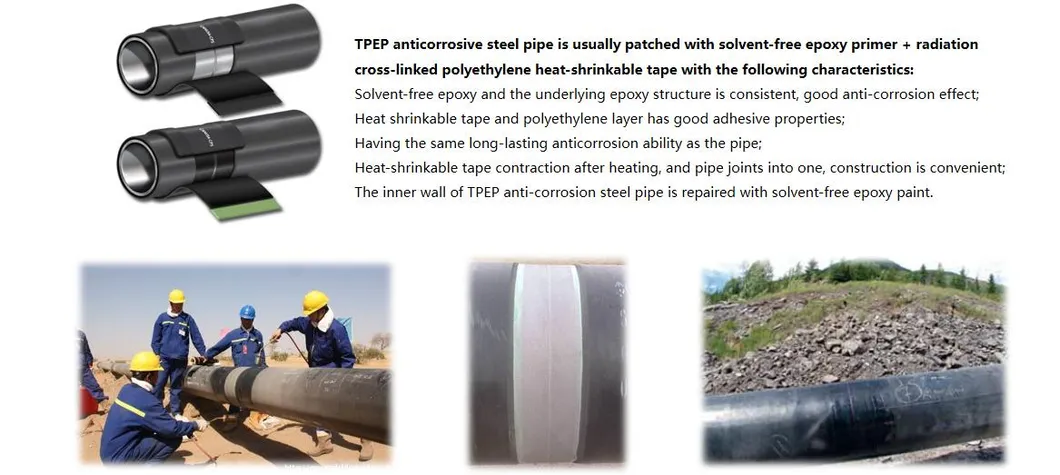

Connection Method

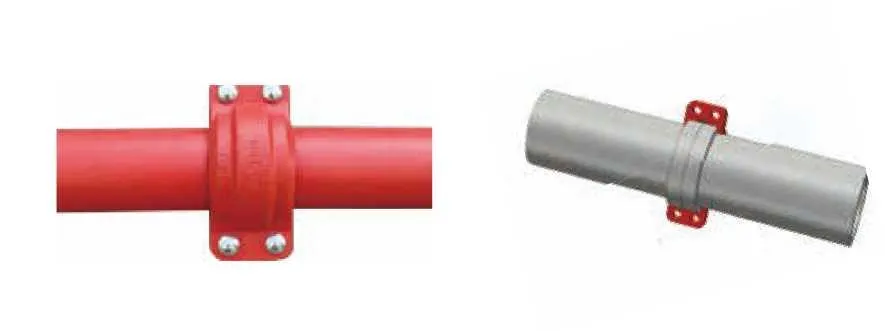

Clamp Connection Flange Connection

Product Features

Enjoy unmatched compatibility and convenience with our seamless connection method.
Our double-layer epoxy coating, crafted with premium epoxy resin, guarantees exceptional inner and outer layer compatibility. Our patented, solvent-free epoxy coating delivers unparalleled compatibility and superior corrosion resistance.

Optimal Cathodic Protection
Our double-layer epoxy coating integrates flawlessly with cathodic protection systems, ensuring no interference and peak performance.

Impressive Flexibility and Bending Resistance
Formulated with high molecular weight epoxy resin, our coating material offers outstanding flexibility and remarkable bending resistance.

Durable Scratch Resistance
Our outer layer features a modified epoxy coating fortified with specialized scratch-resistant materials, ensuring excellent scratch protection.

Exceptional High Temperature Resistance
Our double-layer epoxy anticorrosive steel pipes withstand temperatures up to 110ºC, maintaining structural integrity under high heat conditions.

Product Advantages

1. Our pipeline series ranges from DN50 to DN3600 calibers, with lengths spanning from 6 to 16 meters.
2. We operate 2 state-of-the-art powder coating production lines and 12 twin-screw extruders, showcasing advanced R&D in powder coating and polyethylene material modification.

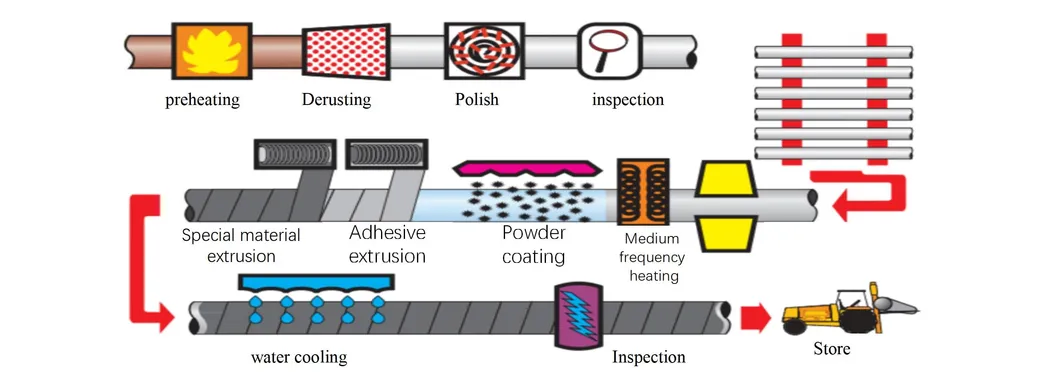

3. As pioneers in various powder anticorrosion processes, we offer an array of techniques including suction coating, spraying, rolling coating, and dip coating.
4. Unique in the country, we merge large-caliber steel pipe production, anti-corrosion processing, and anti-corrosion material manufacturing within a single enterprise.
5. Our socket-type anti-corrosion steel ensures maximum safety and reliability.

Product Specification

Nominal Diameter/ mm Inner Coating Layer /mm Outer coating layer,mm Ordinary level Strengthen level DN ≤65 >0.3 >0.6 >0.8 65≤DN≤150 >0.35 >0.8 >1.0 150≤DN≤300 >0.35 >0.8 >1.2 300≤DN≤800 >0.4 >1.0 >1.3 800≤DN≤1200 >0.45 >1.2 >1.8 1200≤DN≤3600 >0.45 >1.5 >1.8 Note: can be customized as customer's needs.

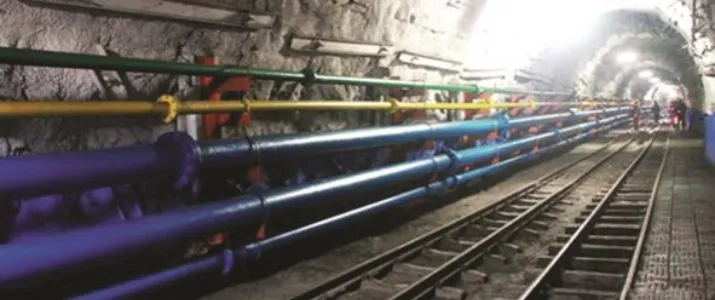

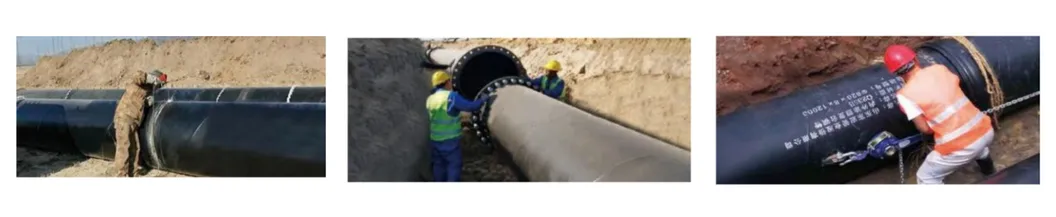

Appliation Cases

Certifications
