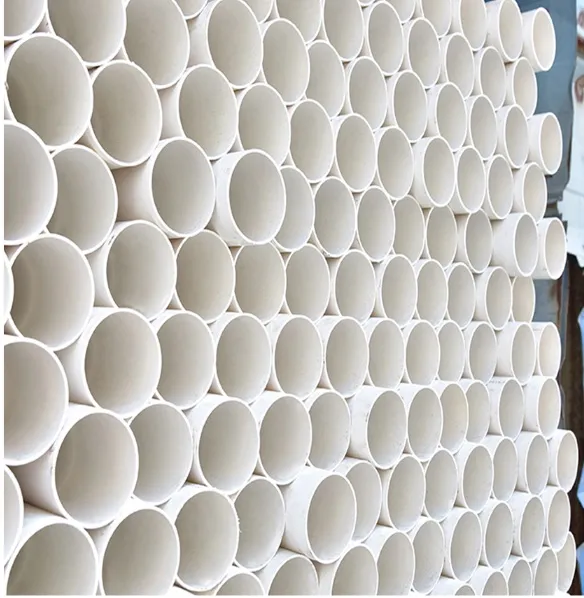

2019 DIN/UPVC/CPVC/PPR Pipes for Water Supply with Cheap Factory Price
Detailed specification for 2019 DIN/UPVC/CPVC/PPR Pipes for Water Supply with Cheap Factory Price
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | as request |
| Type | Thermoplastic Pipe |
| Color | Customrized |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe |
| Materials | Ploythene |
| Pipe Usage Name | Inlet Pipe |
| Work Pressure | 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2.0 MPa, |
| Keyword | Plastic PVC Pipe |
| Application Ways | Sewage |
| Diameter | DN20-1000mm |
| Length | 4m 6m/ 12m or as Required |
| Thickness | 2mm to 40mm |
| Certifiation | ISO CE IAF |
| Application | Conveying Water |
| Process | Moulding, Cutting |
| Packages | Plastic Film |
| Brand | OEM |
| Temperature | 0-95 Degree |
| Usages | Corrosion Resistant |
| Transport Package | in Bundling |
| Specification | 80mm to 400mm |
| Trademark | ali-steel |
| Origin | China |
Product Name
Factory Outlet Large Diameter 315mm 350mm 400mm 600mm 630mm PVC Plastic Pipe Price
Material
Polyvinyl chloride
Color
White Grey or customized
Standard
GB/T 5836.1-2006
Length
4m 6m or as required
Feature
corrosion resistance and pressure resistance
Application
Water supply, irrigation and drainage
(DIN Standard,DIN8061,DIN 8062 )UPVC Pressure pipe for water supply PVC Pipe Drinking Water
nominal outside diameter dn
S series SDR series and nominal pressure
S16
S12.5
S10
S8
S6.3
S5
S4
SDR33
SDR26
SDR21
SDR17
SDR13.6
SDR11
SDR9
PN0.63
PN0.8
PN1.0
PN1.25
PN1.6
PN2.0
PN2.5
nominal wall thickness en
20
-
-
-
-
-
2.0
2.3
25
-
-
-
-
2.0
2.3
2.8
32
-
-
-
2.0
2.4
2.9
3.6
40
-
-
2.0
2.4
3.0
3.7
4.5
50
-
2.0
2.4
3.0
3.7
4.6
5.6
63
2.0
2.5
3.0
3.8
4.7
5.8
7.1
75
2.3
2.9
3.6
4.5
5.6
6.9
8.4
90
2.8
3.5
4.3
5.4
6.7
8.2
10.1
110
2.7
3.4
4.2
5.3
6.6
8.1
10.0
125
3.1
3.9
4.8
6.0
7.4
9.2
11.4
140
3.5
4.3
5.4
6.7
8.3
10.3
12.7
160
4.0
4.9
6.2
7.7
9.5
11.8
14.6
180
4.4
5.5
6.9
8.6
10.7
13.3
16.4
200
4.9
6.2
7.7
9.6
11.9
14.7
18.2
225
5.5
6.9
8.6
10.8
13.4
16.6
-
250
6.2
7.7
9.6
11.9
14.8
18.4
-
280
6.9
8.6
10.7
13.4
16.6
20.6
-
315
7.7
9.7
12.1
15.0
18.7
23.2
-
355
8.7
10.9
13.6
16.9
21.1
26.1
-
400
9.8
12.3
15.3
19.1
23.7
29.4
-
450
11.0
13.8
17.2
21.5
26.7
33.1
-
500
12.3
15.3
19.1
23.9
29.7
36.8
-
560
13.7
17.2
21.4
26.7
-
-
-
630
15.4
19.3
24.1
30.0
-
-
-
710
17.4
21.8
27.2
-
-
-
-
800
19.6
24.5
30.6
-
-
-
-
900
22.0
27.6
-
-
-
-
-
1000
24.5
30.6
-
-
-
-
-
Note:Nominal wall thickness en will be subject to design stress σS12.5MPa
PVC pipes advantage
1) PVC pipe is low in wasted energy, it's 70 KJ/m3, steel is more than 4.5 times than PVC. It's fit the philosophy that advocating green earth and energy conservation.
2)Inside of PVC pipe is smooth, water rate is 0.009 faster than rough factor, but lower than other
material pipe. It can save about 20% electricity by using transfusion.
3) PVC pipe has good function of mechanics and stands corrosive nature, light and easy to install, don't need to maintain. The
usage life for at least 50 years, it's about 2.5 time than metal pipe.
4) PVC pipe can save 16-37% in installation and service fee than iron pipe. As conduit can save 30-33% than metal conduit. Using
in hot and cold water, can save 23-44% that use the same size of brass pipe.
5) Water dissolve teat approves that PVC pipe can not affect the water quality; it's the best choice for the water..
