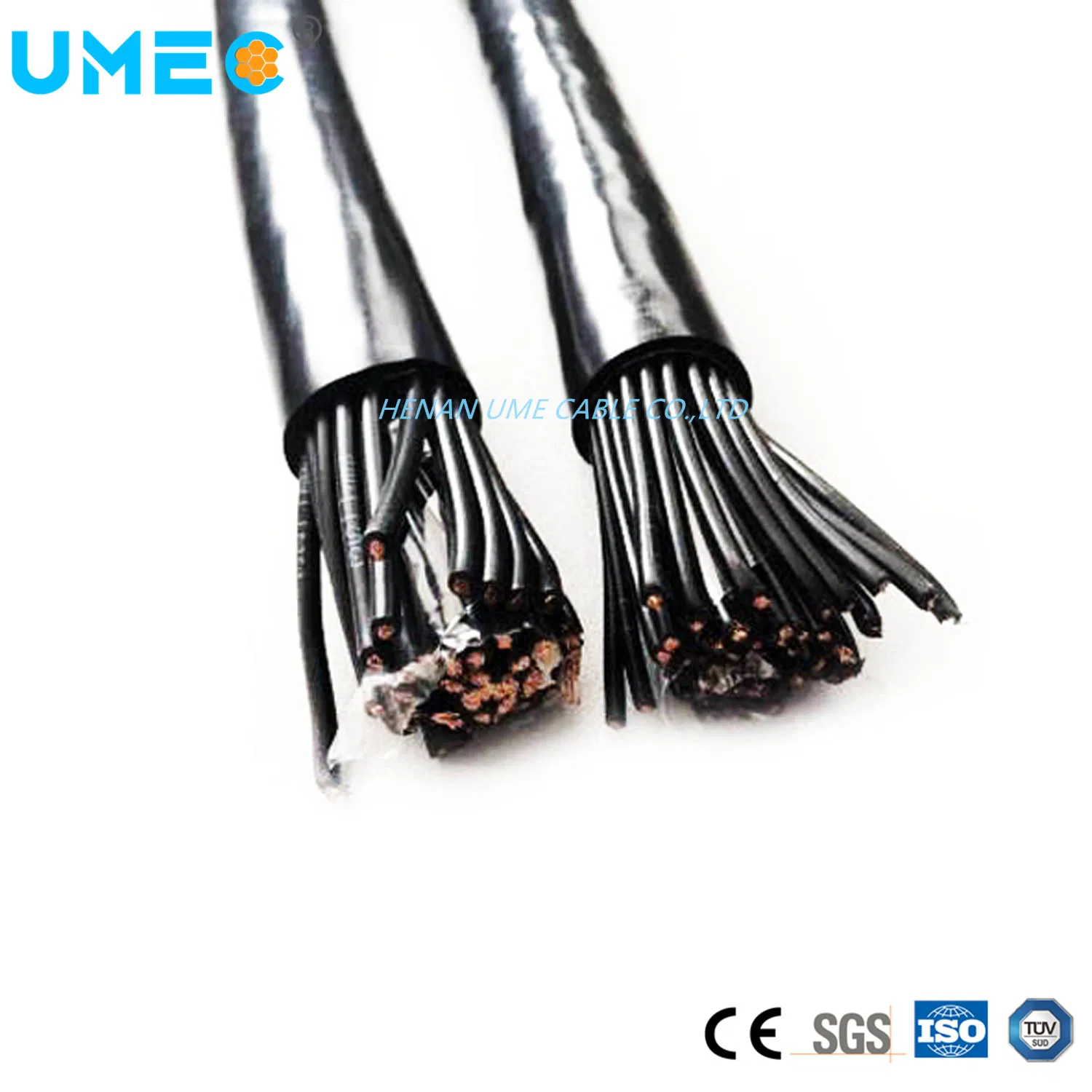

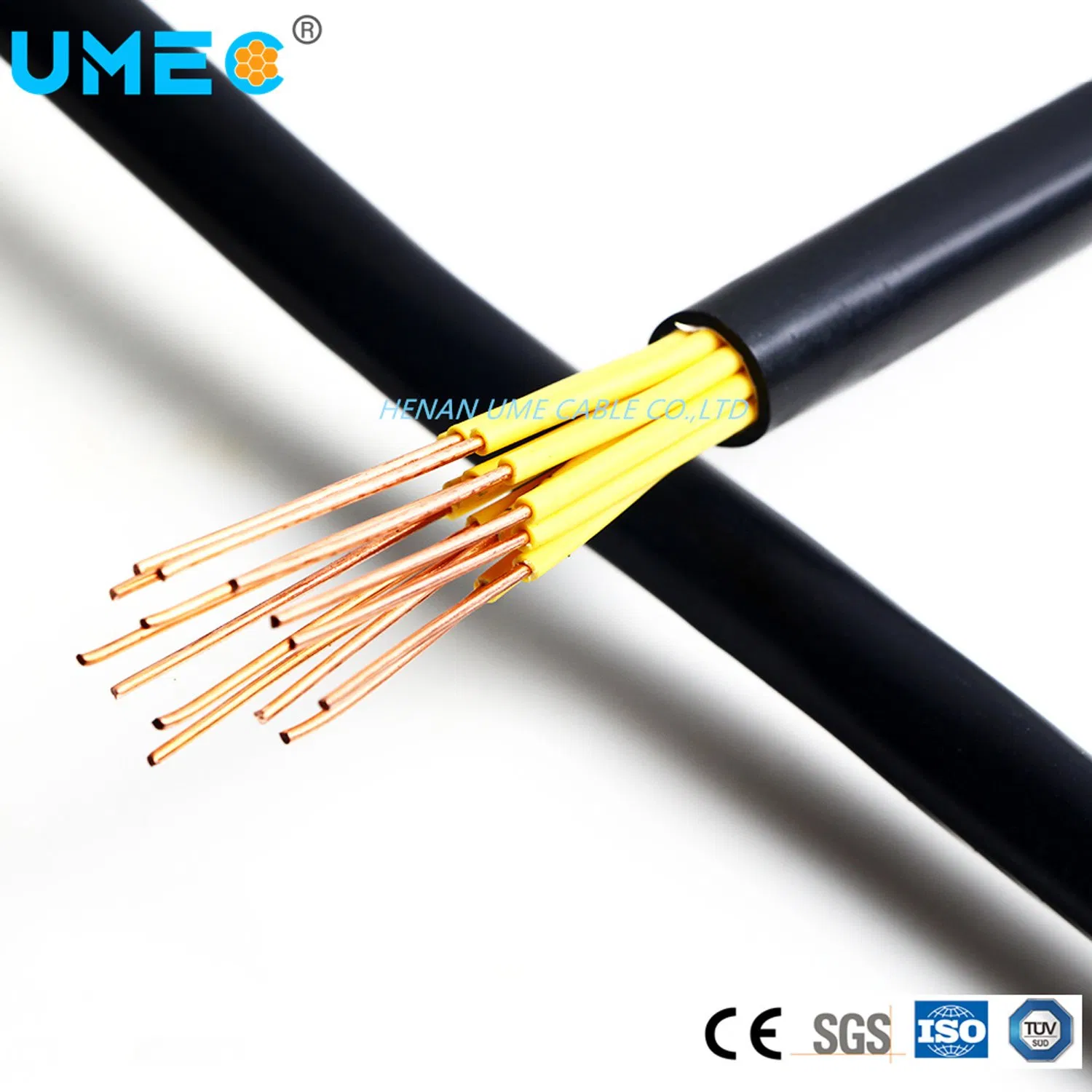

Kvv/Kvvp/Kvvp2/Kvv22/Kvv32/Kvvr/Kvvrp Control Cable

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Application

It is used for supervising and controlling return circuit and protective circuit of A.C rated voltage of 450/750V or lower. To be laid indoor with demand on shielding and softness.

2. Working Condition

1: Long term working temperature of conductor allowed by cable is 70ºC.

2: Environment temperature for installation is no less than 0ºC.

Min. bending radius of cable is no less than 6 times that of cable OD for cable without armoring, 12 times for cable with armoring or metallic tape shielding and 6 times for soft cable with shielding structure.

3. Standard

GB9330-88

Type Designation Main applications KVV/KYJV Copper conductor PVC/XLPE insulated PVC sheathed control cable For fixed-laying indoors, in cable duct or conduit KVVP/KYJVP Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable For fixed-laying indoors, in cable duct or conduit upon screen requirement KVVP2/KYJVP2 Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable For fixed-laying indoors, in cable duct or conduit upon screen requirement KVV22/KYJV22 Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces KVV32/KYJV32 Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces KVVR/KYJVR Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable For laying indoors upon moveable requirement KVVRP/KYJVRP Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable For laying indoors upon moveable and screen requirement

  Type Rated voltage V Nominal cross-section of conductor(mm2) 0.5 0.75 1.0 1.5 2.5 4 6 10 No. of cores KVV/KYJV
KVVP/KYJVP 450/750   2~61 2~14 2~10 KVVP2/KYJVP2   4~61 4~14 4~10 KVV22/KYJV22   7~61 4~61 4~14 4~10 KVV32/KYJV32   19~61 7~61 4~14 4~10 KVVR/KYJVR 4~61     KVVRP/KYJVRP 4~61 4~48

No.×Nom. cross-section mm2 Largest diameter of cables Calculated weight of cables(kg/km) KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP 2×0.75 8.0 9.3 - - - - - 72 114 - - - - - 2×1.0 8.3 9.6 - - - - - 81 124 - - - - - 2×1.5 9.3 10.6 - - - - - 109 157 - - - - - 2×2.5 10.8 11.9 - - - - - 154 201 - - - - - 2×4 11.8 13.9 - - - - - 187 346 - - - - - 2×6 13.0 15.0 - - - - - 241 351 - - - - - 2×10 16.3 17.8 - - - - - 391 502 - - - - - 2×0.75 8.3 9.6 - - - - - 87 130 - - - - - 3×1.0 8.8 10.0 - - - - - 98 143 - - - - - 3×1.5 9.9 11.1 - - - - - 127 177 - - - - - 3×2.5 11.3 12.6 - - - - - 181 238 - - - - - 3×4 12.5 14.5 - - - - - 234 347 - - - - - 3×6 13.3 15.8 - - - - - 329 470 - - - - - 3×10 17.3 18.7 - - - - - 511 632 - - - - - 4×0.5 - - - - - 8.7 9.9   153 - - - 96 141 4×0.75 9.1 10.3 9.2 - - 9.3 10.5 104 163 144 - - 114 164 4×1.0 9.5 10.7 9.6 - - 9.6 10.8 119 203 153 - - 123 179 4×1.5 10.7 11.9 10.7 - - 10.9 12.1 156 330 192 - - 158 210 4×2.5 12.4 14.4 12.9 - - 12.5 14.6 226 436 276 - - 228 336 4×4 14.3 15.7 14.0 16.5 19.6 - - 315 530 367 505 856 - - 4×6 15.6 17.0 15.2 17.8 20.2 - - 413 768 467 619 995 - - 4×10 18.9 20.8 19.8 22.4 25.8 - - 644 - 728 947 1584 - - 5×0.5 - - - - - 9.3 10.5 - 162   - - 108 164 5×0.75 9.8 11.0 9.9 - - 10.0 11.2 119 193 152 - - 122 174 5×1.0 10.2 11.4 10.3 - - 10.4 11.6 142 248 174 - - 148 208 5×1.5 11.6 12.8 12.23 - - 11.9 13.1 190 390 226 - - 200 267 5×2.5 14.1 15.5 13.91 - - 14.3 15.7 290 501 325 - - 296 399 5×3 15.5 16.9 15.18 17.6 20.8 - - 383 626 427 586 962 - - 5×6 17.0 18.4 16.55 19.5 22.2 - - 505   567 737 1130 - - 5×10 21.8 22.6 22.2 24.1 27.6 - - 830 986 924 1125 1814 - - 7×0.5 - - - - - 10.0 11.2 - - - - - 118 164 7×0.75 10.5 11.7 10.5 13.7 - 10.8 12.0 146 202 178 317 - 149 218 7×1.0 11.0 12.2 11.0 14.2 - 11.2 12.4 169 216 209 354 - 172 224 7×1.5 12.5 14.4 13.1 15.6 17.6 12.8 14.7 225 330 289 425 712 233 338 7×2.5 15.3 16.7 14.9 17.5 20.6 15.4 16.8 353 471 398 554 923 359 482 7×4 16.8 18.2 16.3 18.9 22.0 - - 473 601 527 701 1108 - - 7×6 18.5 19.9 17.9 20.9 24.3 - - 652 789 717 900 1484 - - 7×10 23.6 24.2 24.1 28.0 29.5 - - 1082 1216 1145 1397 2140 - - 8×0.5 - - - - - 10.5 11.7 - - - - - 126 174 8×0.75 11.0 12.2 11.7 14.3 - 11.3 12.5 166 217 206 344 - 174 229 8×1.0 11.6 13.5 12.2 14.8 - 11.8 13.6 193 243 230 378 - 196 254 8×1.5 13.9 15.3 13.7 16.3 19.4 14.2 15.6 277 387 312 467 811 285 393 8×2.5 16.1 17.5 15.7 18.3 21.4 16.3 17.7 405 524 486 614 1002 412 536 8×4 17.8 19.6 17.7 20.2 23.7 - - 545 681 589 789 1354 - - 8×6 20.1 21.5 19.3 21.9 25.4 - - 748 898 792 989 160 - - 8×10 25.1 26.1 25.5 27.5 30.9 - - 1210 1386 1236 1542 2332 - - 10×0.5 - - - - - 12.2 14.1 - - - - - 147 194 10×0.75 12.9 15.0 13.5 16.0 - 13.3 15.3 205 300 214 - - 216 310 10×1.0 14.3 15.7 14.1 16.7 - 14.5 15.9 256 368 300 449 - 269 386 10×1.5 16.3 17.7 16.0 18.5 21.6 16.7 18.1 340 456 387 558 957 352 472 10×2.5 19.1 20.5 18.9 21.5 24.9 19.3 20.7 500 636 572 753 1362 516 647 10×4 22.1 22.9 21.4 23.3 26.8 - - 721 863 787 956 1618 - - 10×6 24.4 25.4 23.4 25.4 28.8 - - 956 1108 992 1203 1931 - - 10×10 29.9 30.9 30.3 33.0 37.9 - - 1523 1648 1590 - 3160 - - 12×0.5 - - - - - 12.6 14.4 - - - - - 176 224 12×0.75 13.9 15.3 13.8 16.4 - 14.3 15.7 240 345 301 - - 252 356 12×1.0 14.7 16.1 14.5 17.0 - 14.9 16.3 289 396 312 485 - 295 403 12×1.5 16.7 18.1 16.4 19.0 22.1 17.2 18.6 386 498 423 609 1018 394 512 12×2.5 19.6 21.5 19.5 22.0 25.5 20.5 21.7 572 703 654 829 1455 581 712 12×4 22.8 23.6 22.0 24.0 27.4 - - 825 970 887 1061 1744 - - 12×6 25.2 26.2 24.1 26.1 29.5 - - 1102 1276 1189 1356 2100 - - 14×0.5 - - - - - 13.2 15.2 - - - - - 198 246 14×0.75 14.6 16.0 14.4 17.0 - 15.0 16.4 285 396 312 - - 296 408 14×1.0 15.4 16.8 15.1 17.7 - 15.6 17.0 321 443 398 530 - 333 457 14×1.5 17.5 18.9 17.2 20.2 23.6 18.0 19.7 432 550 492 684 1248 445 564 14×2.5 21.2 22.5 20.4 22.9 26.0 21.5 22.7 670 800 721 913 1563 683 814 14×4 23.9 24.7 23.0 25.0 28.5 - - 929 1078 973 1171 1888 - - 14×6 26.4 27.4 25.3 27.2 30.7 - - 1246 1300 1203 1508 2290 - - 16×0.5 - - - - - 14.5 15.9 - - - - - 246 291 16×0.75 15.3 16.7 15.1 17.6 - 15.7 17.1 312 423 400 - - 323 441 16×1.0 16.1 17.5 15.8 18.4 - 16.4 17.8 359 469 389 576 - 373 487 16×1.5 18.4 19.8 18.0 21.0 24.5 18.9 20.3 485 596 489 745 1337 496 614 16×2.5 22.8 23.6 22.0 23.9 27.4 23.0 23.8 775 880 789 1005 1687 787 892 19×0.5 - - - - - 15.2 16.6 - - - - - 287 346 19×0.75 16.0 17.4 15.8 18.3 21.4 16.5 17.9 347 456 386 - 637 359 473 19×1.0 16.9 18.3 16.6 19.5 22.2 17.2 18.6 408 517 413 645 1039 421 529 19×1.5 19.4 21.2 19.3 21.9 25.4 20.5 21.7 533 674 612 824 1442 564 696 19×2.5 23.9 24.7 23.0 25.0 28.5 24.2 25.0 1053 1053 986 1119 1834 898 1069 24×0.5 - - - - - 17.4 18.8 - - - - - 327 396 24×0.75 18.4 19.8 18.0 21.0 24.5 19.0 20.4 400 523 476 - 1021 414 536 24×1.0 19.5 21.4 19.4 22.0 25.5 19.8 21.7 510 634 580 776 1401 516 656 24×1.5 23.5 24.3 22.9 24.8 28.3 24.2 25.0 744 866 792 1001 1709 759 884 24×2.5 27.7 28.7 26.6 28.5 32.0 28.1 29.1 1110 1258 1179 1376 2199 1128 1279 27×0.5 - - - - - 17.8 19.2 - - - - - 359 489 27×0.75 18.8 20.2 18.8 21.4 24.8 19.4 20.8 476 600 503 - 1180 492 634 27×1.0 20.5 21.8 19.8 22.4 25.8 20.8 22.1 578 713 612 821 1458 596 737 27×1.5 24.0 24.8 23.3 25.3 28.7 24.6 25.4 807 957 886 1063 1788 824 983 27×2.5 28.3 29.3 27.1 29.1 32.5 28.6 29.6 1209 1359 1286 1480 2316 1225 1378 30×0.5 - - - - - 18.4 19.8 - - - - - 396 554 30×0.75 19.4 21.3 19.4 22.0 25.4 20.6 21.9 523 635 600 - 1240 539 658 30×1.0 21.6 22.4 20.5 23.0 26.5 22.0 22.8 651 786 725 883 1536 667 799 30×1.5 24.8 25.8 24.1 26.0 29.5 25.5 26.5 882 1093 891 1150 1893 897 1123 30×2.5 29.3 30.3 28.1 30.8 35.6 29.7 30.7 1327 1473 1384 1808 2851 1343 1496 37×0.5 - - - - - 19.7 21.5 - - - - - 470 594 37×0.75 21.9 22.7 21.4 23.3 26.8 22.5 23.3 600 704 588 - 1398 616 731 37×1.0 23.2 24.0 22.5 24.4 27.9 23.5 24.3 771 912 887 1013 1710 792 945 37×1.5 26.4 27.6 25.8 27.7 31.2 27.4 28.4 1050 1196 1105 1331 2127 1072 1224 37×2.5 31.5 33.2 30.8 33.5 37.6 31.9 33.6 1591 1741 1681 2139 3213 1612 1768 44×0.5 - - - - - 22.4 23.8 - - - - - 540 620 44×0.75 24.3 25.3 23.7 25.6 29.1 25.1 26.1 745 887 809 - 1576 764 908 44×1.0 25.8 27.0 24.9 26.9 30.4 26.2 27.2 915 1035 987 1184 1952 938 1076 44×1.5 29.7 30.7 28.7 32.1 36.2 30.6 31.6 1251 1394 1315 1817 2838 1274 1421 44×2.5 36.0 37.2 34.3 37.5 41.2 36.4 37.6 1950 2100 2018 2532 3699 1974 2128 48×0.5 - - - - - 23.3 24.1 - - - - - 598 686 48×0.75 24.7 25.7 24.0 26.0 29.4 25.4 26.4 832 927 887 - 1789 854 958 48×1.0 26.2 27.2 25.3 27.3 30.7 26.6 27.6 967 1097 1023 1236 2018 986 1118 48×1.5 30.2 31.2 29.2 32.6 36.7 31.1 32.1 1326 1487 1397 1890 2935 1352 1508 48×2.5 36.5 37.2 34.9 38.1 41.6 37.0 38.2 2070 2147 2097 2662 3843 2094 2178 52×0.5 - - - - - 23.9 24.7 - - - - - 634 763 52×0.75 25.3 26.3 24.6 26.6 30.0 26.1 27.1 898 1009 935   1920 912 1034 52×1.0 26.9 27.9 26.0 27.9 31.4 27.3 28.3 1035 1187 1113 1305 2109 1056 1214 52×1.5 31.0 32.6 30.6 33.3 36.3 31.9 - 1420 1578 1493 1997 3068 1449 - 52×2.5 37.5 39.2 35.8 39.0 41.5 38.0 - 222 2396 2298 2819 4032 2249 - 61×0.5 - - - - - 25.2 26.2 - - - - - 689 812 61×0.75 26.8 27.8 26.0 27.9 31.4 27.6 28.6 967 1087 1025 - 2084 991 1109 61×1.0 28.4 29.4 27.4 29.3 32.8 28.8 29.8 1186 1316 1256 1470 2314 1209 1348 61×1.5 33.5 34.7 32.3 35.0 39.1 34.4 - 1680 1837 1745 2241 3366 1698 - 61×2.5 40.2 41.4 37.9 41.1 43.6 40.7 - 2599 2749 2599 3175 4461 2612 -

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

     Production:

• Raw material inspection and test
• Production process test
• Unqualified product control
• Regular test and examination
• Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.
