IMC Galvanized Steel Tube

Mar 19, 2026
Expand all
IMC Galvanized Steel Tube
Surface TreatmentGalvanisedApplicationOptionalMaterialCarbon SteelCertificationULSize1/2quot;-4quot;UsageWire and Cable



« Previous


IMC Galvanized Steel Tube IMC Galvanized Steel Tube IMC Galvanized Steel Tube IMC Galvanized Steel Tube



Next »


Seller Products Visit Homepage >
Steel EMT Tube

$1.22/ Pieces View details

IMC Galvanized Steel Tube

$2.58/ Pieces View details

EMT Conduit UL Electrical Conduit

$0.85/ Pieces View details

Waterproof PVC Coated Flexible Cor

$0.85/ Pieces View details

Waterproof PVC Coated Flexible Cor

$0.85/ Pieces View details

Send your message to this supplier

Include product specification, quantity, destination port and packing needs to receive a faster and more accurate quotation.

LONWOW INDUSTRY CO., LTD.
Available today 30 times  |  Sent times  |  Remaining times
Surface Treatment Galvanised
Application Optional
Material Carbon Steel
Certification UL
Size 1/2"-4"
Usage Wire and Cable Protection
Type Round Conduit for Protect Cable or Wire
Customized Customized
Secondary or Not Non-Secondary
Technique Cold Rolled
Grade Q195,Q195-Q345
Outer Diameter 20.7mm-113.4mm
Length 3.05m
Section Shape Round
Transport Package Carton, Wooden Box
Specification CE, ISO
Trademark Lonwow
Origin China
HS Code 73063090
Production Capacity 3000 Ton/Tons Per Month

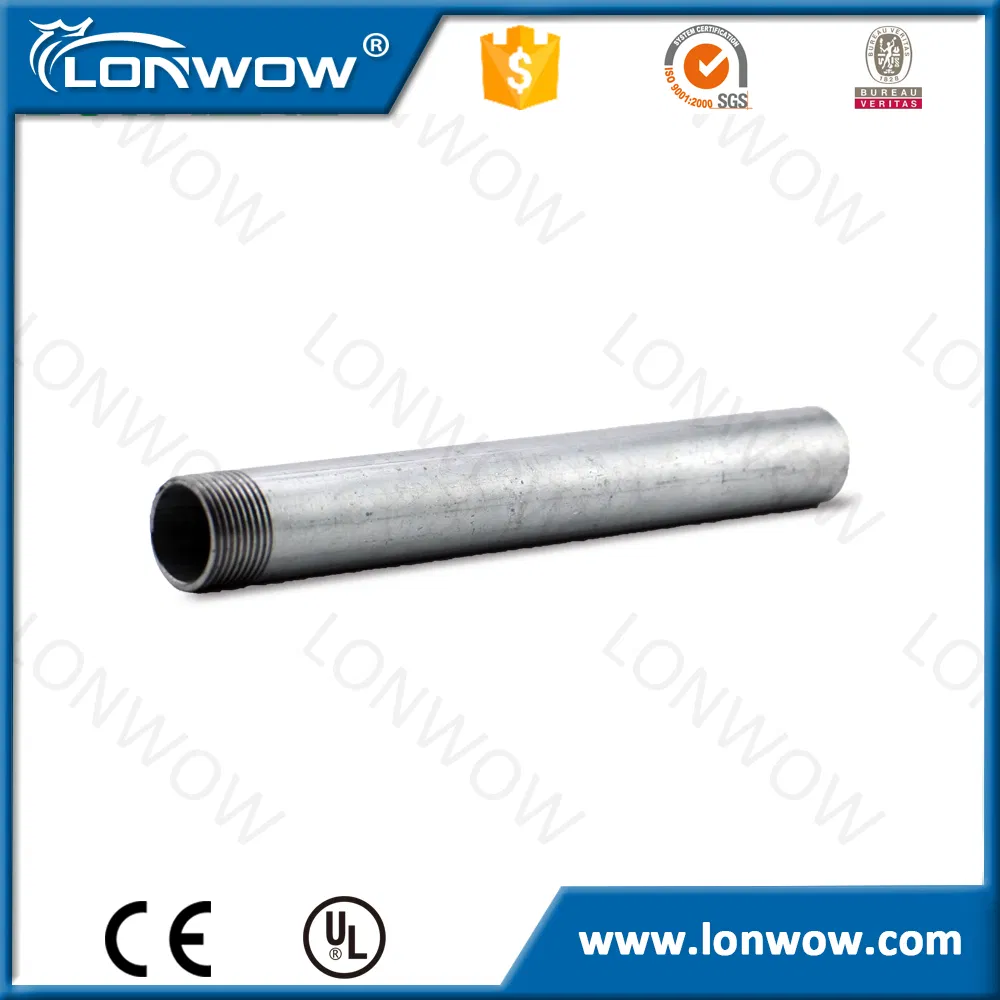

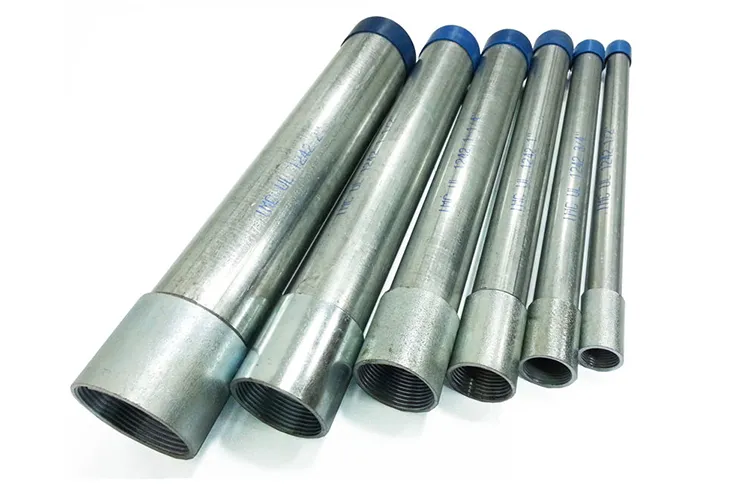

Product description IMC Galvanized Steel Tube Intermediate Metal Conduit(IMC conduit) is manufactured from pre-galvanized plate rolling. Featured by zinc coat, good surface finish, smooth surface both inside and outside of the conduit, free from black spots and bubbles, strong corrosion resistance and long time. It is applied in all severe environments and provides good protection for the electrical raceway system. Application IMC Galvanized Steel Tube Common size IMC(Intermediate Metal Conduit) Dimensions and Weights Nominal DimensionOutside DiameterWall ThicknessLengthWeight  SizeSize   InchmmInchmmInchmmFTmmKG/Meter 1/2"160.70617.930.0421.071030500.439 3/4"210.92223.420.0491.241030500.669 1"271.16329.540.0571.451030500.99 1-1/4"351.5138.350.0651.651030501.469 1-1/2"411.7444.20.0651.651030501.698 2"532.19755.80.0651.651030502.17 2-1/2"632.87573.030.0721.831030503.177 3"783.588.90.0721.831030503.879 3-1/2" 914101.60.0832.111030505.17 4"1034.5114.30.0832.111030505.75 Certifications IMC Galvanized Steel Tube

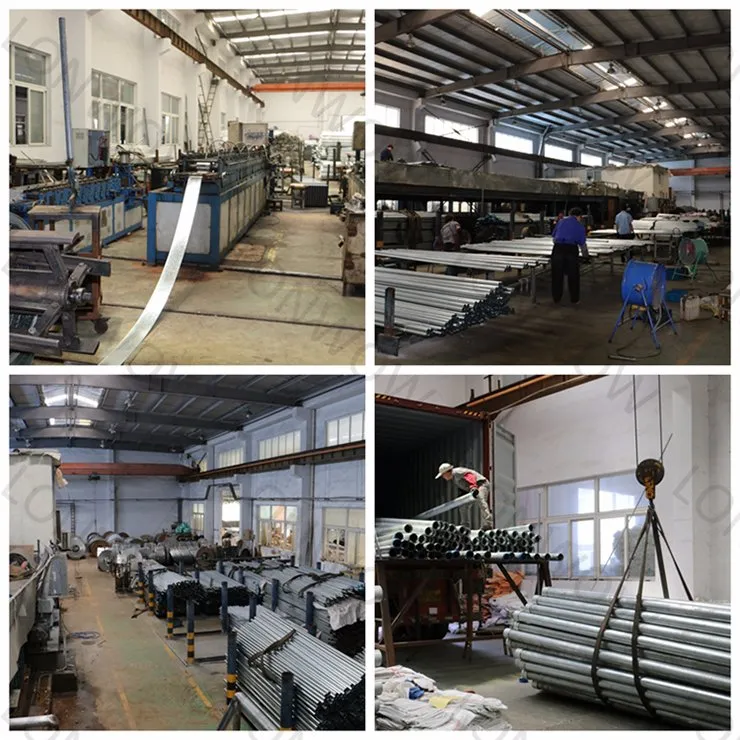

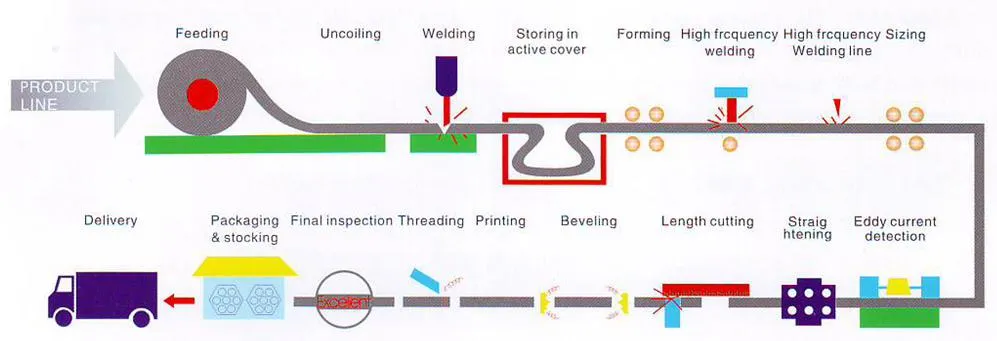

  IMC Galvanized Steel TubeIMC Galvanized Steel Tube View lonwow.en.made-in-china.com to get more information Production process IMC Galvanized Steel Tube IMC Galvanized Steel Tube Why Choose Us? Lonwow Industry Co., Ltd. is a leading manufacturer of electrical metal conduits and fittings in Jiangsu Province, China.
This factory is focused on Electrical Metallic conduits, fittings, C channels, and power bridge systems since 2016. Our main products are EMT, IMC, RSC steel conduits, aluminum conduits, stainless steel conduits, and fittings. C channel, Electrical junction box, flexible conduit, etc. We have a UL certificate for our products of Electrical metal conduits and junction boxes.
Our products widely exporting to many countries, such as the USA, Canada, Italy, Middle East, South Asian, etc. With our good quality and reputation.
Warmly welcome all customers and friends to contact and cooperate with us.
Thank you for your interest in our products and service.
lonwow.en.made-in-china.com for your visit!
IMC Galvanized Steel Tube Our Services  IMC Galvanized Steel Tube
1. 24 hours prompt reply by email
2. Other thickness & size also available on request
3. 30 years warranty (special material rate, installation in relative humidity 97% below & 050 ºC
    in the room, no deformation)
4. Free samples for your reference
5. Flexible terms of payment (T/T, L/C, DP and so on are all accepted)
6. Excellent after-sale service
