| Model NO. | monopole tower |
| Standard | Standard |
| Material | Steel Pipe Tower |
| Belly Bar Shape | Diamond |
| Certification | ISO |
| Condition | New |
| Surface Treatment | Hot DIP Galvanizing |
| Lifting Method | Crane Machine |
| Application | Communication Equipment |
| Height | 20m-60m |
| Galvanized | Hotdipped Galvanized( Thickness Above 85 Um) |
| Welding Standard | Aws(American Welding Society)D 1.1 |
| Wind Speed | 40m/S |
| Service Life | More Than 50 Years |
| Transport Package | 12032*2352*2352 |
| Specification | customized |
| Trademark | XinYuan |
| Origin | China |

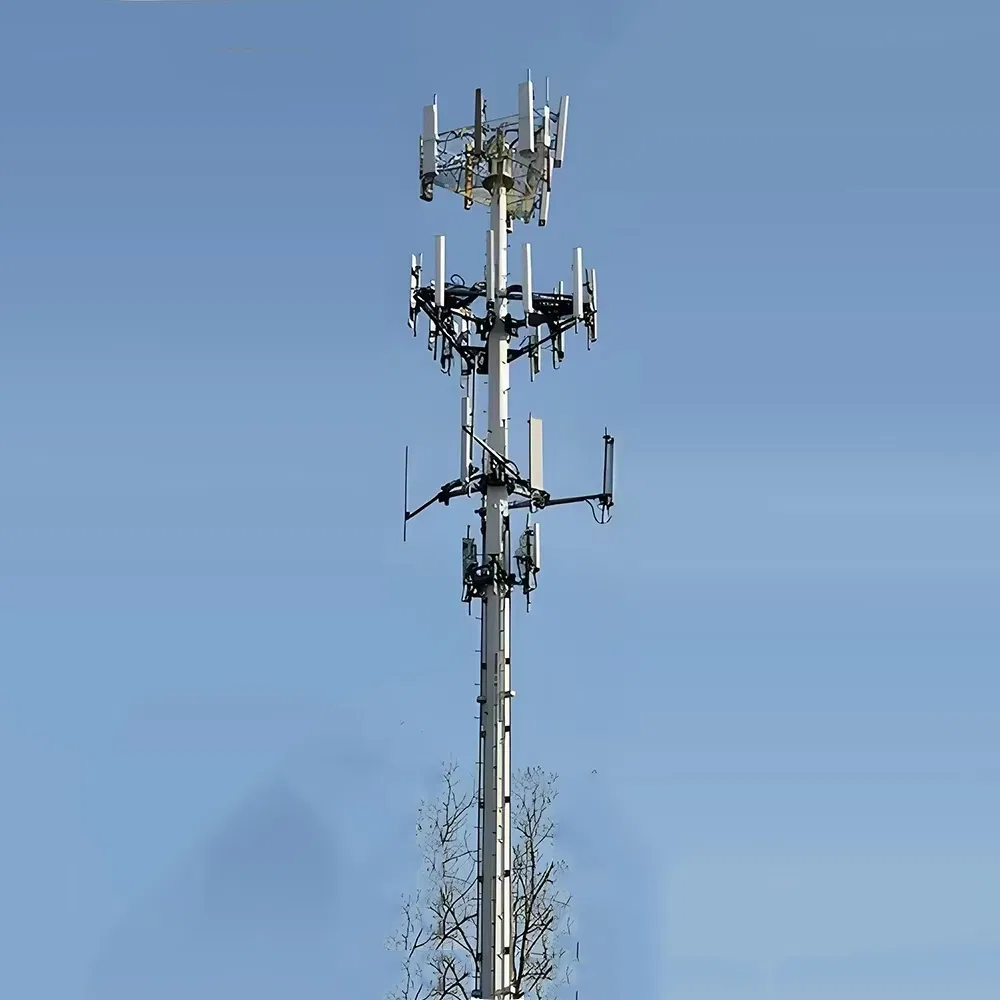

Product Introduction
The single-tube communication tower uses high-quality steel (Q235/Q355/Q420) as the main material, undergoes hot-dip galvanizing anti-corrosion treatment, and adopts a single-tube structure design, which is a self-supporting communication facility. The height can be customized from 20–120m, suitable for ground and roof installation, used to carry communication antennas and signal receivers to achieve efficient signal transmission, adapting to various communication scenarios.
Product Features
Stable structure with uniform stress, wind and earthquake resistant;
High-quality material, anti-corrosion and durable, with a service life of 30–50 years;
Modular design, strong adaptability and expandable;
Easy to install without the aid of large equipment;
Safe and compliant with complete protection measures.
Product advantages
Cost-effective with low procurement, construction and O&M costs; widely applicable and highly versatile; low wind resistance and excellent wind-resistant performance, ensuring more stable structure and signal in extreme weather; convenient for later operation, maintenance and capacity expansion, with short construction period and small footprint.
Product Application
Suitable for mobile communication base stations, radio and television signal coverage, and power communication supporting; also used for emergency communication, and the installation of navigation equipment in airports, ports and scenic spots.
Description
Detailed Specification and Major design Parameters
Design Code
ANSI/TIA222G, European Standard and others
Design Loading
1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
Steel Grade
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or
S235JR

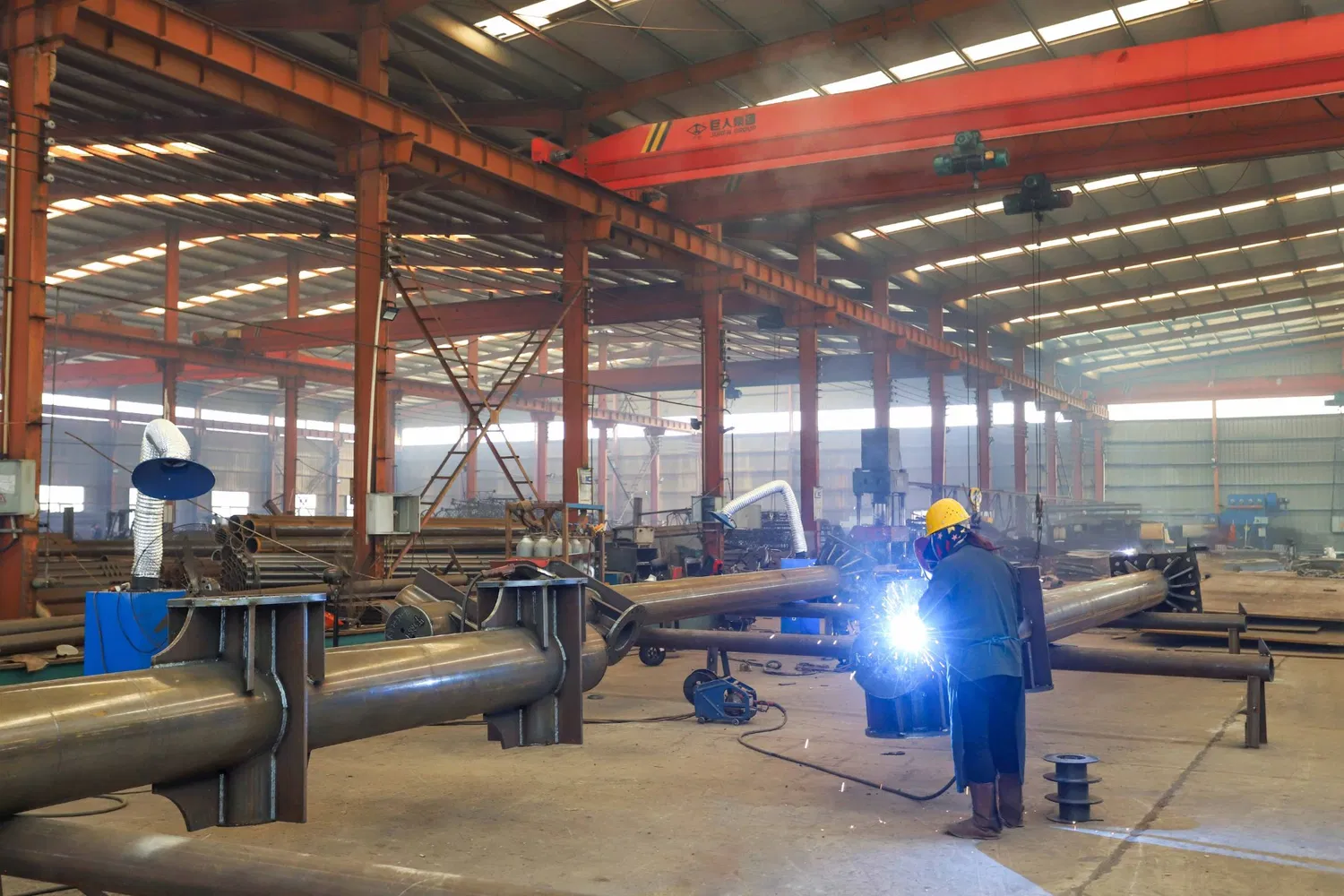

Welding Method
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Surface Treatment
1. Hot dip galvanization in accordance with Chinese standard GB/T 13912-2020 or American standard ASTM A123
2.Can be powder coated or painted according to clients' request
Once Forming
12m Once forming without joint
Factory test
Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test
Tower Type
1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8.RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
Maximum Production Capacity
70,000tons/Year
