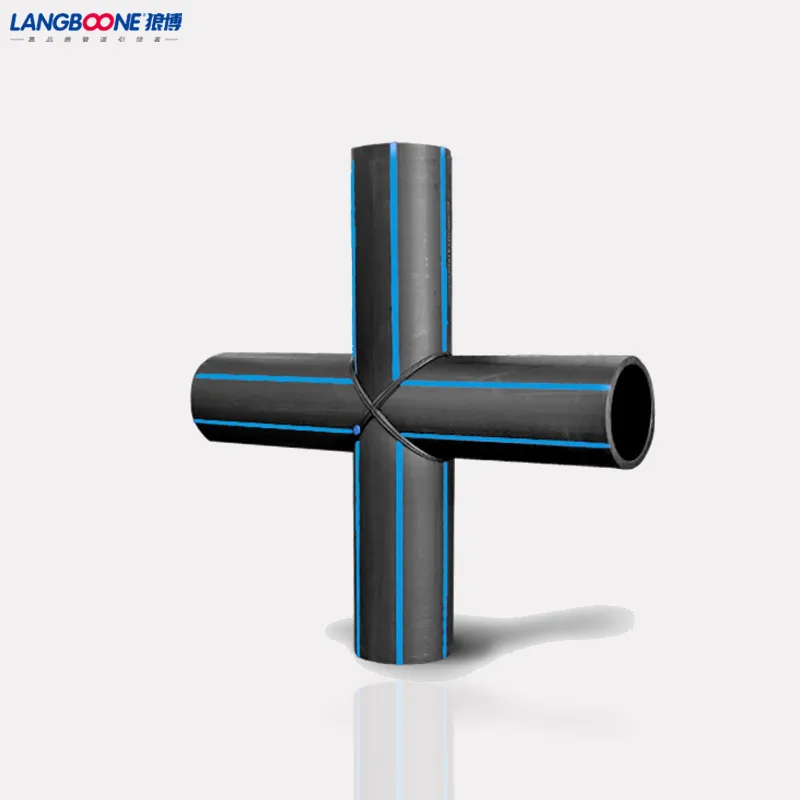

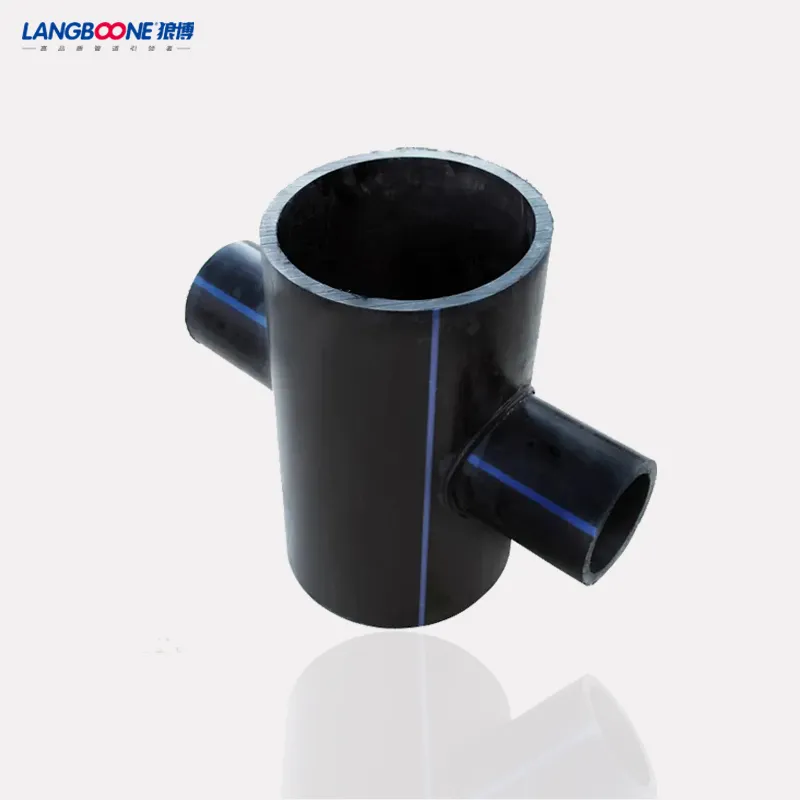

Customize PE80/100 HDPE Fabricated Tee Fittings Pn20 Pipe Segment Welded Bend Fitting

Model NO.	HDPE Fitting
Technics	Welded
Material	PE
Certification	ASME, ANSI, DIN, BS, GB
Color	Black
Production Capaction	300, 00t/Year
Tensile Strength	30~40MPa
Certificate	ISO9001, CE, Wras
Production Standard	GB/CE/ISO....
Connection Way	Butt Welding or Flange Connection
Transport Package	Customized
Specification	DN25-DN800
Trademark	LANGBOONE
Origin	China
HS Code	39172100

View more products,you can click the product keywords below...

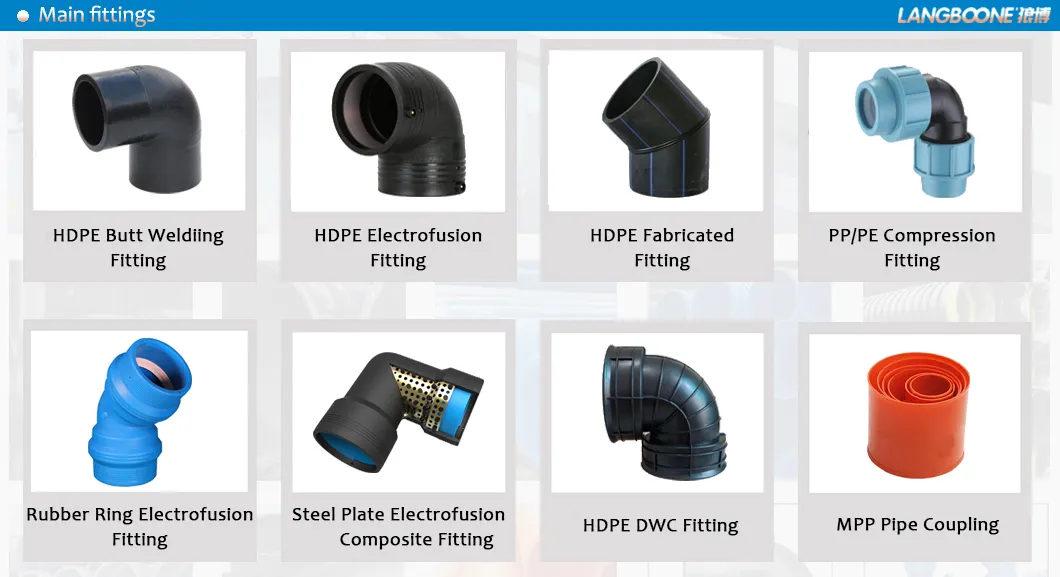

PIPES HDPE pipe Steel Mesh PE Composite Pipe Steel  Skeleton PE Composite Pipe Dual-sealing PE Composite Pipe HDPE Double Wall Corrugated Pipe Type-B HDPE Drainage Pipe Type-C HDPE Drainage Pipe MPP Cabel Conduits FITTINGS HDPE Electrofusion Fitting HDPE Butt Welding Fitting HDPE Fabricated Fitting PP Compression Fitting Steel Plate Socket ElectrofusionComposite Fitting Dual-sealing Electrofusion Fitting HDPE Drainage Fitting MPP Cable Conduits Fitting

HDPE pipe fittings, also called polyethylene pipe fittings or poly fittings, are used for the connection of HDPE piping systems. Generally, the HDPE pipe fittings are available in most common configurations of couplers, tees, reducers, elbows, stub flanges & saddles.,etc. The HDPE pipe fittings, which are made by excellent quality material, are the ideal choice for the connection of the HDPE pipe that are made by us. The HDPE pipe fittings can be provided in various ranges, consisting of butt fusion fittings, electrofusion fittings,fabricated fitting and PP compression fittings

HDPE Welded Pipe Fittings: Elbow ( 11.5 degree, 22.5 degree, 30 degree, 45 degree, 60 degree, 75 degree, 90 degree elbow, etc. angle can be customiazed). Tee, oblique tee, Y-type tee, cross, and other customized pipe fittings of various shapes that customers need for construction. All of these fabricated fittings are manufactured and tested in accordance with ASTM 2206 - "Standard Specification for Fabricated Fittings of Welded Polyethylene Plastic Pipe." in accordance with the ISO 4427, EN12201, ISO 14001,ISO 9001,AS/NZS 4129 PE Fittings, ISO4437 standards etc. From the diameter OD50 to 1200mm.


Advanced production equipment, core equipment imported from Germany and Japan, leading production technology and process

PE80/100 Virgin Material,manufactured by SINOPEC



Multitypes fittings with full range diameter,can meet all special request

Flange Surface have clearly sealed waterline,working with rubber flat to reach better tightness

No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
Light weight: They are convenient to transport and install with long service life.

Product Name Fabricated Fittings  Material PE100(3490LS ) , PE80(ME3440)  Diameter Range DN200-DN2000 Color  Black ,Grey, Orange, Customized  Type Straight, 90° elbow, 45° elbow, flange, end cap, equal tee, reducer straight, reducing tee etc. Working Pressure Pn10, Pn12.5, Pn16, Pn20 Executive standard GB/T 13663.3-2018, ISO 4427, EN 12201 Temperature Range -20°C ~ 40 °C Application Gas Supply, Water Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc Package Carton, Polybag, Color Box or Customized OEM Available Features Non-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs Connect Buttfusion Welding , Flanged Joint Advantage Light weight, Flexibility, Toughness, Chemically Inert, Resistance to Abrasion, Smooth surface, Environmental stress crack resistance, Corrosion resistance, Frost & rodent resistance, Hygienic safety, Easy & quick installation
