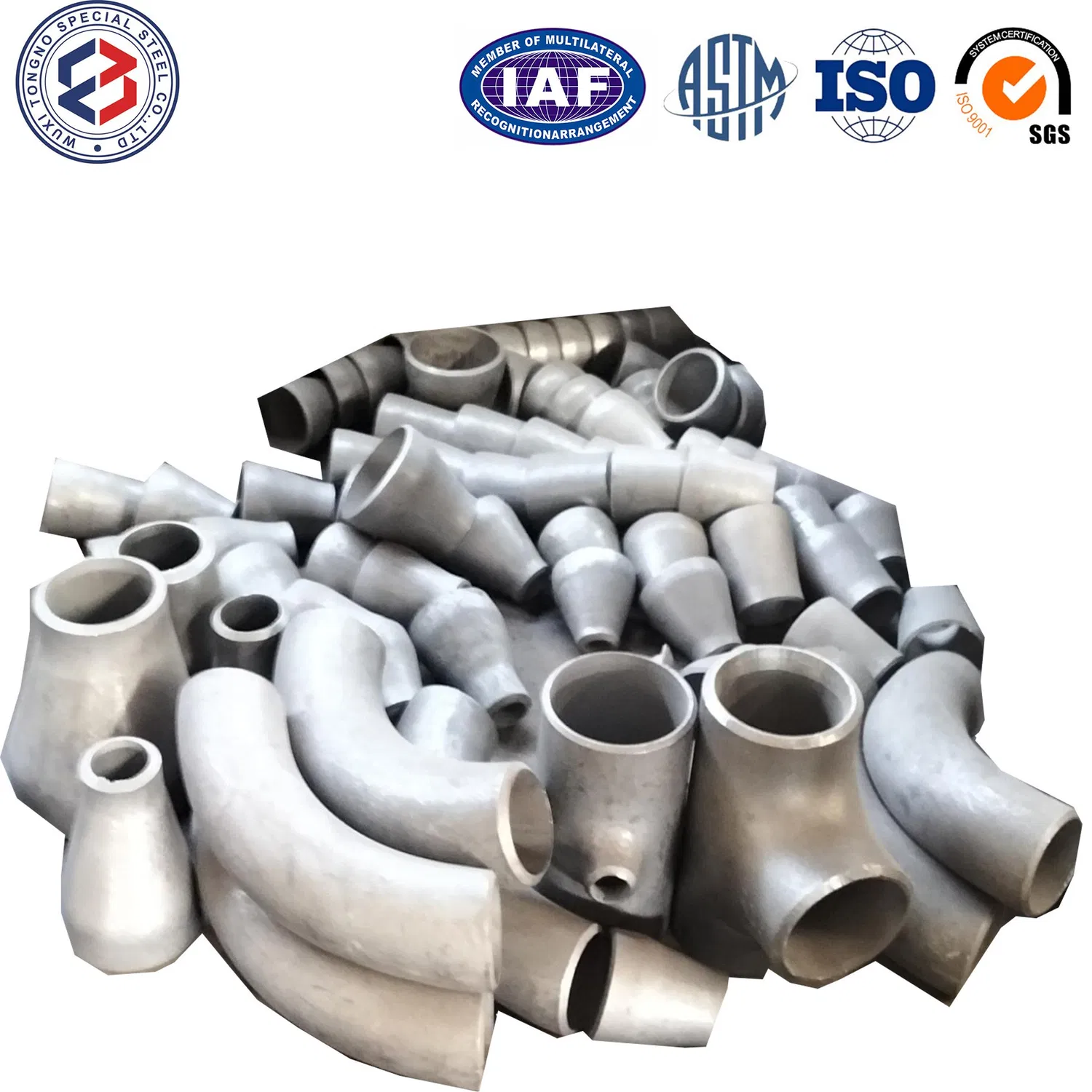

ASME/ASTM a/SA33, En10216-5, ASME SA312 ASME-B16.9-Compliant Pipe Fittings Seamless Steel Elbow T1/P

Product Description

Pipe elbows are essential components in piping systems, designed to alter the direction of fluid flow efficiently. These fittings are manufactured in various angles, materials, and connection types to accommodate diverse industrial requirements. Their primary function is to facilitate smooth directional changes while maintaining optimal flow characteristics and structural integrity within pipelines.

It is typically installed at bends to redirect pipelines at standard angles, such as 45°, 90°, or 180°, ensuring smooth flow with minimal pressure loss.

1.Types of Elbows

• By Angle:

  • 90° Elbow - Most common, used for sharp turns.

  • 45° Elbow - Provides a gentler directional change.

  • 180° Elbow (Return Bend) - Reverses flow direction completely.

•
  By Connection Method:

  • Butt-Weld Elbow - Welded for permanent, high-pressure systems.

  • Socket-Weld Elbow - Used for smaller pipes with socket welding.

  • Threaded Elbow - Screwed onto pipes for easy assembly.

  • Flanged Elbow - Bolted connection for high-pressure applications.

•
  By Material:

  • Carbon Steel Elbow - High strength, used in oil & gas.

  • Stainless Steel Elbow - Corrosion-resistant for chemical/food industries.

  • Alloy Steel Elbow - For extreme temperatures/pressures.

  • PVC/CPVC Elbow - Lightweight, used in water & chemical transport.

2.Key Applications

• Oil & Gas Pipelines - High-pressure elbows for refineries and drilling.

• Chemical Processing - Corrosion-resistant elbows for acid/alkali transport.

• Water & Wastewater Systems - Durable elbows for plumbing & drainage.

• HVAC Systems - Smooth-flow elbows for air ducts & heating systems.

• Shipbuilding & Marine - Saltwater-resistant stainless steel elbows.

• Power Plants - High-temperature alloy elbows for steam pipelines.

3.Advantages

Efficient Flow Control - Minimizes turbulence & pressure drop.
Strong & Durable - Resists leaks, corrosion, and mechanical stress.
Versatile - Available in multiple angles, sizes, and materials.
Easy Installation - Compatible with welding, threading, or flanges.

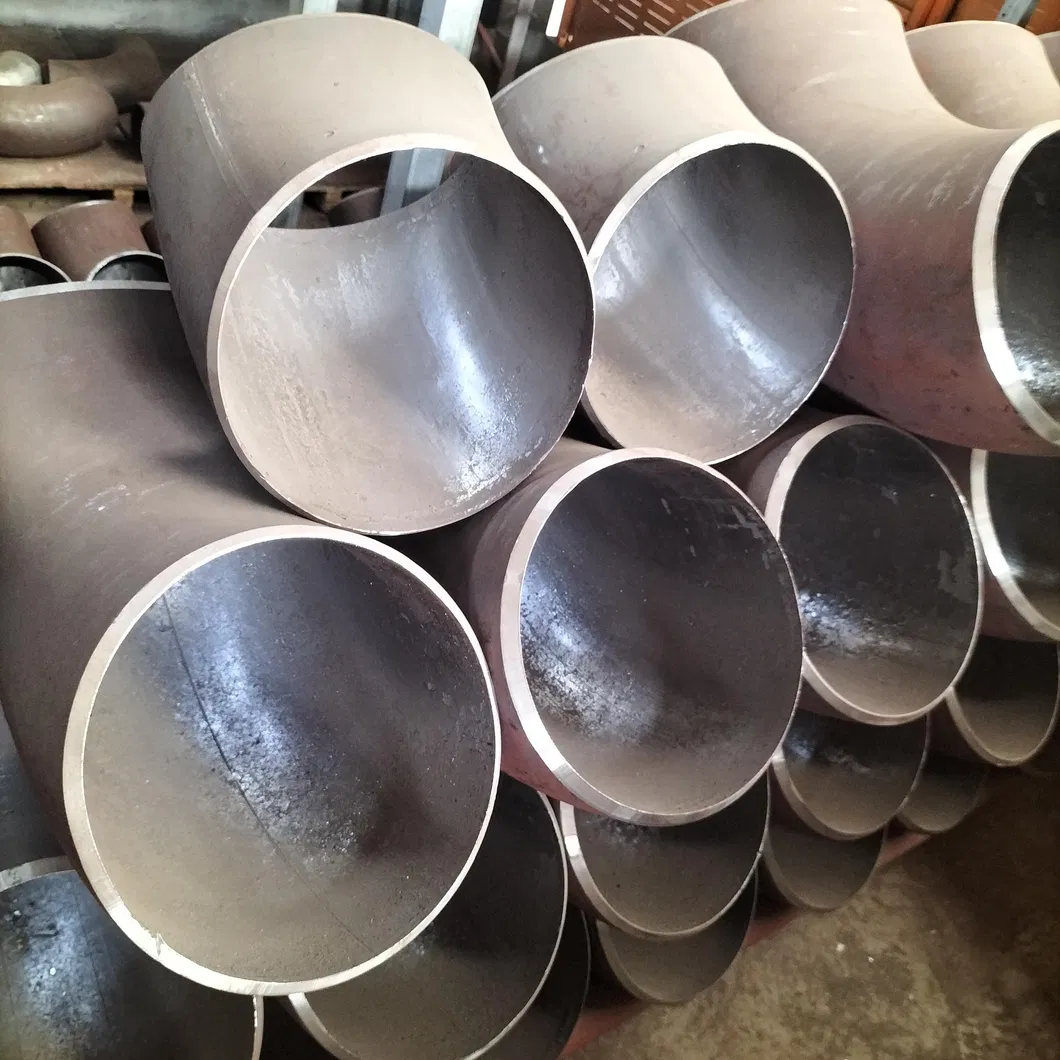

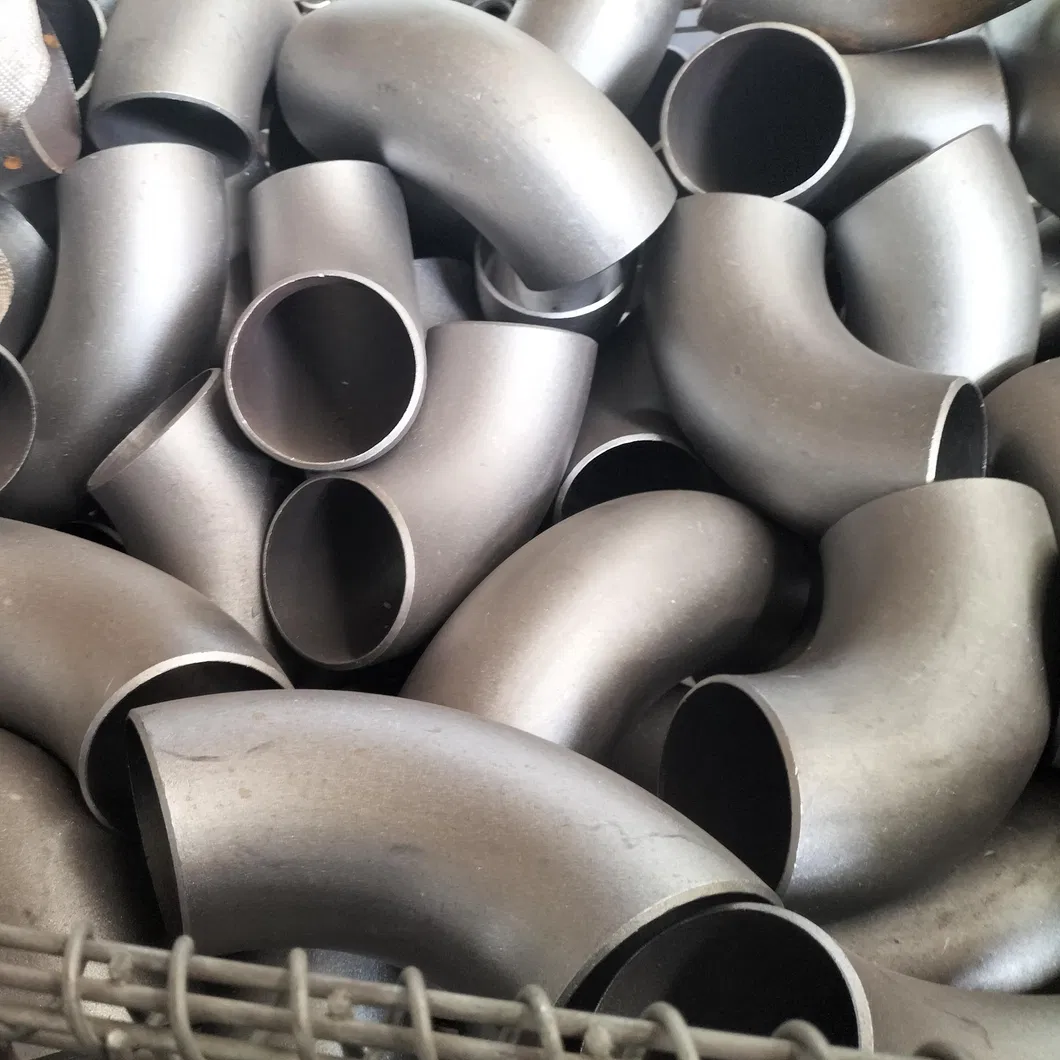

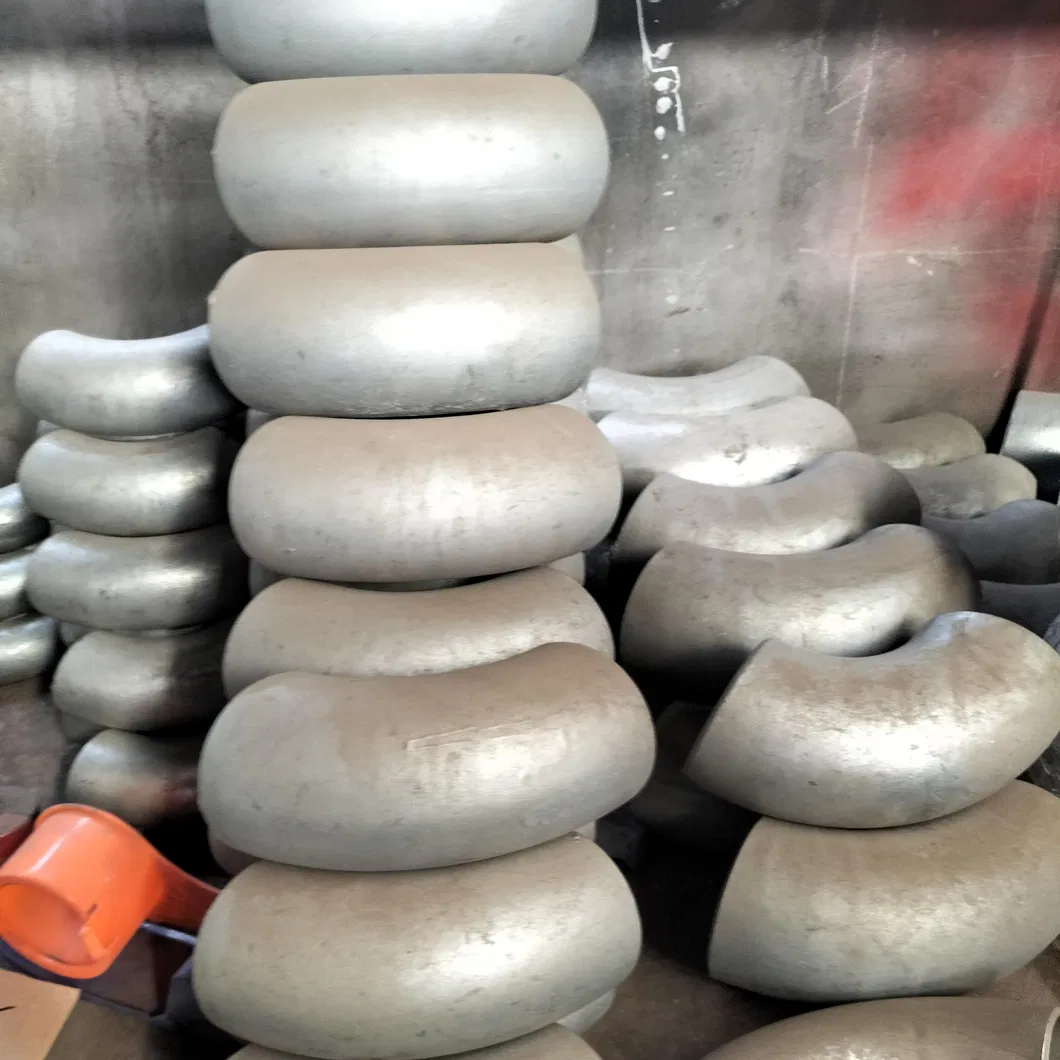

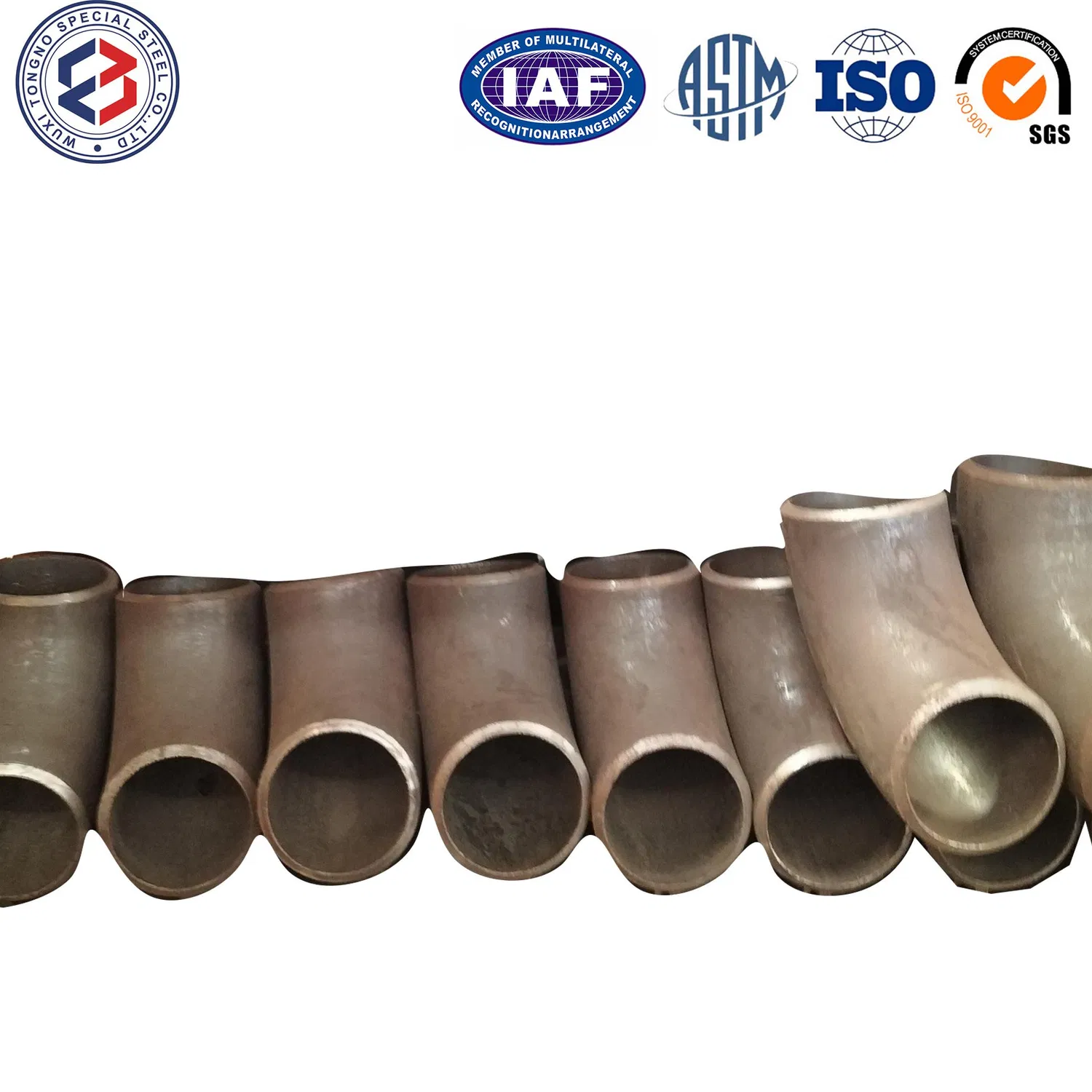

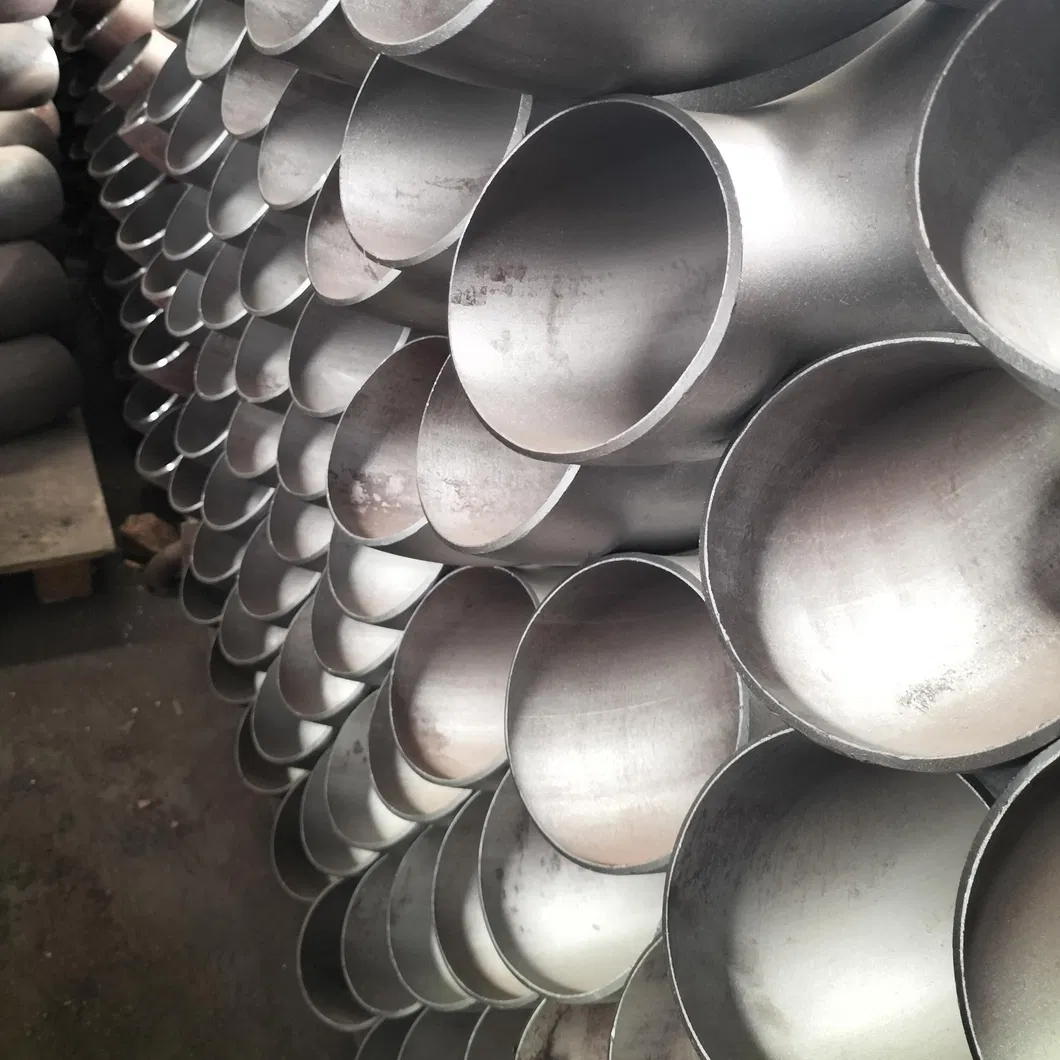

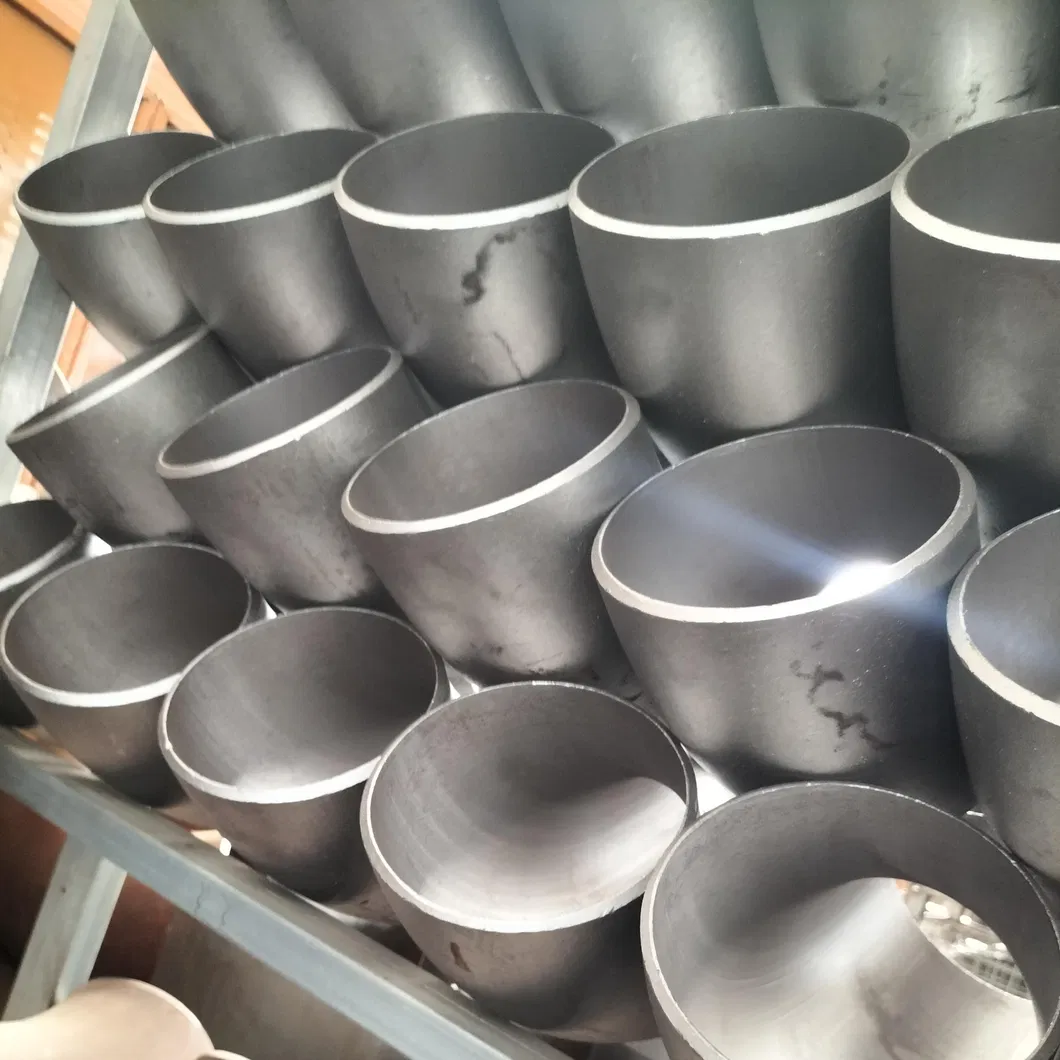

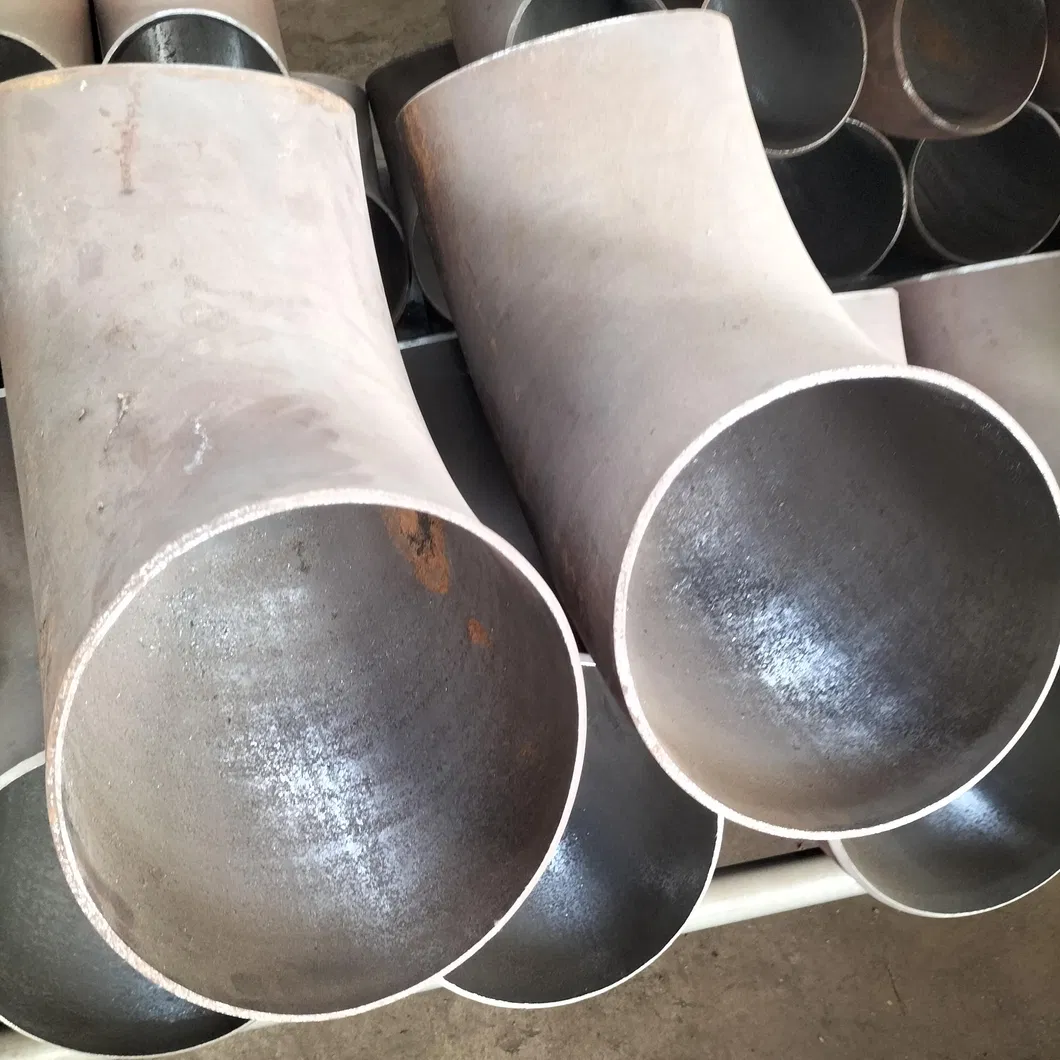

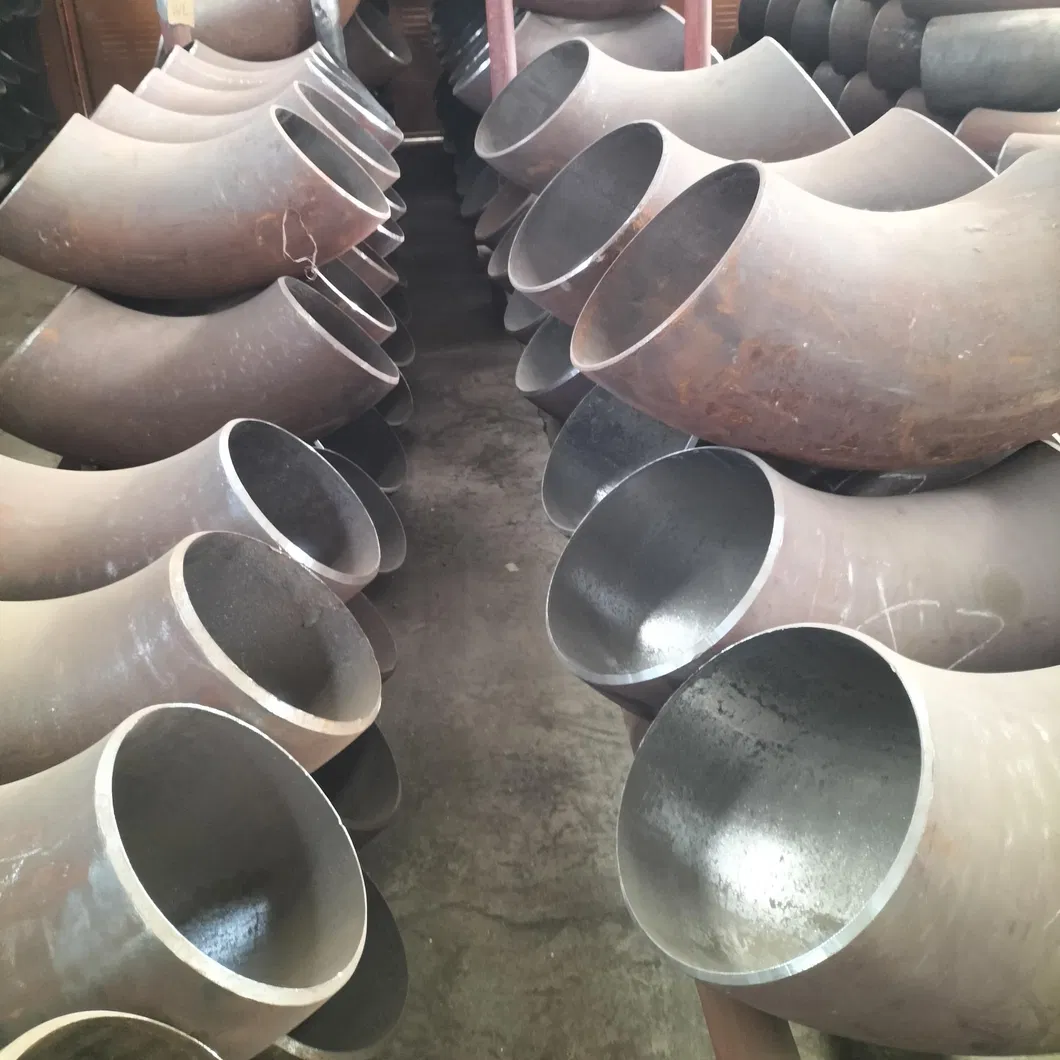

Detailed Photos

Certifications

Packaging & Shipping

1.Export sea worthy package + water proof paper
2.Safe loading and fixing Professional teams

Delivery Detail: within 7-10 working days after receiving the deposit or according to your order quantity.
