PVC Expansion Fitting Directly Supplied by High Quality Manufacturer

Model NO.	pvc expansion fitting
Type	Axial
Head Code	Round
Material	Carbon Steel
Surface Treatment	Galvanized
Customized	Customized
Certification	CE, ISO14001, ISO9001
Warranty	18 Months
Application	Drainage
Samples	Free
Color	Customized
Shape	Round
Length	95--350mm
Transport Package	Wooden Case& Carton Case
Specification	DN25-DN1200
Trademark	CHNFLEX
Origin	China
HS Code	40094200

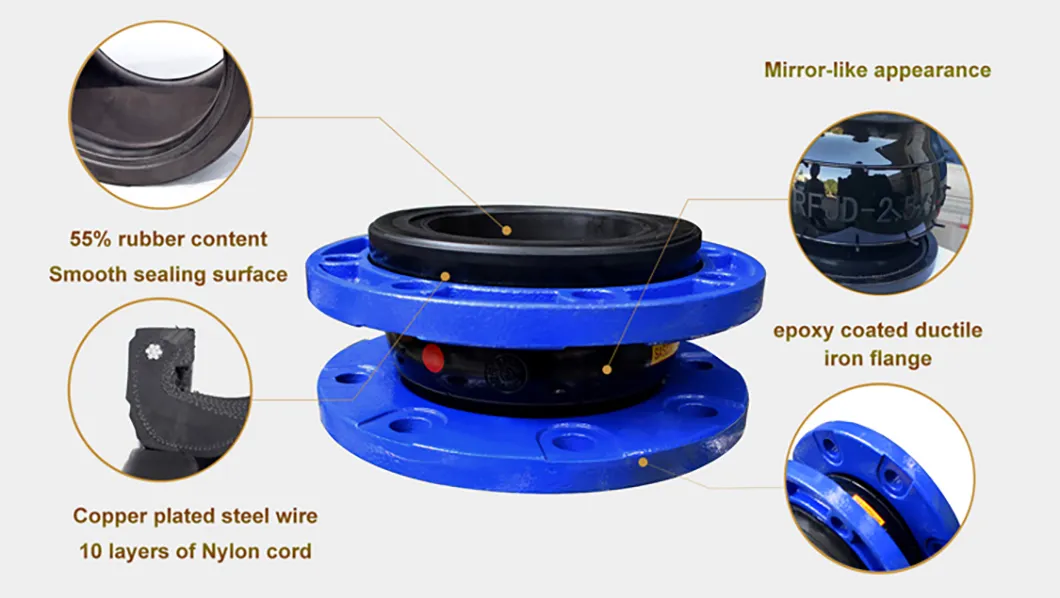

Expansion fitting is a type of pipeline joint with high elasticity, high gas tightness, medium resistance, and weather resistance. It is mainly composed of inner and outer layers of rubber, curtain layers, and steel wire rings to form a tubular rubber component, which is vulcanized and then combined with metal flanges or parallel joints to form a loose sleeve. Each part has its specific function and function, together forming the unique structure of rubber joints.

NO Name Material 1 Reinforcing ring  Hard Steel Wire 2 Flange Q235,SS304,SS316,PVC 3 Reinforcing cord Nylon Tire Cord 4 Inner/outer rubber NR,NBR,EPDM,FKM,PTEF,IIR,CR

 Performance characteristics of rubber joints:

1.Small size, light weight, good elasticity, and easy installation and maintenance.
2.During installation, lateral, axial, and angular displacement can be generated, without being limited by pipeline misalignment or flange non parallelism.
3.It can reduce structural transmission noise and has strong vibration absorption ability during work.

SizeLengthAllowable Movements in Operation mminchmmAxial Compression
mmAxial Extension
mmTransverse Movement
mmAngular Deflection
mm 251130/15220121415° 321 1/495/130/15220121415° 401 1/295/130/15220121415° 502105/130/15220121415° 652 1/2115/130/15220121415° 803130/135/15220121415° 1004130/15220121415° 1255130/152/16520121415° 1506130/152/18520121415° 2008130/152/21020121415° 25010130/203/23020121415° 30012130/203/24525162215° 35014200/25525162215° 40016200/25525162215° 45018200/25525162215° 50020200/25525162215° 6002426025162215° 7002826025162215° 8003226025162215° 9003626025162215° 100040260/30025162415° 11004430025162415° 12004830025162415°

Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.

1.Raw material
Top level CR/EPDM/NBR
rubber raw materials,No recycled rubber2.Plasticating and mixing
Special Formulation for better Bending with Nylon,For Better Strength,Sealing3.Workblanks wraping
Cooper plated steel wire reinforcement   prevent pull off

4.Vulcanizing
Automatic vulcanization machine ensure vulcanization time and pressure5.Inspecting
100% strict inspection is to be responsible for consumers

6.Packaging

Protective Packaging for No Rust and Breakage

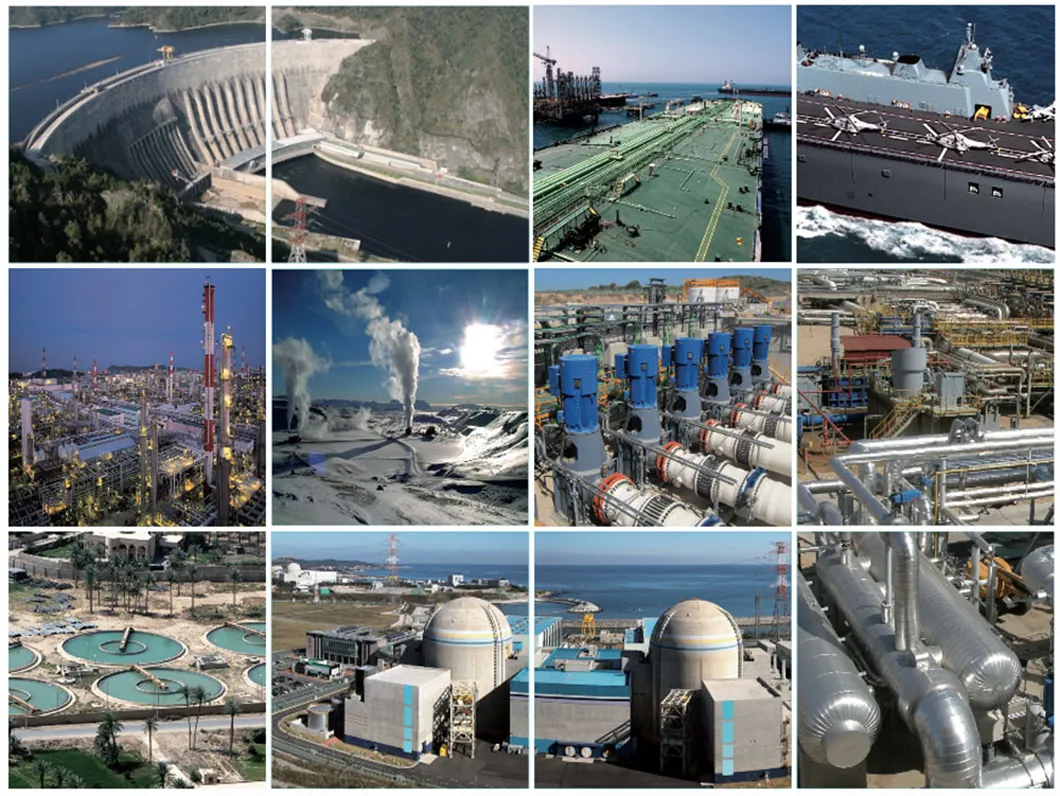

Expansion fitting are widely used in various fields, including construction, chemical industry, shipbuilding, tap water, gas, chemical pipelines, petroleum pipelines, food pipelines, air conditioning pipelines, and sewage treatment.
