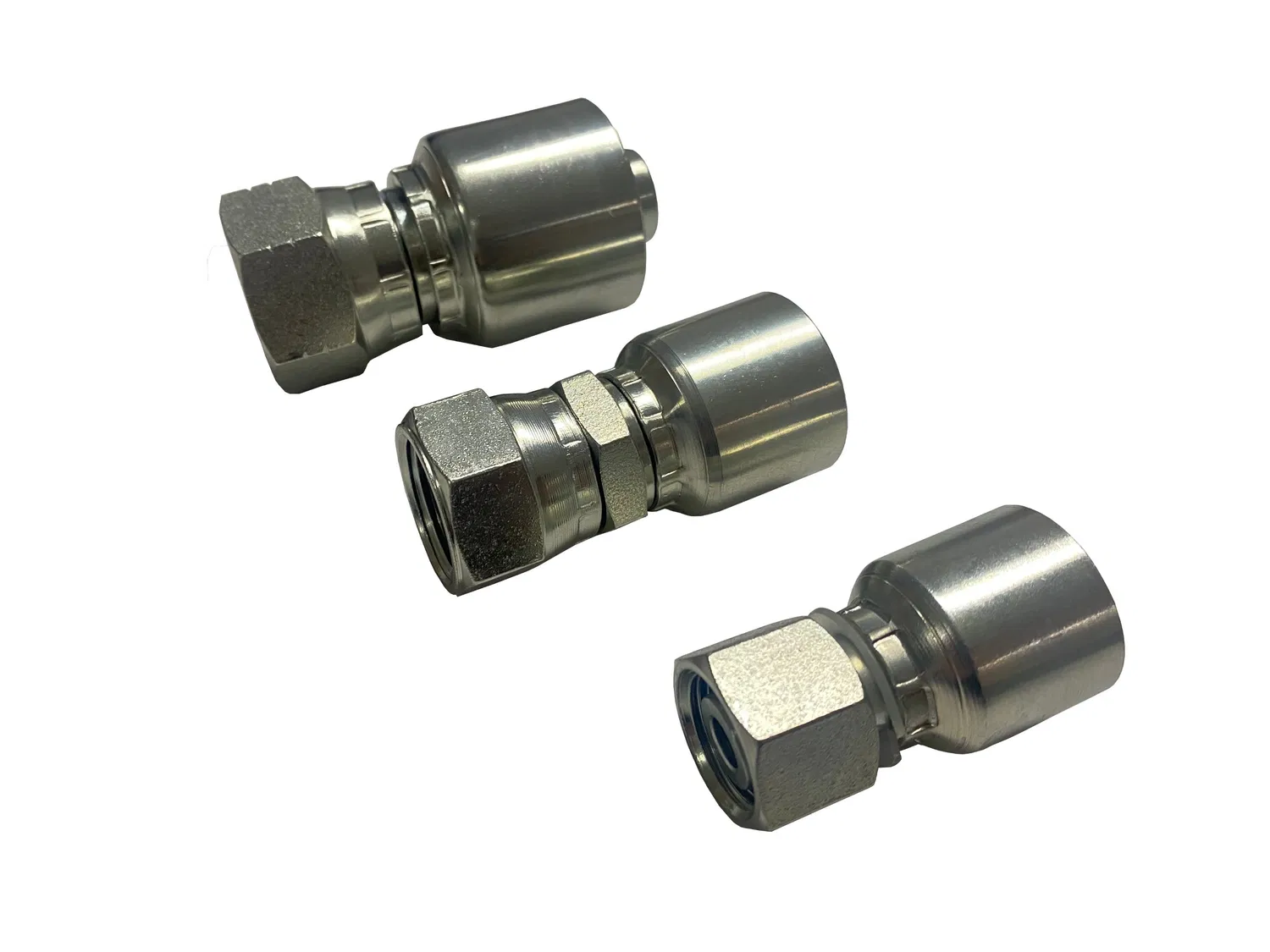

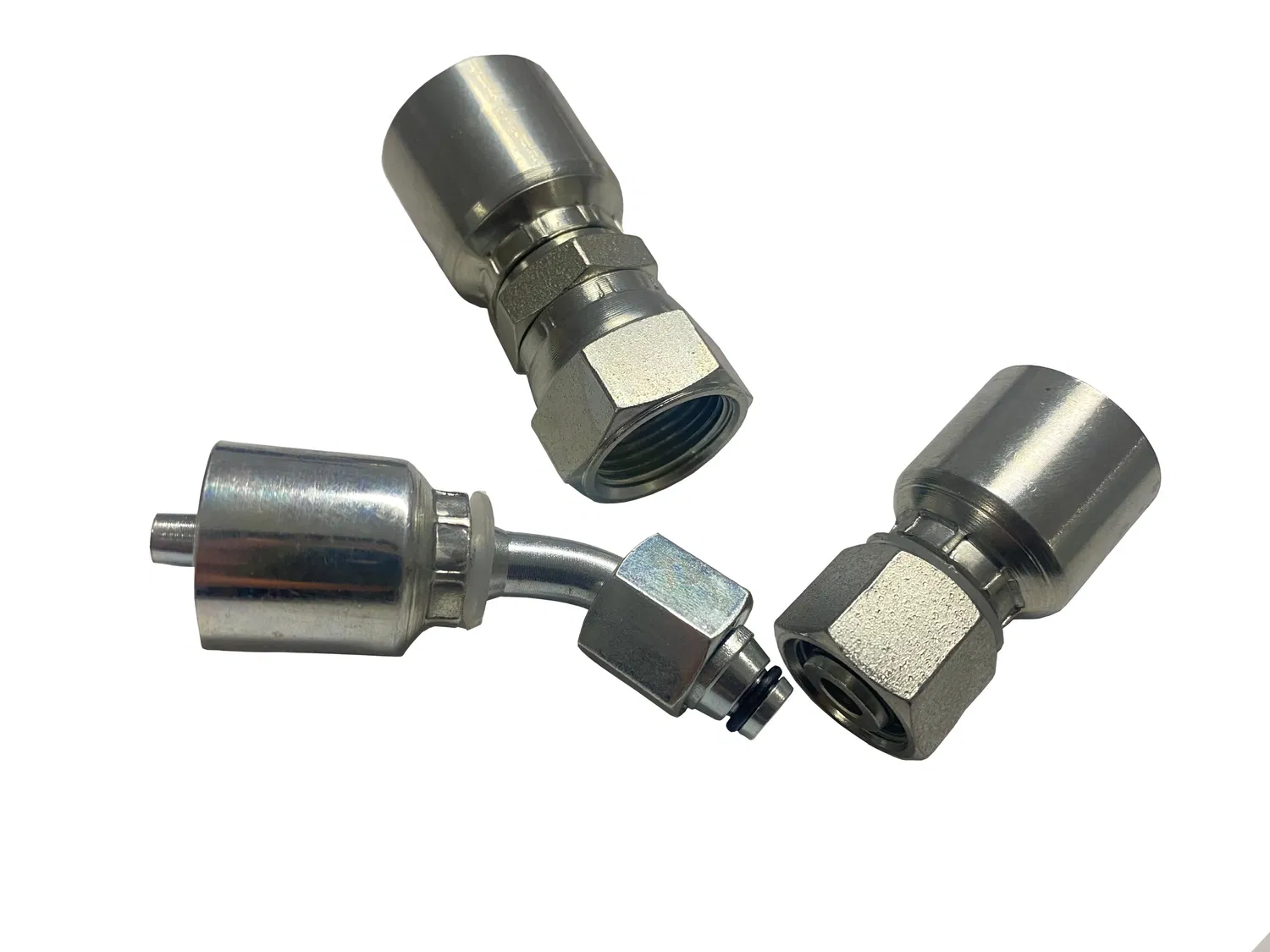

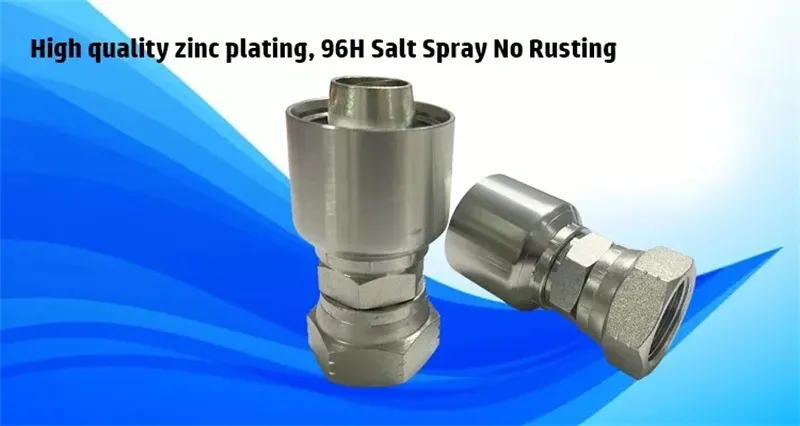

One Piece Fittings Jic/Metric/Bsp/NPT Hydraulic Hose Fittings Hose Connections
Detailed specification for One Piece Fittings Jic/Metric/Bsp/NPT Hydraulic Hose Fittings Hose Connections
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | one piece fitting |
| Work Temperature | High Temperature |
| Installation | Flared Type |
| Material | Carbon Steel or Stainless Steel |
| Type | Fittings |
| Color | Silver Yellow |
| Application | Connect Pipes |
| Size | 1/4"-2" |
| Shape | Straight 45 Degree 90 Degree |
| Transport Package | Palstic Bags Inside and Covered with Cartons |
| Specification | Standard size |
| Trademark | Sinopulse, OEM Brand |
| Origin | China |
| HS Code | 3917310000 |
CODE
THREAD
Rubber hose
ID
DASH
26711F-04-04
7/16*20
6
04
26711F-05-05
1/2"*20
8
05
26711F-06-06
9/16*18
10
06
26711F-08-08
3/4*16
12
08
26711F-10-10
7/8*14
16
10
26711F-12-12
1.1/16*12
20
12
26711F-16-16
1.5/16*12
25
16
Product Catalog
Product Categories
1. FERRULE HYDRAULIC
00110-NON-SKIVE FERRULE for SAE100R1AT/ EN 853 1SN HOSE
00100-SKIVED FERRULE for SAE100R1A EN 853 1SN HOSE
00210-NON-SKIVE FERRULE for SAE100R2AT/DIN EN853 2SN HOSE
00200-SKIVED FERRULE for SAE100R2A/EN 853 2SN HOSE
03310-MULTI-PURPOSE FERRULE for DIN EN 853 1SN/2SN HOSE
00400-FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
00402-FERRULE for 4SH,R12/32 HOSE
00421-INTER LOCK FERRULE for4SP/4SH
00621-INTERLOCK FERRULE for R13 HOSE SKIVE INNER AND OUTER RUBBER
00018-FERRULE for THERMOPLASTIC HOSE R7/R8
00TFO-FERRULE for PTFE HOSE
2. Swaged Metric Fittings
Mertic Flat Seal Fittings :10311/20211/20241/20291
Metric Multiseal Fittings:20111/20141/20191
Metric 60°Cone Seal Fittings :10611/20611/20641/20691
Metric 74°Cone Seal Fittings:10711/20711/20741/20791
Metric 24°Cone O-RING Seal L..T Fittings:10411/20411/20441/20491
Metric 24°Cone O-RING Seal H.T.Fittings:10511/20511/20541/20591
Metric Standpipe Straight Fittings:50011/50041/50091
JIS Metric 60°Cone Seal Fitting:18611/28611/28641/28691
3. Swaged British Fittings
BSP O-RING Seal Fittings :16011
BSP Flat Seal Fittings:22211/22241/22291
BSP Multiseal Fittings:22111/22141/22191
BSP 60°Cone Seal Fittings:12611/22611/22641/22691
BSPT Fittings: 12211/13011-SP
JIS BSP 60°Cone Seal Fittings:29611/29641/29691
4. Swaged American Fittings
SAE O-RING Seal Fittings:17811/27811/27841/27891
ORFS Flat Seal Fittings:14211/24211/24241/24291
NPSM 60°Cone Seal Fittings:21611/21641/21691

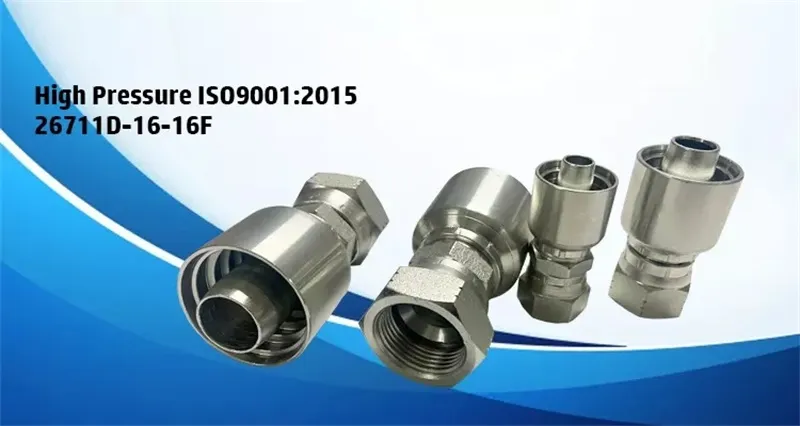

JIC 74°Cone Seal Fittings:16711/26711/26741/26791
NPT Fittings SAE Flange L.T. Fittiings:15611
5. Staplelok Fittings
Double connection :90011
Banjo: 70011/700M; 72011/720B
6. SAE Flange
SAE Flange H.T.Fittings 3000PSI :87311/87341/87391
SAE Flange H.T.Fittings 6000PSI :87611/87641/87691
CAT Flange H.T.Fittings 9000PSI : 87911/87941/87991
7. INTER LOCK Fittings

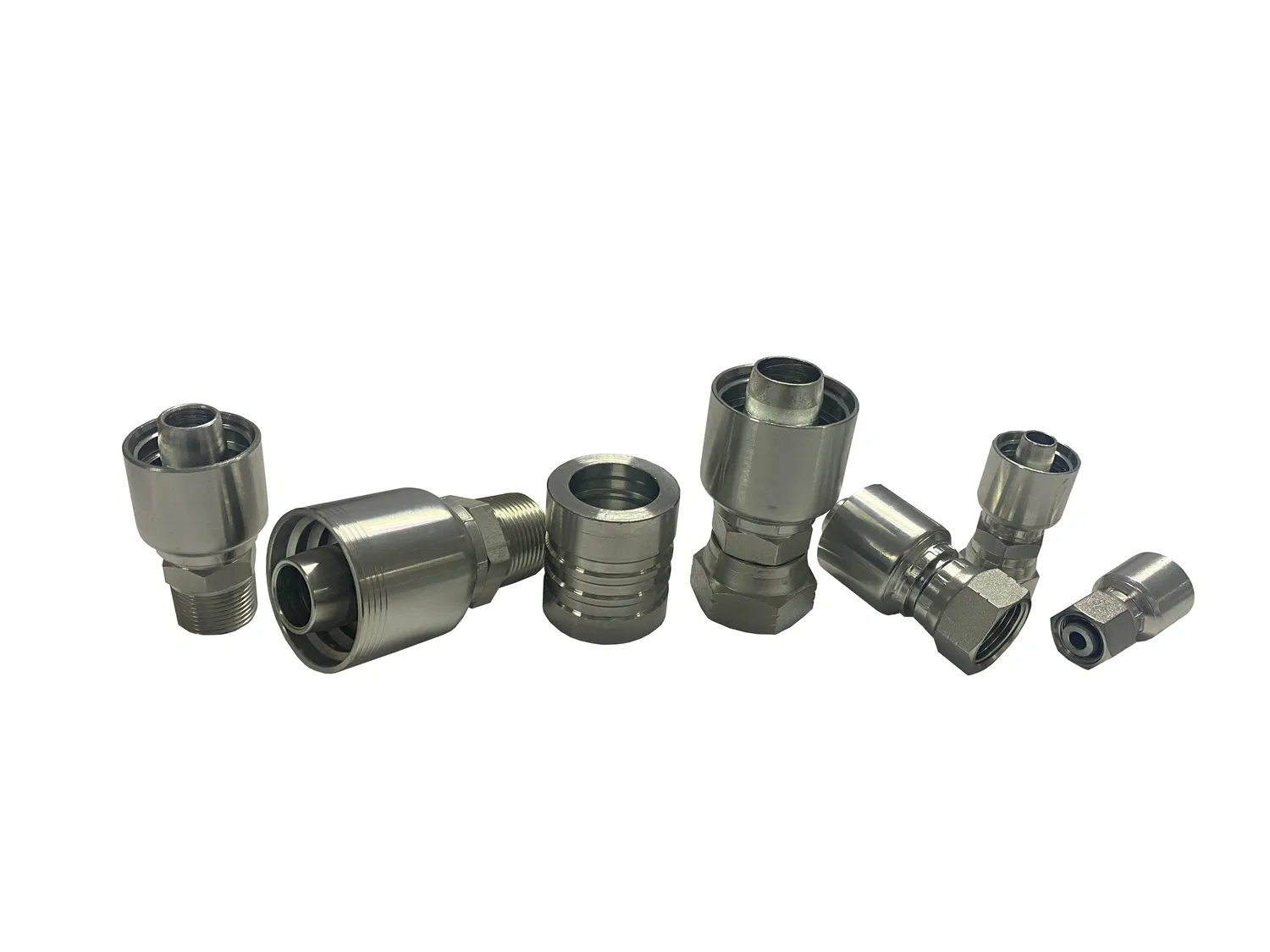

8. ONE PIECE Fittings
9. RE-USABLE Fittings
10. Hydraulic adapter all types

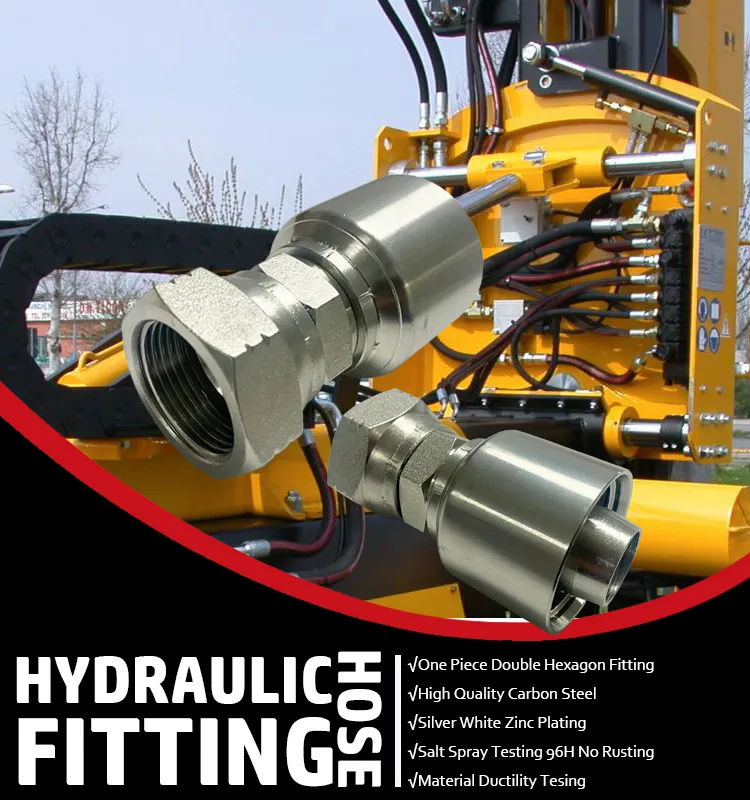

Application
