Custom Double Flange 45 Degree Elbow Corrosion-Resistant Ductile Iron Reducer Pipe Fitting

DUCTILE IRON PIPE FITTING

A ductile iron pipe fitting is a pipe connection component made of ductile iron. The graphite in cast iron is distributed in a spherical shape through a special spheroidizing heat treatment process. This type of pipe fitting is specially designed to connect, divert or divert ductile iron pipe systems to form a complete pipe network system.

It has a mechanical strength close to that of steel, while retaining the corrosion resistance of cast iron; the interface forms are diverse and suitable for different engineering needs; the internal and external anti-corrosion coatings extend the service life; the flexible design allows a certain deflection angle to adapt to foundation settlement; it has a more cost-effective advantage than similar products.

It is widely used in pressure pipe systems such as municipal water supply and drainage, industrial water supply, and mine tailings transportation. It is particularly suitable for pipe network construction in areas with complex terrain and earthquake-prone areas, as well as key infrastructure projects that require long-term and stable operation.

Ductile iron pipe fittings have become an indispensable connection solution in modern pipeline engineering with their excellent comprehensive performance, showing unique value in reliability, economy, and adaptability.

Product Parameters

TECHNICAL PARAMETERS

Product Name

Ductile Iron Pipe Fitting

Keywords

Elbow

Trademark

DATONG

Standard

IS02531/En545/En598/GBT13295/GBT26081

Usage

Water Supply Project, Drainage, Sewage, Irrigation, Water Pipeline.
Gas Supply, Oil Pipeline

Materials

Cast Iron(C, Si, Mn, P, S, Mg)

Pressure

PN10, PN16, PN25,PN40

Class

K9, K10, K12, C25, C30, C40

Internal Coating

A). Portland Cement Mortar Lining
B). Sulphate Resistant Cement Mortar Lining
C). High-Aluminum Cement Mortar Lining
D). Fusion Bonded Epoxy Coating
E). Liquid Epoxy Painting
F). Black Bitumen Painting

External Coating

A). Zinc+Bitumen(70Microns) Painting
B). Fusion Bonded Epoxy Coating
C). Zinc-Aluminum Alloy +Liquid Epoxy Painting

Certificate

ISO45001:2018/ISO14001:2015/ISO9001:2015/ISO2531& EN545/IAO4179& ISO8179

Origin

Jincheng,Shanxi, China

Delivery Time

25-30days

HS Code

7303

Gasket Material

NBR/SBR/EPDM

Production Capacity

25000tons/month

Pipe Fitting Model

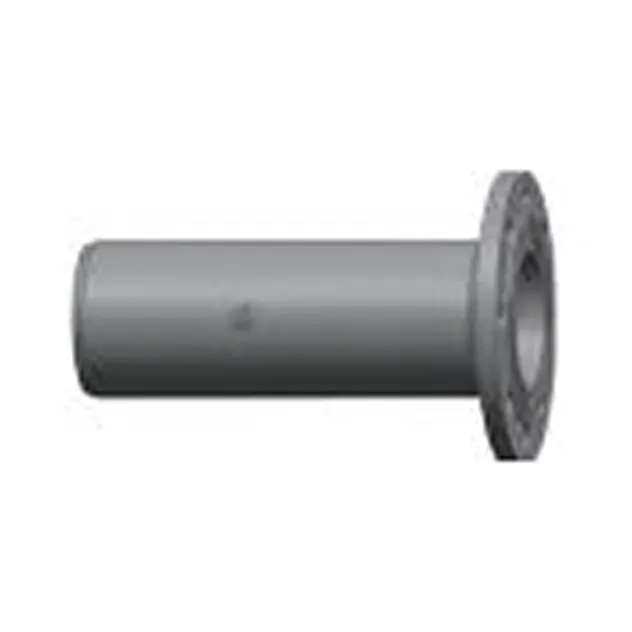

Flange Socket Short Pipe

Flange Spigot Short Pipe

11.25° Elbow

Socket and Spigot 90° Elbow

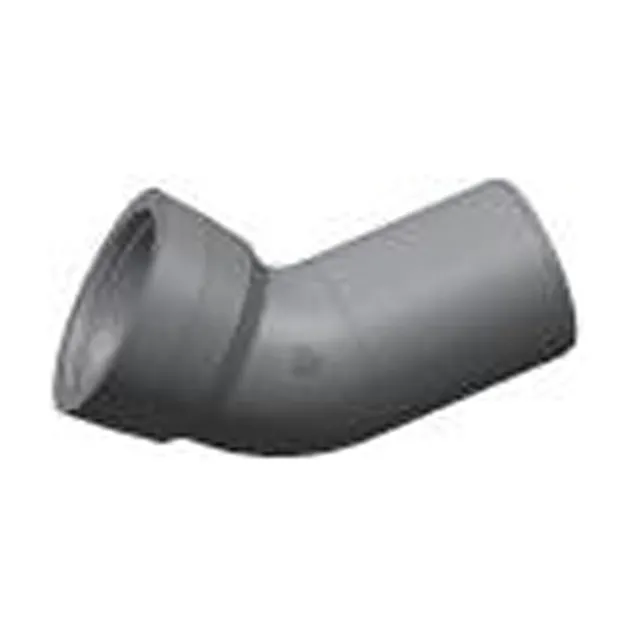

Socket and Spigot 45° Elbow

Socket and Spigot 22.5° Elbow

Double Socket 22.5° Elbow

Double Socket 45° Elbow

Double Socket 90° Elbow

Double Flange 22.5° Elbow

Double Flange 45° Elbow

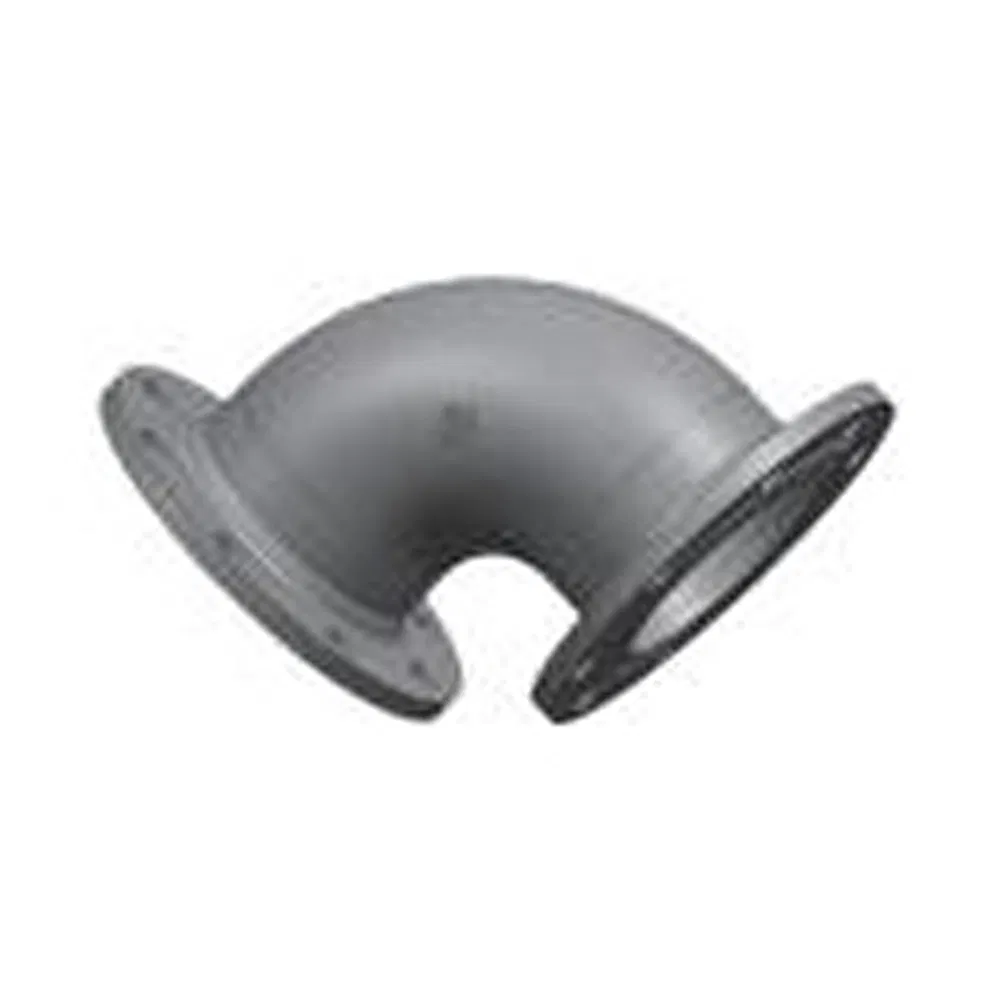

Double Flange 90° Elbow

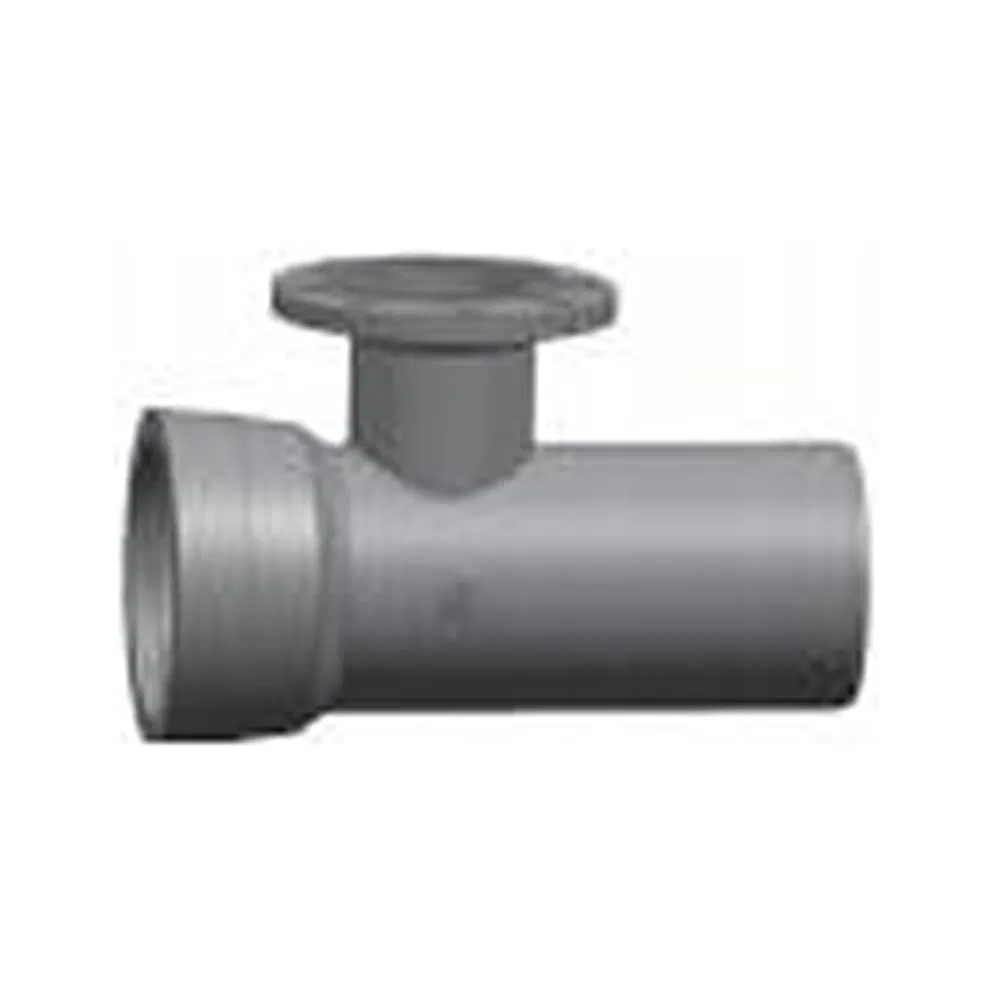

Socket and Spigot Single Branch Flange Tee

Socket and Spigot Single Socket Tee

Double Socket Single Branch

Flange Tee

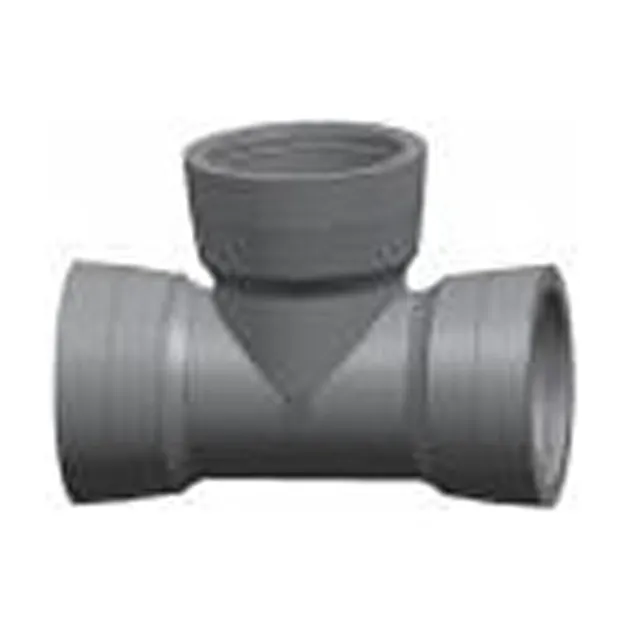

All Socket Tee

All Flange Tee

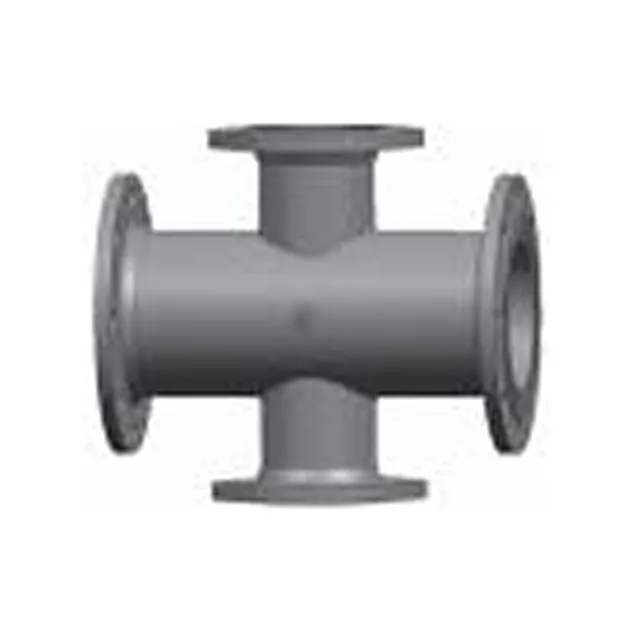

Double Flange Cross

Double Socket Cross

Double Socket Bottom Tee

Socket and Spigot Double Socket Cross

Double Flange Reducing Pipe

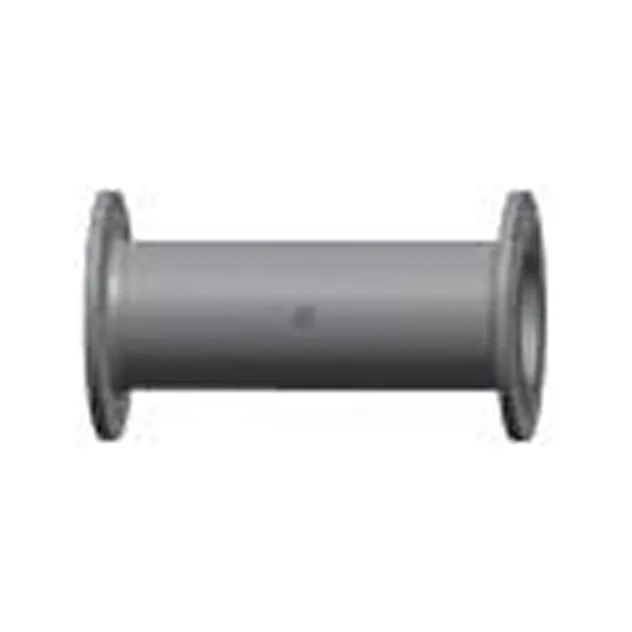

Double Flange Straight Pipe

Double Socket Short Pipe

Blind Flange

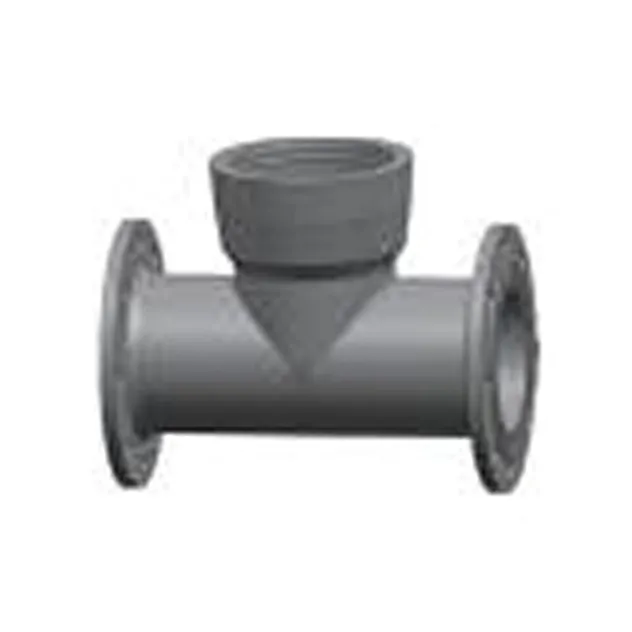

Double Flange Tee With Socket Branch

Socket Plug

Spigot Plug

Double Socket Reducer

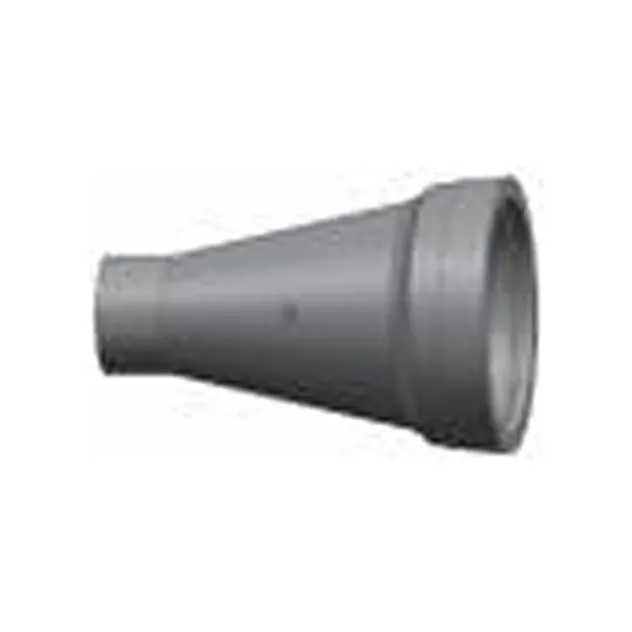

Socket and Spigot Reducer
