China ISO2531en545 Dci Ductile Cast Iron Pipe Fittings for PVC Pipe
Detailed specification for China ISO2531en545 Dci Ductile Cast Iron Pipe Fittings for PVC Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | pipe fitting for pvc |
| Head Code | Round |
| Angle | 45 Degree |
| Wall Thickness | Sch5s |
| Material | Carbon Steel |
| Technics | Forged |
| Certification | ASME, ANSI, DIN, JIS, BS, GB, GS |
| Color | Blue |
| Transport Package | Wooden Box |
| Specification | custom |
| Trademark | SYI |
| Origin | China |
| Production Capacity | 100/Ton/Month |
SYI EN12842 ISO2531 EN545 EN598 Ductile Iron Compact Fitting For PVC Pipes
Description
SYI Compact Fittings for PVC Pipes is the Newest design, most light, most competitive ductile iron pipe fittings for PVC pipes,from DN80 to DN600 according to EN 10842, ISO 2531, EN545, and EN 598 for water or sewerage pipeworks, with the coating of Zinc and Black Bitumen coating, Red/Blue Epoxy coating, or PU (polyurethane) coating.
Material:
Fitting:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.
Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1
Working Pressure: 16 Bar or 250 PSI
Fluid Temperature:0°C-50°C, excluding frost
Coating
External coatings
Internal coatings
zinc + bitumen painting
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
cement mortar lining
liquid epoxy resin painting
epoxy applied by FBE
according to customers' requirements
Reference Rules:Dimensions and testing in accordance with ISO 2531 / EN 545 and EN 12842

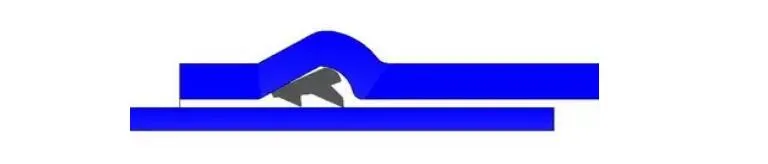

Used for jointing the PVC pipes. Fittings can be assembled by pushing the spigot through the gasket in the socket of the mating component.
Feature:
1.PVC pipe is characterized by thin thickness, light weight, sealing surface can not be machined, only by advanced casting methods to meet the requirements.
2.Through our efforts, SYI COMPACT PVC Pipe Fittings have been formed a new PVC pipe fittings with production line and coated sand technology to achieve high-quality casting surface, perfect sealing effect, more reasonable structure advantage and more market competition.
SYI COMPACT PE/PVC Pipe Fittings---The Newest Design!
* Most reasonable
* Most light
* Most competitive
* Quality & Efficiency improved
Package
Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.
Quality Control
Company
Welcome to send us an inquiry for more details and price!!!
