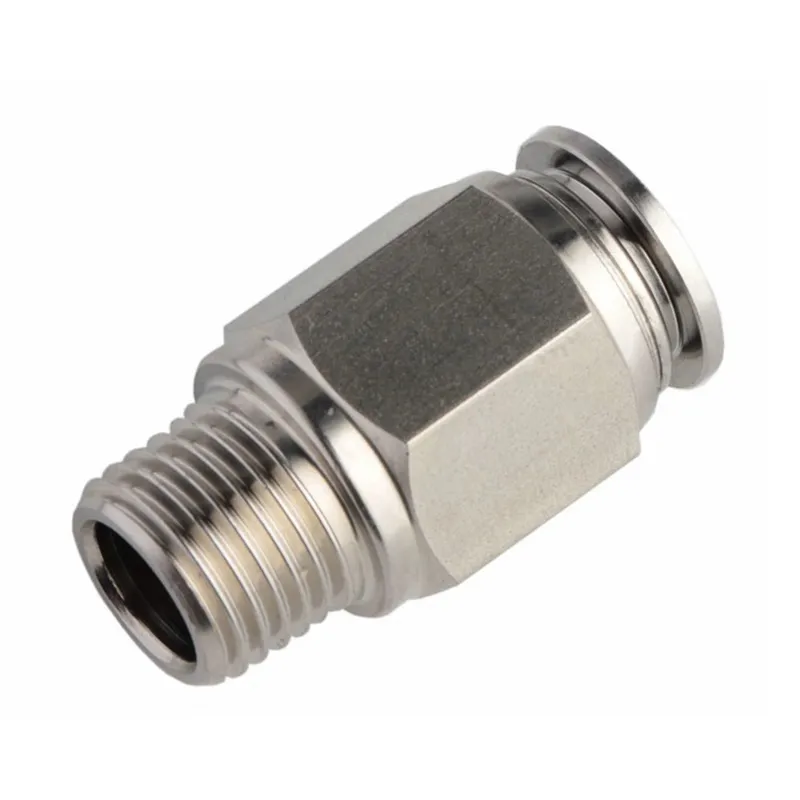

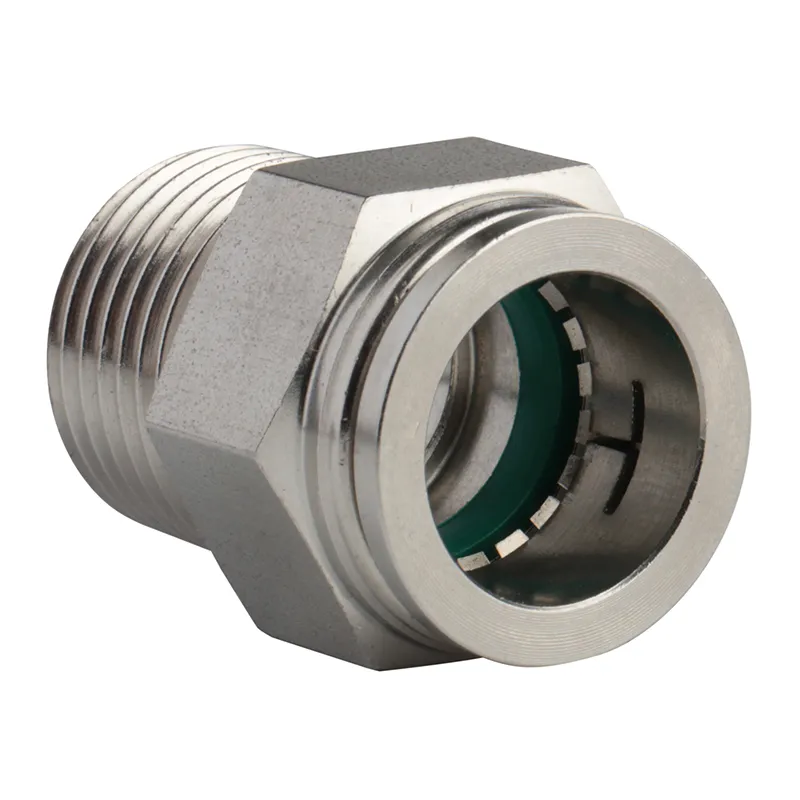

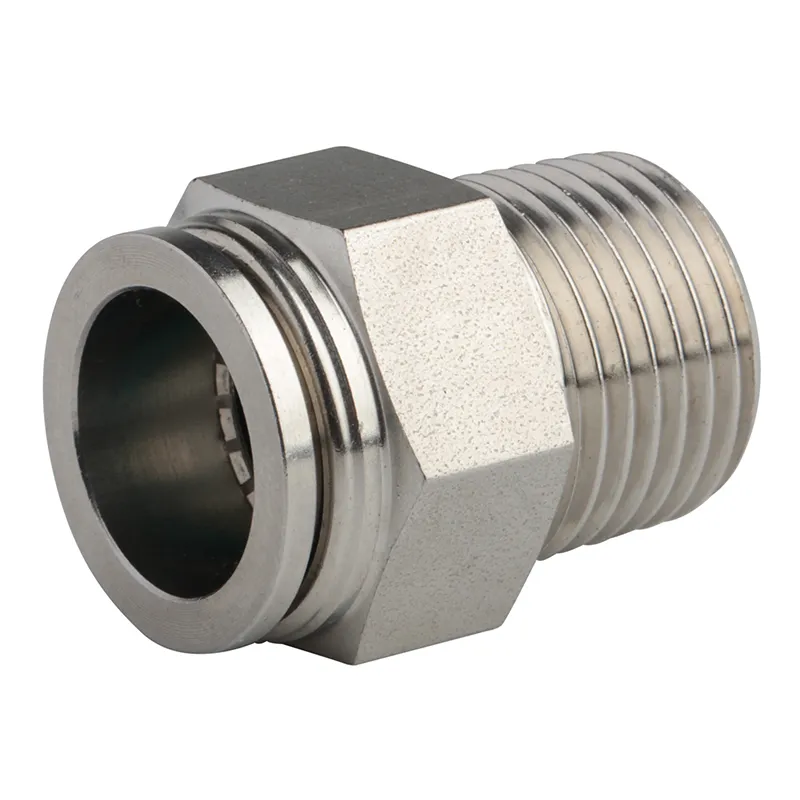

Pneumatic Male Straight Sspc4-01 Stainless Steel 316L AISI Inox Fittings

OCO Pneumatic Male Straight SSPC4-01 Stainless Steel 316L AISI Inox Fittings

FEATURES


1. Fast connection.
2. High temperatureup to 150 degree.
3. Small, compact design.
4. Allow full flow through the hose/tubing I.D. with no smaller orifice required as in barb fittings.
5. Stainless steel push-in fittings are manufactured of acid-resistant, corrosion-free stainless steel        of highest material quality
6. Application in the food and pharmaceutical industry.
7. All parts can be cleaned easily and completely due to precise manufacturing and accurate surface processing.

8. Low fabrication tolerances and high quality manufacturing workmanship.

SPECIFICATION

Product Name Stainless Steel Push in Fitting Tubing O.D. 4-16mm Thread M5,1/8",1/4",3/8",1/2" Operating Pressure 0~16 bar Operating Temperature -20 ~ 150°C Vacuum Rating To 28″ Hg Application Air, Vaccum, Steam, Beverage, Oil Types Straight Capacity Over 10000 pcs/month Marketing Area All over the world

Other Models:

Model(OD-T) Tube(Metric)-Thread(R)Tube(Inch)-Thread(R)Tube(Inch)-Thread(NPT) SSPC4-M5SSPC6-03SSPC12-01SSPC5/32-01SSPC3/8-02SSPC1/8-N01SSPC1/4-N03SSPC1/2-N03 SSPC4-M6SSPC8-01SSPC12-02SSPC5/32-02SSPC3/8-03SSPC1/8-N02SSPC5/16-N01SSPC1/2-N04 SSPC4-01SSPC8-02SSPC12-03SSPC1/4-01SSPC3/8-04SSPC5/32-N01SSPC5/16-N02  SSPC4-02SSPC8-03SSPC12-04SSPC1/4-02SSPC1/2-02SSPC5/32-N02SSPC5/32-N03  SSPC4-03SSPC8-04SSPC14-03SSPC1/4-03SSPC1/2-03SSPC3/16-N01SSPC3/8-N01  SSPC6-M5SSPC10-01SSPC14-04SSPC5/16-01SSPC1/2-04SSPC3/16-N02SSPC3/8-N02  SSPC6-M6SSPC10-02SSPC16-03SSPC5/16-02 SSPC3/16-N03SSPC3/8-N03  SSPC6-01SSPC10-03SSPC16-04SSPC5/16-03 SSPC1/4-N01SSPC3/8-N04  SSPC6-02SSPC10-04 SSPC3/8-01 SSPC1/4-N02SSPC1/2-N02

HOW TO USE

Shipping:

Ways: Sea, Air, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.Our company

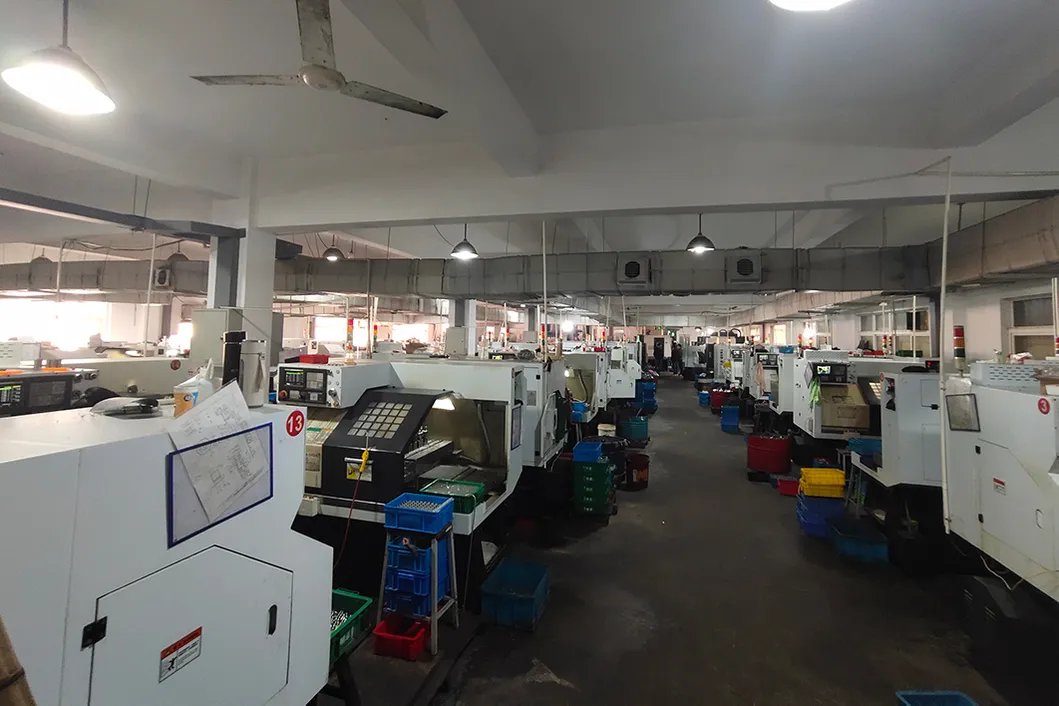

We have a young, efficient, innovative and experienced technical team that can design and develop new products by itself. According to the different needs of customers, we produce a variety of special specifications of products, in order to catch up with the imported similar products, continuous progress, and with high quality, to provide you with "one-stop" complete solutions.

Our products are mainly used in automobile manufacturing, industrial automation, food machinery, medical and other industries.Now it has developed into a large scale of domestic production enterprises, involving a wide range of industries,relatively rich products.


Focus on environmental protection and first quality.

1. Vision: harmonious coexistence, development and innovation.

2. Concept: The pursuit of excellence, achievement of the future.

3. Criteria: honesty and trustworthiness, dedication and dedication.
Why Choose Us?: Your Business Partner. When it comes to industrial manufacturing, choosing the right partner can make all the difference. At OCOFLOW, we're your top choice, and here's why:

1. Expertise: With years of experience, our skilled team excels in every facet of industrial manufacturing, ensuring top-quality products.

2. Custom Solutions: We tailor our offerings to meet your unique needs. Your success is our priority, and our adaptability sets us apart.

3. Quality Assurance: Quality is our commitment.

4. On-Time Delivery: We respect your timelines. Our streamlined processes guarantee punctual delivery without compromising quality.

5. Affordability: Competitive pricing, without compromising quality, helps optimize your investment.

6. Eco-Conscious: We embrace eco-friendly practices, minimizing our environmental impact.

7.Dedicated Support: Our support team is always ready to address your needs promptly.

8.Choose OCOFLOW for excellence, reliability, and a prosperous industrial future. Your success, our promise.
