PP Compression Pipe Fittings for Irrigation System

Product Description

IRRIPLAST PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.

Technical data

PartMaterial Body(A)Polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. Blocking bush(D)Polypropylene Nut(B)Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) Clinching ring(C)Polyacetal resin(POM)with high mechanical resistance And hardness O Ring gasket(E)Special elastomeric acrylonitrile rubber(EPDM) for alimentary use Reinforcing ringAISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1"to 4"

PN 16 typeCodeSizeWeight (g/pc)PCS/BAGPCS/CTN Female elbow with brass300720*1/283.410130 25*3/4135.31070 32*1238.71050 50*11/2668.3216 63*2865.5110

WORKING PRESSURES

IRRIPLAST PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature.


FEATURES

1. Light weight, easy to load and unload
2. Good chemicals and drugs resistance
3. Small resistance to fluidity
4. Strong mechanical strength
5. Good electrical insulation
6. Water quality unaffected
7. Simple installation

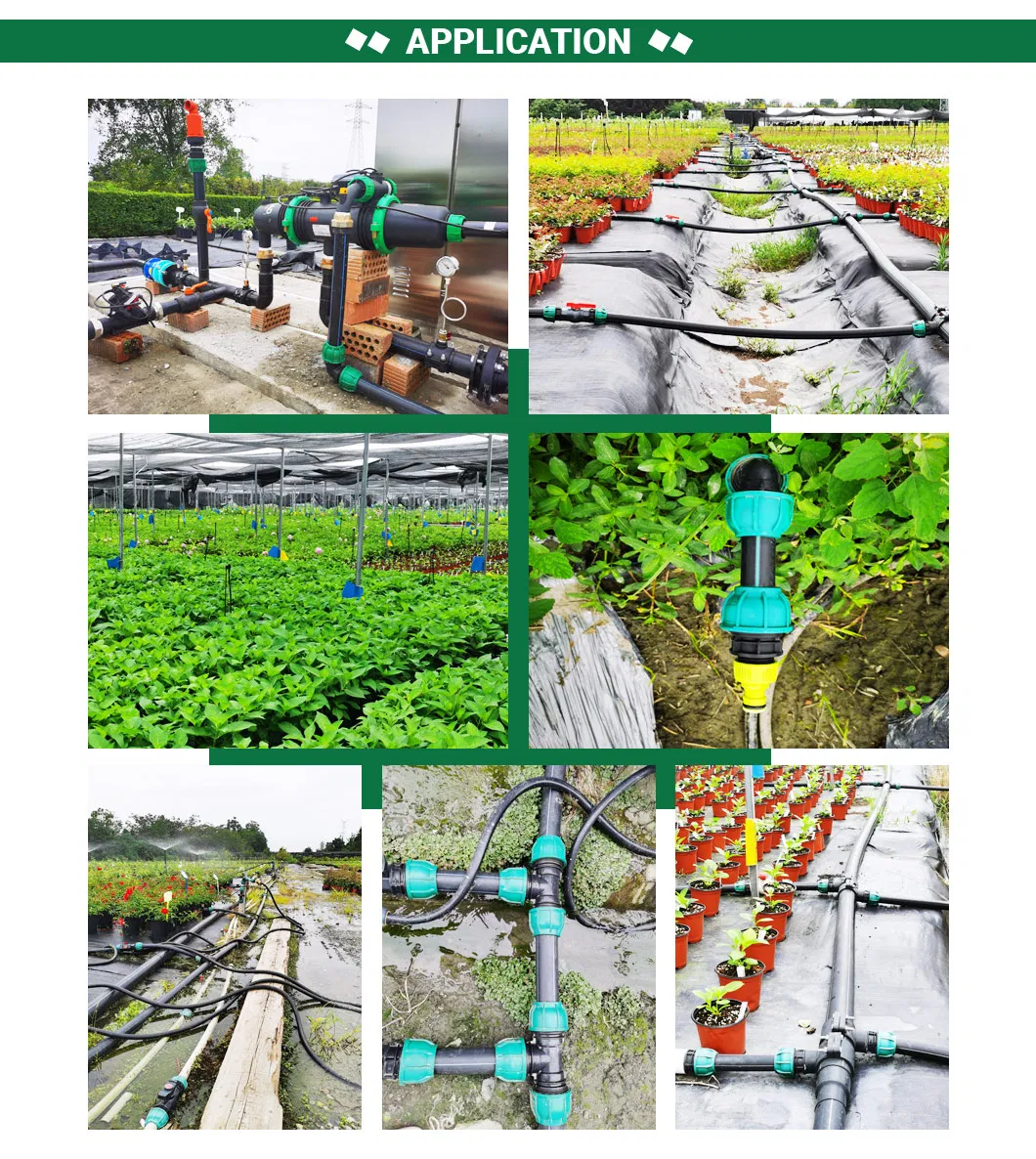

APPLICATION

1. Structure Engineering
2. Water supply system
3. for Agriculture Irrigation

Reference Standards

Dimensions: UNI 9561
Working Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2

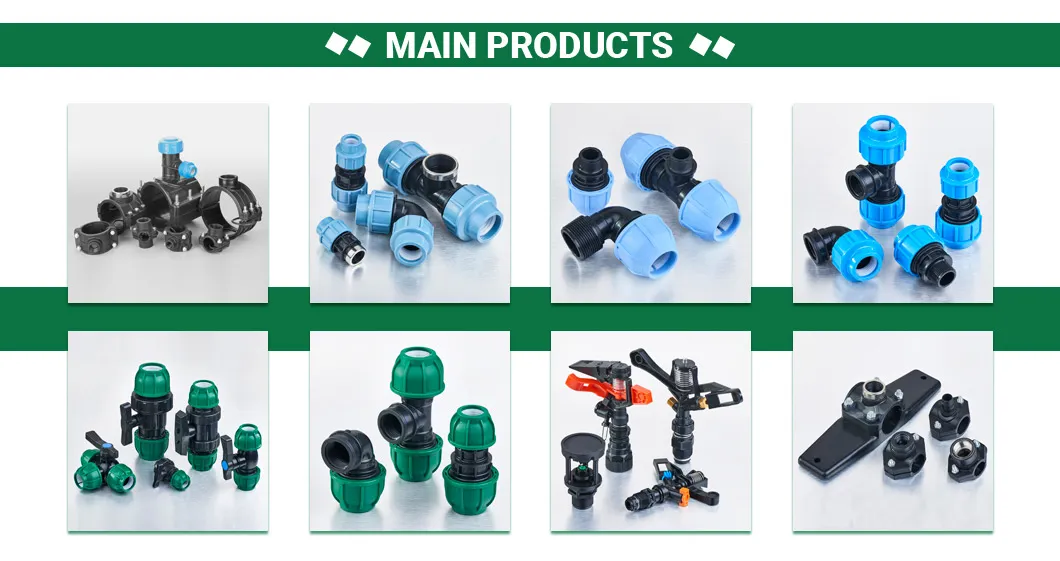

Main Products
