Tee Female National Pipe Thread with Captive Seal 1/2 Inch Quick Connectionn Fittings
Detailed specification for Tee Female National Pipe Thread with Captive Seal 1/2 Inch Quick Connectionn Fittings
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | AC AD |
| Connection | Female |
| Surface Treatment | White Zinc/Zinc-Nickel Alloy |
| Head Type | T-Shaped |
| Max Pressure | 630 Bar /9000 Psi |
| Certification | ISO Certification |
| Usage | Hydraulic Systems Are Particularly Suitable for Co |
| Application | Hydraulic/Gas/Liquid |
| Transport Package | Plastic Bag and Customized Carton, |
| Specification | AC AD |
| Trademark | Fuke |
| Origin | Zhejiang Province, China |
| HS Code | 7307290000 |

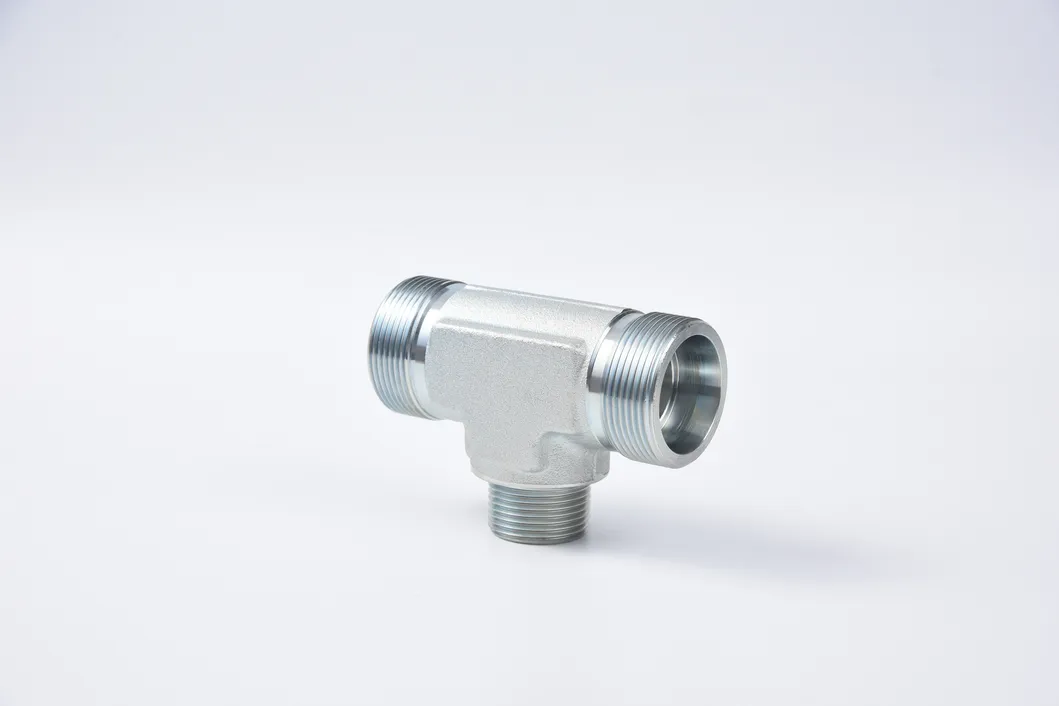

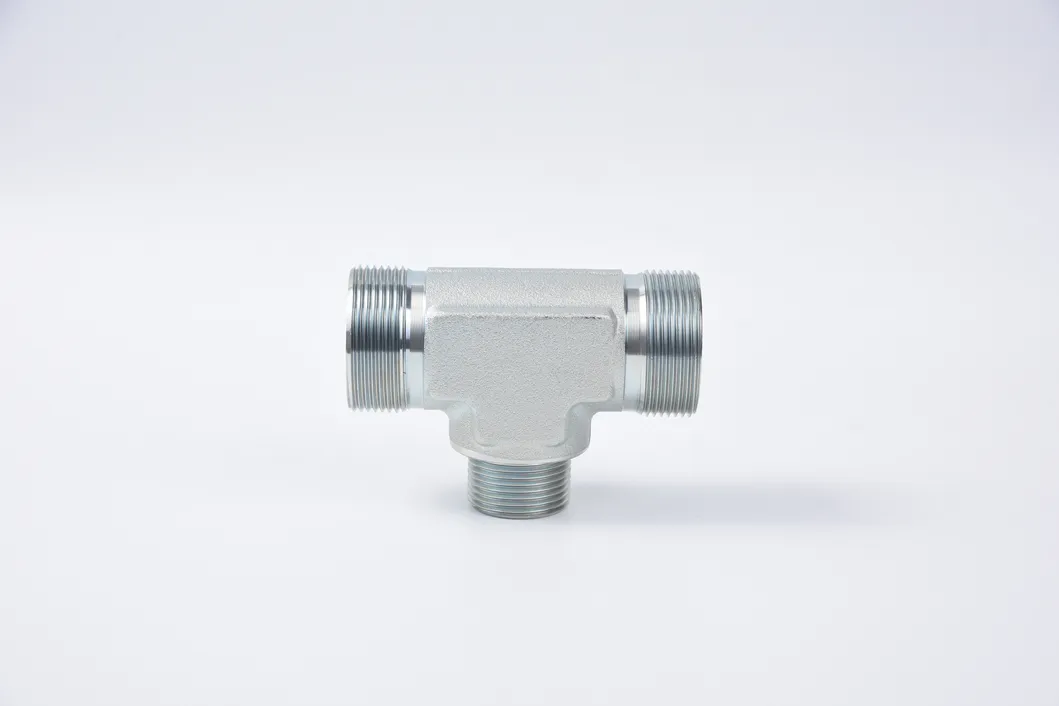

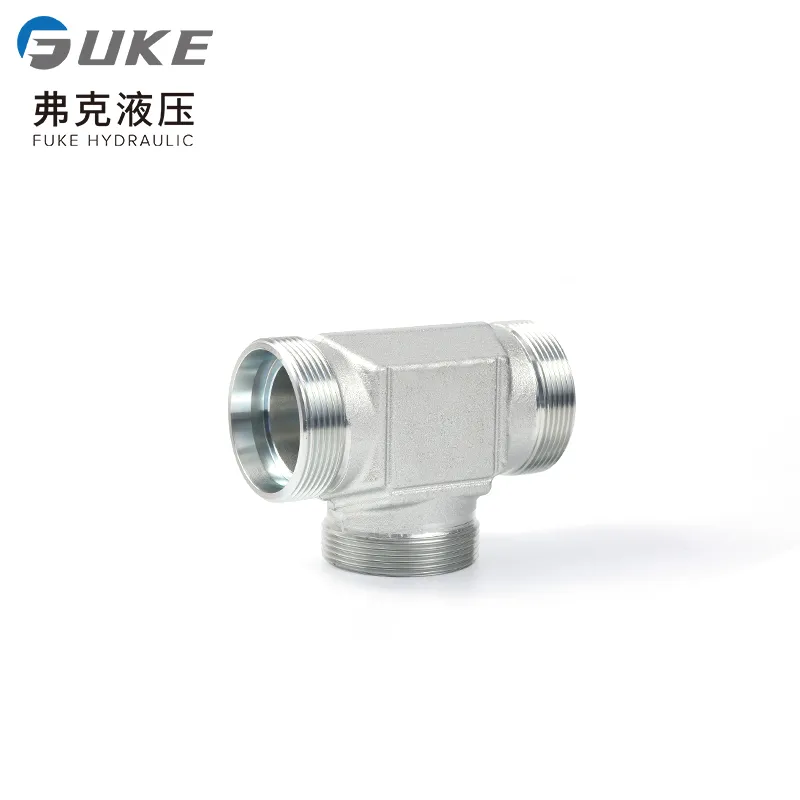

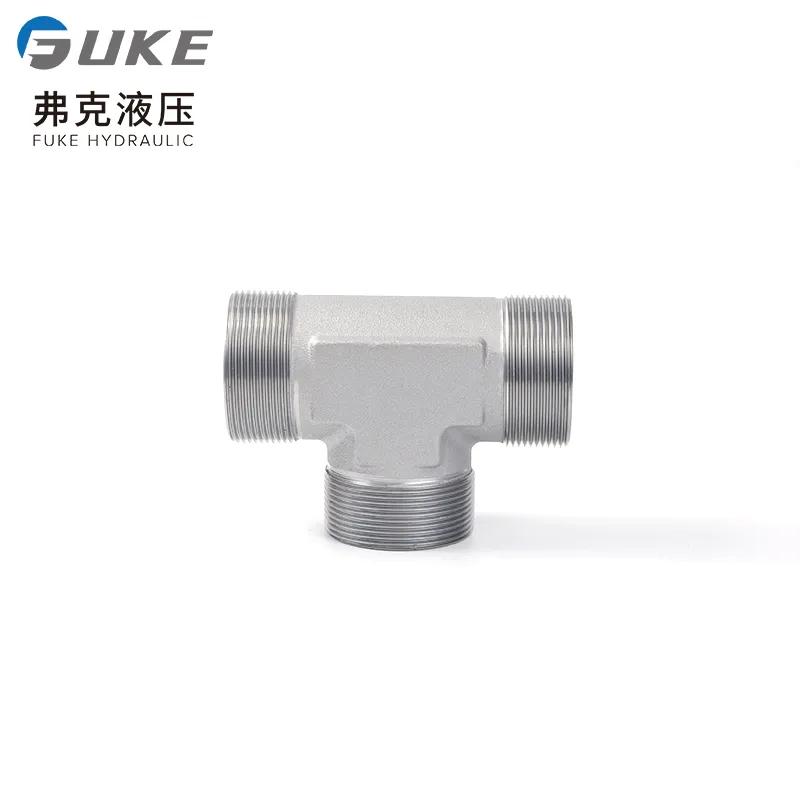

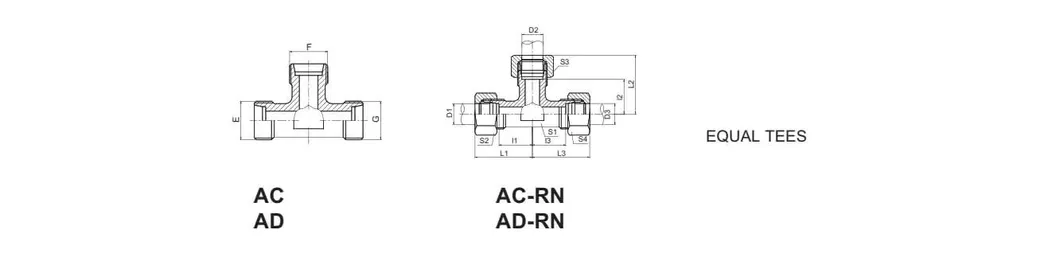

AC AD T Bsp thread with captive seal

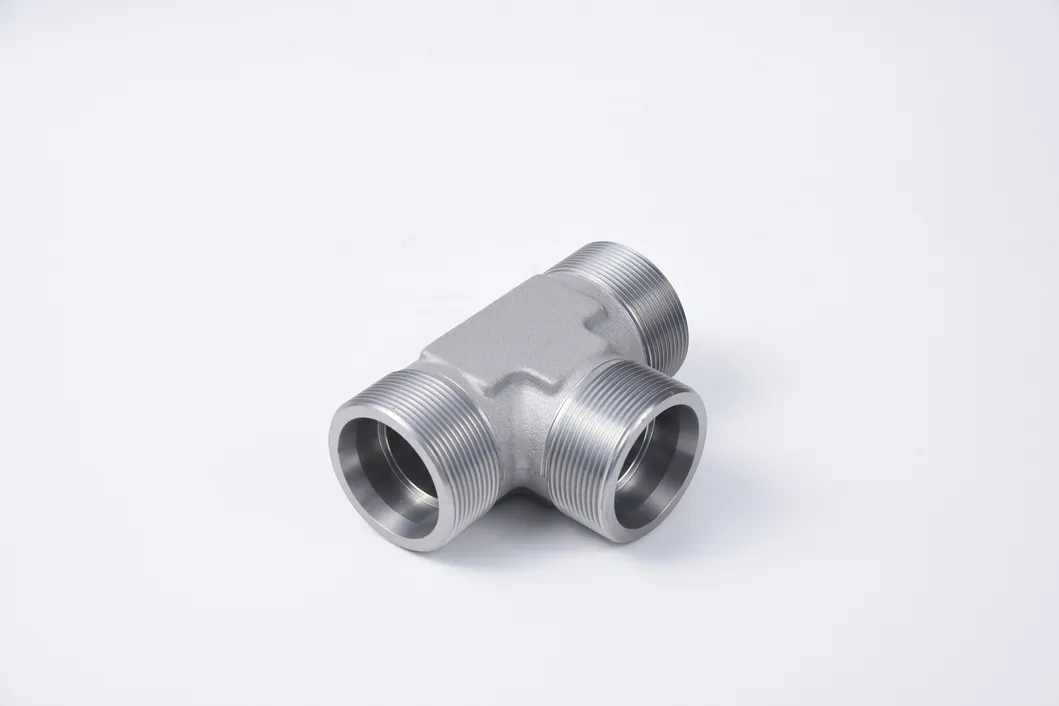

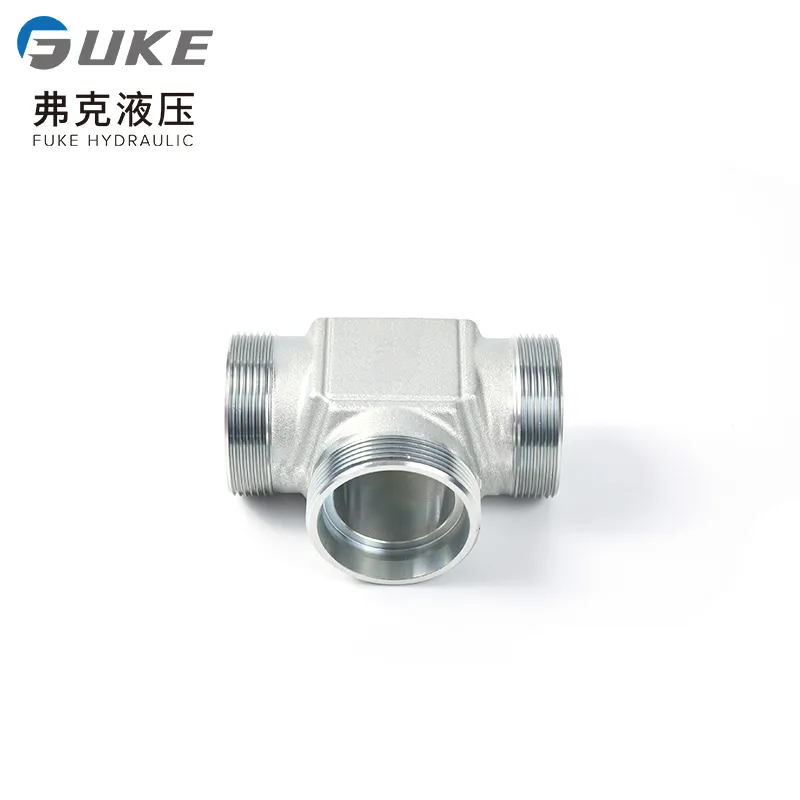

AC AD T tee male coupling with 24° tapered female triple thread for forming to pipe ends, welded pipe, ferrule connections, Pressure range up to 630bar/9000PSI,
According to international standards:DIN3861/ISO8434,
Available with standard pipe diameters:
24° tapered light (DIN2353) 06L-42L,
24° tapered heavy (DIN2353) 06S-38S,
available with tee reducers. ) 06S-38S,
available with tee reducers.
PART NO
THREAD
TUBE O.D.
DIMENSIONS
MPa
E,F,G
D1,D2,D3
I1,l2,I3
L1,L2,L3
s1
s2,s3,s4
AC-08
M8X1
4
11
21
9
10
10LL
AC-10
M10X1
5
9.5
21
9
12
AC-10LL
M10X1
6
9.5
21
9
12
AC-12LL
M12X1
8
11.5
23
12
14
AC-12
M12X1.5
6
12
27
12
14
25L
AC-14
M14X1.5
8
14
29
12
17
AC-16
M16x1.5
10
15
30
14
19
AC-18
M18x1.5
12
17
32
17
22
AC-22
M22x1.5
15
21
36
19
27
AC-26
M26X1.5
18
23.5
40
24
32
AC-30
M30×2
22
27.5
44
27
36
16L
AC-36
M36x2
28
30.5
47
36
41
AC-45
M45x2
35
34.5
56
41
50
AC-52
M52X2
42
40
63
50
60
AD-14
M14X1.5
6
16
31
12
17
63S
AD-16
M16X1.5
8
17
32
14
19
AD-18
M18X1.5
10
17.5
34
17
22
AD-20
M20X1.5
12
21.5
38
17
24
AD-22
M22X1.5
14
22
40
19
27
AD-24
M24X1.5
16
24.5
43
24
30
40S
AD-30
M30X2
20
26.5
48
27
36
AD-36
M36X2
25
30
54
36
46
AD-42
M42X2
30
35.5
62
41
50
AD-52
M52X2
38
41
72
50
60
31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,
it is necessary to insert suffix "RN" after our part no.,for example AC-22RN.

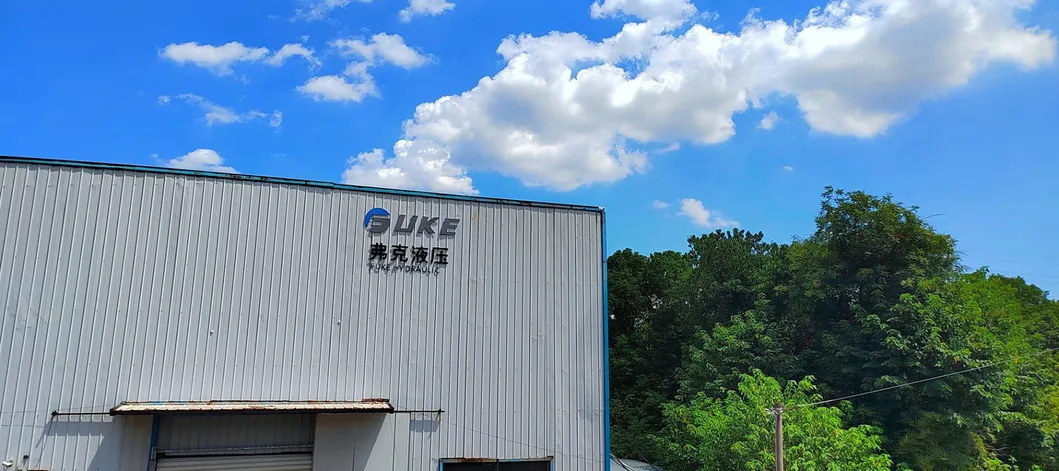

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic fitting, high-precision hydraulic valve blocks, high-pressure ball valves, and check valves that meet ISO, DIN, and SAE standards.
The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.

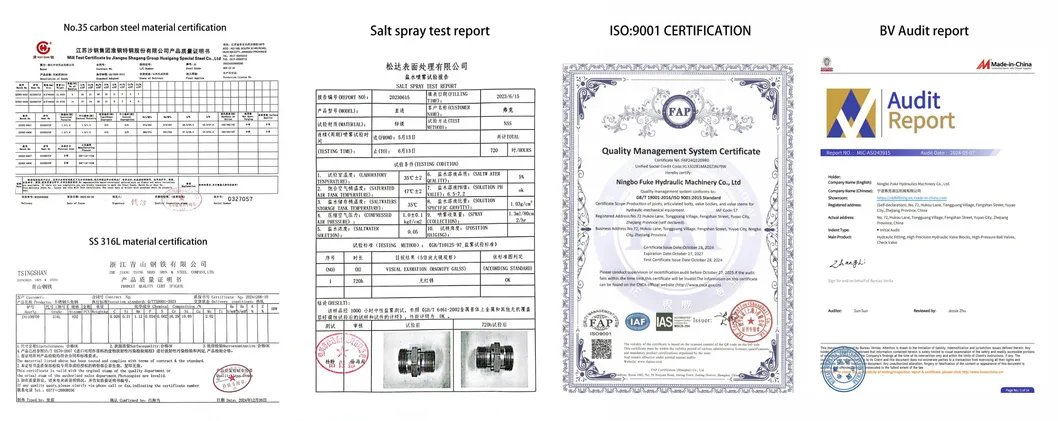

The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing

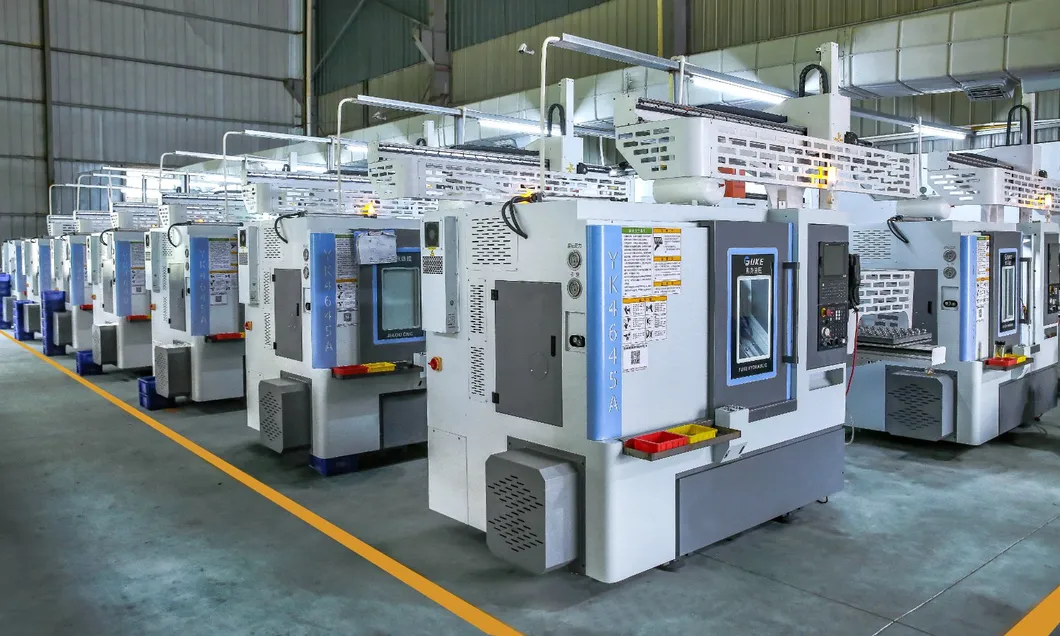

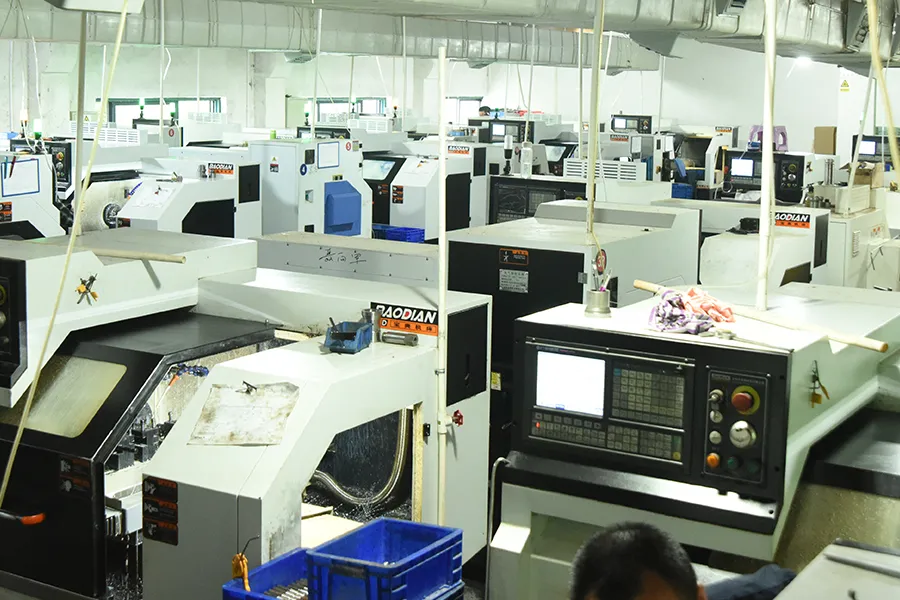

Producing Department

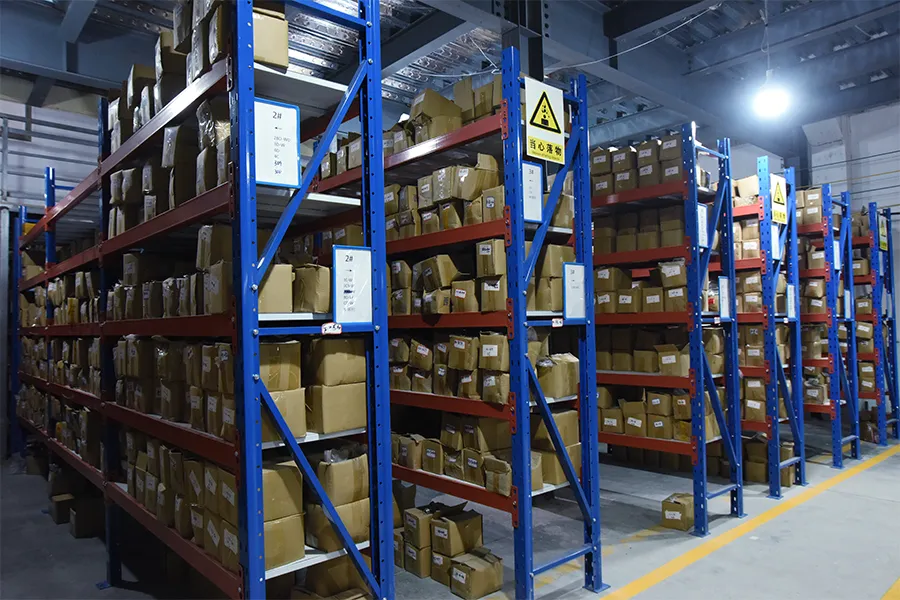

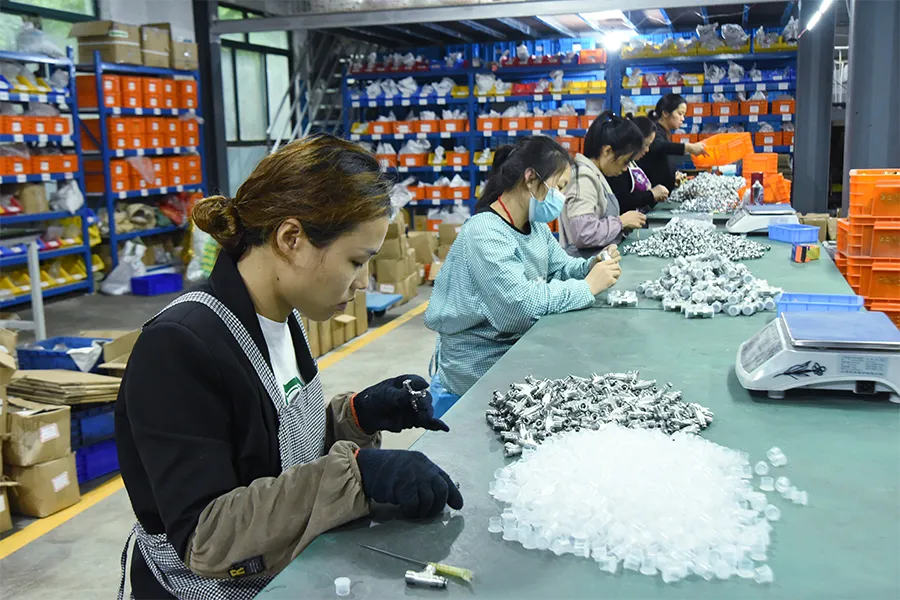

Inspection Area Warehouse
1. Raw material, 100% testing before delivery, 99% no leakage, and wonderful torque.
2. Have cooperated with a lot of importers all over the world.
3. Experienced in doing business with big customers as per high standard request
4. Quick and stable delivery time
5. Professional R&D Team.
6. Free samples could be sent by request.
