Pipe Fittings Clear PVC Coupler Plastic Connector Clear UPVC Equal Coupling by Pn16 DIN for Water

Flexible or Rigid	Rigid
Material	UPVC
Standard	DIN Pn16
Pressure	Pn16(1.6MPa)
Temperature	0~65 Degree
Transport Package	Carton
Specification	20mm to 225mm
Trademark	RMI PLAST
Origin	China Mainland
HS Code	3917400000
Production Capacity	50000PCS/Month

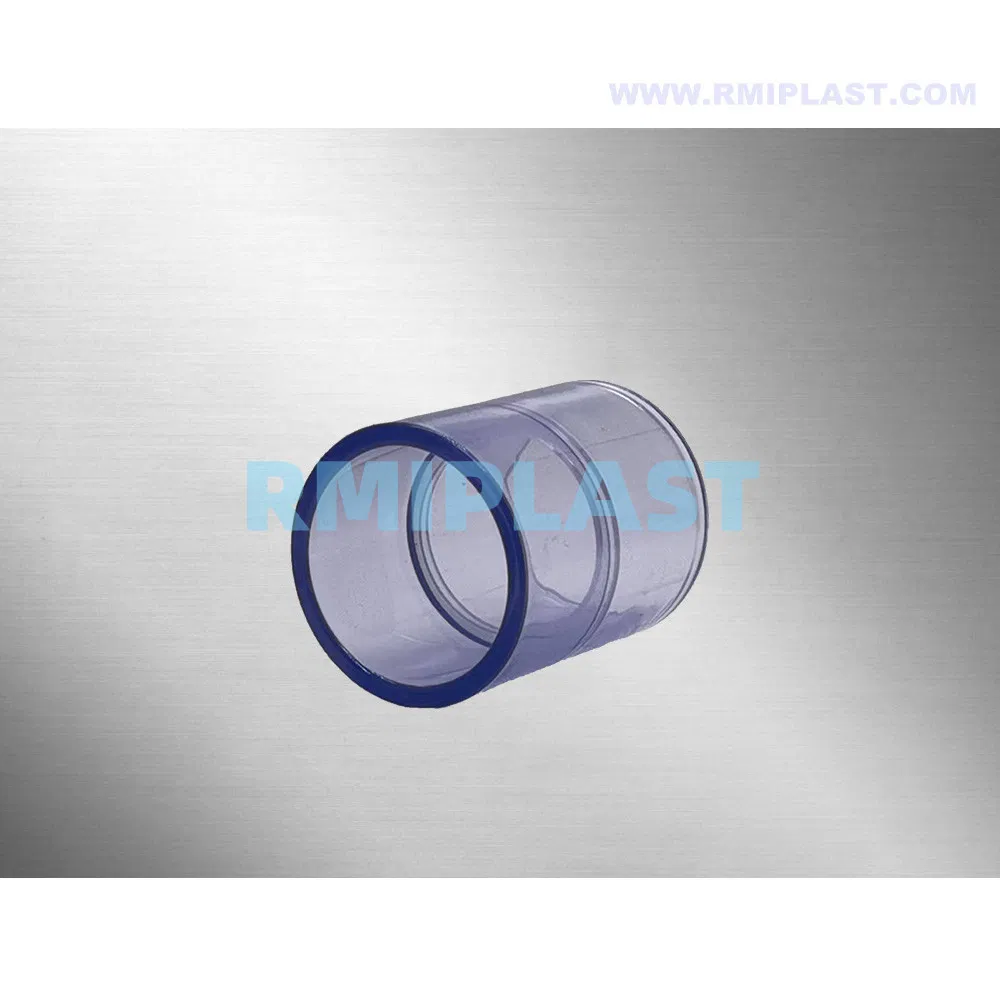

Product Name:Pipe Fittings Clear PVC Coupler Plastic Connector Clear UPVC Equal Coupling by PN16 DIN for Water

Clear PVC Female coupling is connector of one end by socket and another end of female thread, the Clear UPVC Pipe Fitting PN16 socket end is made by DIN stadards, and Clear PVC Pipe Fitting SCH80 screw end by NPT standard. the main purpose of use PVC Fitting female coupler is connect the valves, instrument, equipment and other accessories to the pipe system.Clear PVC Coupling ASTM SCH80 8'' is produced as per ASTM standard by pressure rate SCH80. size range from 1/2" to 8". Clear PVC Pipe Fitting SCH80 is used for delivery and observe the medium easily, Clear PVC Fitting is also used as casing pipe to protect and observe the inside pipe,Clear PVC pipe and PVC Fitting is same property with general type PVC pipe and fittings, it can be used for water supply. water treatment, industry. etc.

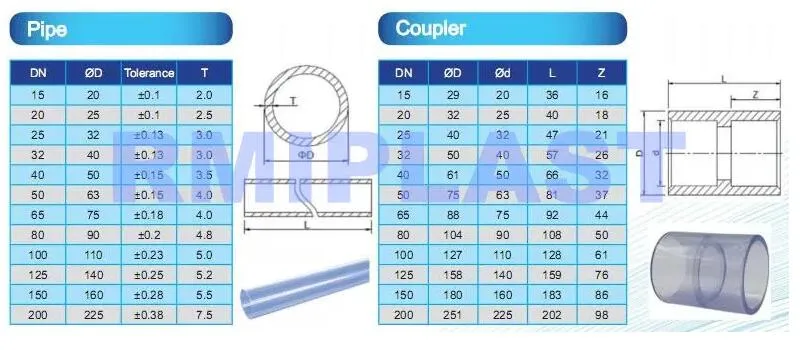

Size:D20mm to D225mm
Standard: DIN
Connect: socket
Working pressure:1.6Mpa(PN16 bar)
Working temperature: 0ºC to 65ºCProduct

Working Pressure VS Temperature

Application area:
Chlorine-caustic soda plant
Waste water treatment
Chemical fertilizer plant
Paper Mill
Electroplate factory
Mining
Pharmaceutical factory
Steel Plant
other corrosive medium transport.
