Rigid or Flexible Couplings/Reducing Tee/Mechanical Tee/Elbow/Cross/Flange/Reducer/Cap/Grooved Pipe

Model NO.	WJCG001
Working Pressure	300psi (2.07MPa)
Material of Gasket	EPDM, NBR or Silicon Rubber at Your Option
Material of Casting Body	Ductile Cast Iron
Surface Treatment	Epoxy Resin, Painting or Galvanized
Transport Package	Packed in Cartons Then on Pallets
Specification	1/2"-12"
Trademark	OEM
Origin	China
HS Code	73071100
Production Capacity	20 Tons/Day



Commoditygrooved couplings and fittings for fire protection system Product seriesGrooved couplings: rigid couplings, flexible couplings  Grooved Tees: equal tee, grooved reducing tee, threaded reducing tee.  Mechanical tees: Mechanical tee grooved outlet, Mechanical tee threaded outlet,
U-bolt mechanical tee.  Grooved cross: equal cross, grooved reducing cross, threaded reducing cross.  Grooved flange(split flange), flange adaptor.  Grooved elbow: 90° elbow, 45° elbow, 22.5° elbow, 11.25° elbow.  Grooved cap  Grooved reducer: grooved concentric reducer, threaded concentric reducer,
grooved eccentric reducer. Nominal Size1''-12'' Certification UL listed & FM approved Material of casting bodyDuctile cast iron with tensile strength 450MPa, ASTM A536 Material of gasketEPDM, NBR or Silicon rubber Thread concernedNPT or BSPT Flange standardPN series or Class series Structure designConsistent with the drawing Working pressure300PSI / 2.07MPa Surface treatmentPaint, galvanized or epoxy resin powder Available colorRed, orange, blue or dacromet Bolts and nutsexport standard, grade 8.8 PackingExport standard package, packed in cartons and then on palltes. MOQ1ton for each item Delivery time30 days after firm order confirmed Port of loadingQingdao, China IncotermsFOB, FCA, CFR, CIF Payment termsT/T 30% in advance and the blance against B/L copy.
L/C at sight, usance and transferred L/C is not acceptable


Besides the above products, we aslo have such pipe machines for your option like roll grooving machine, pipe threading machine and hole cuting machine.

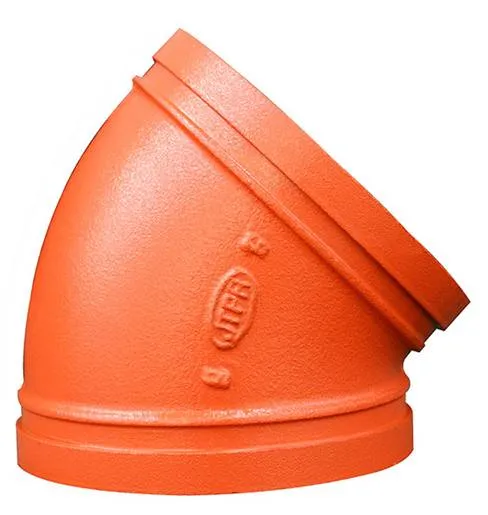

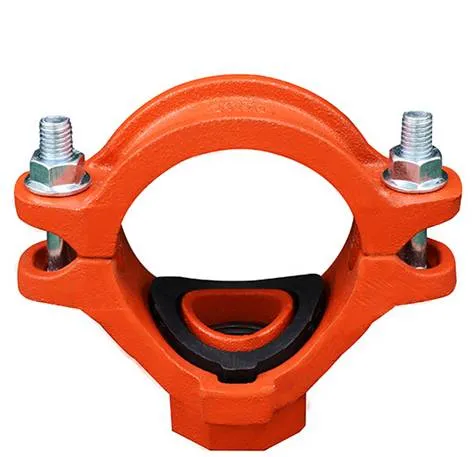

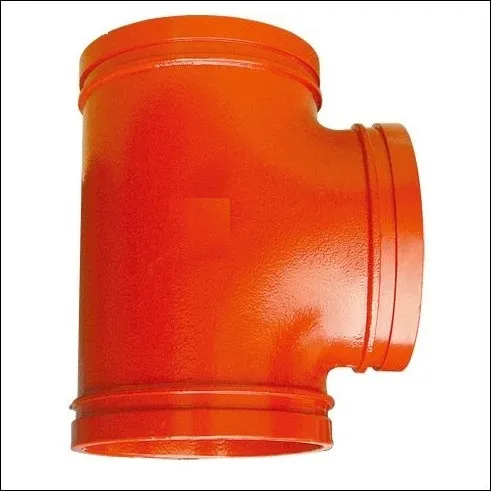

Product photo or other photo related:




Product packing and transportation:

Certificate:
