Male Adapter Notched Hose Shank Multi Barb Type E Hydraulic Hose Fitting

Model NO.	3/4''
Connection	Male
Surface Treatment	Sandblasting
Head Type	Round
Product Name	Type E
Sizes	1/2″-8″
MOQ	50 PCS
Customizable Contents	Sizes/ Logo
Certificates	CE ISO9001:2015
Market	Global
Lead Time	About 30 Days
Usage Standards	a-a-59236 / En14420-7
Purpose	Connect and Disconnect The Hoses
Media	Gasoline, Heavy Oil, Kerosene, Water etc.
Body Material	Aluminum
Arm Material	Stainless Steel or Brass
Thread	Bsp, BSPT, NPT, G (ISO228.1), and R(DIN2999).
Working Pressure	50-250psi (Depends on The Size and Temperature)
Manufacture Method	Gravity Casting
Transport Package	Plastic Bag, Normal Export Carton and Pallet
Specification	2"
Trademark	Union Metal
Origin	China
HS Code	7609000000
Production Capacity	5000000

Male Adapter Notched Hose Shank Multi Barb Type E Hydraulic Hose Fitting

Aluminum cam and groove adapters are produced according to A-A-59236(replaced Mil-C-2787) or EN14420-7(replaced DIN2828). Size range is from 1/2" to 8". The couplings of cam grooves between manufacturers are interchangeable, except 1/2"(12.7mm) and 8"(203.2mm). The cam&groove couplings of A-A-59236 and EN14420-7 are interchangeable, but the hose end of them are different.
Camlock fittings provides simple and reliable way to connect and disconnect the hoses. These camlock fittings can be used together by connecting PVC pipes, rubber hoses, etc., which can transport a variety of fluid media such as gasoline, heavy oil, kerosene, water, mud, salt water, acid and alkali etc. It has the advantage of fast connection, flexible disassemble.


Name: Aluminum camlock fitting Type E Sizes:1/2'' - 8'' MOQ:50 pcs Certificates: CE, ISO9001:2015  Standard:A-A-59236(replaced Mil-C-2787) or EN14420-7(replaced DIN2828) Material: Aluminum Working pressure:250 PSI Application:Hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater, chemical transportation and storage etc. Advantage:Lightweight, flexible and interchangeable, convenient that connect and disconnect without tools HS code:7609000000

Description:
Cam and groove couplings description:
Material of the body: Aluminum
Arm: stainless steel or brass
The thread of camlock fittings are BSP, BSPT, NPT, G(ISO228.1) and R(DIN2999).
SIZE:1/2" to 8"
Working pressure: 50-250Psi (It depends on the size and temperature)
Manufacture method: gravity casting.
Application and connection method of Cam & groove couplings: type B can be used with type E, F, DP. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.

Industry applications:
Industry: Oil, mine, municipal, construction, chemical and agriculture.
Application: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater,  chemical transportation and storage etc.











Our Advantage

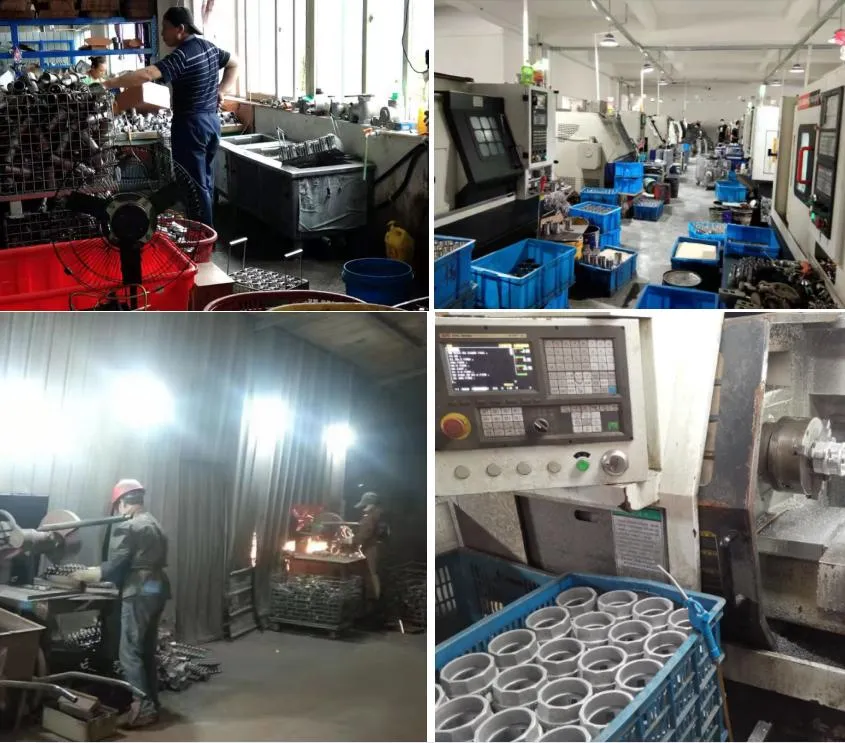

We are experienced as we have been in this industry as a manufacturer for more than 10 years. Both of quality and service are highly guaranteed. Absolutely prompt delivery. We can produce according to specific drawings from customers. Welcome OEM/ODM project. Strict control on quality. High efficient and well trained sale service team.  ISO9001, CE and SGS certified.
