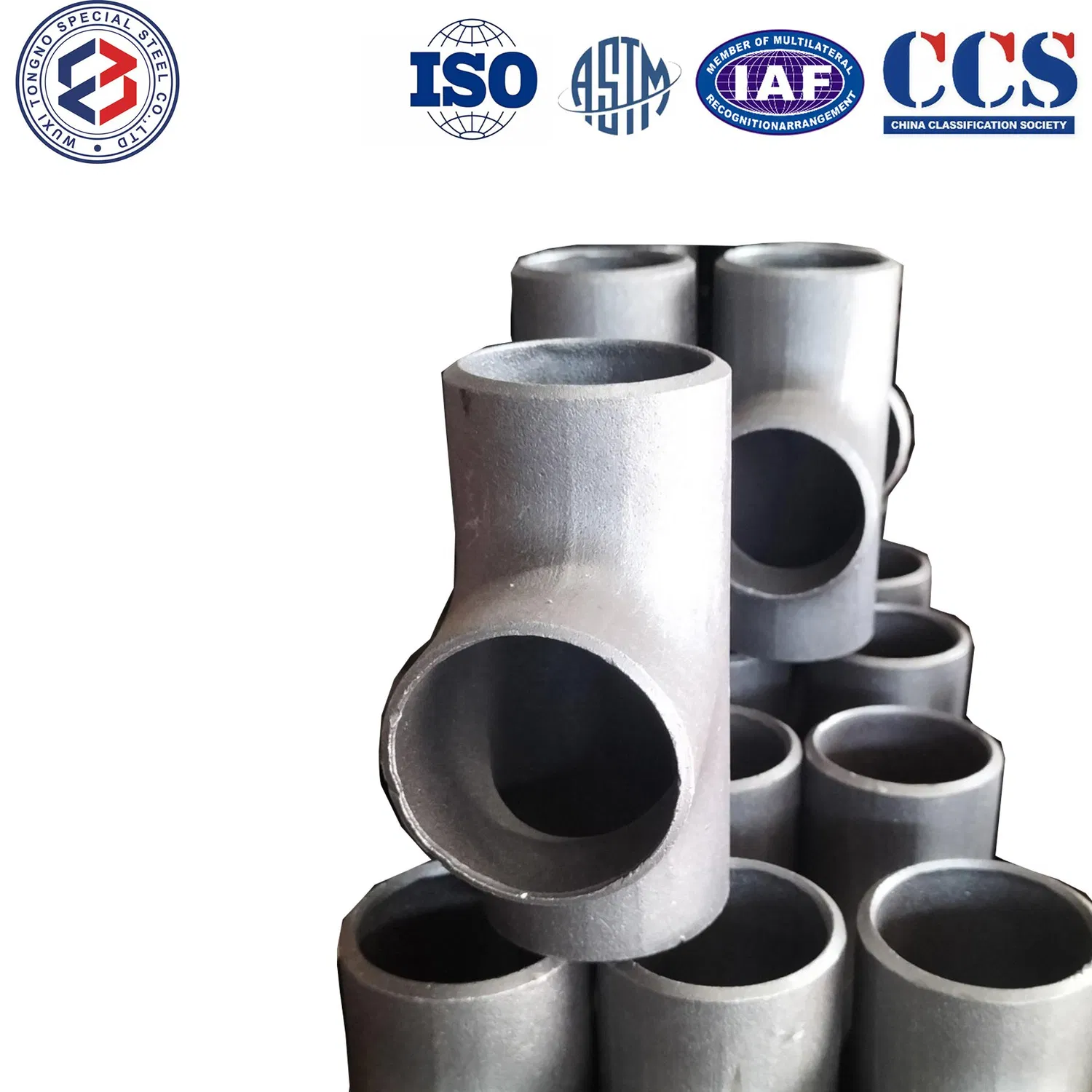

Durable ASME SA106, ASME SA210, ASME SA213, ASME SA335, En10216, DIN17175 Seamless Steel Tee a/SA106

Product Description

Pipe tees are fundamental components in piping systems, designed to combine or divide fluid flow in multiple directions. These T-shaped fittings feature three connection points, enabling the creation of branch lines from main pipelines. Available in various materials, sizes, and configurations, tees serve critical functions across industrial, commercial, and residential piping networks by ensuring efficient flow distribution and system flexibility.

These fittings are universally identified by their "T" configuration and are manufactured to precise dimensional standards to ensure proper fit-up in pipeline networks.

1.Types and Specifications
Tees are classified based on key characteristics:

•
  Flow Functionality:

  • Equal Tees - All three openings share identical diameters (e.g., 1"×1"×1")

  • Reducing Tees - Branch connection differs in size from main line (e.g., 2"×2"×1")

•
  Connection Methods:

  • Butt-weld tees for permanent high-pressure installations

  • Socket-weld tees for compact systems requiring welded joints

  • Threaded tees enabling tool-free assembly in low-pressure systems

  • Flanged tees for modular systems requiring frequent maintenance

•
  Specialized Variants:

  • Barred tees with internal bars to prevent pigging tool obstruction

  • Lateral tees with 45° branch connections for smoother flow transition

2.Industrial Applications

1. Petrochemical Plants: Stainless steel tees distribute process fluids between reactors

2. HVAC Systems: Galvanized tees manage refrigerant lines in air handling units

3. Water Treatment: PVC tees create sampling points in purification systems

4. Power Generation: Alloy tees split steam flows to turbine bypass lines

5. Mining Operations: Wear-resistant tees handle abrasive slurry distribution

3.Performance Advantages
Modern tee designs incorporate:

•
  Flow Optimization: Computational fluid dynamics (CFD)-designed interiors minimize turbulence

• Material Science: Duplex stainless steel tees combine strength with chloride resistance

• Manufacturing Precision: CNC-machined connections ensure perfect alignment

• Compliance Standards: Manufactured to ASME B16.9 (butt-weld) and MSS-SP-75 (high-pressure)

4.Selection Criteria
Critical factors for tee selection include:

•
  System pressure/temperature ratings

• Fluid compatibility with tee materials

• Space constraints determining straight/compact designs

• Inspection requirements for welds in critical services

5.Installation Best Practices

• Proper branch orientation (horizontal/vertical) to prevent sediment accumulation

• Reinforcement pads for high-stress branch connections

• Flow direction markers for reducing tees in directional systems

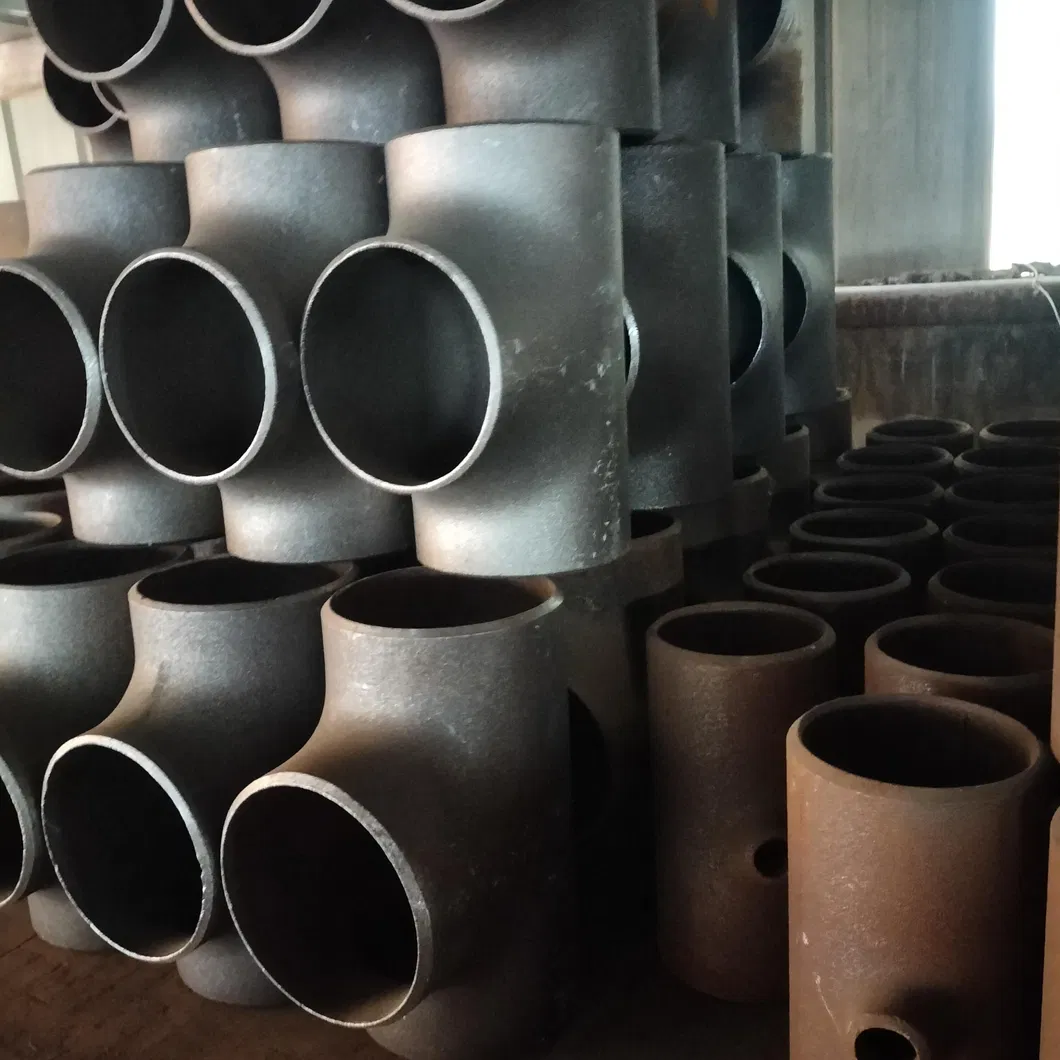

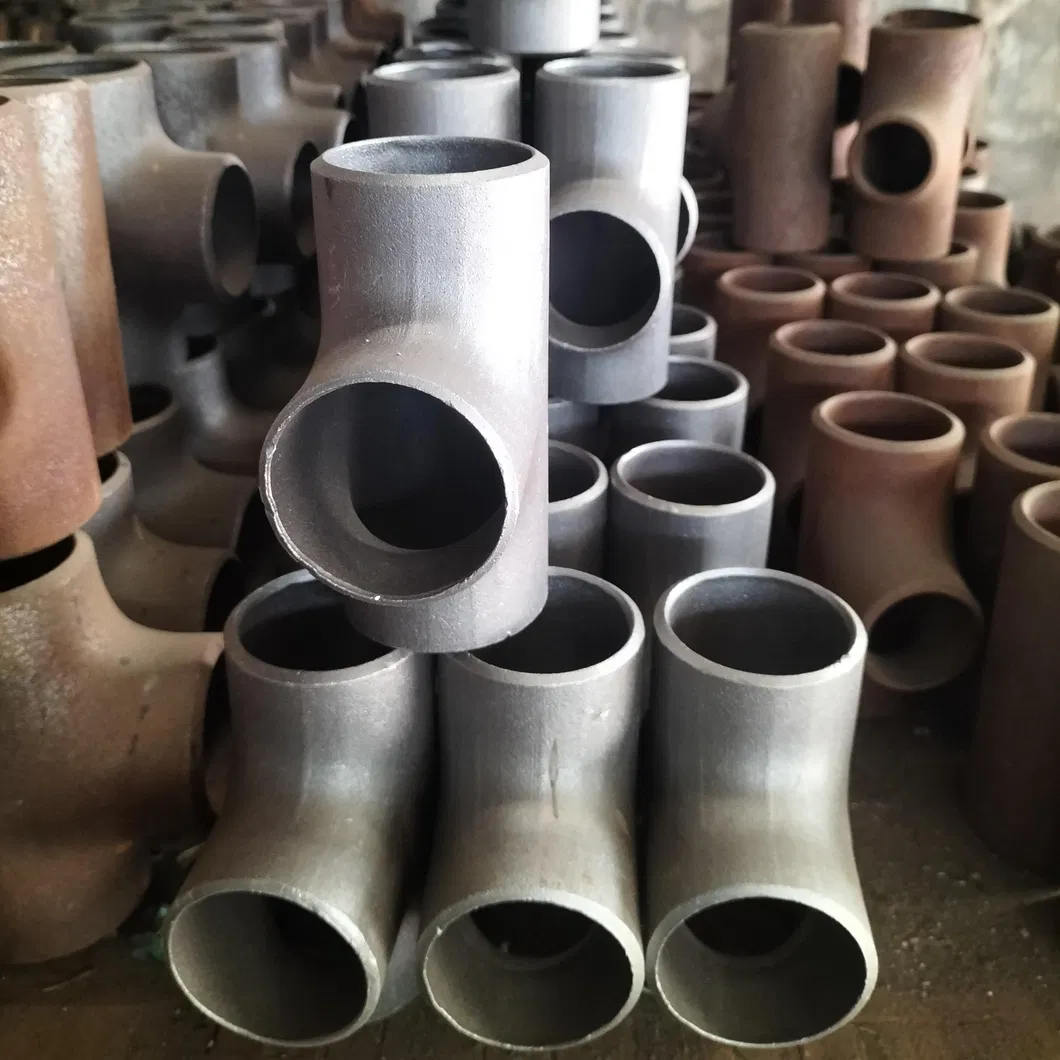

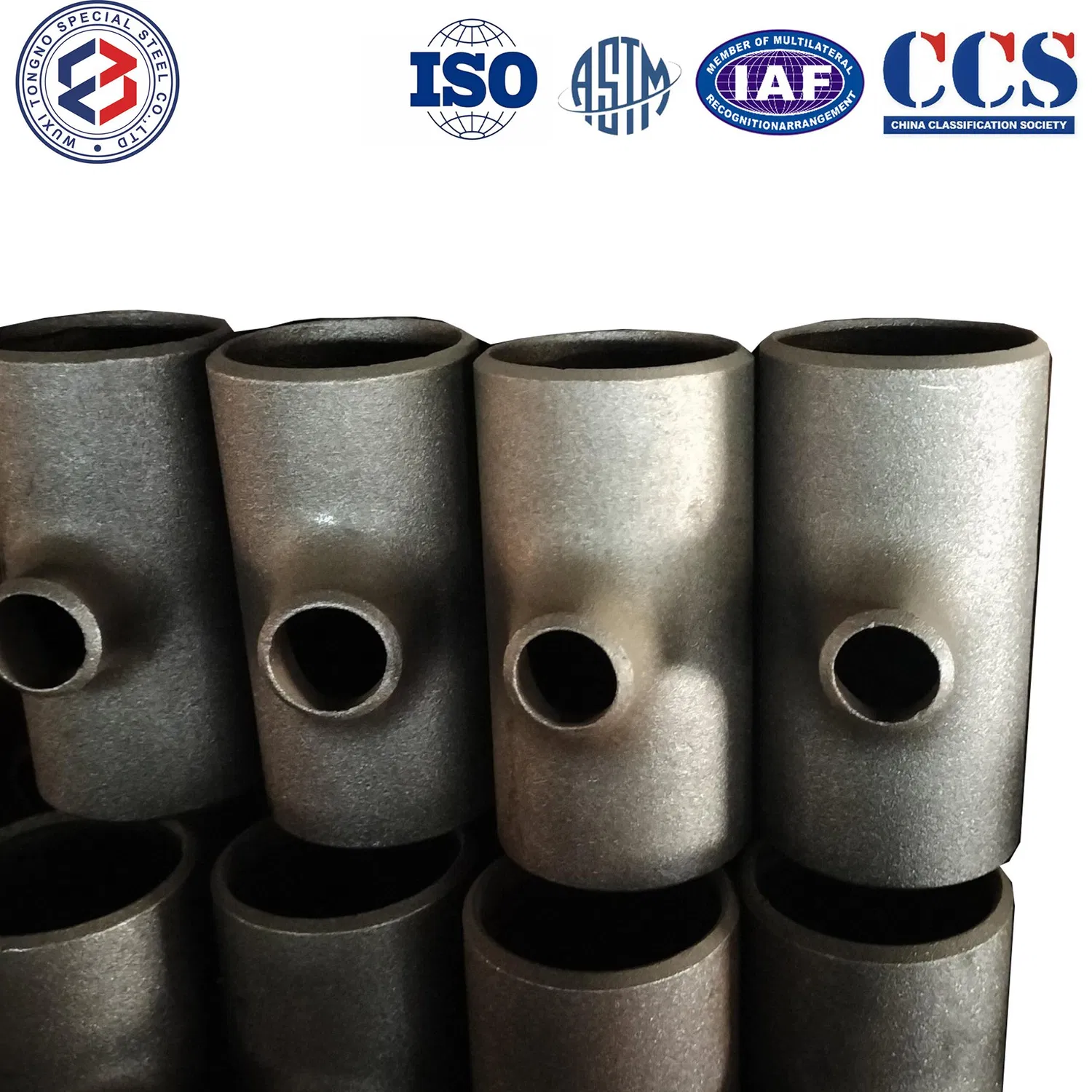

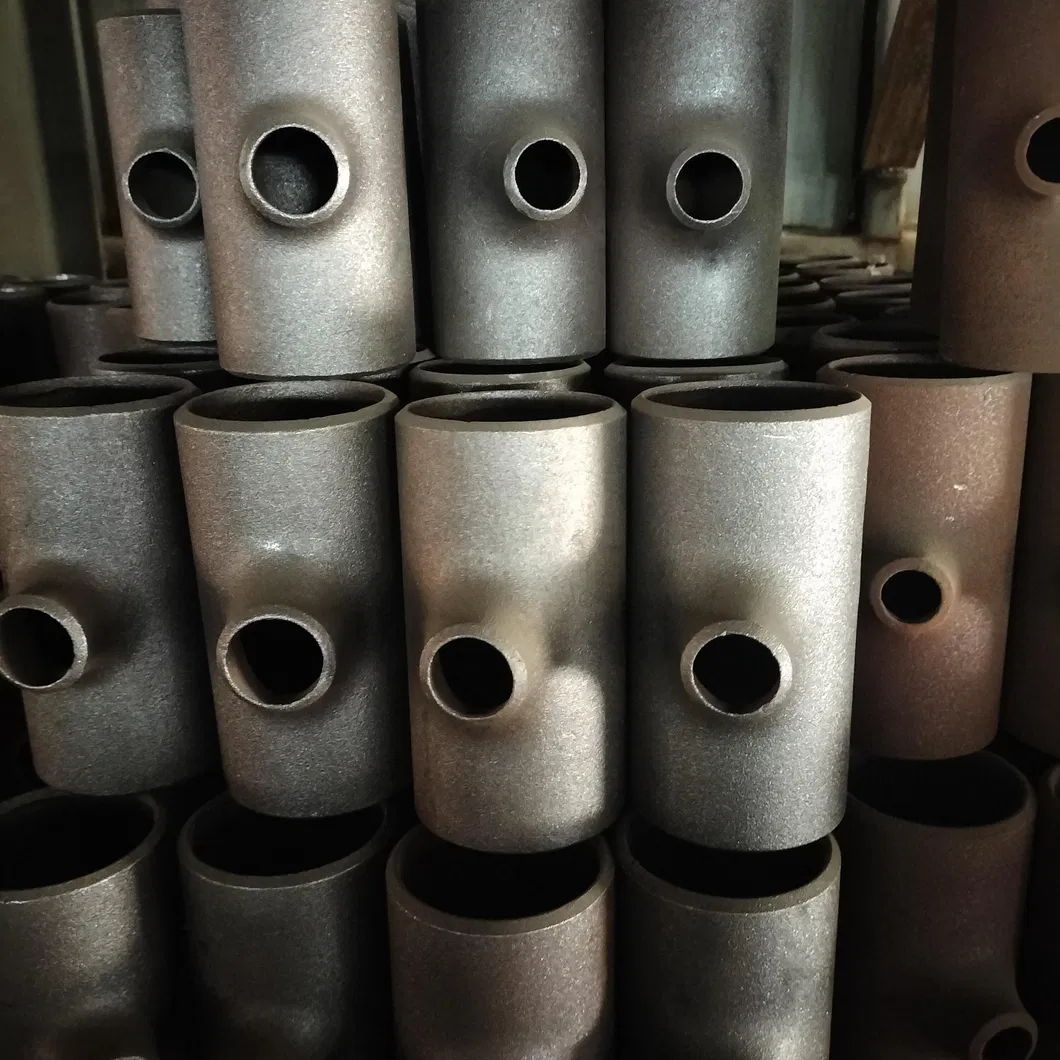

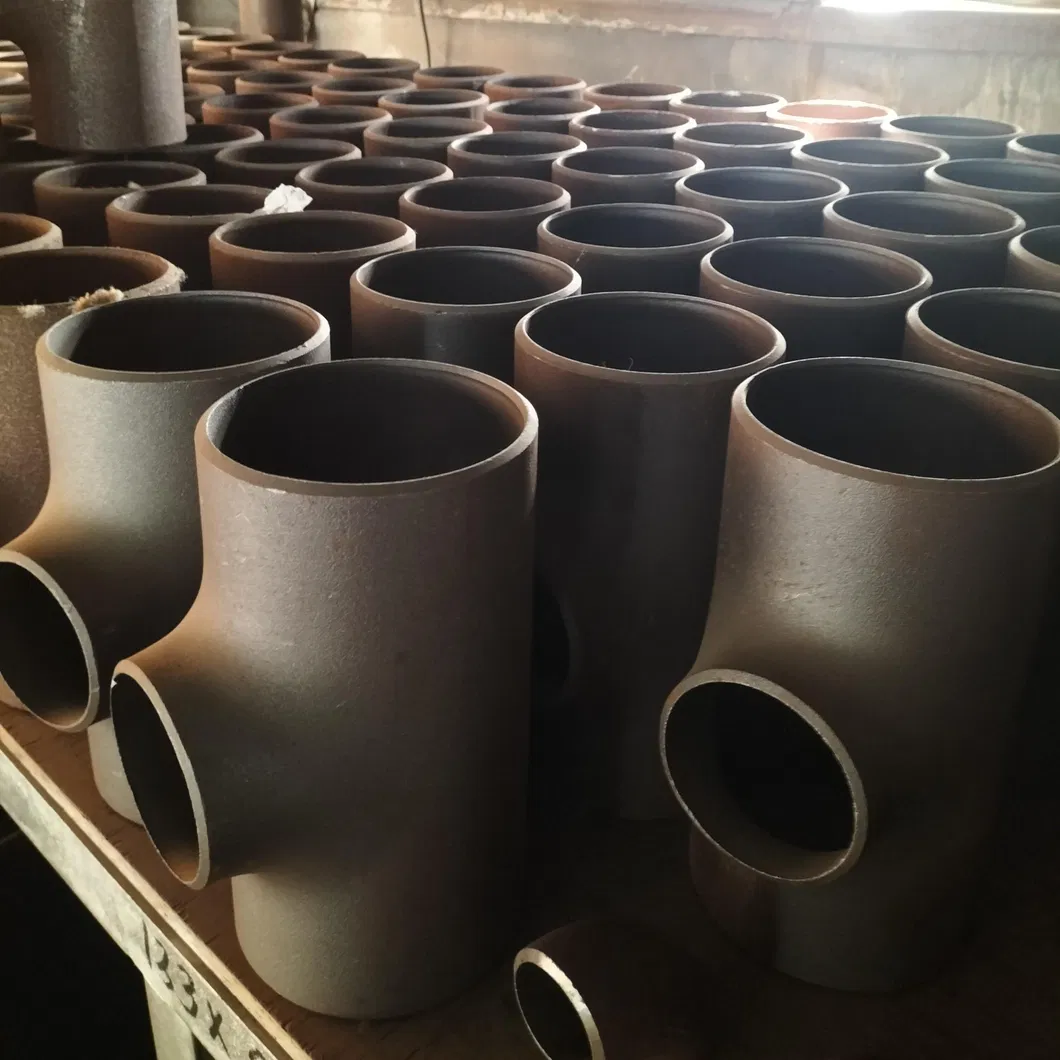

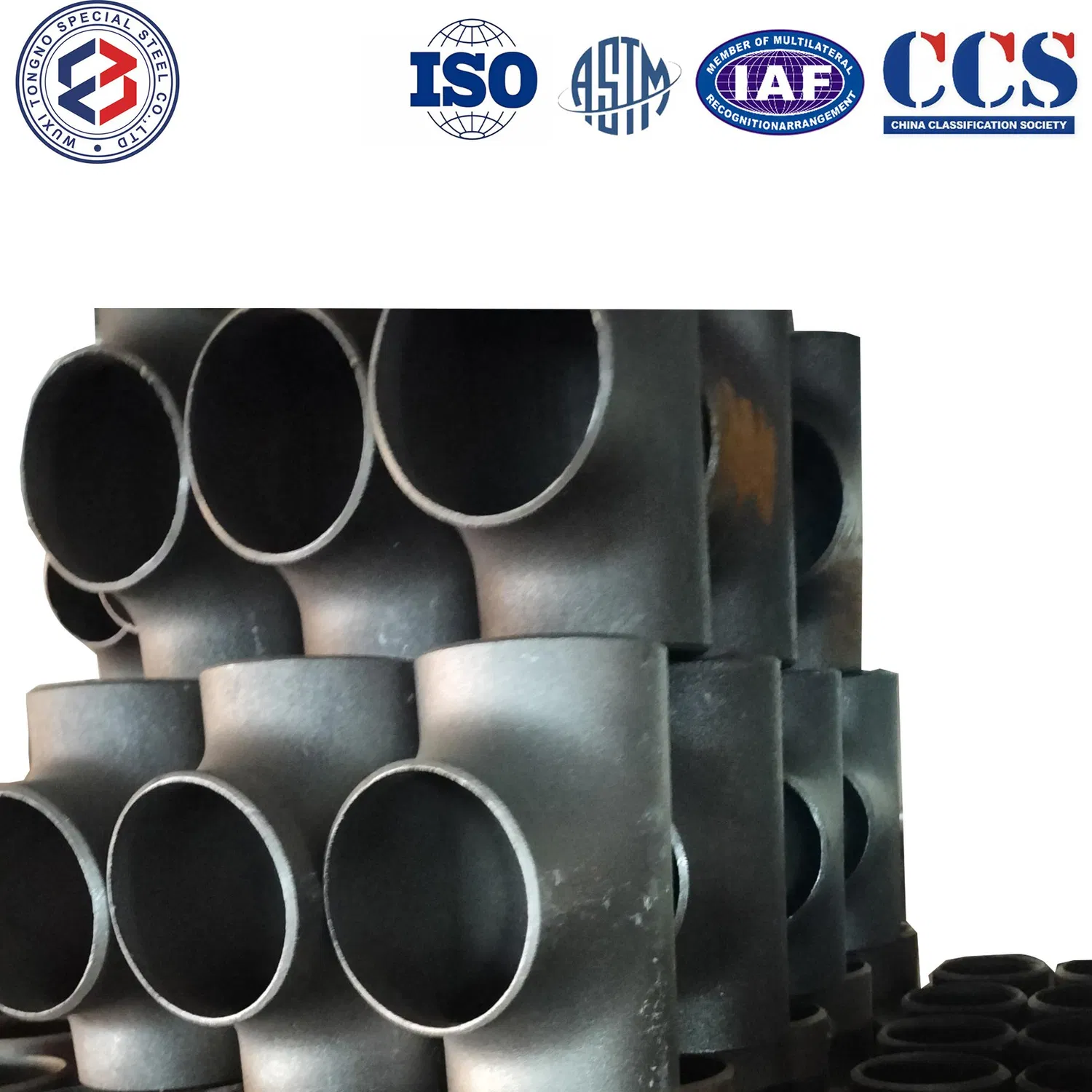

Detailed Photos

Certifications

Packaging & Shipping

1.Export sea worthy package + water proof paper
