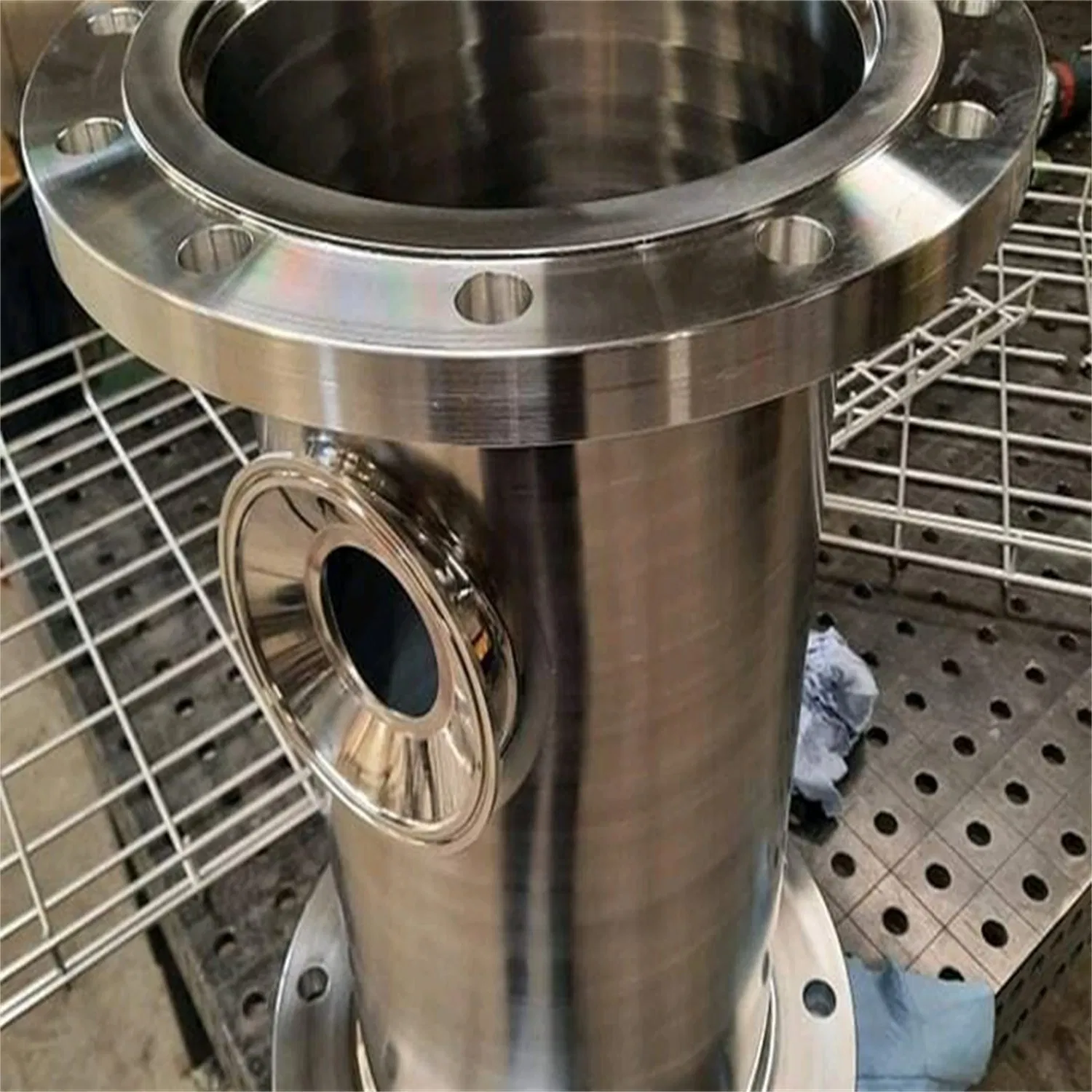

Stainless Steel Pipe Fitting/Pipe End Cap/Tee/Pipe Connectors/Lap Join Flange Stub End 301 201 202 3

Connection	Welding
Surface	Black,Coating,Gal. Ect
Special Deal	Pikling
Special Service	Could Produced According Drawings
Transport Package	Wooden Box
Specification	1/2"-24"
Trademark	PMC/OEM
Origin	Cn
Production Capacity	800000ton/Year

Pipe Fittings





Types: Elbow
45^°long or short radius elbow
90^°long or short radius elbow
180^° long or short radius elbow



Specifications

Seamless elbow:   1/2"-24" DN15-DN600.
Welded Elbow:     4"-72", DN150-DN1800.
Wall Thickness:   sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std, sch5s, sch20s, sch40s, sch80s.

Maximum thickness: 120mm

Product Range
Outside diameter 1/2"-72" DN150-DN1800.
Wall thickness 2mm - 120mm.
Bending radius R=1D - 10D.

Product angle 0 - 180.

Materials
Carbon steel: ASTM/ASME A234 WPB WPC.
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911.
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N.
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti.
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H.
Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6.
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70.

Features

• Available with different connection ends
• Allow change in the direction of flow
• Rust proof finish
• Leak proof joint

• Suitable for pressurized applications
• Weather proof
• No buildup of debris over the time
• No buildup of debris over the time

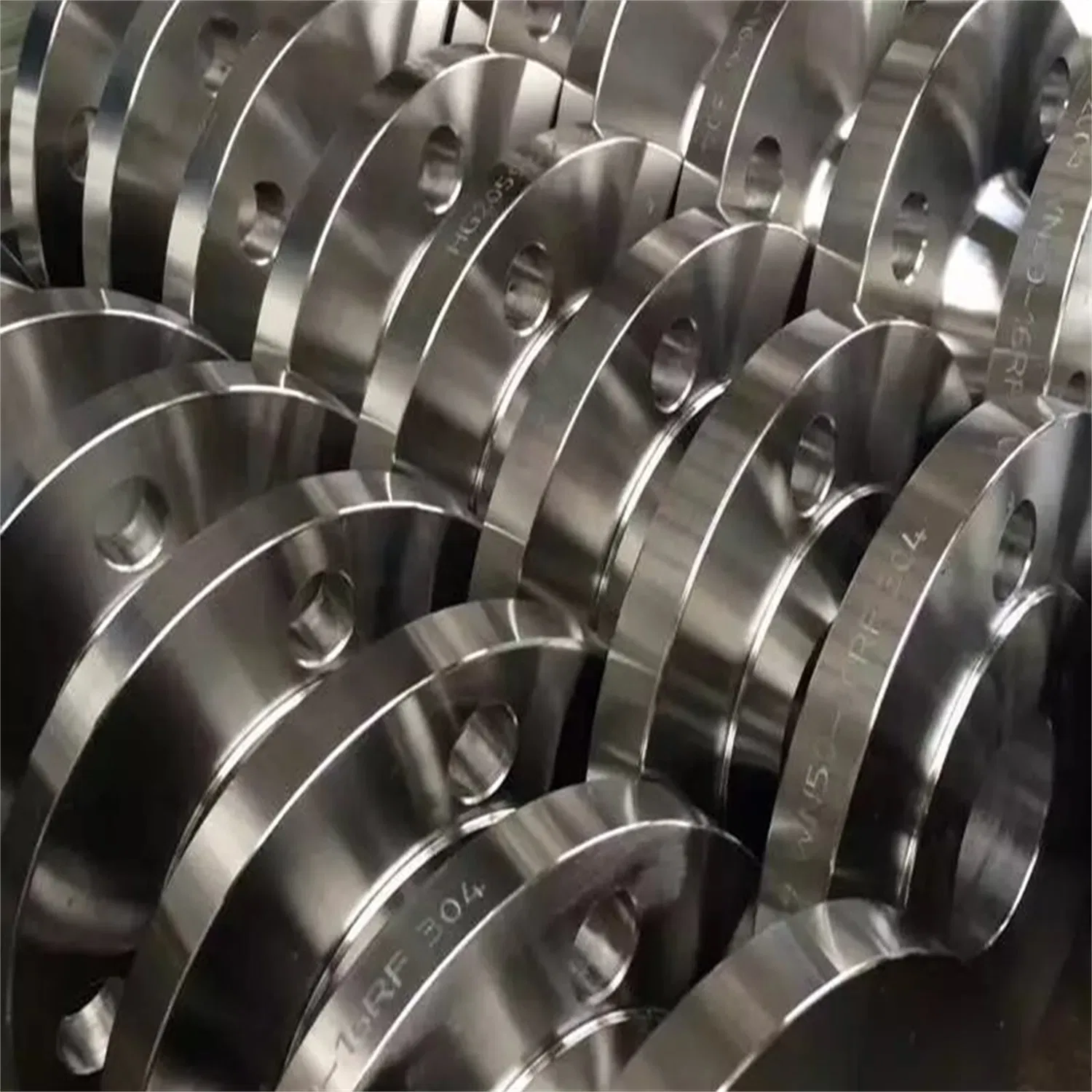

Types: Flange
Weld Neck Flange
Slip On Flanges
Blind Flanges
Lap Joint Flanges
Socket Weld Flanges
Threaded Flanges
Forged Flanges







Pattern

Socket Weld , Slip On , Blind ,Screwed , Ring Joint,Weld Neck , Long Weld Neck , Reducing , Spectacle

size

1/2"-60" (DN15-DN3000)

Pressure class

Class150-Class2500

Facing

RF/ FM/ M/ T G/ RF / FF / RTJ

Type

WN SO SW TH BL RF FF MF RJT PL PJ/PR BL(S)

Material Stainless steel: F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
 Carbon Steel ASME / ASTM SA / A234 WPB, DIN 1.0405

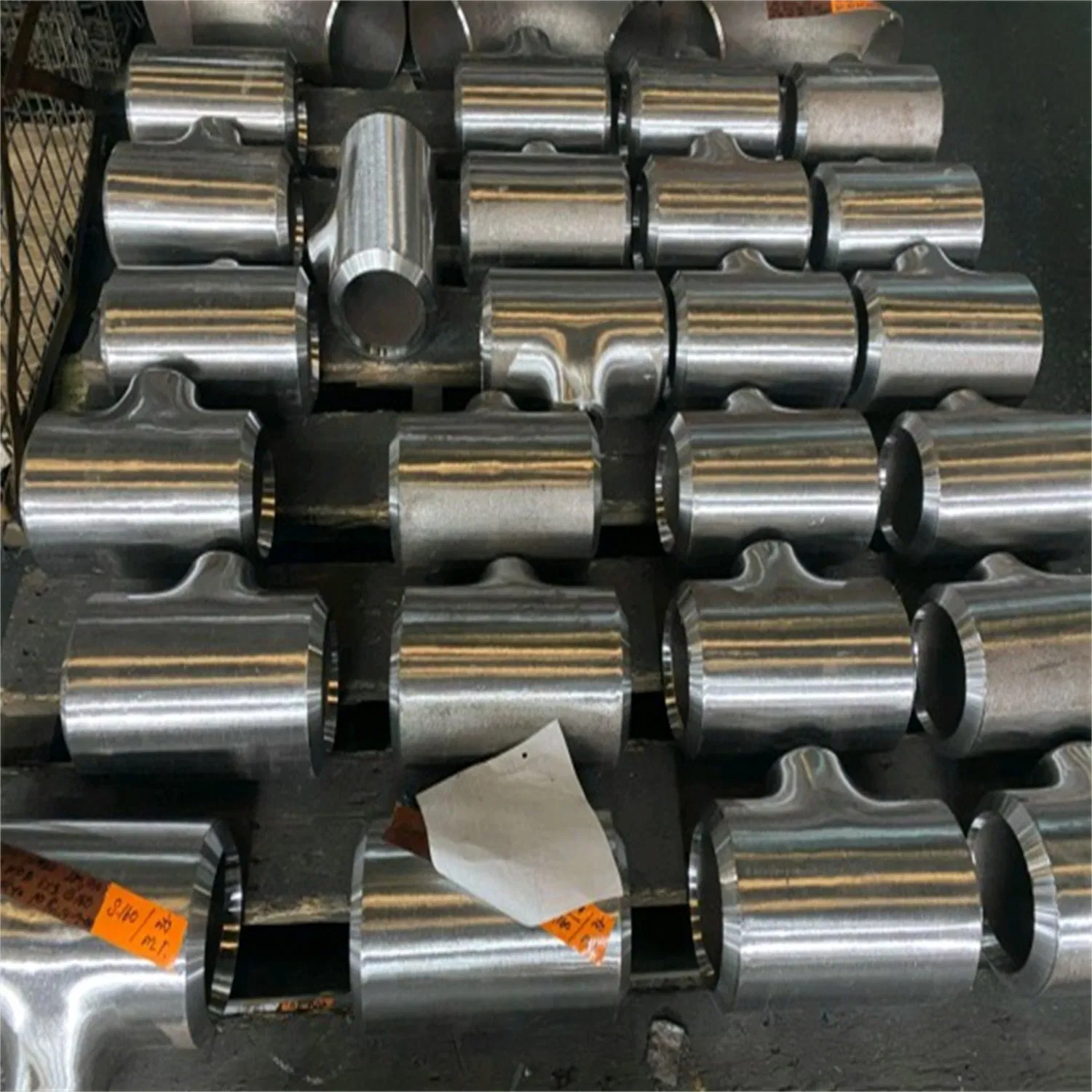

Types: TEE
Reducer Tee
Equal Tee

Material Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Size 1/2"~80"

Material Carbon Steel ASME / ASTM SA / A234 WPB, DIN 1.0405 Dimension ANSI B16.9, ANSI B16.28, JIS B2312, JIS B2313 Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Size 1/2"~80"

Features

• Leak proof
• No buildup of debris over the time
• Suitable for pressurized applications
• Allow change in direction of flow

• Can sustain high temperature
• Dimensional stability
• Inert to all chemicals, acids and solvents

Types: Reducer
Eccentric Reducer
Concentric Reducer



Pattern

Weld

Seamless

Size

1/2"-48"

(DN15-DN1200)

1/2"-20"

(DN15-DN500)

WT

2~1600mm

2~50mm

Material Carbon SA234 WPB, SA234 WPC,SA42 WPL6, SA42 WPL3, WP1. MSS-S
WPHY,WPHY 46,WPHY 52,WPHY 56,WPHY 60,WPHY 65, WPHY 70
DIN 1629 St37, RST37.2 St52 Standard ASME/ANSI B16.9 Factory-Made wrought steel pipe fittings
ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ASTM A234 Medium and high temperature used carbon and alloy steel pipe fittings
MSS-SP75 Forging butt-welding fittings DIN 2609 Steel butt-welding pipe fittings; technical delivery conditions
DIN 2615 Steel butt-welding pipes fittings; tees with reduced pressure factor
DIN 2615-2:Steel butt-welding pipe fittings; tees for use at full service pressure
DIN 2987-P1Threaded steel pipe fittings crosses, tees, elbows
BS 1640 Specification for steel butt-welding pipe fittings for the petroleum industry
BS 1965 Butt welding pipe fittings for pressure purpose

Features

• Leak proof
• No buildup of debris over the time
• Suitable for pressurized applications
• Allow change in direction of flow

• Can sustain high temperature
• Dimensional stability
• Inert to all chemicals, acids and solvents

About us

Permanent Steel Manufacturing Co.,Ltd has been committed to being a major supplier of quality kinds of carbon steel pipe, stainless steel tube, hollow section, numerous types of piping equipments including Bend, Cap, Coupling, Elbow, Reducer, Stub End, Tee, Olet, Joint, Gasket, etc.

The Products from Permanent Steel Manufacturing Co.,Ltd are supplied in accordance with appropriate International Standards as well as Customer Specifications in a large variety of steel grades and dimensions.

Permanent Steel Manufacturing Co.,Ltd on a 250,000 m2 area and has three production units: Foundry, Rolling and Extrusion mills. Permanent Steel Manufacturing Co.,Ltd operates under strict quality, environmental, as well as health and safety management systems, in compliance with ISO 9001, ISO 14001 and OHSAS 18001 standards.
