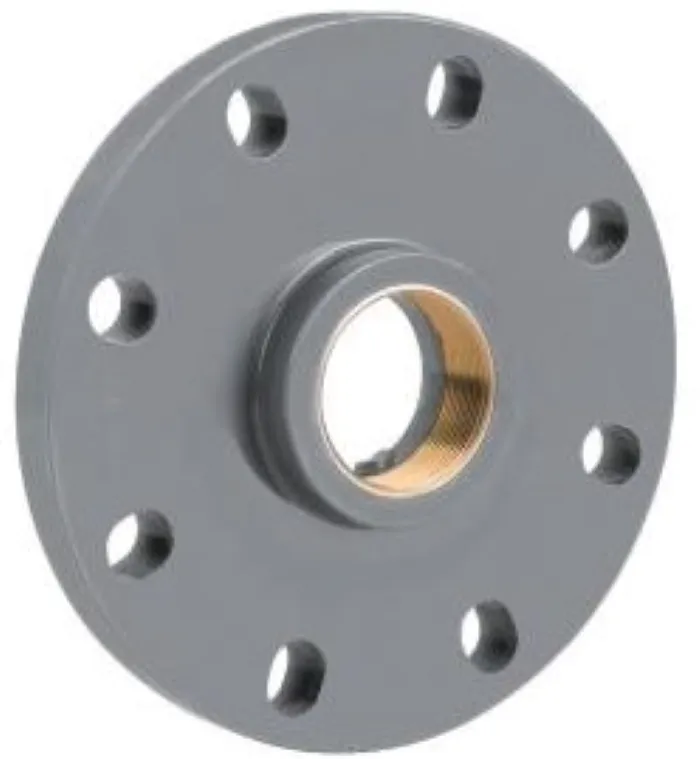

High Quality Plastic Female Thread End Fitting UPVC Plumbing Water Pipe and Fittings PVC Pressure Fi

Tianjin Runke Plastic Tech Co., Ltd. has 10 sets of professional and large-scale injection molding equipment, more than 30 sets of professional processing equipment, and 4 sets of professional pressure testing equipment.

Each sealing surface is 100% machined, and each sealing link is 100% pressure tested one by one.

The company does not use recycled plastics or recycled rubber to ensure that the products meet the mechanical performance, sealing performance and service life.

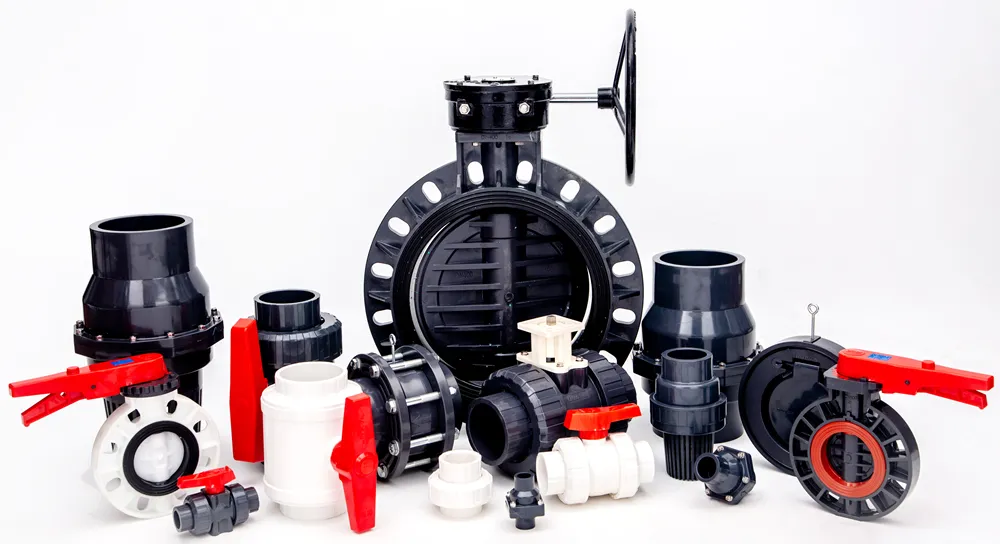

The company mainly produces four series of more than 50 kinds of PVC-U, PVC-C, FR-PP, PP-R butterfly valves, PVC-U ball valves, PVC-U check valves, PVC-U bottom valves, with an annual production of 600,000 sets of valves.

PVC-U butterfly valve, PVC-U check valve, PVC-U ball valve comply with European DIN standard, American standard, Japanese standard. We can produce large size valves, product size ranges from DN15mm to DN400mm

PVC Swing Check Valve according to DIN,ANSI,JIS Standard DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10.

PVC 2 Pieces Compact Ball Valve according to JIS Standard DN50-DN100 ( 2" ~ 4" ) Working Pressure PN10;

PVC Wafer Check Valve according to DIN ANSI JIS Standard DN150-DN300 ( 6" ~ 12" ) Working Pressure PN10;

PVC Foot Valve according to DIN Standard with Specification DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10;

PVC True Union Ball Valve DIN, ANSI, JIS Standard with BSPT & NPT Threaded DN15-DN100 ( ½"~4" ) Working Pressure PN16 & PN10;

PVC Pressure Pipe Fittings for Water Supply according to DIN Standard 8063 PN10;

PVC Pipe Fitting
UPVC Pipe Fitting
Plastic Pipe Fitting
PVC Fitting
PVC Pipe and Fittings
Plumbing Pipe Fittings
UPVC Fitting
Pressure Fitting
Pressure Pipe Fitting
PVC Pressure Pipe Fitting
Plastic Fitting


High Quality

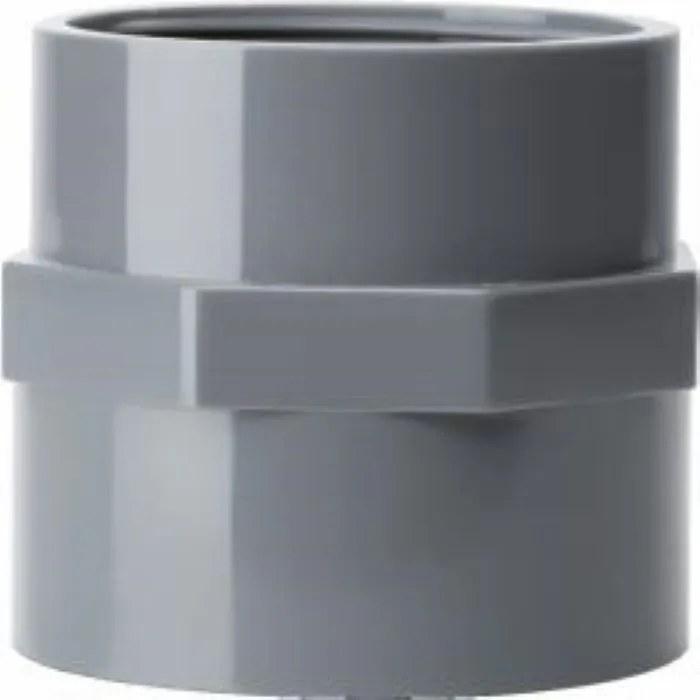

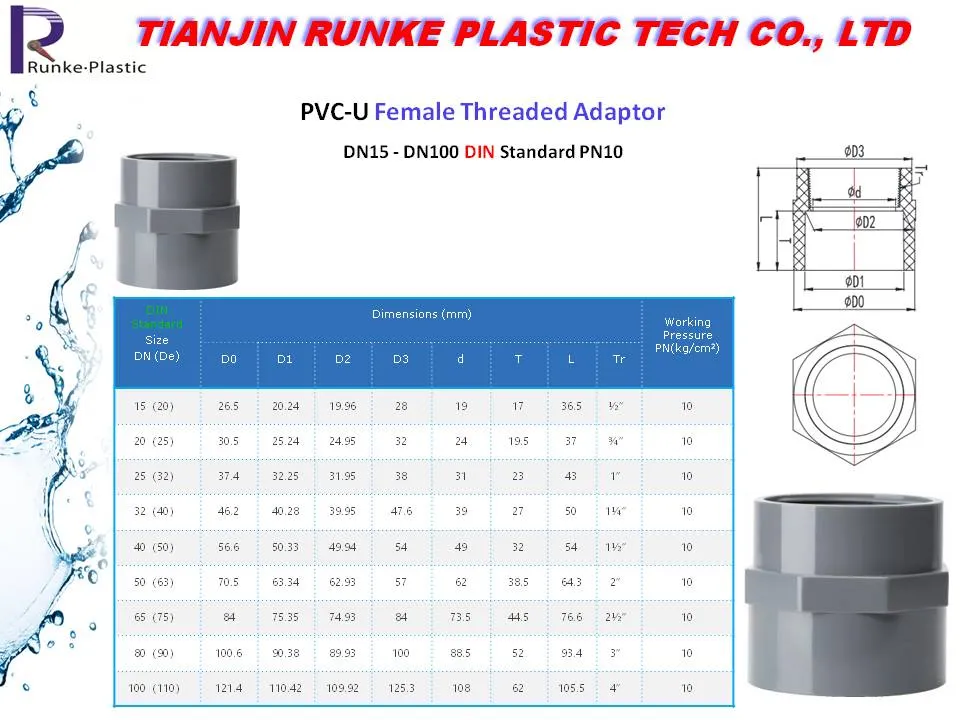

Plastic Female Thread End Fitting
UPVC Plumbing Pipe and Fittings
PVC Pressure Pipe Fitting for Water Supply DIN Standard
Dia.20mm-Dia.400mm
DIN Standard PN10

Grey Color

PVC Pipe Fitting for Water Supply with Solvent Joint DIN Standard PN10

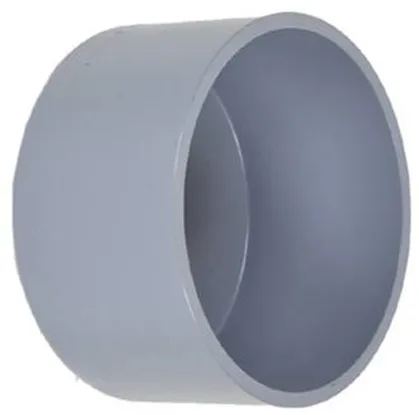

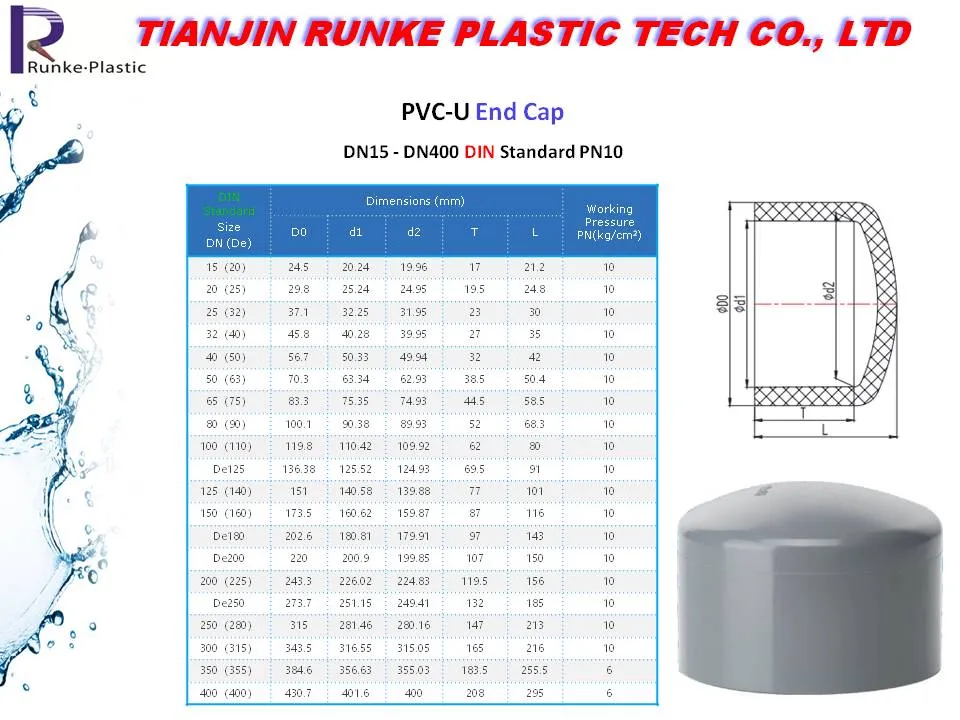

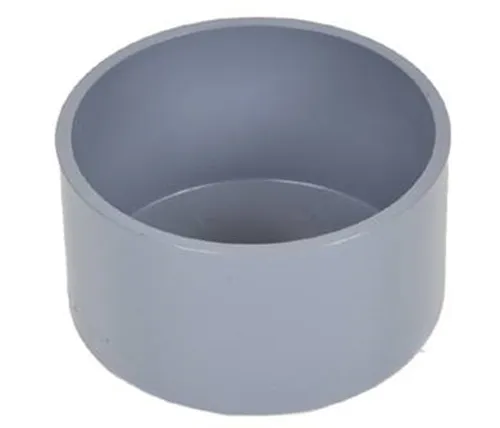

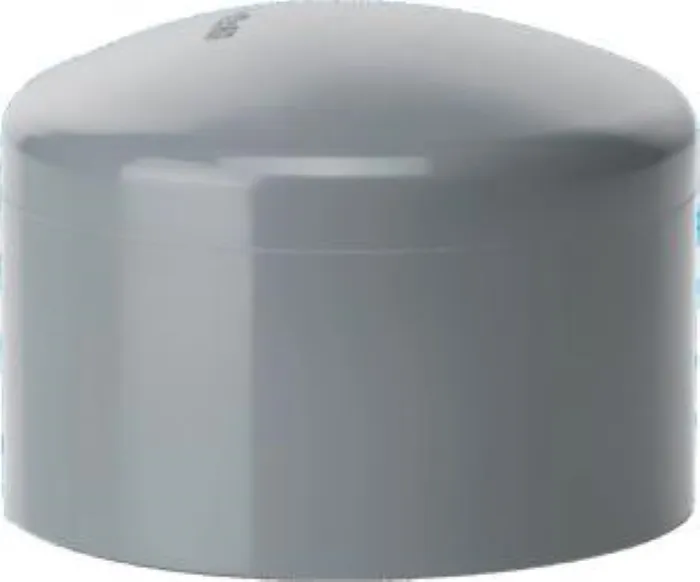

PVC-U End Cap
DN15 - DN400 ( Dia.20mm - Dia.400 ) DIN Standard PN10


DIN Standard
Size
DN (De) Dimensions (mm)
Working
Pressure
PN(kg/cm2) D0 d1 d2 T L 15(20) 24.5 20.24 19.96 17 21.2 10 20(25) 29.8 25.24 24.95 19.5 24.8 10 25(32) 37.1 32.25 31.95 23 30 10 32(40) 45.8 40.28 39.95 27 35 10 40(50) 56.7 50.33 49.94 32 42 10 50(63) 70.3 63.34 62.93 38.5 50.4 10 65(75) 83.3 75.35 74.93 44.5 58.5 10 80(90) 100.1 90.38 89.93 52 68.3 10 100(110) 119.8 110.42 109.92 62 80 10 De125 136.38 125.52 124.93 69.5 91 10 125(140) 151 140.58 139.88 77 101 10 150(160) 173.5 160.62 159.87 87 116 10 De180 202.6 180.81 179.91 97 143 10 De200 220 200.9 199.85 107 150 10 200(225) 243.3 226.02 224.83 119.5 156 10 De250 273.7 251.15 249.41 132 185 10 250(280) 315 281.46 280.16 147 213 10 300(315) 343.5 316.55 315.05 165 216 10 350(355) 384.6 356.63 355.03 183.5 255.5 6 400(400) 430.7 401.6 400 208 295 6
