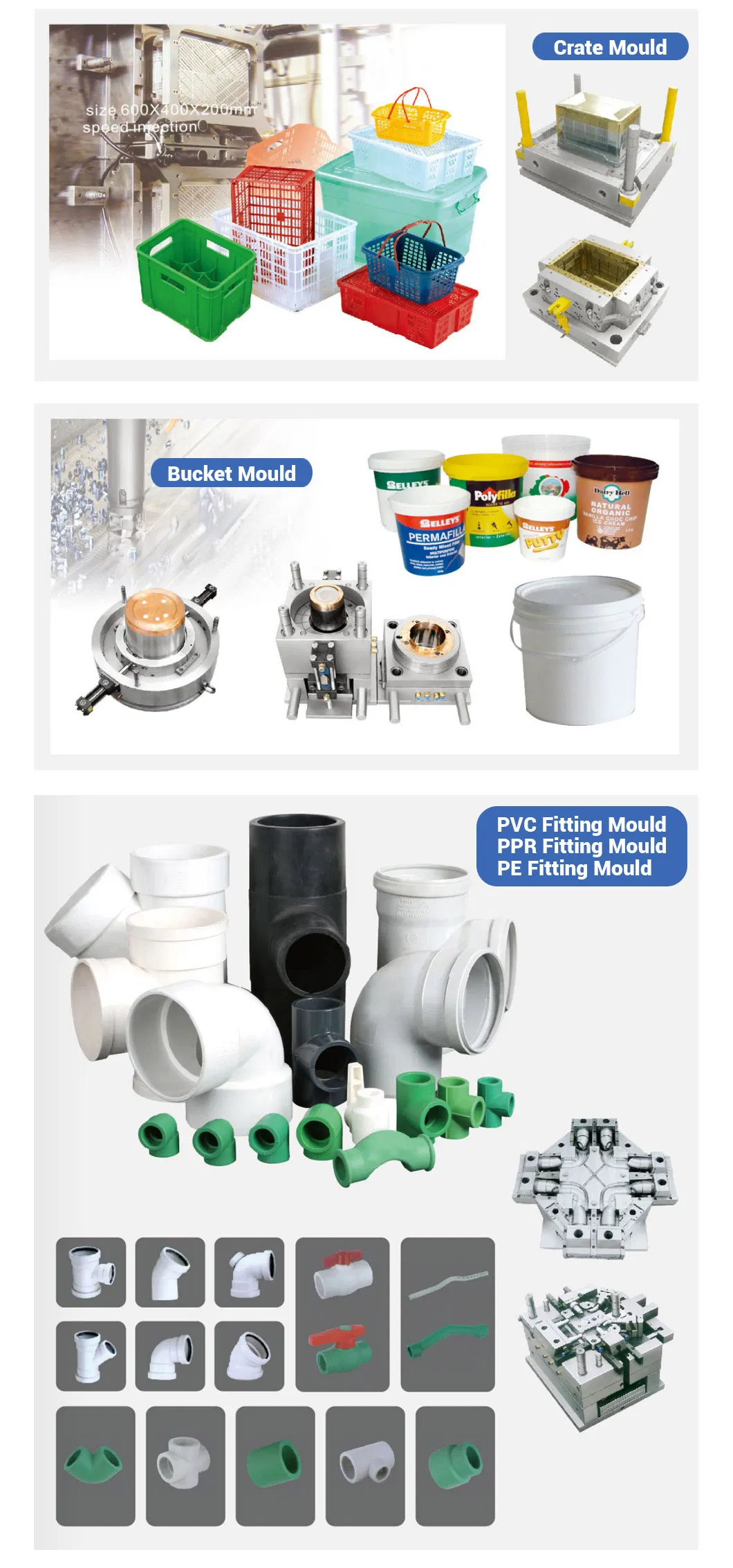

Manufacturer Fittings Bracket PPR Pipe for Injection Molding Machine

SZ-3800A Parameter of Plastic Injection Molding Machine

ITEM UNIT SZ-3800A                 INJECTION UNIT     SCREW DIAMETER mm 65 70 75 SCREW LID RATIO L/D 22.6 21 19.6 THEORETICAL SHOT VOLUME CM³ 1061 1231 1413 SHOT WEIGHT(PS) g 966 1120 1286 INJECTION  PRESSURE Mpa 203 175 152 THEORETICAL  INJECTION RATE(PS) g/s 308 357 410 PLASTICISING CAPACITY g/s 50.6 60.5 71.5 SCREW TORQUE N.m 2860 MAX.SCREW ROTATE SPEED r/min 150 INJECTION STROKE mm 320                   CLAMPING UNIT   MAX.CLAMPING FORCE K KN 3800 MAX.OPENING STROKE mm 680 SPACE BETWEEN TIE BARS mm 680×680 MOULD HEIGHT mm 250-710 MAX.DAYLIGHT mm 1390 EJECTOR FORCE KN 90.7 EJECTOR STROKE mm 170 EJECTOR QUANTITY   13                        OTHER   PUMP MOTOR POWER KW 37 PUMP PRESSURE Mpa 16 HEATING POWER KW 25 HEATING ZONE   5 SIZE m 6.8×2.0×2.3 NET WEIGHT t 15 OIL TANK CAPACITY L 820 INTERNATIonAL DESIGNATION   3800-2150
