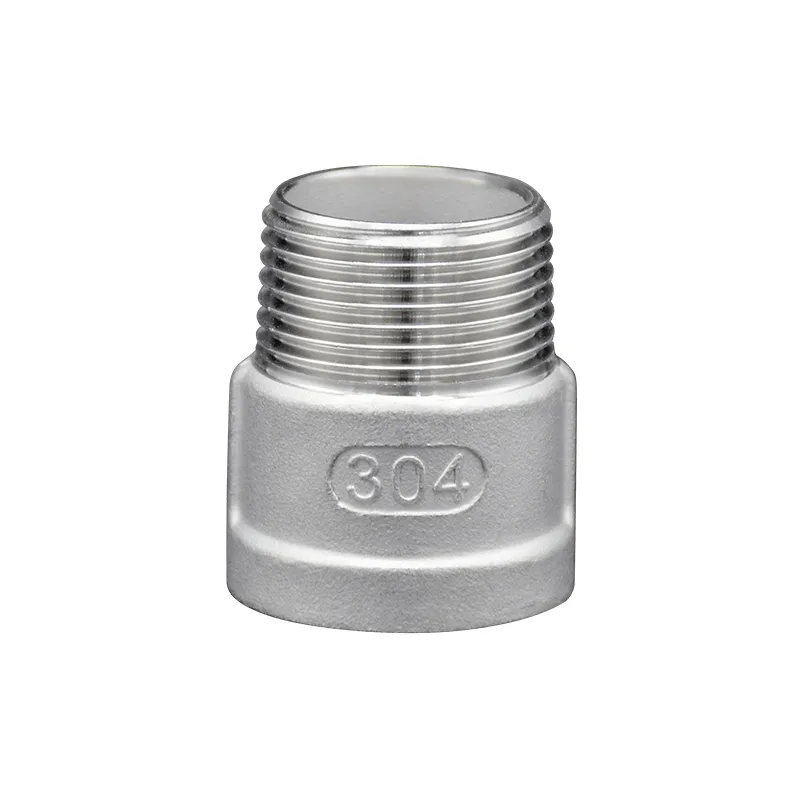

Premium Stainless Steel Equal Thread Fitting for Water Tanks

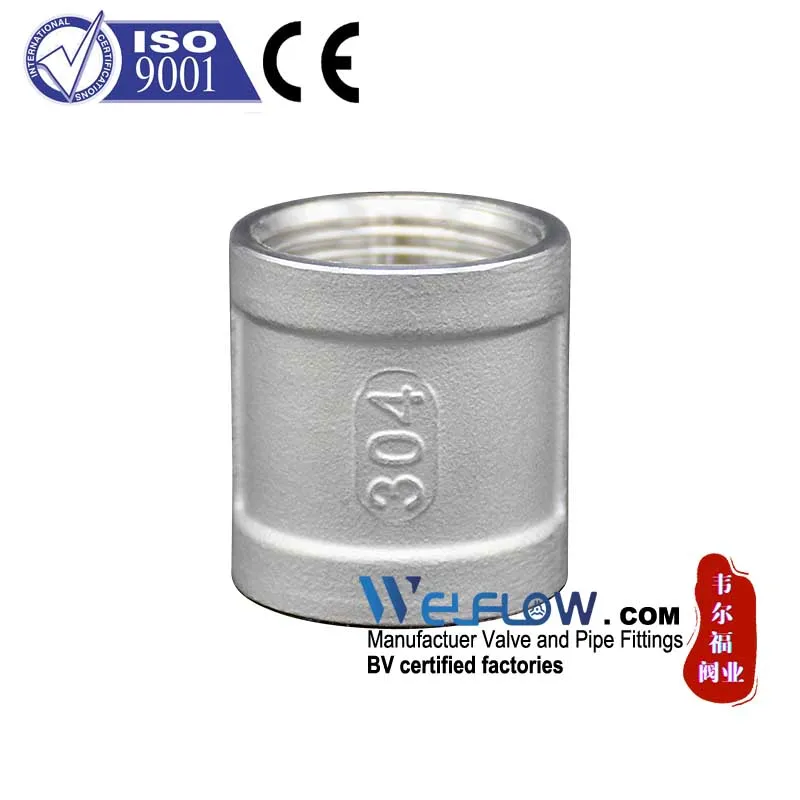

Stainless Steel Coupling Socket Banded Female Thread

An socket banded pipe is a type of pipe fitting that allows for a change in the direction of the piping system. It is designed to facilitate the flow direction of fluids (liquids or gases) within a pipeline.

Socketed banded pipes are most common.

The socket banded pipes are available in different materials such as metal (like stainless steel or copper), PVC (polyvinyl chloride), or other plastics, chosen based on the specific requirements of the application and the nature of the substances being transported within the piping system.

Description Tank Fittings Size 1/2"~2" Material Stainless steel 304 Thread: BSPT Connection Male Thread Pressure
Rate: 150LB Fabrication Silica Sol Precision Casting
Technology

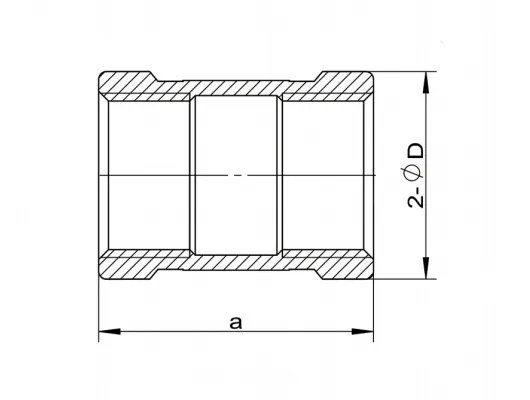

Dimension(mm)

SizeDNΦDa 1/8"614.525.0 1/4"818.026.0 3/8"1021.530.0 1/2"1526.535.0 3/4"2032.038.0 1"2539.543.0 11/4"3248.549.0 11/2"4055.052.0 2"5067.063.0 21/2"6584.070.0 3"8098.075.0 4"100124.585.0

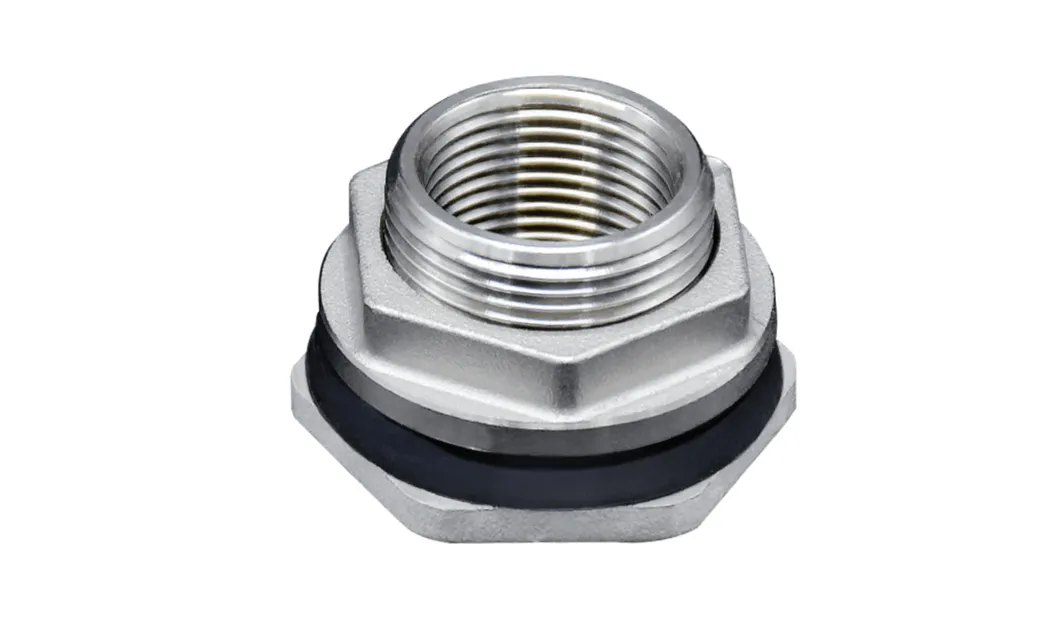

Male Thread Casting Pipe Fitting Connector Stainless Steel Toliet Water Tank Fittings

Size

1/2'' ~ 2''

Material we can do

Stainless steel 304/304L/316/316L/201

Material in stock

ASTM A351 CF8(304), ASTM A351M CF8M(316)

Thread

 BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc..

Working Pressure

150LB

Temperature

-20°C to +220°C

Physical Property

Tensile strength≥485Mpa, Yield strength≥205Mpa, Elongation≥35%

Surface

Pickling and Peeling

Model

Tank Fittings

Connection

Male Thread

Shape

Equal

Certificate

ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc..

Application

Suitable for Water

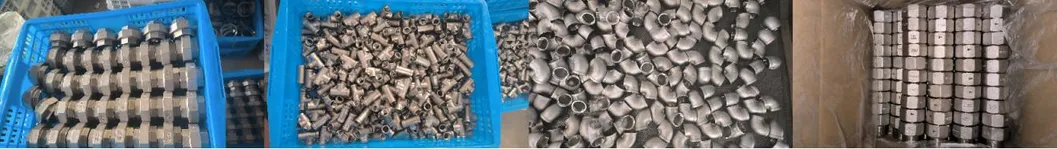

Package

Cartons without pallet

Cartons with pallet

Cartons with wooden boxes

Or as buyer's requirements

Port

Ningbo/Shanghai, China

Delivery Details

According to the quantities and specifications of each order

A complete stock to provide fast deliveries for small orders.

Normal delivery times is from 30 to 45 days after receiving the deposit

Sample

Offer free samples and freight collected.

OEM and ODM

Accepted and professional. Buyer's drawing or designs are available

Material test report

is available upon request when placing order.

QUESTION?ANSWER 1. Are you a factory?Yes, Welflow is a factory located in Wenzhou, Zhejiang, China. 2. Do you have any requirements of MOQ?No limited to MOQ but the unit price will be different. 3. Payment TermsTypically 30% T/T as deposit, 70% against copy of BL/ Or balance L/C at sight. 4. Nearly Sea PortNingbo or Shanghai Port 5. Terms:FOB Ningbo/Shanghai, CIF, FCA, etc. 6. Delivery Time: Typically, it is 30-35 days after receiving the deposit payment. However, almost all of the items we have stock in 304. 7. Could you accept color Marks or Color Boxes?Yes, both are acceptable; we have experience with them. 8. Could you accept marking our logo on the products?Yes, on the handle or the bodies, both are okay.
1. Laser Marking. (NO MOQ requirements)
2. Casting on the bodies (Has MOQ requirements) 9. Do you have Material Certificates?If required, Each item will be laser marked with Heat NO and the material certificates. 10. How do you deal with customer complaints, such as quality issues?This is an issue we take very seriously. As long as it is confirmed to be a quality issue, we will take full responsibility.
1. exchange or refund is acceptable. It mainly depends on how you need to deal with it.

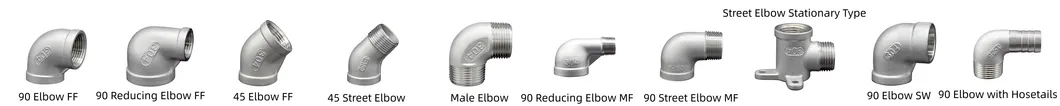

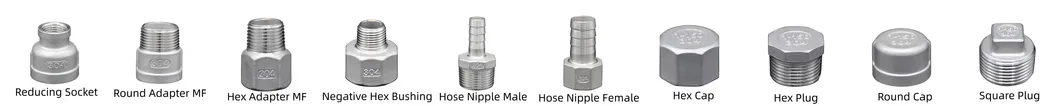

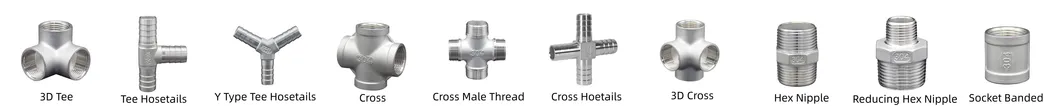

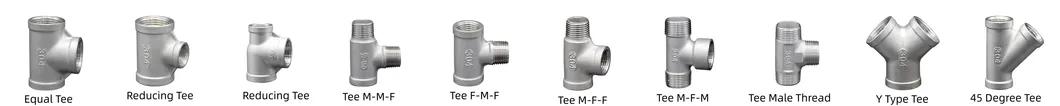

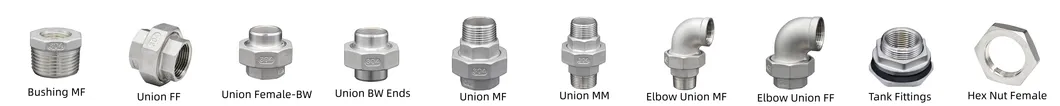

Thread Pipe Fittings Names and Pictures
