Agricultural Farm Polyethylene Plastic Pipe Inlaid Drip Head Lay Flat Drip Irrigation Tape 16mm

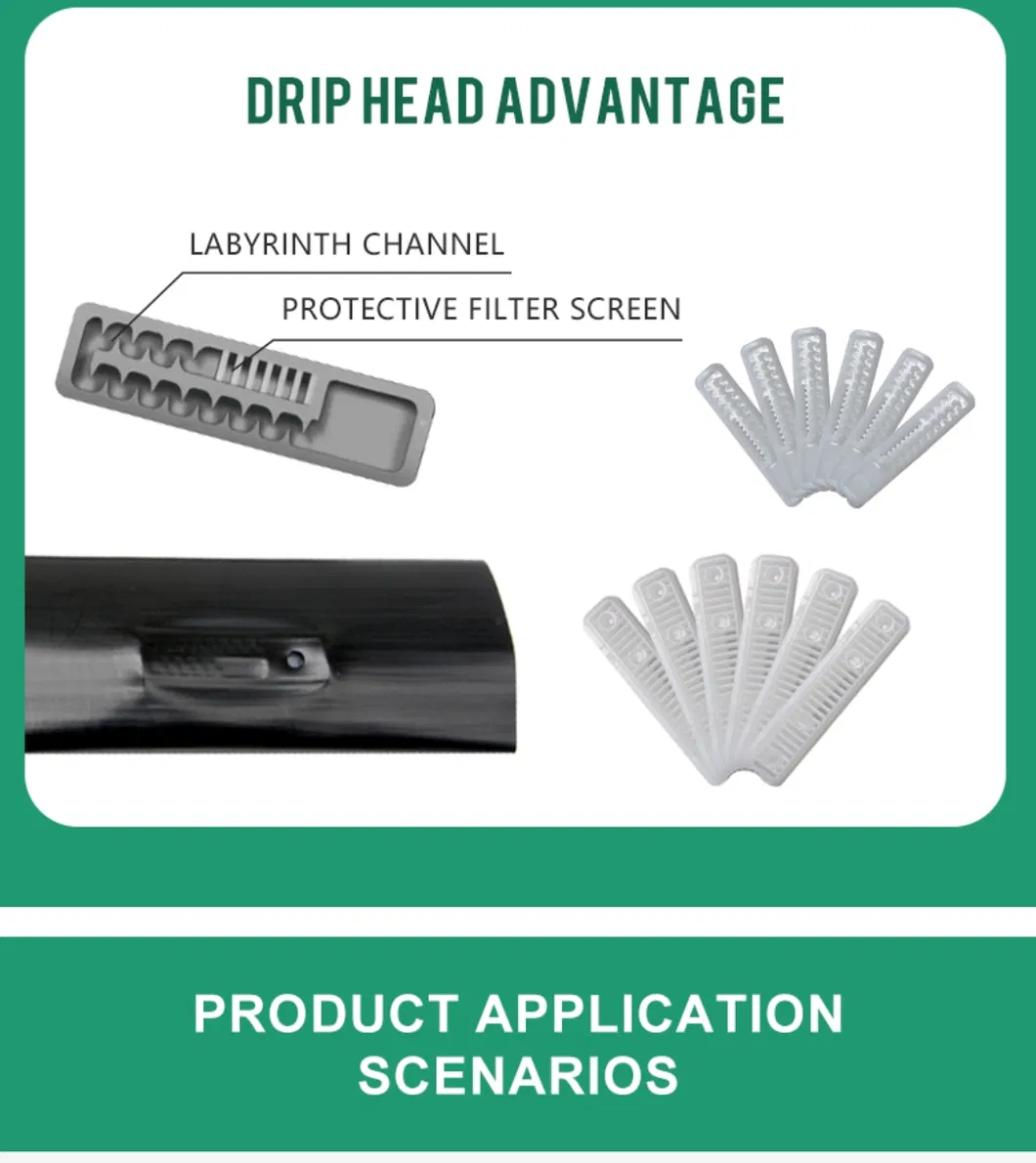

1. Built-in flat dripper, new wide long channel, full turbulence, self-rinsing, good anti-clogging
2. Small Loss Along the head, long laying length

1. Drip tape diameter: 16mm
2. Drip tape wall thickness: 0.2,0.3,0.4mm
3. Working pressure: 50-100kpa (0.2mm thickness)                                     50-150kpa(0.3,0.4mm thickness)
4. Drop spacing: 200, 300, 400 mm
5. Dripper rated flow; 1.38, 2.2,  3.0L/h
6. Total roll : 1000, 1500, 2000m

1. Widely used in greenhouses, greenhouses, fruit trees, field crops and other fields
2. Reduce soil phlegm, increase soil permeability, and promote root development
3. Applying water and fertilizer to increase fertilizer using efficiency
4. Especially for greenhouses, it can reduce air temperature by 20%-30%, reducing the occurrence of pests and diseases, and increase the low temperature by 2-3 degrees Celsius . The crop is listed in advance for about a week .

1. Minimum filter range: 120 or more
2. Due to the thin wall thickness, mechanical damage due to overstretching should be prevented during laying

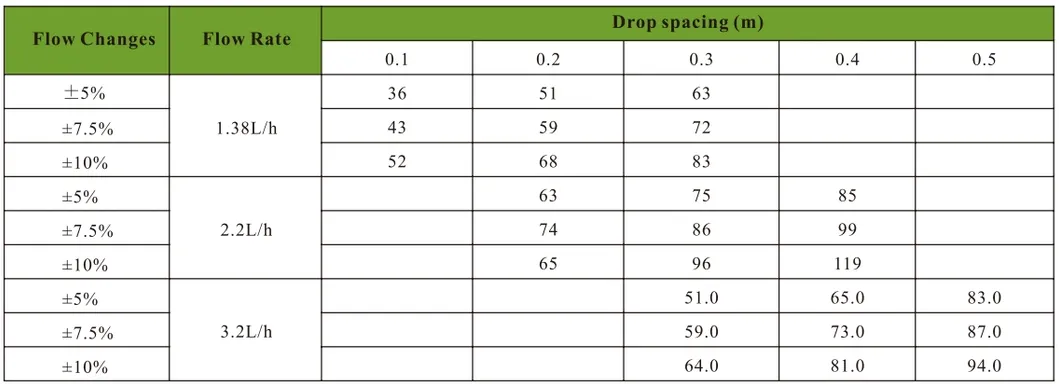

flow changesDrop spacing 0.20mDrop spacing 0.30mDrop spacing 0.40m 2.2L/h3.2L/h2.2L/h3.2L/h2.2L/h3.2L/h ±5%4732725110289 ±7.5%58398159113102 ±10%64438764119109

thicknessflow rateinner diameterouter diametermax working pressureFlow deviation(CV) 2.2L/H3.2L/H 0.20mm2.2L/h or 3.2L/h15.8mm16.2mm0.13MPa1.50%2.40% 0.30mm2.2L/h or 3.2L/h15.8mm16.4mm0.15MPa1.50%2.40% 0.40mm2.2L/h or 3.2L/h15.8mm16.6mm0.18MPa1.50%2.40%

flow ratepressure(MPa)VS flow rate(L/h) 0.05 0.08 0.12 0.15 0.20 0.25 2.2L/h1.321.711.912.412.833.34 3.2L/h1.832.352.673.333.954.28
