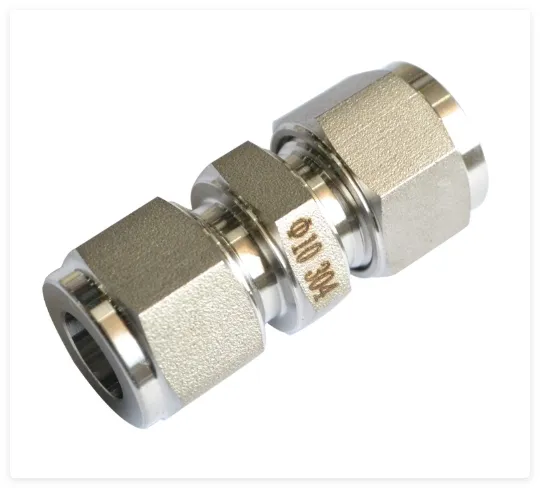

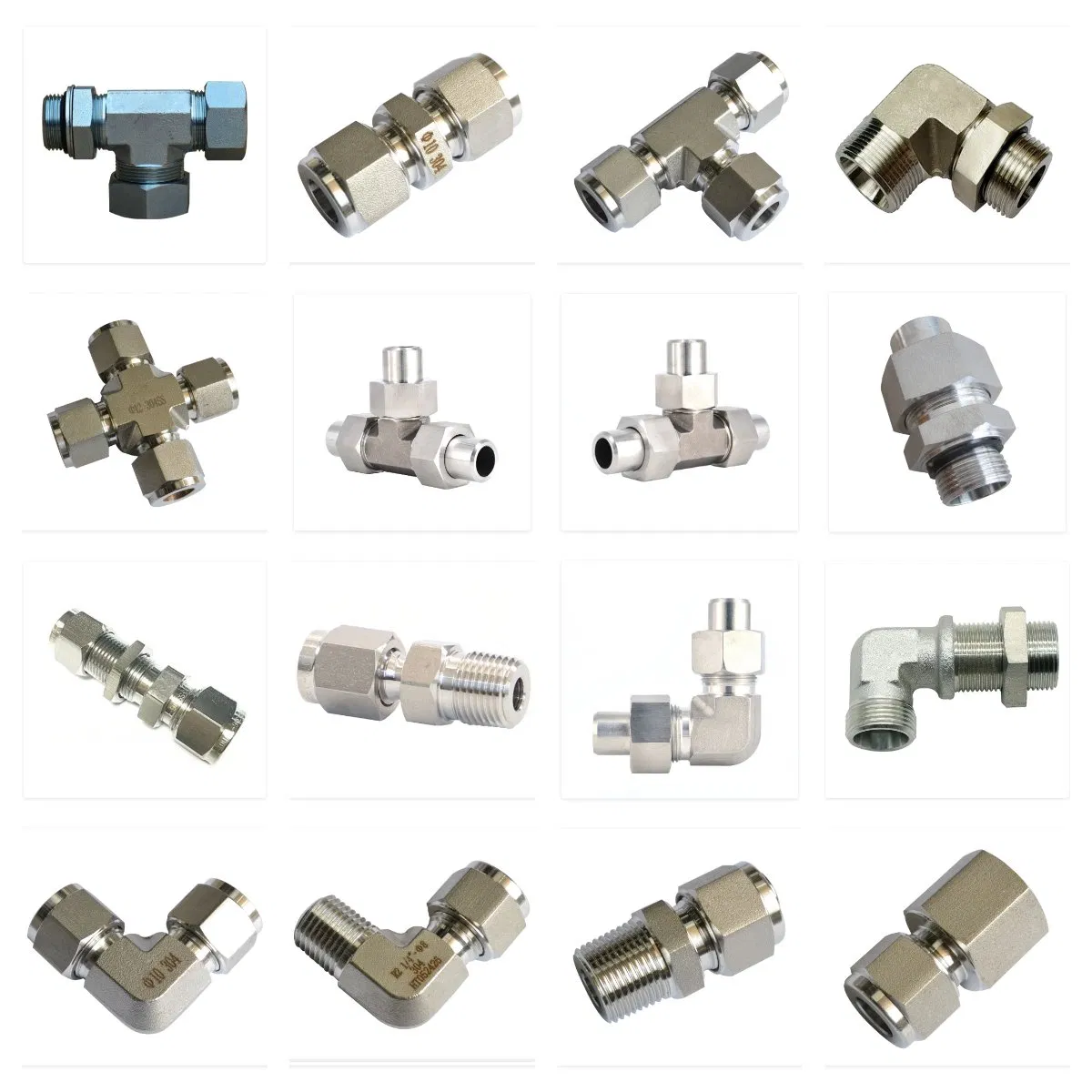

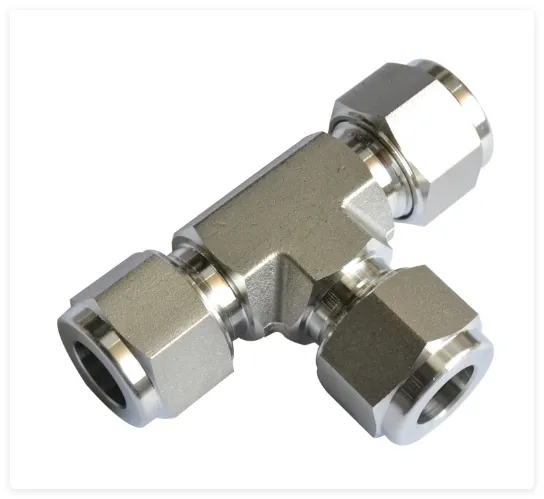

Swagelok Type Compression Tube Sleeve Stainless Ferrule Fitting Tee Tube Couplings Connectors Wholes

MateriaSS316,SS304,SS316Ti,F51,F53,Incnel,Monel,Hastelloy,etc.ConnectivityTube OD, NPT, BSPT, SAE, Weld SizeNPT 1/16-1/16 Ferrule (1.58mm)
NPT 1/8-1/16 Ferrule (1.588mm)
NPT 1/8-1/8 Ferrule (3.175mm)
NPT 1/8-1/4 Ferrule (6.35mm)
NPT 1/8-5/16 Ferrule (7.94mm)
NPT 1/8-3/8 Ferrule (9.53mm)
NPT 1/8-1/2 Ferrule (12.7mm)
NPT 1/4-1/16 Ferrule (1.588mm)
NPT 1/4-1/8 Ferrule (3.175mm)
NPT 1/4-1/4 Ferrule (6.35mm)
NPT 1/4-5/16 Ferrule (7.94mm)
NPT 1/4-3/8 Ferrule (9.53mm)
NPT 1/4-1/2 Ferrule (12.7mm)
NPT 1/4-5/8 Ferrule (15.88mm)
NPT 1/4-3/4 Ferrule (19.05mm)
NPT 3/8-1/8 Ferrule (3.175mm)
NPT 3/8-1/4 Ferrule (6.35mm)
NPT 3/8-5/16 Ferrule (7.94mm)
NPT 3/8-3/8 Ferrule (9.53mm)
NPT 3/8-1/2" Ferrule (12.7mm)
NPT 3/8-5/8" Ferrule (15.8mm)
NPT 3/8-3/4" Ferrule (19.05mm)
NPT 1/2-1/8" Ferrule (3.175mm)
NPT 1/2-1/4" Ferrule (6.35mm)
NPT 1/2-5/16 Swage (7.94mm)
NPT 1/2-3/8 Swage (9.53mm)
NPT 1/2-1/2 Swage (12.7mm)
NPT 1/2-5/8 Swage (15.88mm)
NPT 1/2-3/4 Swage (19.05mm)
NPT 1/2-1" Ferrule (25.4mm)
NPT 3/4-1/4" Ferrule (6.35mm)
NPT 3/4-5/16" Ferrule (7.94mm)
NPT 3/4-3/8" Ferrule (9.53mm)
NPT 3/4-1/2" Ferrule (12.7mm)
NPT 3/4-5/8" Ferrule (15.88mm)
NPT 3/4-3/4" Ferrule (19.05mm)
NPT 3/4-1" Ferrule (25.4mm)
NPT 1"-1/4" Ferrule (6.35mm)
NPT 1"-5/16" Ferrule (7.94mm)
NPT 1-inch - 3/8-inch ferrule (9.53mm)
NPT 1-inch - 1/2-inch ferrule (12.7mm)
NPT 1-inch - 5/8-inch ferrule (15.88mm)
NPT 1-inch - 3/4-inch ferrule (19.05mm)
NPT 1-inch - 1-inch ferrule (25.4mm)
etc.Packing Details1. wooden box, 38*27*17CM; Place of Originbeijing,China2. carton: 21*16*14CM/31*21*16CM. Brand NameHQ3. as your request Pressure Rating1000psi to 15000psiProduction Capacity10,000pcs Per week LogoAny logo is availablePayment TermL/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION, MOQ20 pcsMonEY GRAM Samples Time(1) 3-5days-If you want to customizestatement payment services. your product and logo.StandardEqual to Swagelok  (2)1-day-For our existing samplesTypeUnion, Union Elbow, Union Tee, Male Connector, Male Elbow Type1Female Connector, Female Elbow, Tube Cap, Tube Plug, etc for reference.Application scopeWater,Oil,Gas and Alkaline or Acidic Liquid OEM AcceptedYesUsagePetroleum,Chemical,Power,Electronics,Machinery,Shipbuildin

 Main Products Of Us:

1,Swaged Metric Fittings
Metric Flat Seal Fittings.
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting

2,Swaged British Fittings
BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings

3,Swaged American Fittings
SAE O-ring Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings
SAE Flange H.T.Fittings

4, Ferrule
FERRULE for SAE100R1AT/ EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN 853 2SN HOSE
FERRULE for SAE100R1AT-R2AT, EN853 1SN-2SN, and EN 857 2SC
FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
FERRULE for 4SH, R12/32 HOSE

5,Metric Adapters
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
JIS Metric Thread 60°Cone Adapters
Metric Thread 74°Cone Flared Tube Adapters

6,British Adapters
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters

7,American Adapters
ORFS Adapters JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters.

8,Flange
SAE Code 62 Flange , SAE Code 61 Flange,Flange

Special dimension and other standard fitting can be customized, OEM/ODM is welcomed.

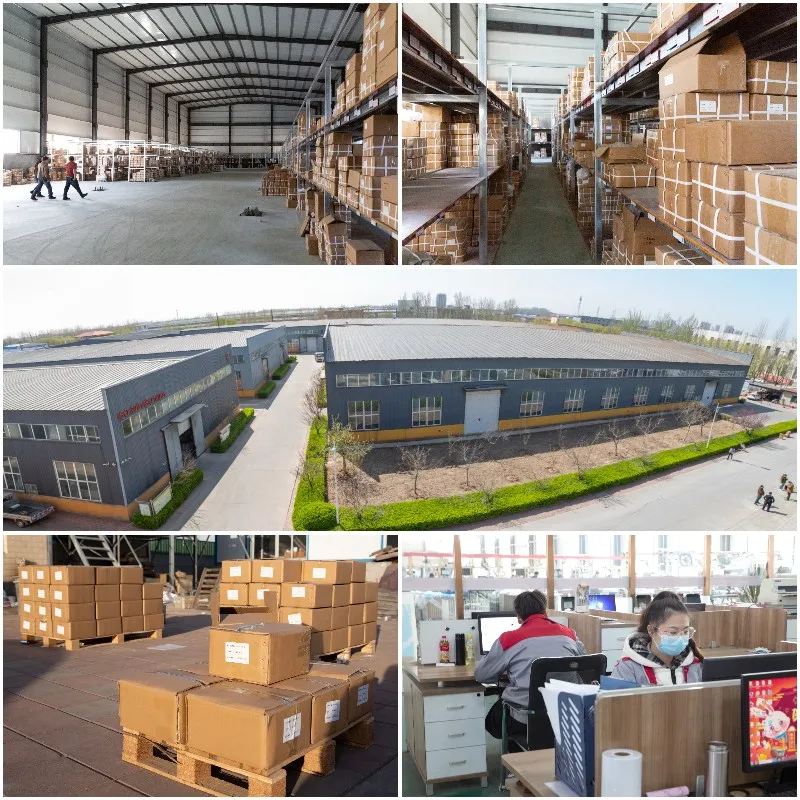

China Huiqi (Beijing) Technology Co., Ltd specializes in the manufacturing of high-quality hydraulic fittings.

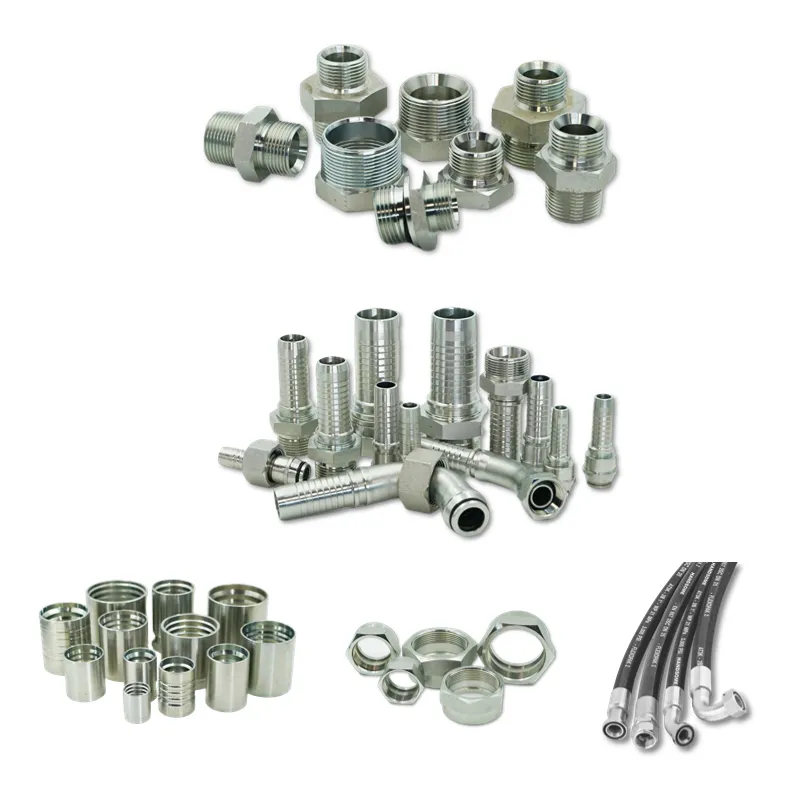

Our range of products includes tube fittings, hose fittings, adapters, hose assemblies, flanges, ferruels,and various other types of hydraulic parts.
We offer products with thread standards including BSP, BSPT, SAE, JIS, DIN, ISO, Metric, and more, while also providing custom OEM services.

Packaging Details 1. All products are equipped with protective caps 2.HT custom plastic bags 3. Waterproof film and foam protection 4. Carton + pallet/wooden 5.Long-distance seaworthy package 6.According to customers' request
