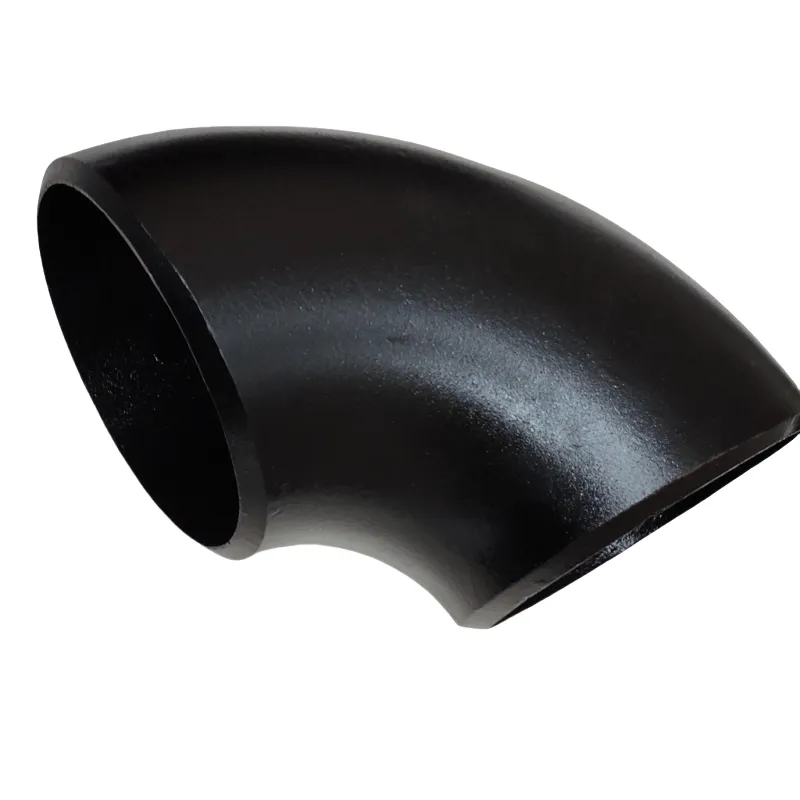

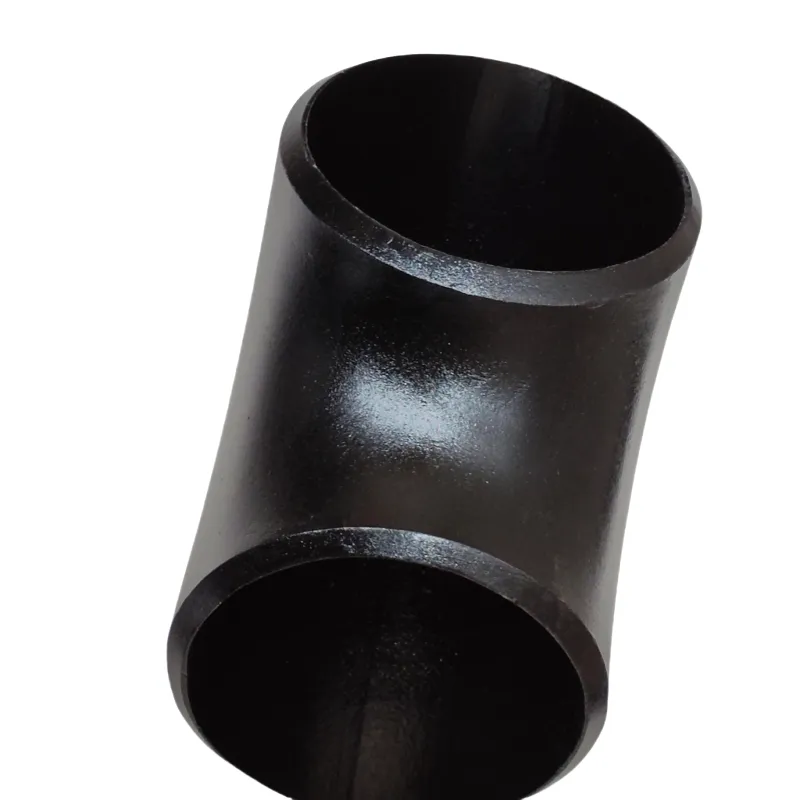

Stainless Steel Long/Short Radius Wpb A234 Elbow Pipe Fittings 90° Elbow
Detailed specification for Stainless Steel Long/Short Radius Wpb A234 Elbow Pipe Fittings 90° Elbow
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | YO-E |
| Connection | Welding |
| Shape | Equal |
| Head Code | Round |
| Angle | 45 Degree |
| Wall Thickness | XXS |
| Material | Stainless Steel |
| Technics | Forged |
| Color | Black |
| Name | Butt Weld Pipe Elbow |
| Kind | 45/90/180 Degree Elbow |
| Radius | Lr/Sr |
| Material. | Stainless Steel Elbow |
| Steel Grade | A234wpb |
| Material1 | Carbon Steel Elbow |
| Material2 | PVC Elbow |
| Material3 | Alloy Steel Elbow |
| Model | Welded/Threaded/Reducing/Seamless/Radius Elbow |
| Usage | Socket Welded Elbow |
| Application | Sport Protection Elbow Support |
| Transport Package | Pallet |
| Specification | SCH40 |
| Trademark | YOPIPELINE |
| Origin | China |
| HS Code | 73079300 |
Product Description
Elbow is a pipe fitting that changes the direction of the pipe. According to the Angle, there are 45° and 90°180 "three most commonly used, and other abnormal Angle elbows such as 60 'are also included according to engineering needs. The methods of connecting with the pipe are: direct welding (the most commonly used way) flange connection, hot melt connection, electric melt connection, thread connection and socket connection. The production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow and so on.

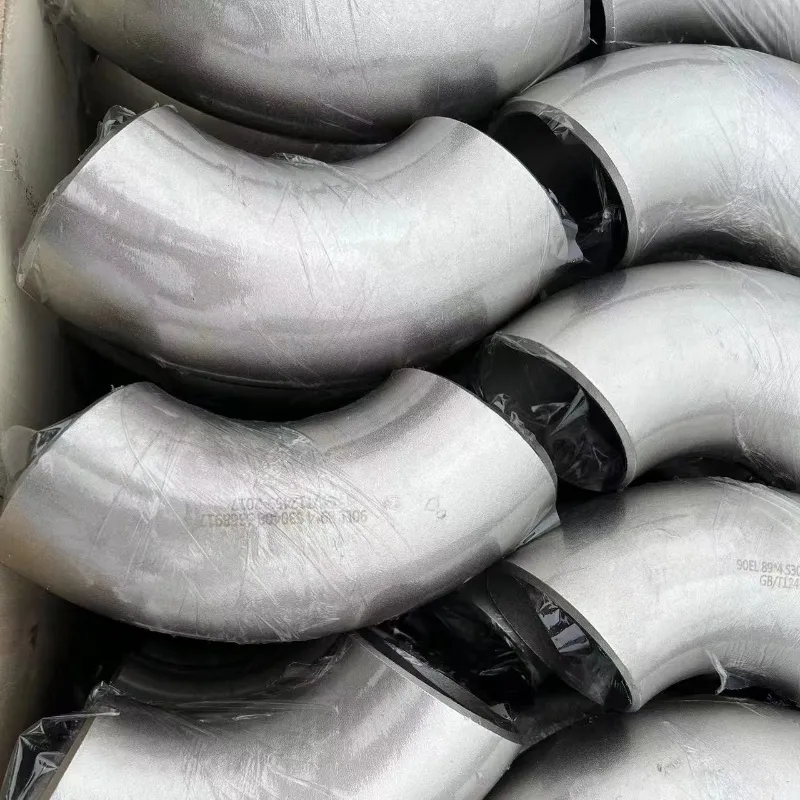

Detailed Photos
Product Parameters
Product Name
Butt Welded Pipe Fitting Elbow
Size
1/2"-36" seamless, 26"-110" welded
Standard
ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, etc.
Wall thickness
STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS etc.
Elbow
30° 45° 60° 90° 180° elbow etc
Radius
LR/long radius/R=1.5D,SR/Shrot radius/R=1D
End
Bevel end/BE/buttweld
Surface
nature color, varnished, black painting, anti-rust oil etc.
Material
Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.
Pipeline steel: ASTM 1860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc.
Application
Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc.
Advantages
ready stock,faster delivery time;available in all sizes,austomized;high quality
Application
YOPIPELINE supplies high quality elbows, tees, reducers and other pipe fittings for the pipelines of construction of building, ship making, boiler mills, nuclear power plant, machinery equipment, bridge, thermal power plant, Oil and gas transportation project, Liquefied petroleum gas project, Water treatment project, and Fire piping system. Because of the market demands, most pipe fittings are without surface treatment and anti-rust treatment. Can be customized according to your requirements.

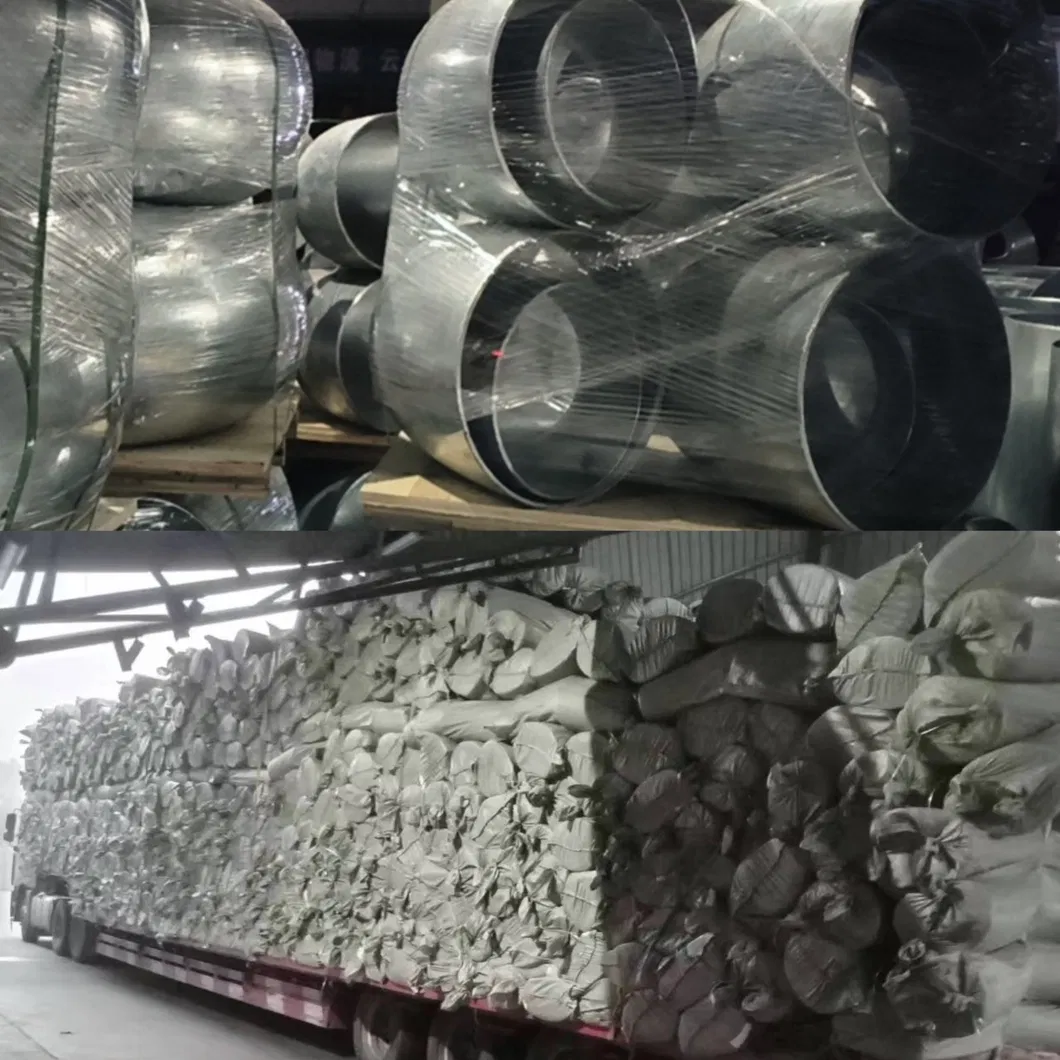

Packaging & Shipping
1. Packed by plywood case or plywood pallet as per ISPM15
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
