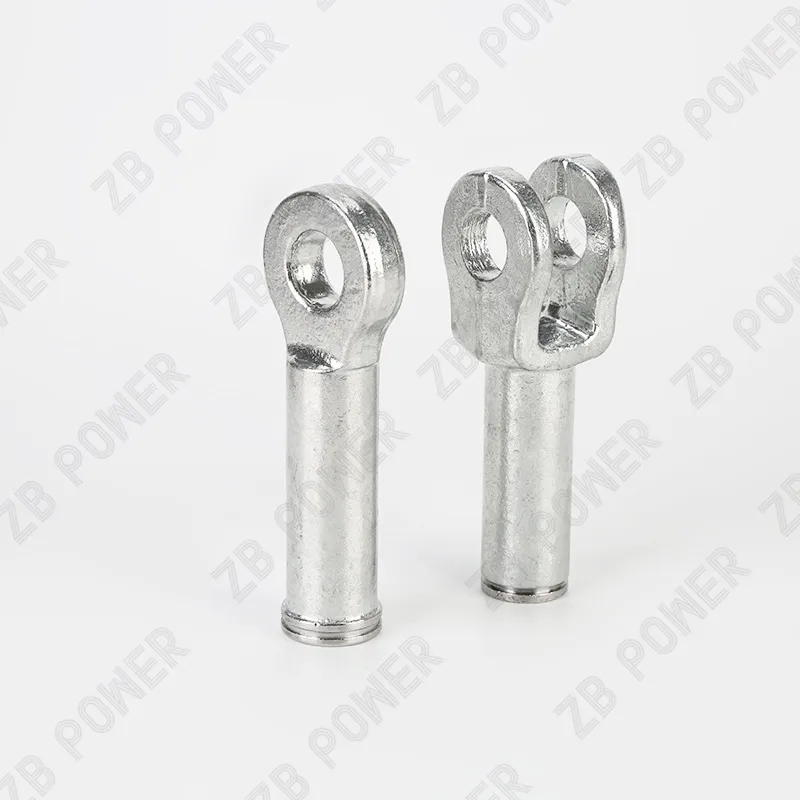

Electrical Power Fitting Power Line Fitting 100kN Tongue and Clevis Metal Fitting for Lond Rod Compo

This tongue and clevis fitting is made of high-quality carbon structural steel and formed through mature forging technology. It not only has stable and reliable mechanical properties, but also has a very competitive price.

The hot-dip galvanizing factory we cooperate with is equipped with advanced processing equipment and skilled workers, so the quality of hot-dip galvanizing is very stable, with uniform thickness and a smooth surface.

Advanced CNC lathes enable the product dimensions to be well controlled within the allowable range. More importantly, our factory has a strict quality management process, and key dimensions are fully inspected before leaving the factory to ensure product quality.

Tongue and clevis  fittings are used on polymer suspension and tension insulators for A.C. system with a nominal voltage greater than 1000V.

Specification

Name: Tongue and Clevis Fittng

Model No.: T100-18-143 & C100-18-143

SML: 70kN

Designated Size: 16L

Material: Forged Steel

Surface Treatment: HDG

Excecutive Standard: IEC 60471: 2020, IEC 60383-1:1993

Inner Diameter: 18mm

Product Details

More Advanced Design

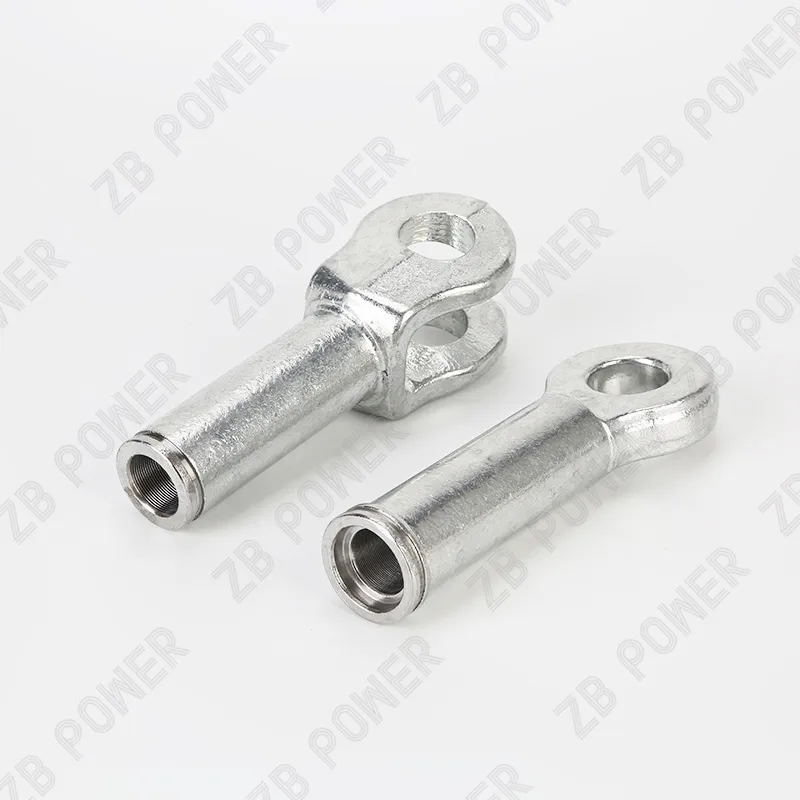

As shown in the picture, we designed a waterproof trough at the rubber coated  area of the fitting. The zinc layer is removed here to make the rubber coating more secure and less likely to fall off. Such a design has the advantages of low cost and good usage effect.

The surface of the holes in the crimping area of this fitting is processed into fine threads. When we conduct mechanical tensile load tests on insulators, this design significantly increases the friction between the hardware and the FRP rods, thereby enhancing the mechanical properties of the insulators

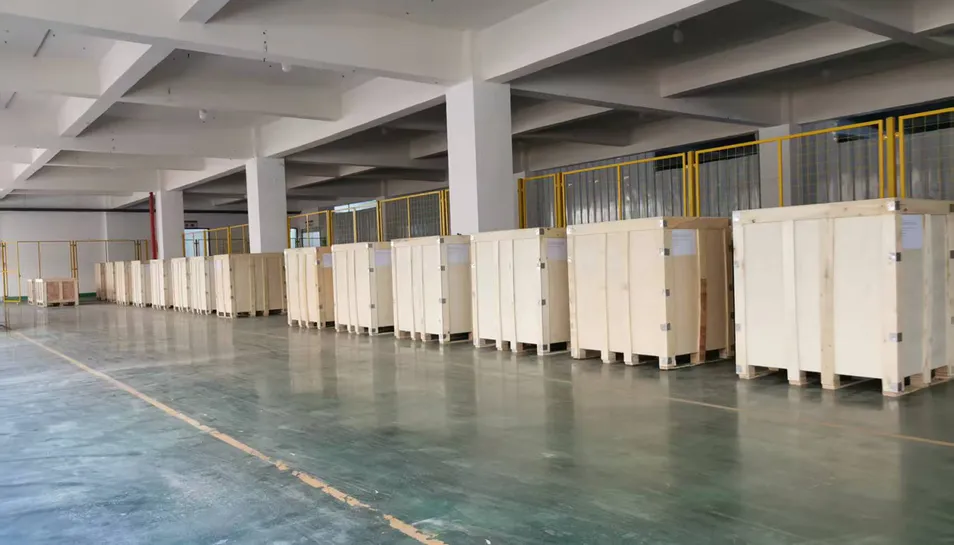

Packing & Delivery
