316 Stainless Steel 10mm Od Double Ferrule Instrumentation Tube Fitting Female Straight - 3/8"
Detailed specification for 316 Stainless Steel 10mm Od Double Ferrule Instrumentation Tube Fitting Female Straight - 3/8"
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | tube fittings |
| Type | Equal |
| Connection | Press Connection |
| Material | Stainless Steel |
| Shape | Equal Tee |
| Lateral | 90°Tee |
| Head Code | Hexagon |
| Wall Thickness | XS |
| Finish | Cold Galvanized |
| Technics | Forged |
| Pressure Rating | 3000LBS |
| Standard | ASTM |
| Certification | ISO |
| Pressure | 3000 Psi |
| Size | 1/8"-2" |
| Body | SS316/Alloy |
| Application | Pipeline Connection |
| Delivery | Fast Delivery |
| Transport Package | Standard Case |
| Specification | 1/16"-1" |
| Trademark | NAI LOK |
| Origin | China |
| HS Code | 7307290000 |
Product Description
1 Inch NPT 6000psi High Pressure 6Moly S31254 Union Tee Double Ferrule Compression Tube Fitting for Instrumentation - 12mm OD 316 Stainless Steel Male Branch Tee

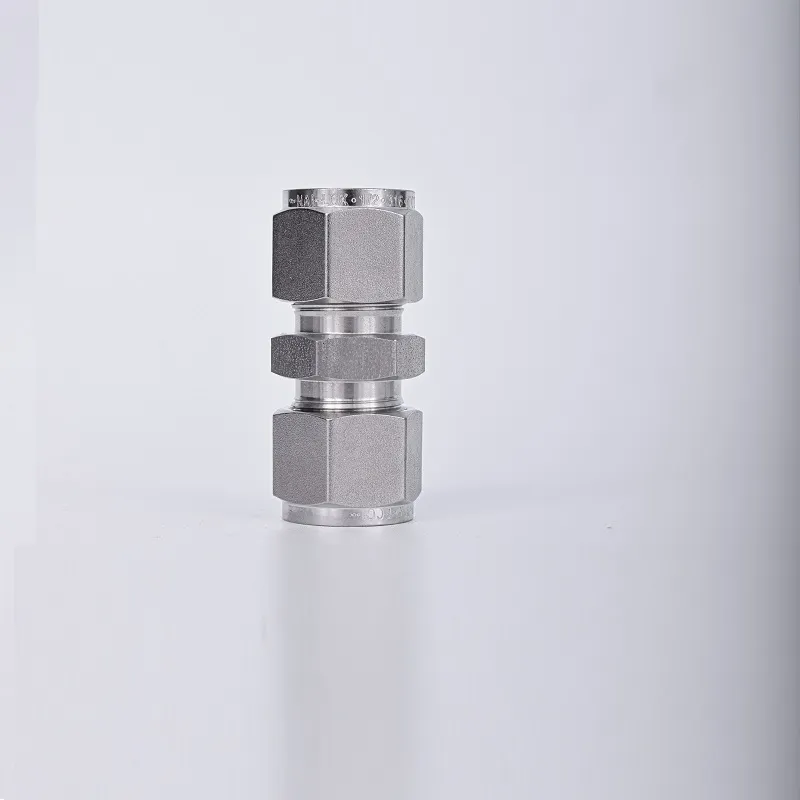

316 Stainless Steel 10mm Od Double Ferrule Instrumentation Tube Fitting Female Straight - 3/8" Tube Od X 1/4" NPT Female Union
Tube Fittings
A fitting or adapter is used in semi-conductor industry, aero-space industry, solar power battery, petroleum and petrochemical industry, power energy, bio-pharmaceuticals industry and vacuum system, etc. we will keep moving and making unceasing progress in the high-tech flow control field and serve the customers sincerely.
Instrument Types Stainless Steel fittings
Product Description:
1.Press up to 3000psig for standard stainless steel body
2.Temperature for PTFE packing from -65°F to 450°F (-54°C to 232°C)
Temperature for Grafoil packing from -65°F to 1200°F (-54°C to 649°C)
3.Packing below stem thread isolates the thread lubricant from the media
4.Back seating design protects the packing in fully open position
5.Non-rotating stem tip
6.100% factory tested
This high-pressure Union Tee is designed for instrumentation, hydraulic, and pneumatic systems, offering superior leak-proof performance with a double ferrule compression design. It features a 1 Inch NPT male thread and 12mm OD (Outer Diameter) branch, making it ideal for high-pressure fluid and gas applications in oil & gas, chemical processing, petrochemical, and power generation industries.
Key Features & Benefits
6000psi (414 bar) Pressure Rating - Suitable for extreme high-pressure environments.

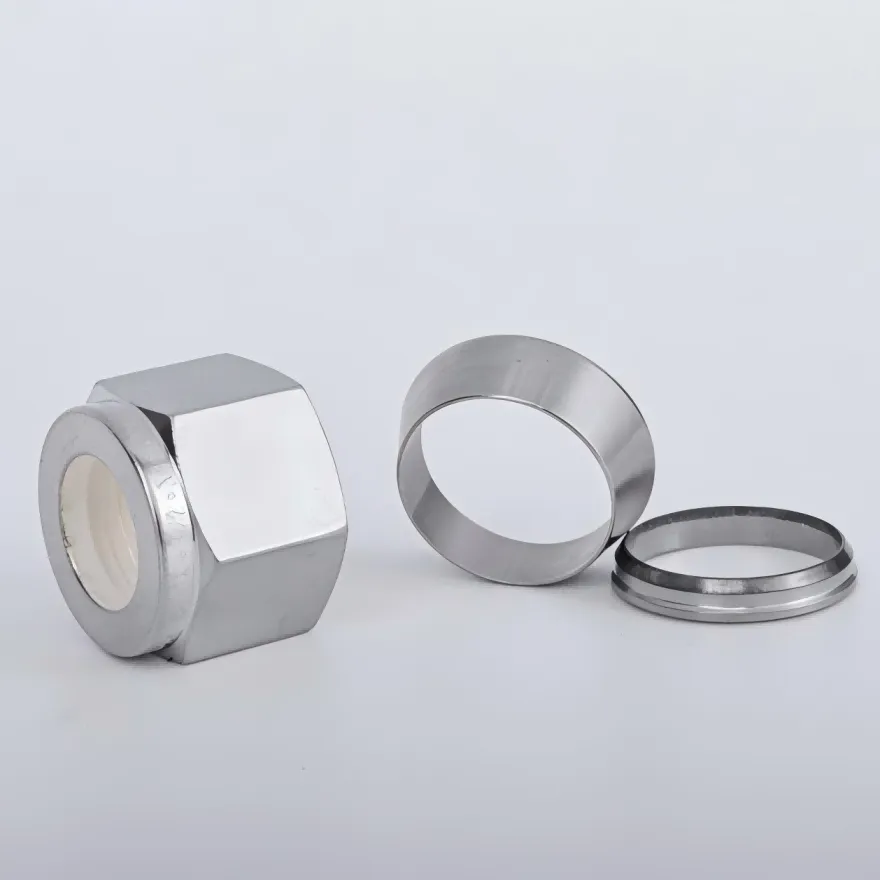

Double Ferrule Compression Design - Ensures a secure, vibration-resistant, and leak-free seal.
Premium Corrosion-Resistant Materials - Made from 6Moly (S31254) super austenitic stainless steel & 316 stainless steel,HASTELLOY ® HC22 HC276 H-B3, titanium, nickel alloys, INCOLOY ® 825, INCOLOY ® 800, MONEL® 400, INConEL ® 625, super duplex S32750 2507 2205 for superior acid, chloride, and seawater resistance.
Precision Machined - Smooth internal bore for minimal pressure drop and turbulence-free flow.
NPT Thread (National Pipe Tapered) - Ensures a tight, pressure-tight seal with standard piping systems.
12mm OD Male Branch - Compatible with metric and imperial tubing systems.
Wide Industry Applications - Ideal for instrumentation tubing, process control, chemical injection, and high-
Product Parameters
Technical Specifications
Parameter Specification
Application
Oil & Gas - High-pressure pipelines, wellhead controls, and instrumentation.
Chemical & Petrochemical - Resistant to H2S, chlorides, and acidic media.
Power Generation - Steam, cooling, and hydraulic systems.
Pharmaceutical & Food Processing - High-purity fluid transfer (316 SS option).
Marine & Offshore - Seawater-resistant (6Moly S31254) for harsh environments.
Why Choose This Compression Tube Fitting?
Superior Leak Resistance - Double ferrule design prevents loosening under vibration.
High Corrosion Resistance - 6Moly (S31254) & 316 SS for aggressive media.
Easy Installation - No special tools required; hand-tighten plus 1-1/4 turns for a secure seal.
High Pressure Union Tee Fitting
6Moly S31254 Instrumentation Fitting
Double Ferrule Compression Fitting 6000psi
1 Inch NPT Male Stainless Steel Tee
12mm OD Tube Fitting for Instrument Gas Systems
Corrosion-Resistant High-Pressure Union Tee
Industrial Instrument Compression Tube Fittings
Alternative Compression Fitting
