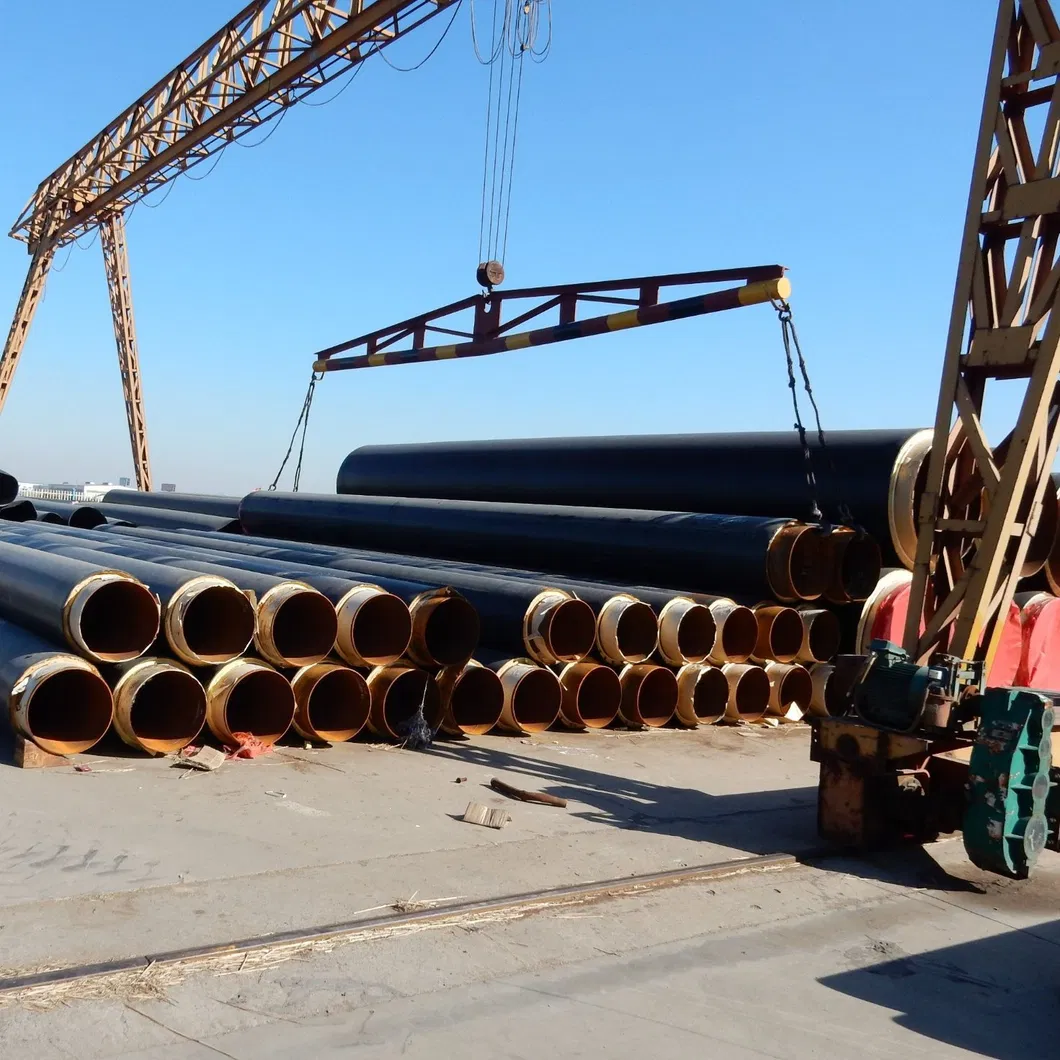

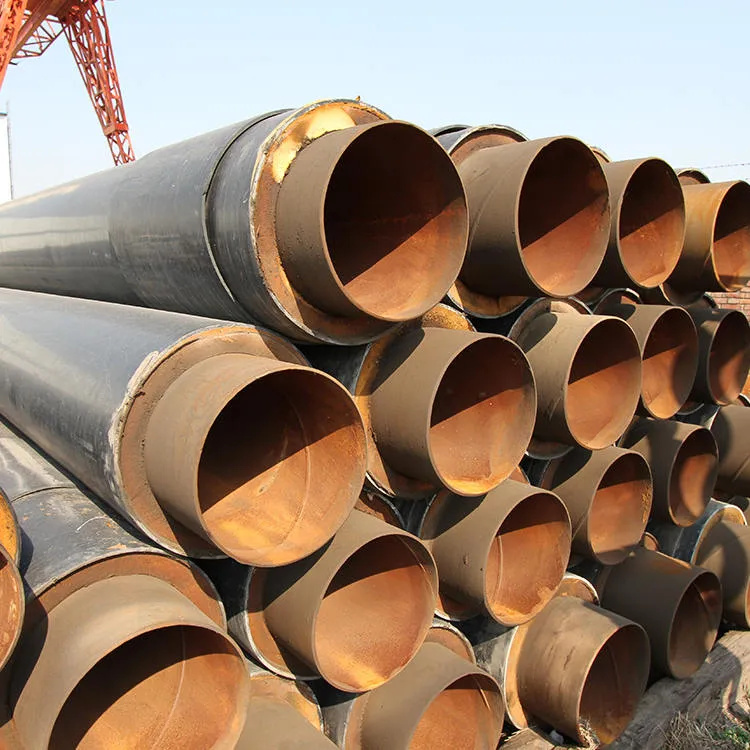

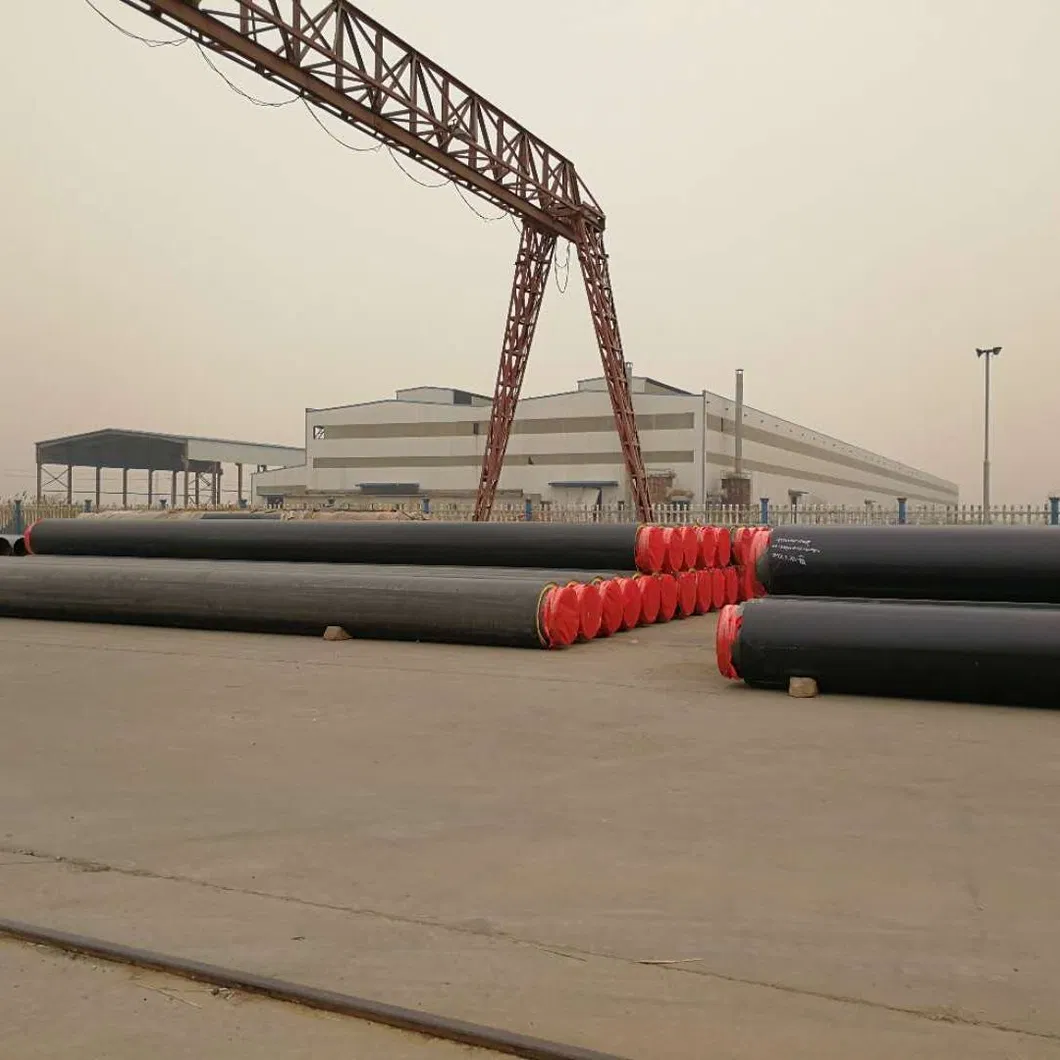

High-Quality PPR /Pert Polyurethanee Wrapped Pre-Insulated Pipe Thermal Insulation

Certification	EAC, TUV, GOST, ROHS, CE
Heating Type	Water Heating Systems
Color	Black
Medium	Liquid, Fluids with Solid Particle, Gas
Shape	Round
Connection Method	Welding
Usage	Asphalt, Lubricants, Solvent, Fuel, Petroleum Coke
Application	base Oil, Derivatives, Industrial Lubricant, Oil
Transport Package	Standard Package
Specification	DN20-DN1400
Trademark	OEM
Origin	Hebei China
HS Code	7307930000
Production Capacity	50000ton/Year



Descriptionpolyurethane thermal insulation steel pipe Wall thickness0.5mm-16mm    Length1m-12m or customized Outer Diameter0.405-80 inch or 10.3mm - 2032mm InsulationPUR Foam Operating temperatureUp to 140ºC     Standard & GradesAPI 5L PSL1/ PSL2, ASTM A53,ASTM A252,GB/T9711.1,GB/T3091,SY/T 5037-2012,DIN1626,EN10219,EN10217 Ends30~35°   Quality control100% X-Ray inspection/ 100%X
100% Hydraulic Pressure test/ 100%
100% Ultrasonic inspection / 100% LiningEpoxy , cement motar,  and according to customers requirement  Operating pressure<1.6Mpa  (Equivalent to PN 25? 25bar to be confirmed) Laid wayBuried, overhead, trench Insulation materialFluoride-Free water foamed rigid polyurethane foam material
(foam density: 60kg/m3-80kg/m³) Inner surface tension of the
high density polyethylene pipe≥50dy/cm



Insulation steel pipes are widely used in liquid and gas transmission pipe networks, chemical pipe insulation projects in petroleum, chemical, central heating and heating networks, central air-conditioning ventilation pipes, and municipal engineering. High-temperature prefabricated direct-buried thermal Insulation steel pipe is a direct-buried prefabricated thermal Insulation steel pipe with good thermal insulation performance, safety and reliability, and low construction cost.

Specification

1. The pre-insulated steel pipe coated with high density polyurethane foam can resistant the temperature up to 140°c
2. With the corrosion resistant HDPE jacket pipe can make the pipe directly buried underground without trench.
3. Different size pipe and pipe fittings can service for different heating and cooling project.
4. The polyurethane foam thickness can be designed from 26.5-83mm or more.

Applications-Pre-insulated pipe system are used by the chemical, pharmaceutical, petro-chemical and food industries for the transport of:

1. District heating networks
2. District cooling networks
3. Chilled water, Drinking water, Waste water, Cooling water, Hot water
4. Steam & condensate lines
5. Process fluids
6. Refrigerants
7. Chemicals
8. Oil

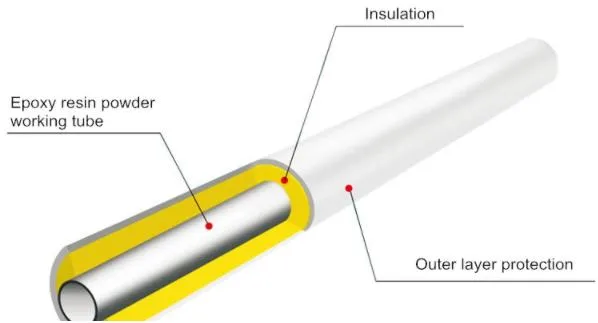

A pre-insulated pipe normally consists of three parts

Part 1:  Carrier pipe (Inside): Stainless steel or Carbon steel
Part 2:  Insulating layer (Medium): Polyurethane foam (PUR Form) (High insulation qualities compared to mass and volume)
Part 3:  Protective jacket (Outside casing): Plastic or steel (Polyethylene (PEH), High Density Polyethylene (HDPE), Galvanized, Aluminum etc)

Pos: The choice of carrier pipe, foam type and foam thickness, as well as the material for the jacket, is made by the customer, who can also choose to supply carrier pipes for the project.

Advantages: impact-proof, watertight, resistant to salt and chemicals, hygienic and non-corrosive

The crystallization of 20 years manufacturing experience,
all products are fully inspected leaving the factory,
 acheive 100% qualified,
 ensuring that all products are exquisite.







1.Customized Service:Tailor-made for each customer's requirements.
2.Price Advantage:Good quallity, resonable price, on time shipping and best service for each customers.
3.Experience:More than 20 years of professional production and export experience.Cooperation with the largest customers from some countries.
4.Quality Assurance:All the products have the cetificate of lSO and C approval Guaranteed quality.
