From DN 50 to 400 for U-PVC and PE (PE 80 or PE 100 PN16) Pipes Pn16
Detailed specification for From DN 50 to 400 for U-PVC and PE (PE 80 or PE 100 PN16) Pipes Pn16
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Standard | ISO 2531/En545 |
| Technique | Casting |
| Nominal Diameter | DN50-DN400 |
| Type | Socket Union |
| Material | Ductile Iron |
| Connection | Socket |
| Stanrdard | ISO 2531/En545 |
| Application | Potable/Sewage Water Pipeline |
| Color | Customized |
| Gasket | EPDM |
| Description | Connect with Pipes and Valves |
| Coating | 250 Micron |
| Coating of Bolts | Geomet 500 Gr. B |
| Wide Outside Diameter Range | an Average of 29 mm |
| Angular Deflection | +-5 Dgree by Side |
| Transport Package | Plywood Case |
| Specification | From DN50-DN400 |
| Trademark | AVANNTO/OEM |
| Origin | Beijing China |
| HS Code | 73071100 |
| Production Capacity | 400 Tons Per Month |
1.Description

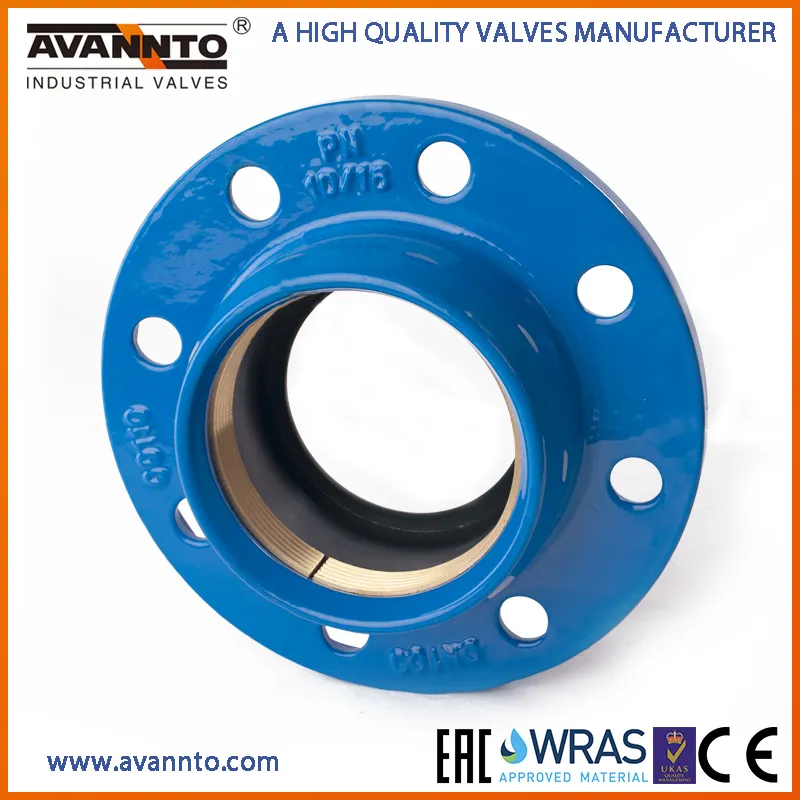

Flange adaptor(Quick adaptor)for U-PVC and PE pipes
Enables self-locked mechanical jointing of a flange and a pipe.
Description
High performance:
- Guaranteed sealing with shut-off seal and antiflow ring
.- Corrosion protection: epoxy powder coating.
Ease and speed of installation:
- Angular deflection: ± 3.
- Single bolting.
Conformity to standards:
- EN 1092-2: Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories, PN designated.
Part 2: Cast iron flanges.
- EN 12842: Ductile iron fittings for U-PVC or PE piping systems
Requirements and test methods.
- ISO 2531: Ductile iron pipes, fittings and accessories and their joints for water applications
- ISO 7005-2: Metallic flanges and cast-iron flanges.
- ISO 7483: Dimensions of gaskets for use with flanges to ISO 7005.
Approval:
- WRAS Approval for drinking water consumption.
Note:
- This harnessed coupling accommodates the end load due to the working pressure. It does not prevent from the magnitude of the pipe system.
- Vertical assembly upward is not allowed
Technical data
Range:
- From DN 50 to 400 for U-PVC and PE (PE 80 or PE 100 PN16) pipes PN16
Flanges drilling:
- ISO PN 10/16
- Double drilling ISO PN 10 / ISO PN 16
Temperatures: from 0° to +30°C.
Applications
Drinking water networks.
Fire protection networks.
Irrigation networks.
For complete restrained networks or vertical assembly, please read the setting instructions.

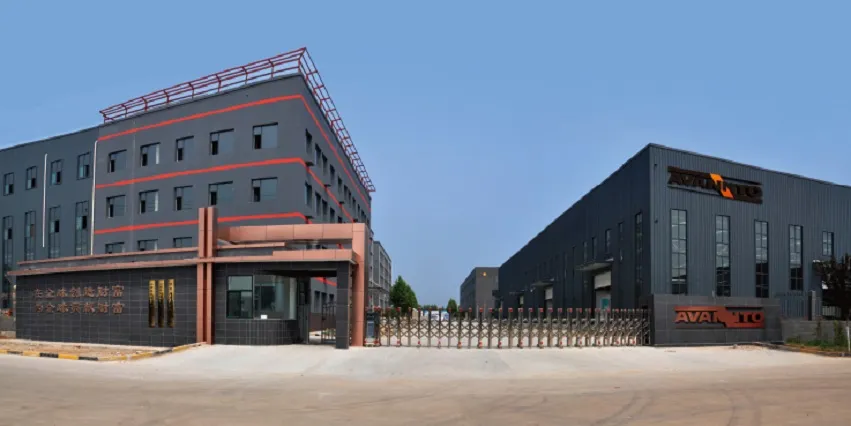

About Avannto
