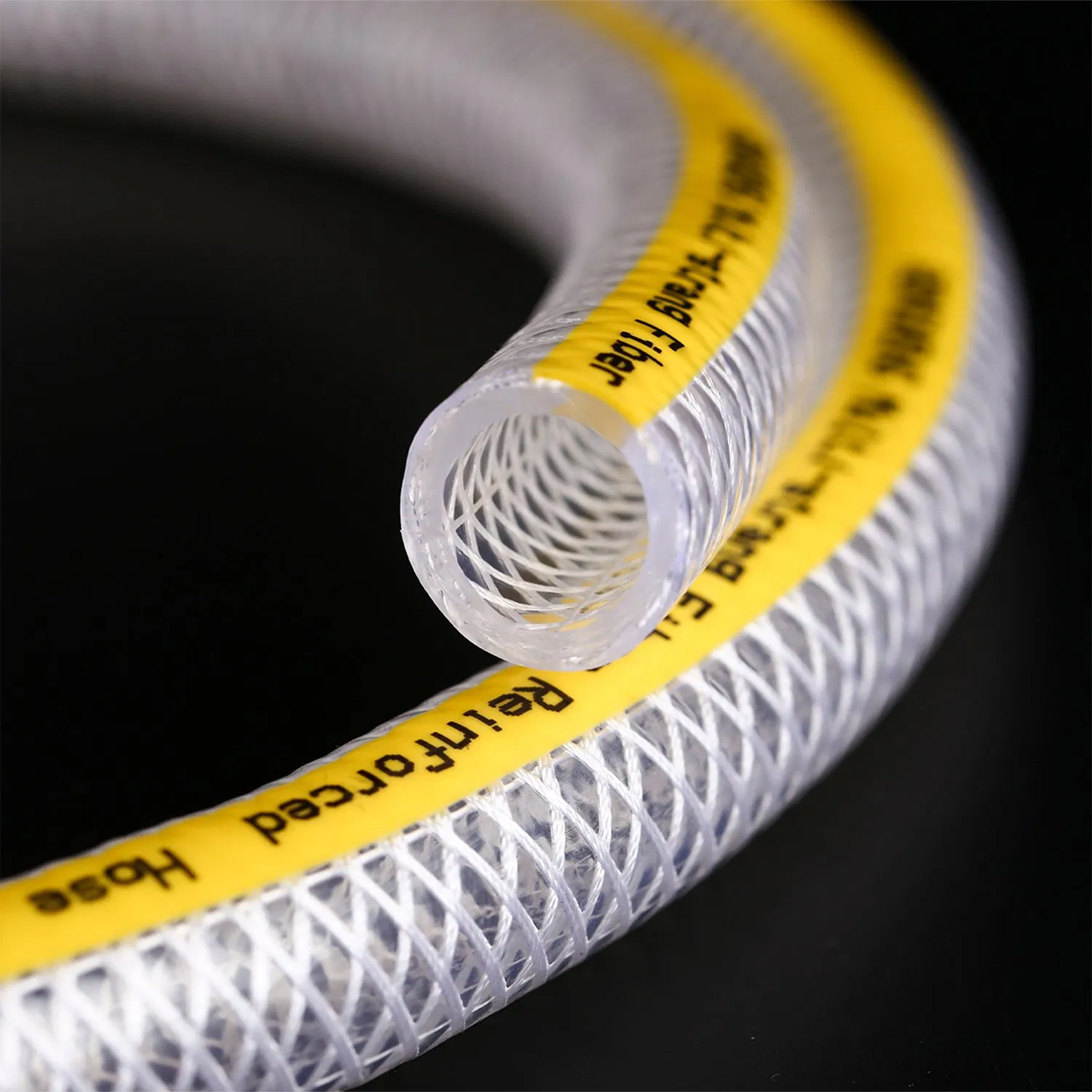

Custom High Pressure PVC Fiber Braided Reinforced Garden Hose Wear-Resistant Explosion-Proof Pipe
Detailed specification for Custom High Pressure PVC Fiber Braided Reinforced Garden Hose Wear-Resistant Explosion-Proof Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 5/16"5/8"3/4"1"inches |
| Type | Thermoplastic Pipe |
| Color | Transparent |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe, Threading Pipe, Agricultural Irrigation Pipe, High-Pressure Spray Paint Compresses Gas |
| Working Temperature | -5℃ to+65℃ |
| Length | 10-50meters Can Be Customized |
| Wall Thickness | 2mm-8mm |
| Working Pressure | 2bar-6bar |
| Feature | Withstand Pressure, Explosion-Proof |
| Transport Package | Export Standard or as Customer Request |
| Specification | Can be customized |
| Trademark | Rongheng |
| Origin | China |
| HS Code | 3917390000 |
I. General Characteristics
PVC double strand fiber reinforced hose is made of polyvinyl chloride (PVC) and double stranded polyester fibre composite process,which is a high-pressure hose for fluid transport with high-strength double strand fibre braid as the core support structure.The product combines high pressure capacity, anti-impulse impact performance and weather resistance, suitable for industrial, mechanical and special scenarios that require high pressure stability, solving the shortcoming of conventional single-strand fibre reinforced hose that is prone to deformation and leakage in high-pressure environments.

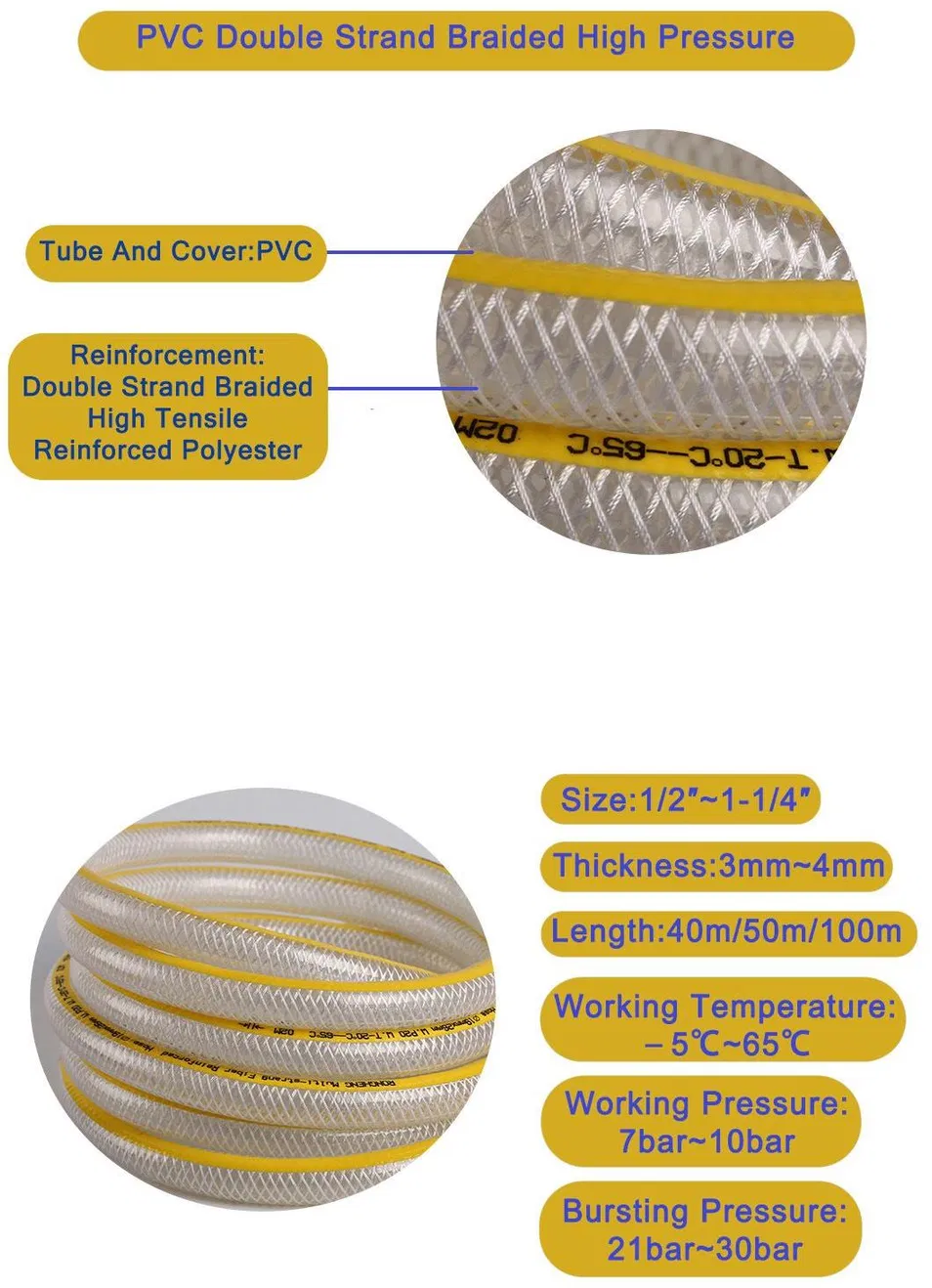

II. Structure Analysis
1. Inner layer of hose:
smooth PVC material, with flat inner wall and low friction coefficient, which ensures the high speed and low resistance when fluids (water, oil, gas) passing through, and at the same time, it is resistant to corrosion of general chemicals.
2. Reinforcement layer:
double stranded polyester fibre braid (30% higher strength than single stranded fibre), forming a 'double skeleton' supporting structure through precision cross braiding process, anti-impulse impact, working pressure up to 10-15bar (1.0-1.5MPa), burst pressure ≥ 3 times the working pressure.
3. Outer layer of hose:
thickened PVC protective layer, enhance abrasion resistance and aging resistance, as well as UV resistance and oil mist resistance.
III. Core advantages
III. Core advantages
- High-pressure stability:
double-stranded fibre reinforced structure increases the pressure-bearing capacity by 50% compared with single-stranded fiber reinforced structure, suitable for high-pressure scenarios below 15bar, with no risk of bulging or rupture in long-term use.
- Strong impact resistance:
can withstand sudden pressure fluctuations (such as the impact of starting and stopping a water pump), the fibre layer is tensile, reducing the leakage or fracture of the hose due to impact.
- Ageing resistance and durability:
-15℃~65℃ wide working temperature range, the outer hose passes 500 hours of UV aging test, the performance of anti-cracking is improved by 40%, and the service life is up to 3-5 years.
- Convenient installation:
40% lighter than rubber hose of the same specification, bending radius ≤ 4 times the diameter of the hose, adapting to complex layouts, support for quick couplings and flange connections.
Production Process
Product Parameters
Specification
- Diameter:
φ4mm~φ32mm (5/32″~1-1/4″), the hose of φ12mm~φ32mm are always in stock, regular industrial specifications covered, support non-standard customization.
- Length:
Standard length 50m/roll, 100m/roll, can be cut in 100m rolls as required or customized.
- Pressure Rating:
- Regular high pressure type: 7bar (0.7MPa)
- Reinforced high pressure type: 10bar (1.0MPa) (double-strand encryption and PVC material hardening process need to be customized)
I.D
O.D
L
W.P
B.P
Weight
inch
mm
mm
m/roll
bar
bar
g/m
5/32"
4
8
100
8
24
49
13/64"
5
9
100
7
21
57
5
10
100
8
24
76
1/4"
6
10
100
7
21
65
6
11
100
8
24
90
5/16"
8
12
100
7
21
84
8
13
100
8
24
112
3/8"
10
14
100
6
18
101
10
15
100
7
21
132
1/2"
12
16
50
5
15
118
12
17
50
6
18
153
12
18
100
7
21
190
13
17
50
4
12
131
5/8"
15
19
50
5
15
144
16
20
50
3.4
10
152
16
21
50
4
12
196
16
22
50
5
15
260
3/4"
19
23
50
4
12
178
19
24
50
3
9
227
19
25
50
4
12
279
20
24
50
3
10
186
7/8"
22
27
50
3
10
250
22
28
50
4
12
318
1"
25
29
50
3
9
220
25
30
50
4
12
291
25
31
50
4
12
356
1-1/4″
32
40
40
4
12
625
Application
Application Areas
- Industrial machinery:
hydraulic system hoses, high-pressure cleaning equipment (such as car wash, industrial water gun), machine tool cooling oil hose.
- Engineering machinery:
hydraulic oil circuits for excavators/loaders, auxiliary hoses for concrete pumps, and pneumatic systems for mining equipment.
- Special scenarios:
high-pressure cleaning of ship decks, brake fluid delivery in automobile manufacturing workshops, and low-pressure hose for chemical equipment.
- Agricultural high-pressure:
orchard high-pressure spraying system, high pressure water hose for farm fence flushing.
