Gold Diamond Series Fireproof Nitrile Rubber Foam Insulation Tube PVC Insulation Pipe for Air Condit

Model NO.	As request
Flexibility	Flexible
Inner Diameter	8 mm
Material	Rubber
Maximum Voltage	20KV~100KV
Outer Diameter	10 mm
Thermal Rating	200 200
Thickness	2 mm
Transport Package	Packed by Seaworthy Cartons
Specification	1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"
Trademark	RETEKOOL
Origin	China
HS Code	40094100
Production Capacity	100000000PCS/Year

Product Description

Gold Diamond Series Fireproof Nitrile Rubber Foam Insulation Tube PVC Insulation Pipe for Air Conditioner

TOPLON tube is a black, flexible elastomeric foam tube used to conserve energy and prevent condensation on piping applications. The tube closed cell properties create exceptional thermal and acoustic insulation, protect against moisture penetration and provide the best solution for applications within a -280°F to +221°F temperature range. It is primarily used in the HVAC/R market and comes in 6 feet or 2 meet length. It is 25/50-rated, according to ASTM E-84 standards for surface burning characteristics of building materials.



• Heating: Excellent heat insulation performance, greatly reduce heat loss, convenient economy installation.

• Ventilation: Also meet the world's most rigorous fire safety standards, greatly improved the safety performance of the materials, applicable to all kinds of ventilation ductwork.

• Cooling: High soft degree, easy installation, applicable to the condensate pipes systems, cold media quality system in the fields of the insulation.

• Air conditioning: Prevent condensation produce effectively, help air conditioning system to improve efficiency and create a more comfortable environment.



 Applications:

• Central air-conditioning system pipelines and equipment
• Living hot water pipes and equipment
• Industrial low-temperature piping and equipment
• Refrigeration system ,in particular ,apply in electronics, food clean ,chemical plant and important public buildings where need higher requirement of cleanness ,soundproof

Item Specification Material Main raw material:NBR/PVC Used for

the heat insulating and heat preservation of

shell of big tanks and piping in the construction,

business and industry,

 heat insulation of air conditioners,

joint pipes

of household air conditioners and automobile air conditioners;

protection of sport equipment, in cushions and diving suits.

Water absorption ratio in vacuum ≤10 Flammability
Oxygen index
Vertically burning
SDR Flame retardant Class B1
≥32
≤30s ≤250mm
≤75 Density 65-70Kg/m3 Aging resistance Slightly crumpling, no cracks, no pin holes, not deforming. Products type Pipe& sheet Color Usually Black. But also can do other colors. Like Red, Blue, Yellow...... Regular size

Pipe: with ID 6-108mm

Sheet:with thickness 10-30mm

Packing 1.PE/carton packing 2. As per customers' request Delivery time Within 7-10 days Brand  TOPLON, WDF-FLEX. Also can use customer's brand

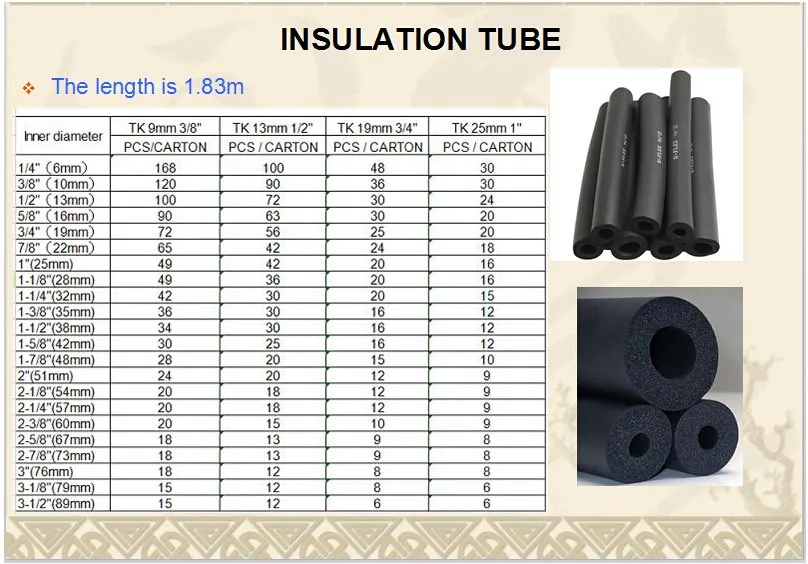

1/4"(6mm)High-quality insulation pipe Gold Diamond seriesTHICKNESS:
9mm 3/8"
13mm 1/2"
19mm 3/4"
25mm 1" 3/8"(10mm) 1/2"(13mm) 5/8"(16mm) 3/4"(19mm) 7/8"(22mm) 1"(25mm) 1-1/8"(28mm) 1-1/4"(32mm) 1-3/8"(35mm) 1-1/2"(38mm) 1-5/8"(42mm) 1-7/8"(48mm) 2"(51mm)
