Factory Manufacturer Flange Adaptor (Quick adaptor) for U-PVC and PE Pipes
Detailed specification for Factory Manufacturer Flange Adaptor (Quick adaptor) for U-PVC and PE Pipes
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Standard | ISO 2531/En545 |
| Technique | Casting |
| Nominal Diameter | DN50-DN400 |
| Type | Socket Union |
| Material | Ductile Iron |
| Connection | Socket |
| Stanrdard | ISO 2531/En545 |
| Application | Potable/Sewage Water Pipeline |
| Color | Customized |
| Gasket | EPDM |
| Description | Connect with Pipes and Valves |
| Coating | 250 Micron |
| Coating of Bolts | Geomet 500 Gr. B |
| Wide Outside Diameter Range | an Average of 29 mm |
| Angular Deflection | +-5 Dgree by Side |
| Transport Package | Plywood Case |
| Specification | From DN50-DN400 |
| Trademark | AVANNTO/OEM |
| Origin | Beijing China |
| HS Code | 73071100 |
1.Description

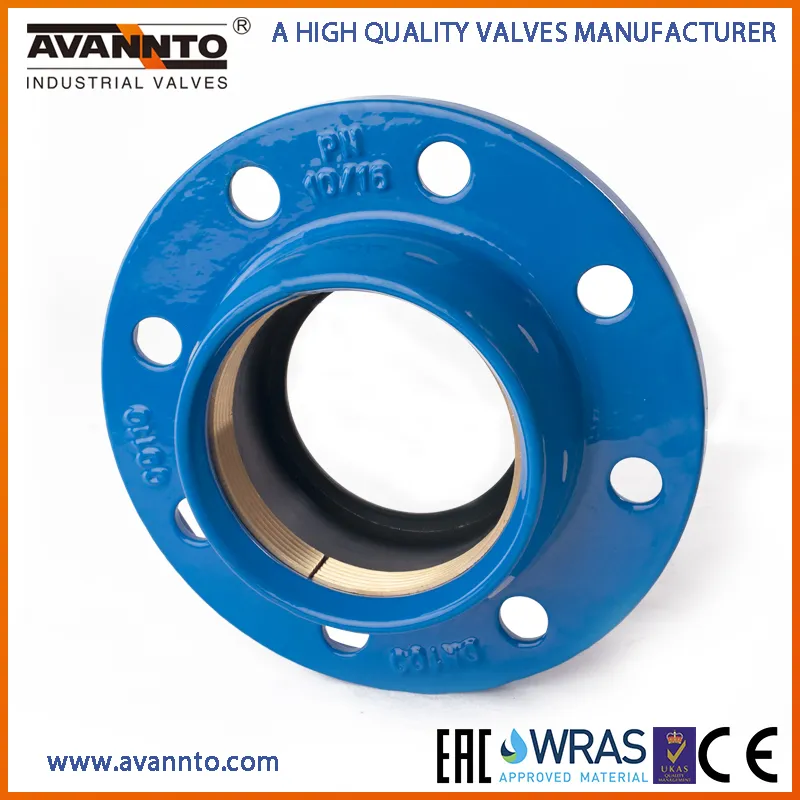

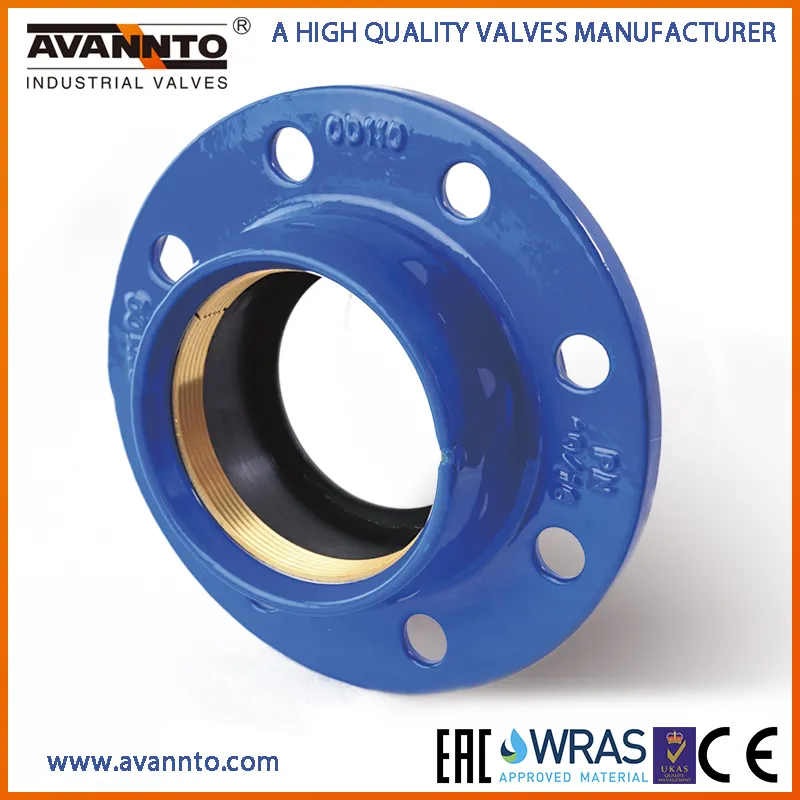

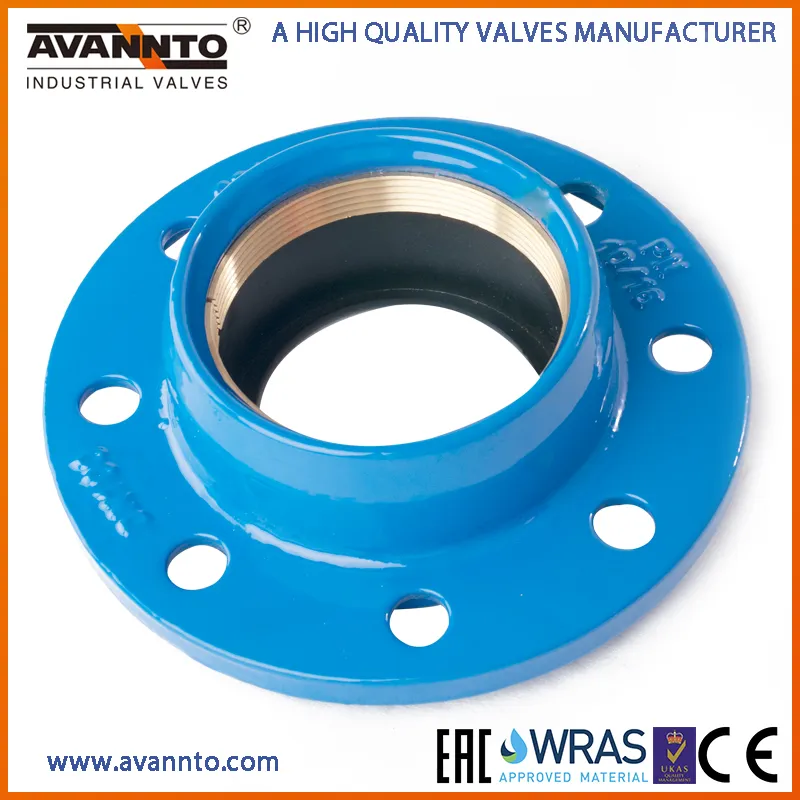

Flange adaptor(Quick adaptor)for U-PVC and PE pipes
Enables self-locked mechanical jointing of a flange and a pipe.
Description
High performance:
- Guaranteed sealing with shut-off seal and antiflow ring
.- Corrosion protection: epoxy powder coating.
Ease and speed of installation:
- Angular deflection: ± 3.
- Single bolting.
Conformity to standards:
- EN 1092-2: Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories, PN designated.
Part 2: Cast iron flanges.
- EN 12842: Ductile iron fittings for U-PVC or PE piping systems
Requirements and test methods.
- ISO 2531: Ductile iron pipes, fittings and accessories and their joints for water applications
- ISO 7005-2: Metallic flanges and cast-iron flanges.
- ISO 7483: Dimensions of gaskets for use with flanges to ISO 7005.
Approval:
- WRAS Approval for drinking water consumption.
Note:
- This harnessed coupling accommodates the end load due to the working pressure. It does not prevent from the magnitude of the pipe system.
- Vertical assembly upward is not allowed
Technical data
Range:
- From DN 50 to 400 for U-PVC and PE (PE 80 or PE 100 PN16) pipes PN16
Flanges drilling:
- ISO PN 10/16
- Double drilling ISO PN 10 / ISO PN 16
Temperatures: from 0° to +30°C.
Applications
Drinking water networks.
Fire protection networks.
Irrigation networks.
For complete restrained networks or vertical assembly, please read the setting instructions.

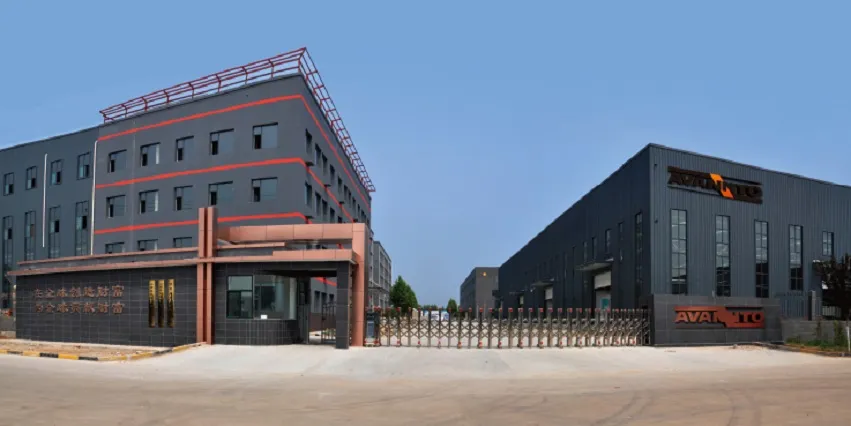

About Avannto
