Braided Pressure Rubber Stainless Steel Hose Pipe for Gas Oil Station Explosion Proof PVC Flexible C

Customized
1. Rubber plastic, steel net andstainless steel net is optional
2. The thread could be specially made upon request,such as NPT, G thread.
3. The length of the flexible conduit can be specially made upon request.


Technical Parameters

Explosion-proof mark: Ex d IIC Gb DIP A20
IP Degree: IP65

Waterproof Degree: WF2


The Bushings of the Flexible tubes can be choose inner Bushings, outer Bushings, or threaded plugs

Model

Tube Size(mm)

Tube Thread

Length(m)

Minimum Bending Radius

Material

BNG-15*500

15

G1/2"

500

80 mm

PVC rubber

BNG-15*700

15

G1/2"

700

80 mm

BNG-15*1000

15

G1/2"

1000

80 mm

BNG-II-20*500

20

G3/4"

500

110 mm

304 stainless steel

BNG-II-20*700

20

G3/4"

700

110 mm

BNG-II-20*1000

20

G3/4"

1000

110 mm

BNG-III-25*500

25

G1"

500

145 mm

Steel Wire braiding

BNG-III-25*700

25

G1"

700

145 mm

BNG-III-25*1000

25

G1:

1000

145 mm

Mark:

The tube thread can be replaced by G1/2", G3/4", G1" G1 1/4", G1 1/2", G2" G2 1/2", G3" G4" etc

The minimum bending radius can be replaced by 80mm, 110mm, 145mm, 180mm, 210mm, 250mm, 350mm, 400mm, 500mm etc

Applications

1. The exterior is made of 304 stainless steel, IP65 grade anti-corrosion engineering rubber and stainless steel wire weaving materials, which are waterproof, explosion-proof, anti-corrosion and dust-proof. The bushing is made of stainless steel or carbon steel.

2. It can be bent arbitrarily, with strong tensile performance and easy installation

3. Heighten and thicken stainless steel joints. High-strength protection

4. The connection is deepened with threads, which will not fall off and will not slip easily.

5. The stainless steel flexible tube adopts a precision braided shell to protect the cable from aging and water seepage.

6. Can be used in hazardous locations of zone 0&1&2 and zone 20&21&22

7. Degree of protection IP65 and the types of connectors are complete.

Key features

Good toughness, easy to bend and not easy to break.

The Ex explosion-proof mark is obvious, which is more secure and safer.

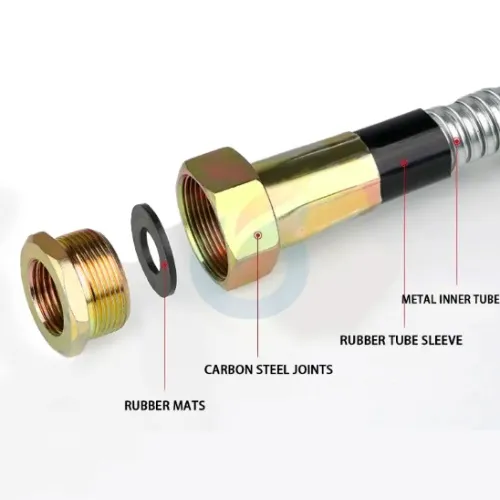

Carbon steel joints, surface electroplating treatment, anti-corrosion; threaded connection, good airtightness, and anti-protection
function.

Efficient waterproof performance, can also be installed and used outdoors.

The importance of this light
Having properly designed lighting fixtures within hazardous locations is of the utmost importance. This is important because without adequate lighting, the overall safety of workers is at risk. The safety of workers is of particular concern in heavy industrial areas where stray sparks can set off a buildup of flammable gasses and materials and ultimately cause an improperly designed fixture to explode. As a result, we carry specialized explosion proof lighting for hazardous areas to protect workers and ensure proper illumination.
Having the correct lighting is one of the easiest things a Hazardous Area location can do to improve the safety of its workers. Explosion proof lighting is, of course, a must as not just the tools but also all the fixtures need to be rated to a specific Explosion Proof Hazardous Area certification standard.

Dimension

Application

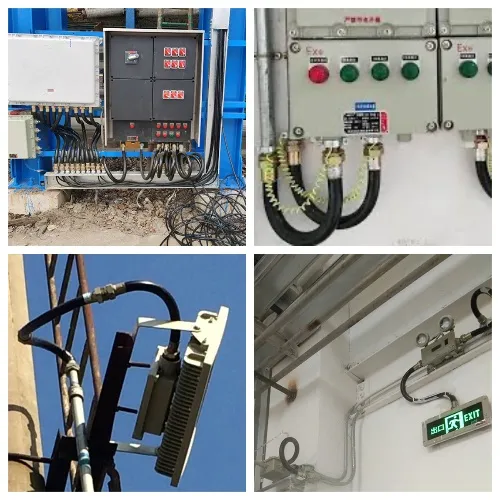

Mining applications: Mining and coal production & processing, gasoline dispensing and service stations, petroleum and chemical refineries, land drilling rigs and fuel depots.
Industrial applications: Water treatment plants, chemical rooms, power plants, grain processing and storage, paper and pulp mills, paint spray booths, refineries, solvent & cleaning areas and chemical manufacturing.

Certifications
