High Quality Product Quick Adaptors for PVC Pipe-Aoft07
Detailed specification for High Quality Product Quick Adaptors for PVC Pipe-Aoft07
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Standard | ISO 2531/En545 |
| Technique | Casting |
| Nominal Diameter | Od48-63, Od630-650 |
| Type | Socket Union |
| Material | Ductile Iron |
| Connection | Socket |
| Stanrdard | ISO 2531/En545 |
| Application | Potable/Sewage Water Pipeline |
| Color | Customized |
| Gasket | EPDM |
| Description | Connect with Pipes and Valves |
| Coating | 250 Micron |
| Coating of Bolts | Geomet 500 Gr. B |
| Wide Outside Diameter Range | an Average of 29 mm |
| Angular Deflection | +-5 Dgree by Side |
| Transport Package | Plywood Case |
| Specification | From DN50-DN2200 |
| Trademark | AVANNTO/OEM |
| Origin | Beijing China |
| HS Code | 73071100 |
| Production Capacity | 400 Tons Per Month |
1.Description

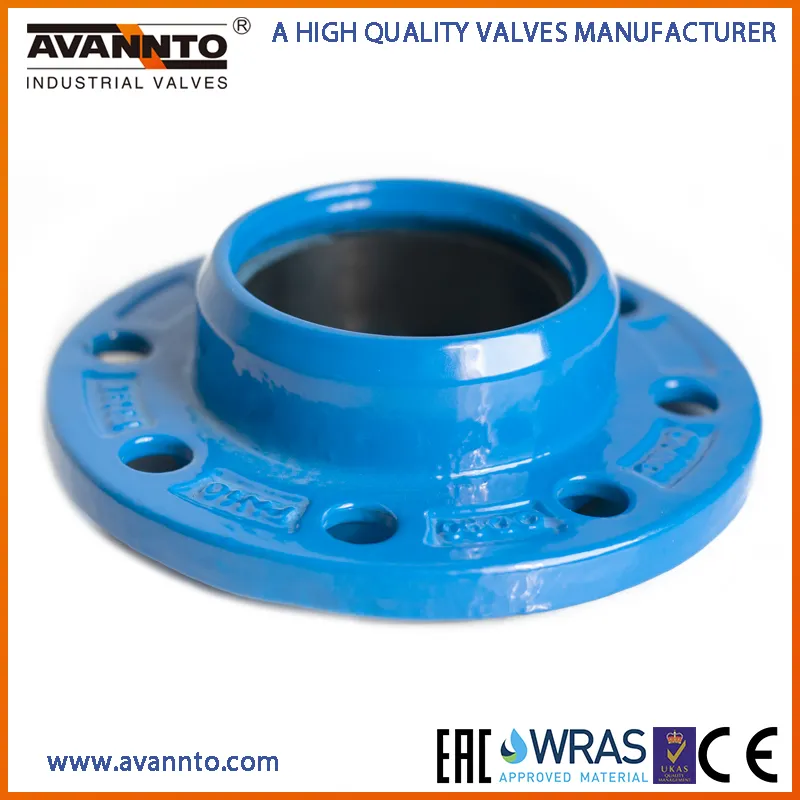

Quick adaptor for PVC pipes
Enables mechanical jointing of a flange and a pipe
Description
High performance:
- Guaranteed sealing with shut-off seal and antiflow ring.
- Corrosion protection: epoxy powder coating.
• Ease and speed of installation:
- Angular deflection: ± 3°
.- Single bolting.
• Conformity to standards:
- EN 1092-2: Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories, PN designated.
Part 2: Cast iron flanges.
- EN 12842 : Ductile iron fittings for U-PVC or PE piping systems.
Requirement and test methods.
- ISO 2531: Ductile iron pipes, fittings, and accessories and their joints for water applications.
- ISO 7005-2: Metallic flanges and cast iron flanges.
Part 2: Cast iron flanges.
- ISO 7483: Dimensions of gaskets for use with flanges to ISO 7005.
Approval:
- Approved for drinking water consumption.
Note:
- This coupling does not resist to longitudinal forces and pipe pull out will occur. Ensure adequate restraint is provided.
- Not recommended for PE pipes
2.Pipe Materials
3.Drawing
