PVC Water Pipe Production

Model NO.	ACE-65/132-80/156-92/188
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
Controller	Siemens PLC
Output Pipe Size	50~250mm
Motor Brand	Siemens, Weg, Sew
Gearbox	Vertical Type Sew/Falk Brand
Inverter	ABB/Schneider/Siemens
Bearing	SKF, NSK
Barrel & Screw Material	Bimetallic Barrel & Screw
Output Capacity	700kg/H
Raw Material	UPVC/CPVC/PVC Powder
Transport Package	Wooden Pallets
Specification	PVC pipe extrusion machine cost
Trademark	KITECH
Origin	China
HS Code	8477209000
Production Capacity	50sets/Year

PVC Water Pipe Production

Application:
PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Advantages:
1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
2. Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;
5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6. U type, R type and Air blow type socket can be provided according to applications;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.




Work flow and detailed information :

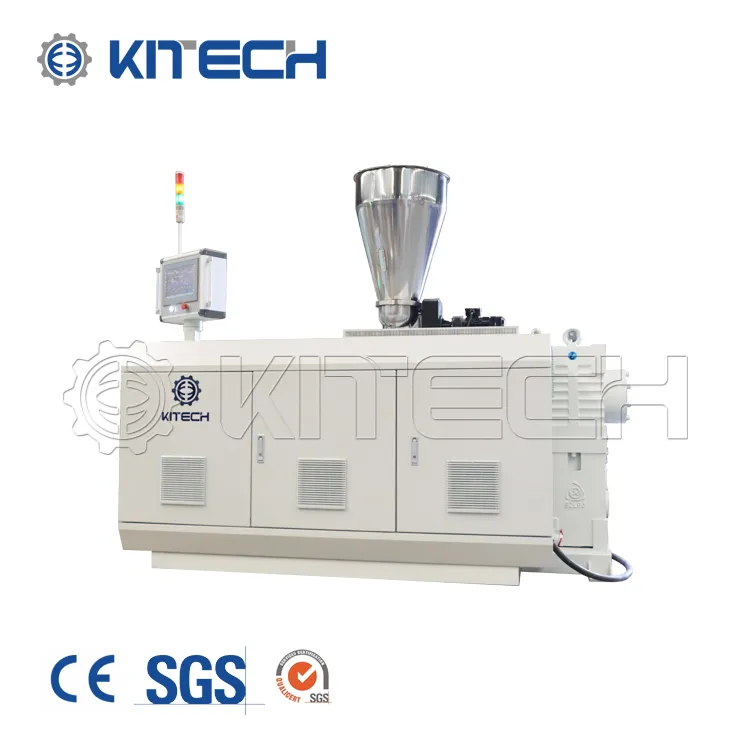

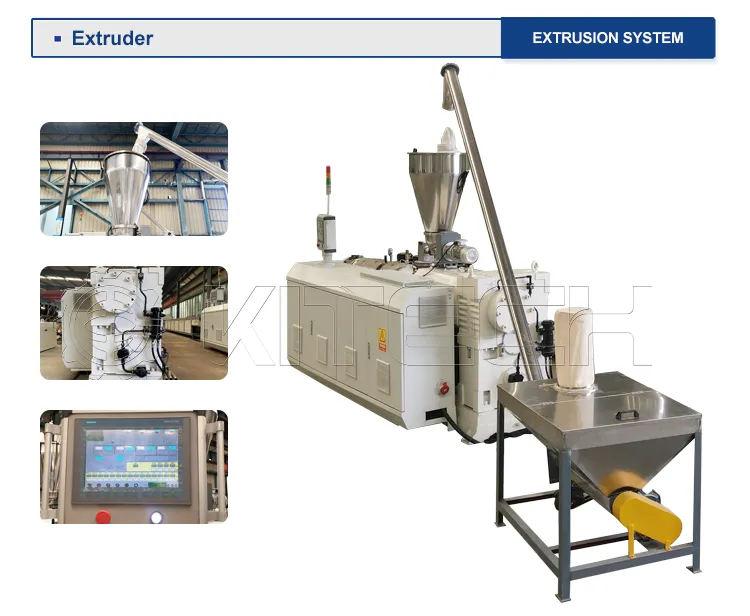

Feeder- To feed material into extruder; Extruder- World famous brand electrical component such as Siemens,Schneider, ABB etc;
- High torque gearbox with adopts NSK/SKF bearing;
- Siemens/WEG original motor achieved global after service;
- Bimetallic screw and barrel;

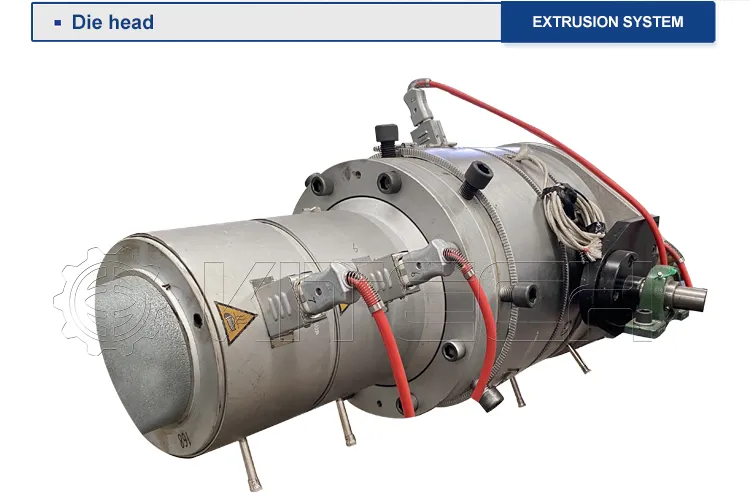

- Intelligent PLC controlling system with human-friendly interface.  Die head - High melt homogenity
- Low pressure built up even with high outputs
- Melt channel distribution system
- Equipped with seramic heaters
- Pipe head carriage for easy movement

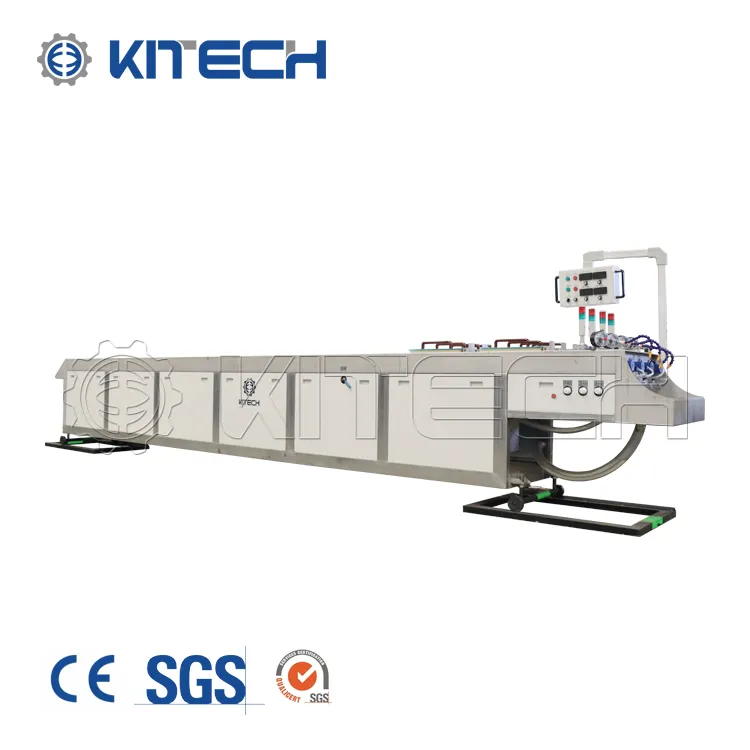

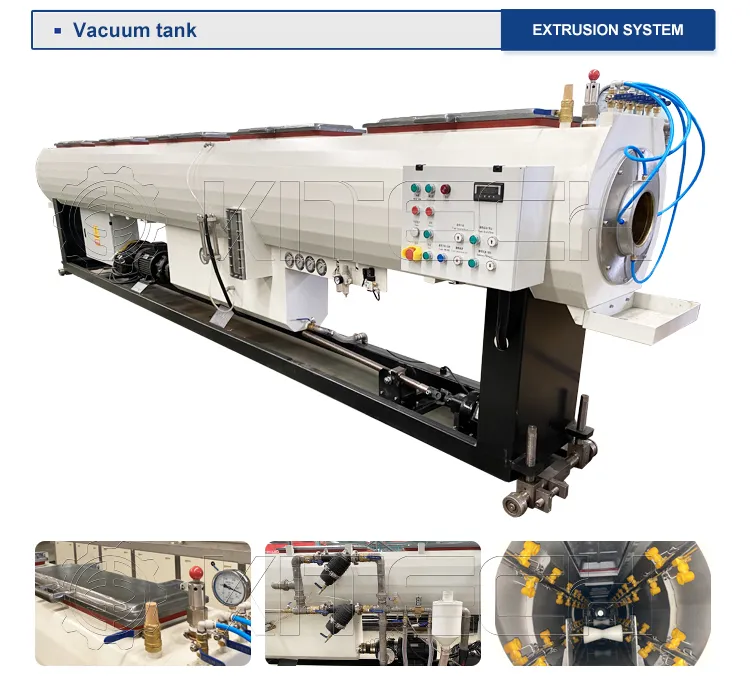

- Easy maintenance thanks to the optimized and proven designed construction. Vacuum calibration tank- 304 stainless steel with painted outer surface
- Special water sprays are located on the best position for cooling the pipe efficiently
- Special and easy adjusted pipe supports for each pipe diameter
- Installed vacuum and water pumps can work without any maintenance for long times

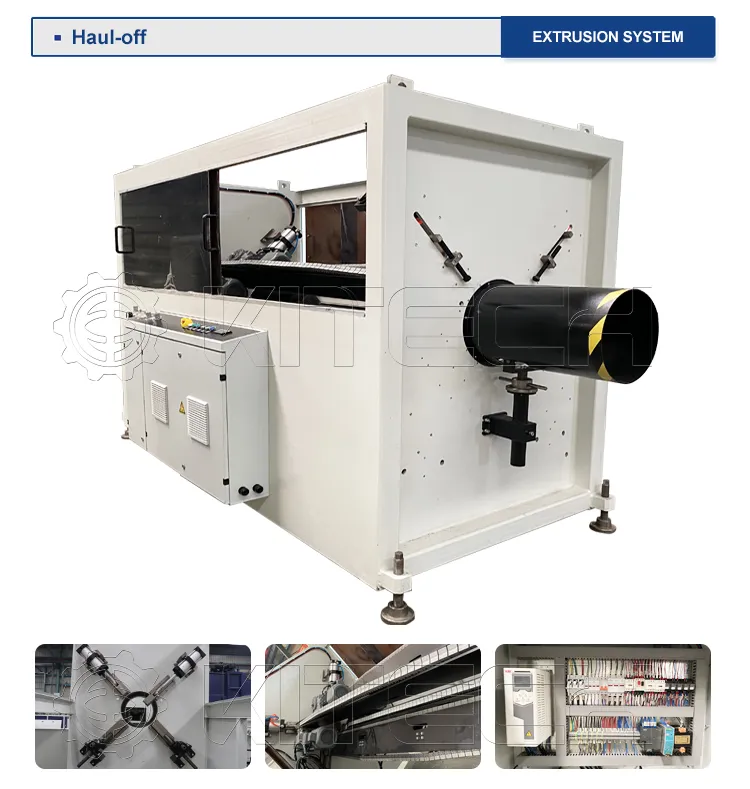

- Special cooling baths can be designed for specific extrusion production Haul off- Upper and lower caterpillar is driven separately by the frequency inverter

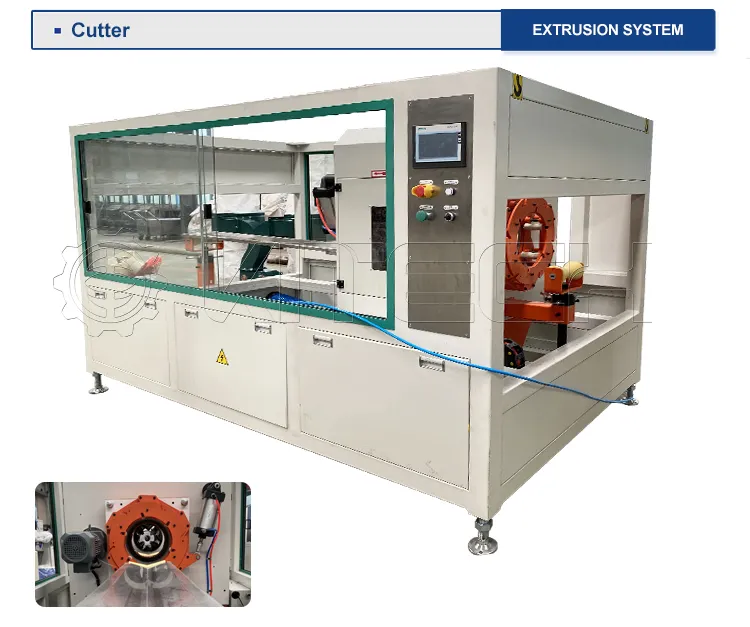

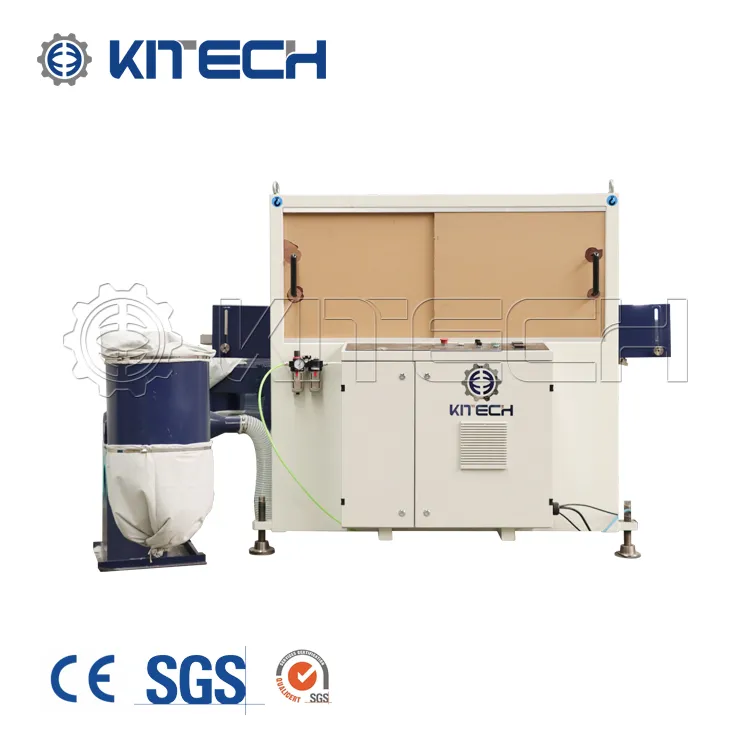

- Fast change type pads Planetary cutter- Automatic synchronisation with extrusion speed
- Planetary equipped with disk and milling cutter for cut and chamfering
- Touch screen control panel
- User friendly software developed by Aceextech
- All movements are motorised and controlled by control panel
- Pipe blocking vices device
- Type of the cutting unit is chose depend on pipe.
- Less maintenance needs.
- Completely closed and secured machine for maximum safety. Belling machine- Socket forming: smooth (solvent cemented)
- Socket forming: shaped for insertion of rubber gasket (blowing system)
- Socket forming: collapsible system
- Socket forming: auto-load rubber gasket
- Touch screen control panel
- User friendly software developed
- Automatic synchronisation with extrusion speed
- Pneumatic, hydraulic and motorized movements.
- High quality belling tools. Stacker- Stainless steel 304 as touching material
- Discharge driving by air cylinder

Technical Parameter:

Diameter ranges(mm)Extruder modelMax. Capacity(kg/h)Max. lineal speed(m/min)Extruder motor power(kw) 16-32 (4-cavities)ACE65/13230010*437 20-63 (Dual)ACE65/13230015*237 50-160ACE65/132300837 75-250ACE80/156500655 110-315ACE80/156500455 75-160 (Dual)ACE92/1888506110 315-630ACE92/1888501.2110


Technical Parameter of Main extruder:

ModelPower
(kw)Screw Diameter (mm)Screw Qty.Designed Output (kg/h)Dimension(L*W*H)
(mm) ACE-45/9015Φ45/902703360x1290x2127 ACE-51/10518.5Φ51/10521003360x1290x2127 ACE-55/11022Φ55/11021503620x1050x2157 ACE-65/13237Φ65/13223003715x1520x2450 ACE-80/15655Φ80/15624004750x1550x2460 ACE-92/188110Φ92/18827506725x1550x2814


 Main components:
- Motor: Siemens, WEG, SEW
- Gear reducer: SEW, FALK
- Bearing: SKF, FAG, NSK
- Air cylinder: Festo, SMC, AirTac
- PLC interface and module: Siemens, Schneider, Beckhoff
- Frequency inverter: ABB, Schneider, Siemens
- Servo motor: Lenze, Delta
- Pressure sensor: Dynisco, Gefran
- Low voltage component: Siemens, Schneider, Omron, LS
- Temperature controller: Omron, RKC
- Solid state relay: Crydom, Celduc

Service and support:

*Before-sale:
Introduce products professional
Project engineering

*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping

*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically
