16-50mm Plastic PPR HDPE PP Pipe Making Machine
Detailed specification for 16-50mm Plastic PPR HDPE PP Pipe Making Machine
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | RLB65 |
| Type | Pipe Extruder |
| Plastic Processed | ABS |
| Product Type | Extrusion Molding Machine |
| Feeding Mode | One Feed |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Deep Screw |
| Exhaust | Don't Exhaust |
| Automation | Non-Automatic |
| Computerized | Non-Computerized |
| Screw Design | Single-Screw |
| Key Selling Points | High Productivity |
| After-Sales Service Provided | Video Technical Support |
| Place of Origin | Guangdongchina |
| Screw Speed (Rpm) | 80rpm |
| Machinery Test Report | Provided |
| Application | Pipe |
| Screw Diameter (mm) | 65 |
| Screw Material | 38crmoala |
| Video Outgoing-Inspection | Provided |
| Power (Kw) | 22 |
| Transport Package | Wooden Case |
| Trademark | RELIABLE |
| Origin | China |
| HS Code | 84772090 |
This single screw plastic pipe extrusion production line can produce pe/ppr pipes of various diameters and thicknesses,it has advanced plastic extrusion technology and cooling calibration technology. The entire extrusion production line can collocation a PLC control system which interface to achieve the synchronization function and the winding machine.
At the same time, we can also have coextrusion machines to produce color coded pipes, double-layer and three-layer pipes. Different customized schemes can meet various needs of customers.

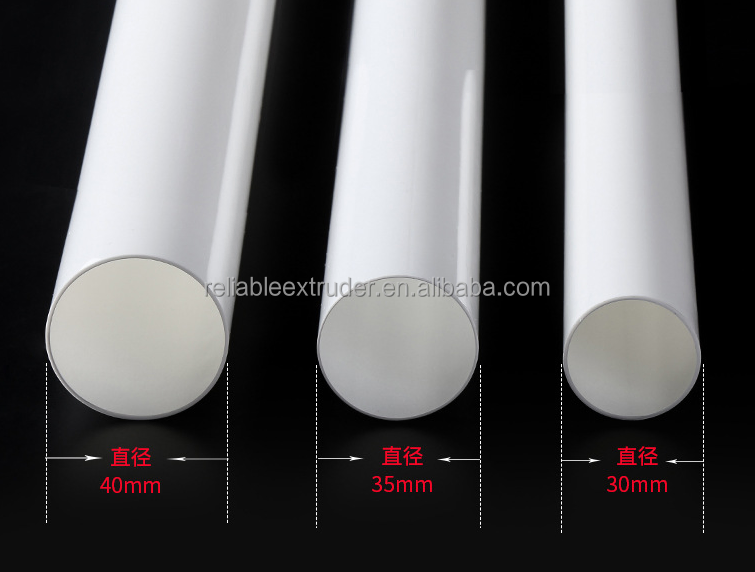

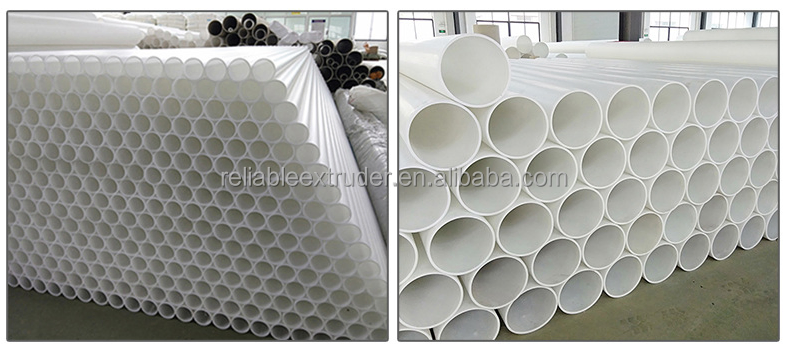

PE PP pipe: PE pipes are usually use for Urban water supply,Natural gas and gas transmission,Food chemical industry,Ore and slurry transportation,Replacement of cement pipes, cast iron pipes and steel pipe.
PPR pipes are widely used in construction, municipal, industrial and agricultural fields such as building water supply and drainage, urban and rural water supply and drainage, urban gas, electric power and optical cable sheath, industrial fluid transmission and agricultural irrigation.
20-75
SJ50/38
AC55
200 kg/h
PE-160
20-160
SJ60/38
AC75
320 kg/h
PE-200
50-200
SJ65/38
AC90
400kg/h
PE-315
110-315
SJ75/38
AC110
450kg/h
PE-450
110-450
SJ90/38
DC160
600kg/h
PE-630
315-630
SJ120/38
DC250
1000kg/h
PE-1200
500-1200
SJ120/38
DC280
1200kg/h

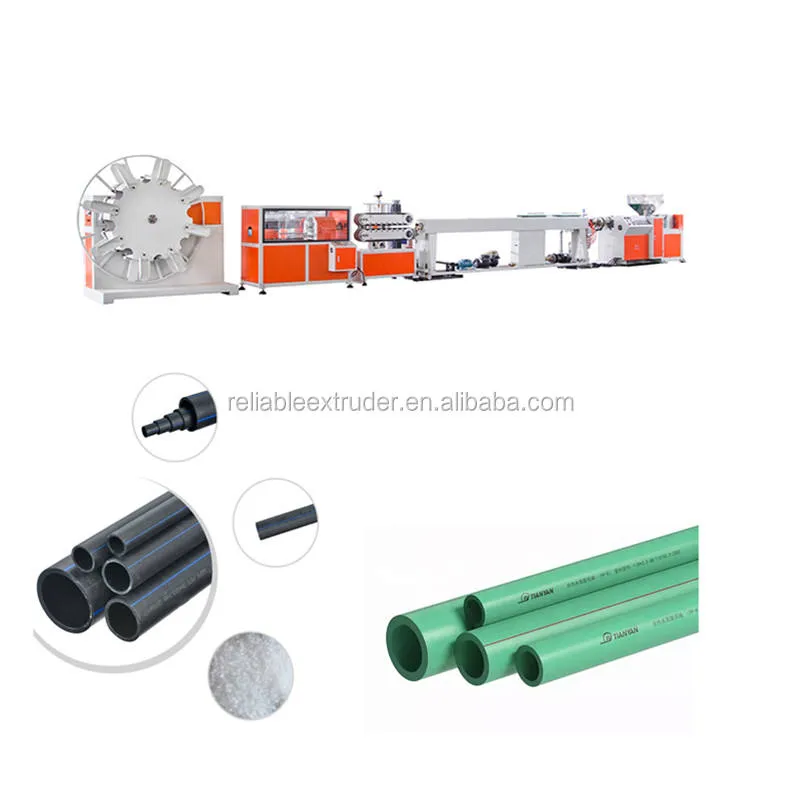

The process flow of PP pipe production is as following:
Loader → Dryer → Single-screw Extruder→ Color Line Extruder→ Co-Mould→ Vacuum Cooling Tank → Spraying Cooling Tank→Hauling-off →
Cutter → Pipe stacker
This line is suitable to produce painting roller pipe the size from 50-200mm ,and material is for PPR PP HDPE
SYSTEM ConFIGURATION OF THE PRODUCTION LINE:
1. 1 set of Automatic loader
2. 1 set of Hopper dryer
3. 1 set of Single-Screw Extruder
4. 1 set of Color Line Extruder
5. 1set of Co- Mould
6. 1 set of Vacuum Cooling Tank
7. 1 set of Spray Cooling Tank
8. 1 set of Hauling off Machine
9. 1 set of Pipe Cutting Machine
10. 1 set of Pipe Stacker
