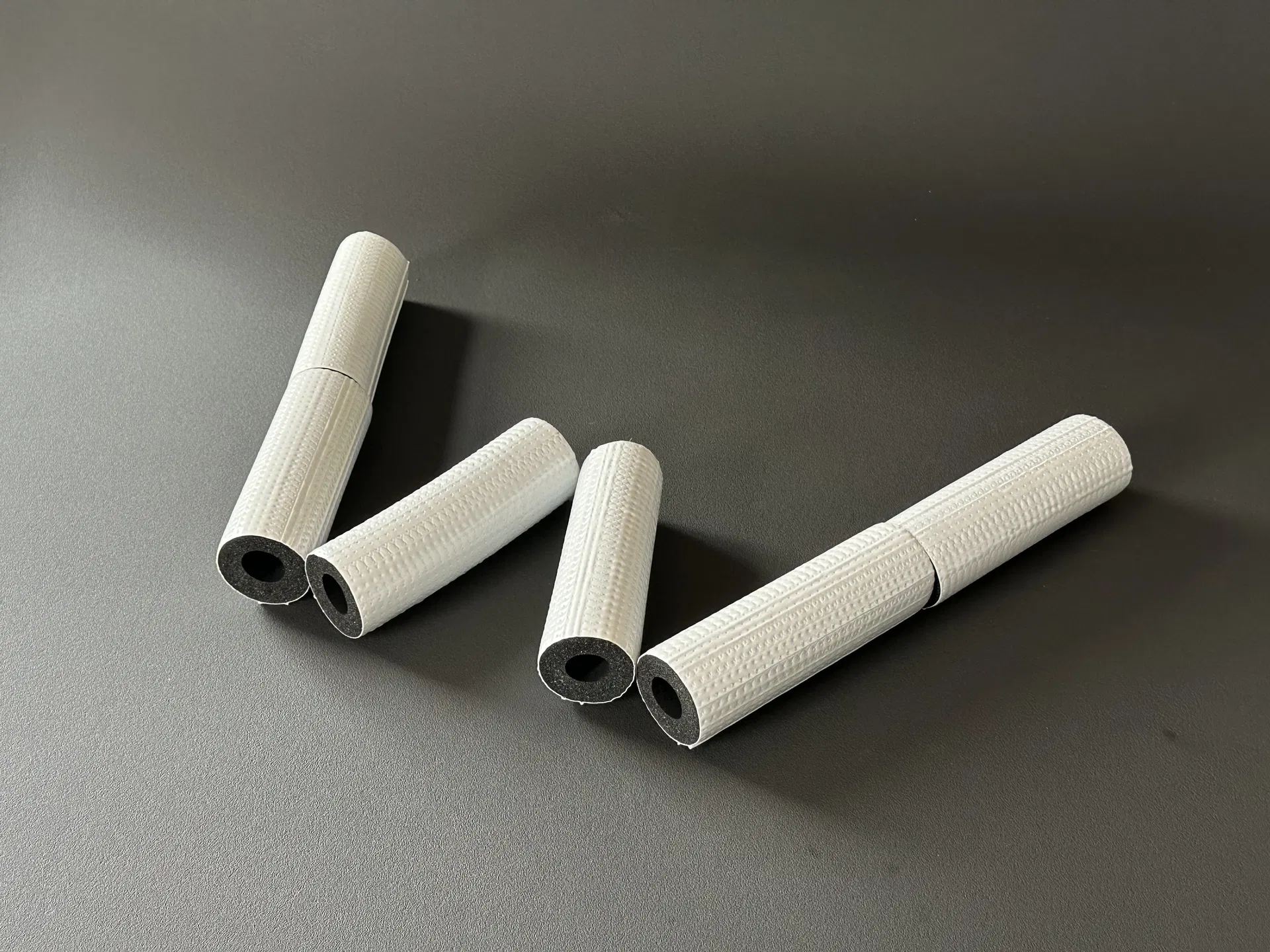

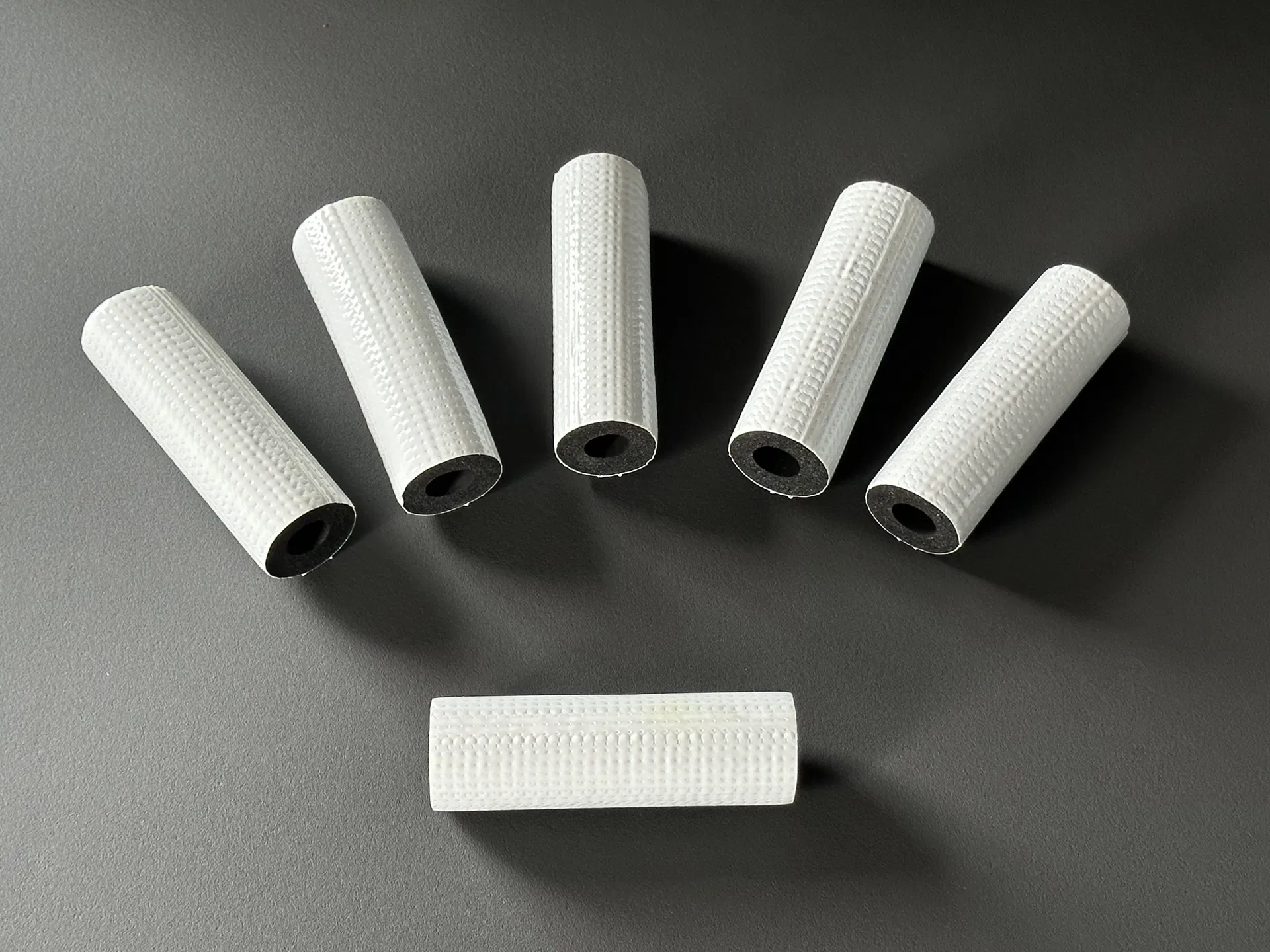

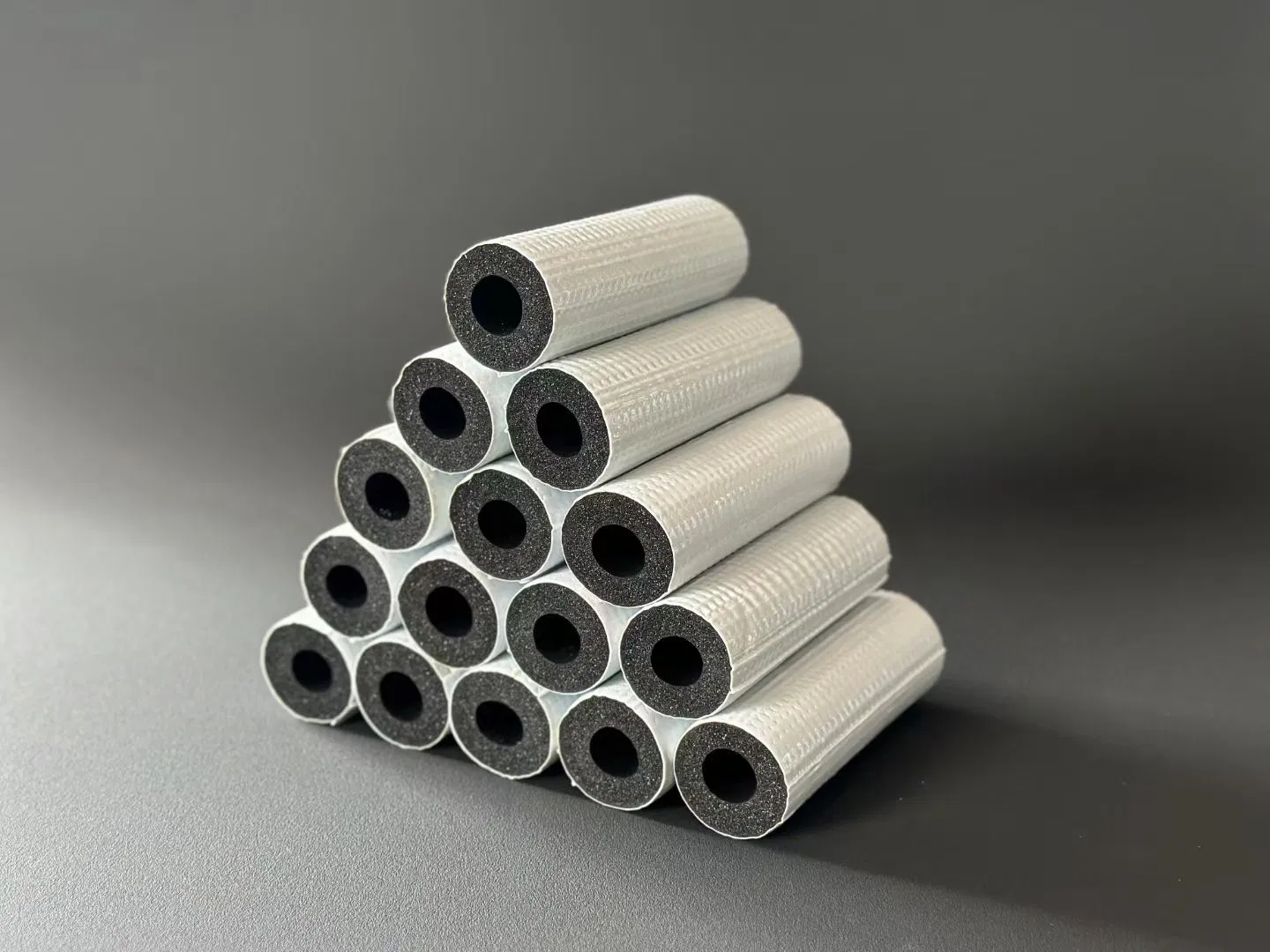

NBR/PVC Composite Rubber Foam Insulation Pipe - Specialized for HVAC Copper Pipes
Detailed specification for NBR/PVC Composite Rubber Foam Insulation Pipe - Specialized for HVAC Copper Pipes
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | OEM |
| Flexibility | Flexible |
| Inner Diameter | Customized |
| Material | PVC |
| Outer Diameter | Customized |
| Thermal Rating | A 105 |
| Thickness | Customized |
| Operating Temperature Range | -40℃~+105℃ |
| Noise Reduction Performance | ~32dB |
| Density | ≤70kg/M³ |
| Performance | Excellent UV Radiation Resistance |
| Excellent UV Radiation Resistance | NBR/PVC |
| Transport Package | Box |
| Trademark | Customized |
| Origin | China |
Gold diamond series Insulation Tube
Product description
Gold diamond series is a kind of rubber and plastic insulation material which is extruded with flexible polymeric cladding.It can be used in NBR/PVC or EPDM pipe insulation system. The product comes with a polymer cladding material with excellent flexibility, mechanical resistance.
Systerm application
The application temperature range is -55℃ to +150℃,The polymerized claddingenhances,
moisture flow resistance, and mechanical resistanceof insulated pipes, making it ideal for HVAC hoses. The golden diamond series tube is ideal for heat pumps and solar hot water supply systerms with high temperature requirements (expected to reach 150℃).
Outdoor application
The Gold Diamond series provide excellent UV radiation resistance,as well as good weather
resistance, with aunique polymer coating with excellent mechanical resistance.
Performance
Performance
Performance
Performance
Density
≤70kg/m³
≤70kg/m
≤70kg/m³
Water absorption in vacuum
≤10%
≤10%
GB/T17794-2008
Dimension stability(105℃±3℃,7d)
≤10.0%
≤10.0%
GB/T8811
Noise reduction performance
~32dB
~32dB
GB/T4760
Mildew resistance
No mold growth
No mold growth
ASTM G21
Operating temperature range
-40℃~+105℃
-40℃~+105℃
GB8871
Corosiveness
PH=7
PH=7
GB/T17393
Anti-aging(150h)
Slight wrinkle,no crack,
no deformation
Slight wrinkle,no crack,
no deformation
GB/T16259
Tearing strength
Tearing strength
Tearing strength
GB/T 10808
