1"-4" Inch Factory Supplier Food Grade PVC Spiral Wire Reinforced Water Pipe
Detailed specification for 1"-4" Inch Factory Supplier Food Grade PVC Spiral Wire Reinforced Water Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 1"inch to 8 inches |
| Type | Thermoplastic Pipe |
| Color | Transparent |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe, Threading Pipe, Corrugated Pipe, Food Grade Drinking Hose |
| Working Temperaturte | -5℃ to +65℃ |
| Wall Thickness | 2mm-12mm |
| Feature | Food Grade, Non-Toxic, Tasteless, Anti-Aging |
| Working Pressure | 2bar-7bar |
| Length | 10-50meters Can Be Customized |
| Transport Package | Plastic Film, Woven Fabric, Customized Client |
| Specification | Can be customized |
| Trademark | Rongheng |
| Origin | China |
| HS Code | 3917390000 |
I. General characteristics
Food-grade PVC raw materials and galvanized steel wire reinforcement layer composite technology, to create a flexible and durable, hygienic and safe fluid transport hose. With high transparency, corrosion resistance and aging resistance, it is suitable for material transfer in food, pharmaceutical, daily chemical and other industries.
II. Structure Analysis
1. Inner hose layer: made of food-grade PVC, smooth inner wall reduces fluid resistance and prevents material retention and adhesion.
2. Reinforcement layer: precision winding galvanized steel wire skeleton, to enhance the negative pressure resistance and tensile properties, to ensure the stability of the hose structure.
3. Outer hose layer: Wear-resistant PVC outer layer, strong weather resistance, anti-wear, anti-tear, prolong service life.
III. Core advantages
- Safety: It contains no harmful substances such as plasticizers and heavy metals.It has passed strict tests and is more reassuring to come into direct contact with food-grade materials.
- Strong performance: temperature resistance range: -15℃~65℃, strong pressure resistance, and resistance to acid, alkali, grease corrosion, adapt to complex working conditions.
- Flexible and convenient: the hose is soft and easy to bend, can be adapted to various types of hose interfaces, easy to install and remove; transparent design to facilitate real-time observation of the material flow status.
- Long-lasting and durable: steel wire skeleton enhances anti-aging performance, not easy to deformation, rupture, reduce the cost of frequent replacement.

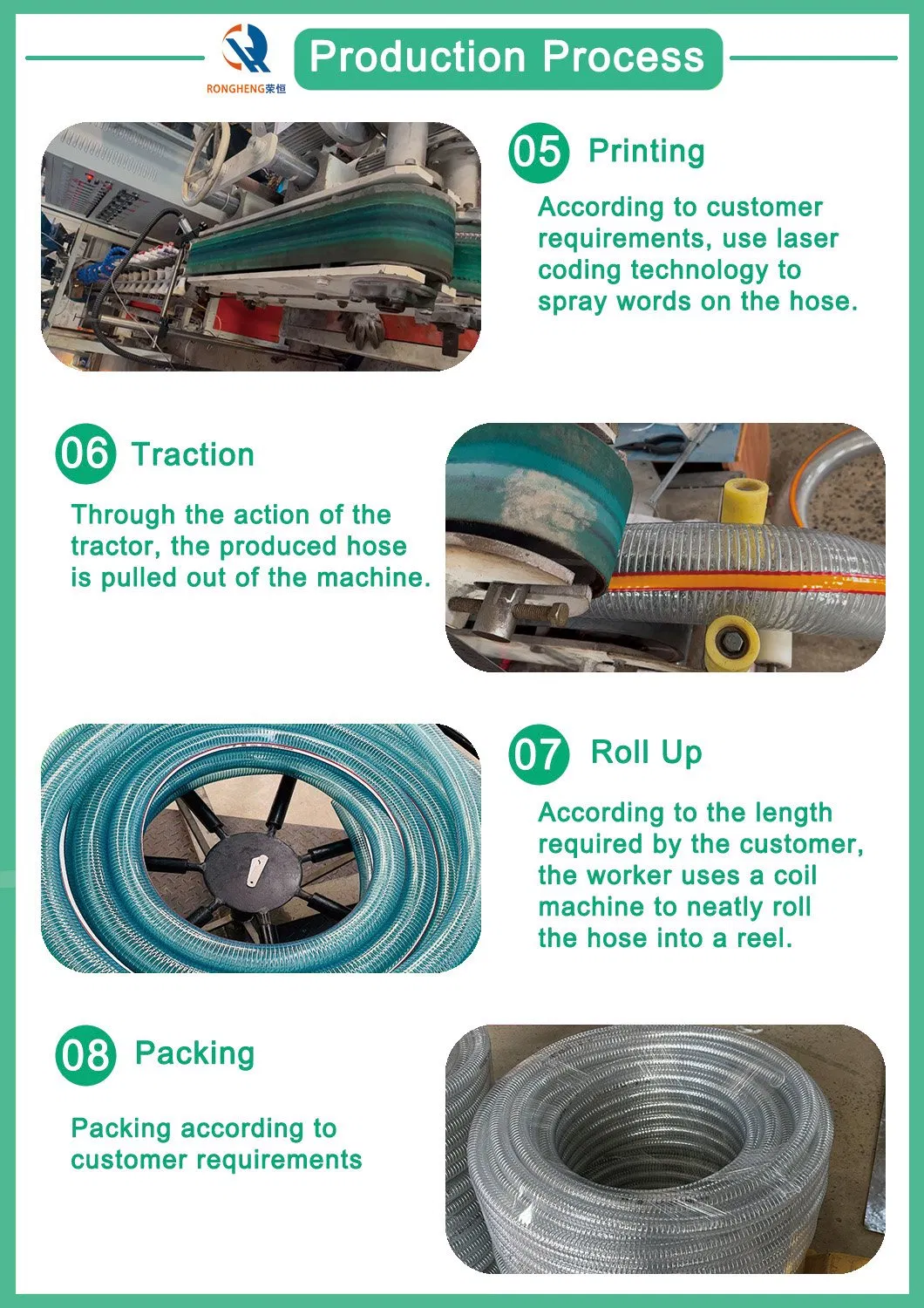

Production Process
Product Parameters
I.D
O.D
L
W.P
B.P
Weight
inch
mm
mm
m/roll
psi
bar
psi
bar
g/m
3/8"
10
15
100
87
6
261
18
160
10
16
100
116
8
348
24
200
1/2"
12
17
100
87
6
261
18
170
12
18
100
116
8
348
24
220
5/8"
15
21
100
87
6
261
18
250
15
22
50
87
6
261
18
300
3/4"
19
24
50
72
5
217
15
250
19
26
50
87
6
261
18
360
1"
25
29
50
58
4
174
12
200
25
33
50
72
5
232
16
540
1-1/4"
32
37
50
43
3
130
9
400
32
38
50
43
3
145
10
500
32
40
50
72
5
232
16
700
1-1/2"
38
43
50
43
3
130
9
500
38
44
50
43
3
130
9
600
38
46
50
43
3
130
9
800
38
48
50
72
5
217
15
1200
1-3/4"
45
50
50
43
3
130
9
600
45
52
50
43
3
130
9
900
45
56
50
72
5
217
15
1300
1-7/8"
48
54
50
43
3
130
9
800
48
56
50
43
3
130
9
1200
48
59
50
72
5
217
15
1400
2"
50
57
50
43
3
130
9
1000
50
60
50
43
3
130
9
1400
50
62
50
72
5
217
15
1600
2-5/16"
58
65
30
29
2
87
6
1200
58
68
40
58
4
174
12
1600
2-1/2"
64
72
30
29
2
87
6
1600
64
78
30
58
4
174
12
2500
3"
75
84
30
29
2
87
6
1600
75
87
30
29
2
87
6
2500
75
90
30
58
4
174
12
3000
3-1/2"
90
102
30
29
2
87
6
3000
4"
102
112
30
29
2
87
6
2800
102
113
30
29
2
87
6
3300
102
116
30
58
4
174
12
4000
4-3/8"
110
121
30
43
3
130
9
3500
4-5/8"
117
133
30
43
3
130
9
5500
5"
127
140
30
43
3
130
9
5000
5-1/2"
140
152
30
43
3
130
9
5000
6"
152
164
30
29
2
87
6
6000
6-5/16"
160
172
30
29
2
87
6
6300
7"
180
199
30
29
2
87
6
9500
8"
200
220
30
29
2
87
6
11000
10"
252
272
30
29
2
87
6
17000
Specification Selection
- Hose diameter: Φ10mm~Φ252mm (support non-standard customization).
- Length: conventional 50m/roll, 100m/roll, can be cut according to demand.
- Color: transparent (default), other colors need to be customized.
Application
Application Areas
- Food industry: The transportation of juice/milk, flour/starch powder,the filling of sauce/edible oil.
- Pharmaceutical industry: sanitary conveying of medicinal liquid, raw materials of health care products.
- Daily chemical industry: production line transmission of shampoo, lotion and other liquid raw materials.
- Industrial field: low-pressure conveying of non-corrosive chemical reagents and water-based fluids.
