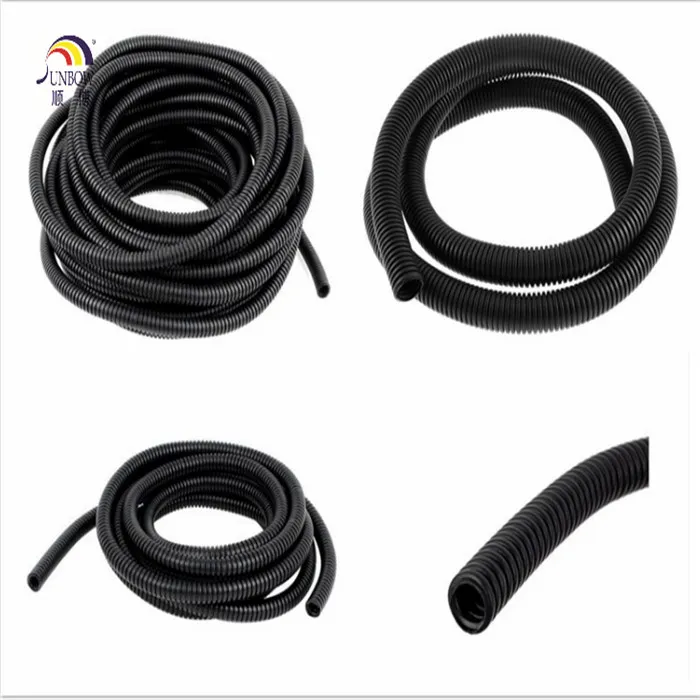

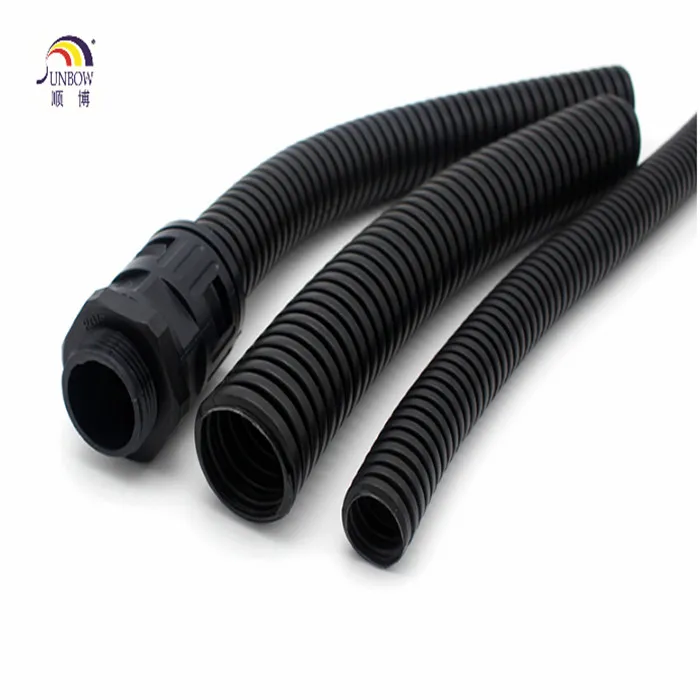

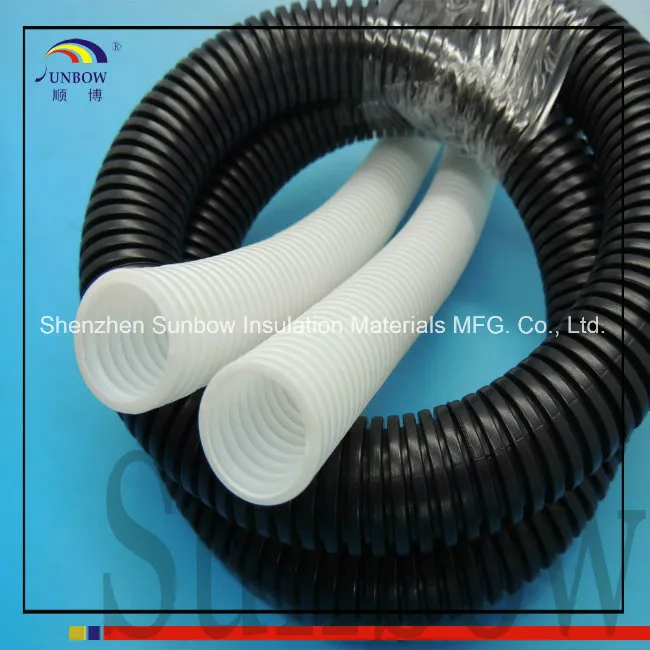

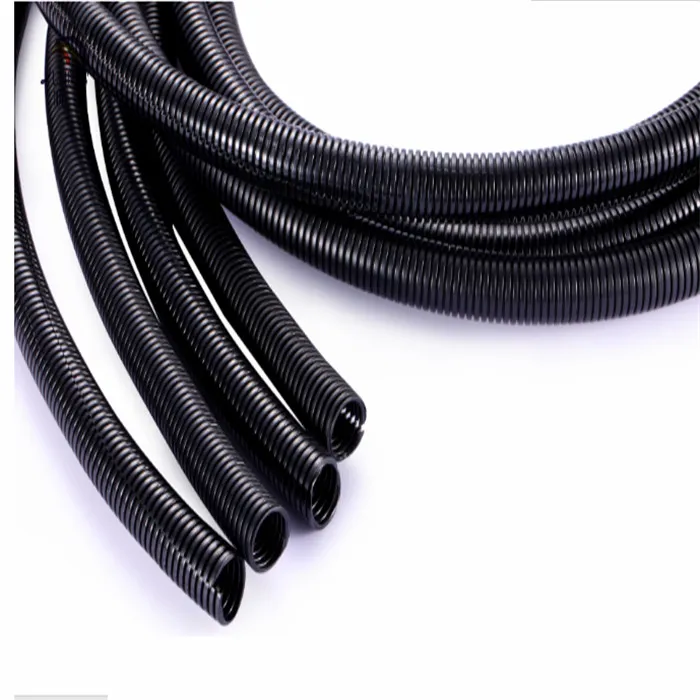

PA PP PE Wire Corrugated Pipe Flexible Hose Pipe

Model NO.	SB-OTCP
Type	Thermosetting Plastic Pipe
Color	All Colors
Hollow	Hollow
Shape	Round
Usage	Drainpipe, Water Supply Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Materials	PE, PA, PP
Types	Seal Type and Open Type
Product Name	Corrugated Conduit Pipe Hose Tubing
Transport Package	Carton Package or Pallet Package
Specification	could be customized
Trademark	SUNBOW
Origin	Shenzhen, China
HS Code	3917310000
Production Capacity	1000000m/Month

PA PP PE Wire Corrugated Pipe Flexible Hose Pipe

Model Number: SB-OTCP
Material: PE, PP, PA
Working temperature: -30ºC ~ +100ºC (PE material)
                    -40ºC ~ +110ºC (PP material)
                    -40ºC ~ +125ºC (PA material)
Structure: wavy shape both interior and exterior.

Performance
Good flexibility, abrasion resistance, acid resistance, fire resistance, etc.

Usage
It can be used in machinery, electrical equipment, foodstuff machinery, automatic meters and gauges and motors as abrasion and insulation protection for cables.

Dimension

MaterialItem No.Size (mm)Packing
(meters/roll)Rm±10% Inner DiameterOuter Diameter PE, PP, PA Open Type Corrugated PipeAD7.55.57.520010 AD107.010.010015 AD1310.013.010020 AD15.812.015.810025 AD18.514.318.510030 AD21.217.021.210035 AD2520.025.010040 AD28.523.028.510045 AD34.529.034.55055 AD42.536.042.52565 AD54.548.054.52585

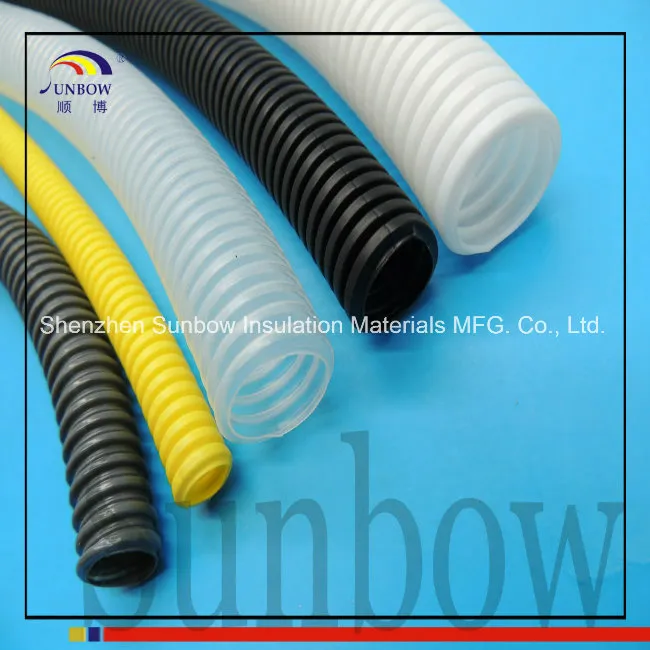

Color: Standard color is black (other color available upon request).
