PVC Pipe Making Machine Plastic Hose Extruder PE PPR Producton Line
Detailed specification for PVC Pipe Making Machine Plastic Hose Extruder PE PPR Producton Line
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Customized | Customized |
| Condition | New |
| Motor | Siemens |
| Contactor | Siemens |
| Temperature Controler | Rkc |
| Bearing | SKF Germany Brand |
| Color | Optional |
| Transport Package | Sea Worthy Packing |
| Specification | CE ISO |
| Trademark | Sevenstars |
| Origin | Zhangjiagang Jiansgu China |
| HS Code | 8477800000 |
| Production Capacity | According to Different Model |
Plastic PVC Pipe Production Machine
Features of PVC pipe extruding machine
1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

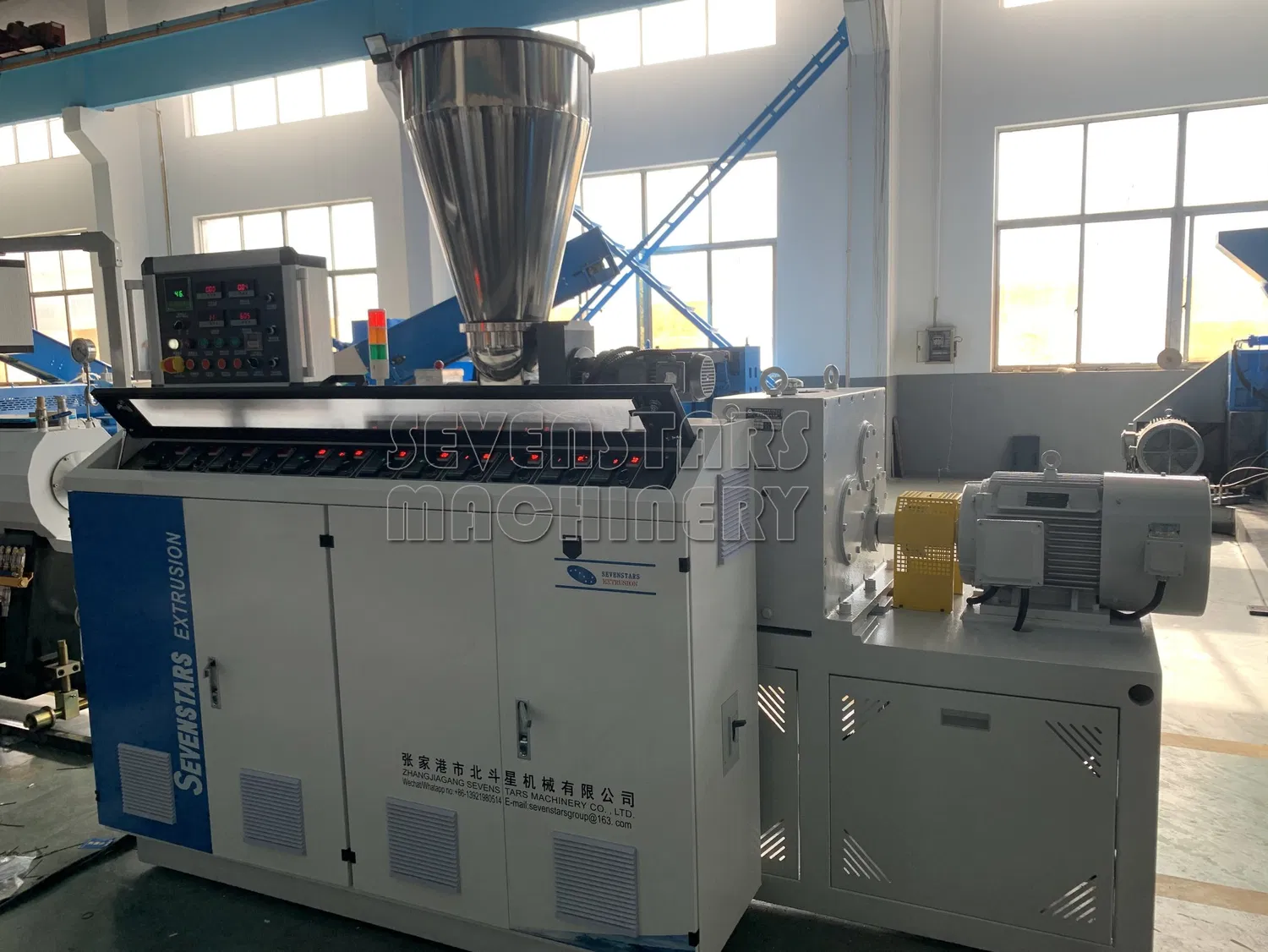

2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.
3) The extruder and haul-off machine adopt the imported AC frequency control device.
The vacuum pump and hauling motor employ superior goods.
4) Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
5) It is additionally attched with length measuring apparatus and thickness increasing device.
6) The unit is of reliable performance and high production efficiency.
The pipe diameter is mainly from Φ16mm-Φ630mm. We also can design the machine according to your requirement
Main parameter of PVC pipe extruding machine
Extruder model
Conical double screw extruder
Technical parameter
Material of screw: 38CrMoAl

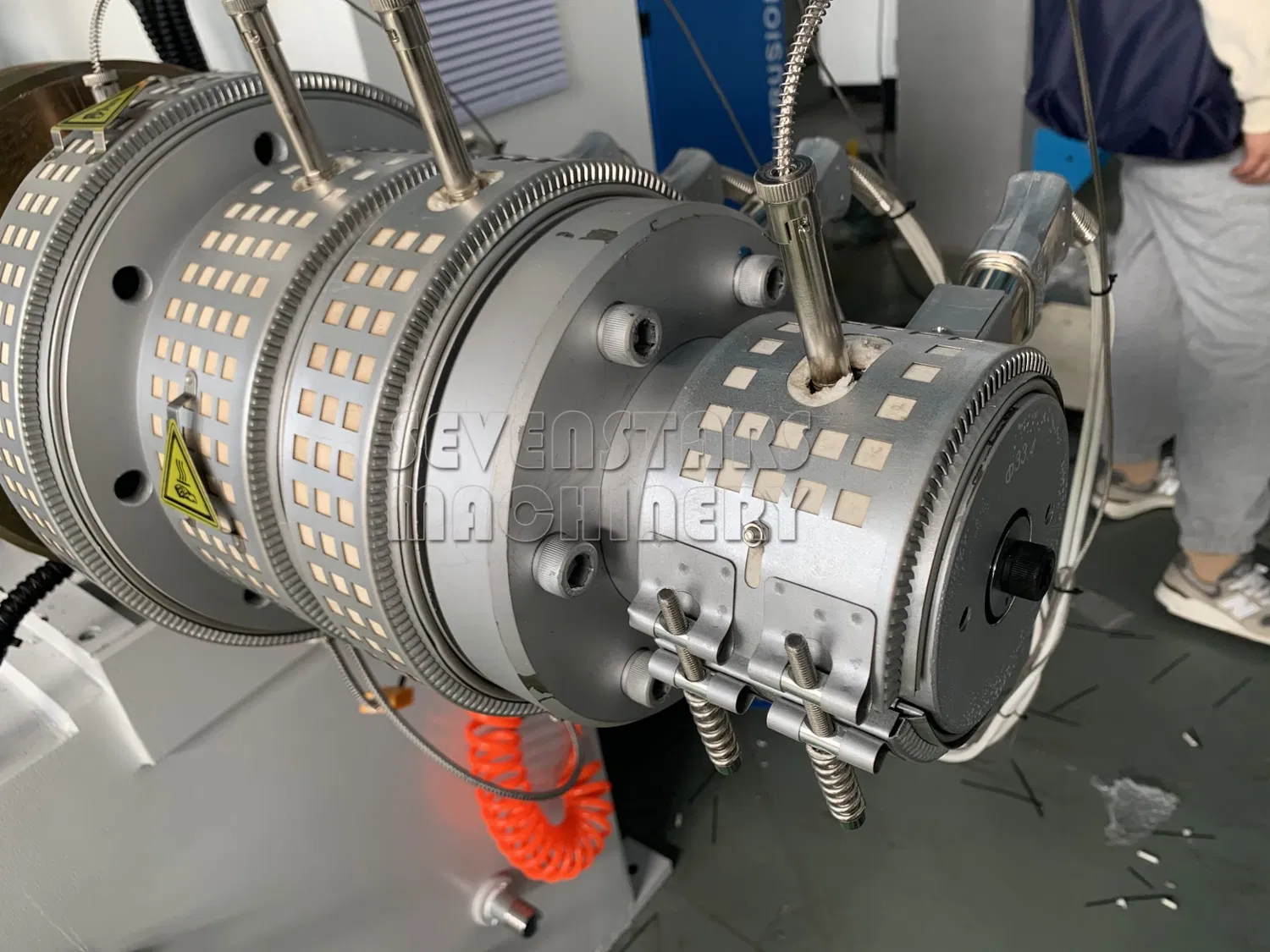

Heating zones: 4 Heating power: 35kw
Cooling mode: Air fans
Driving motor: 55KW (siemens) Dosing feeding motor: 1.5KW Vacuum pump: 1 set
Cool mode: Air fans: 3 Sets
- Mould
Include calibration sleeve Material: Made by 40Cr. Diameter spec: Ф160, 200, 250, 315 mm
Vacuum calibration tank
Technical parameter
Vacuum ,Water spray & Moving system
Length: 5600mm Vacuum pump power: 3 KW x 2 Water pump power: 4 KW x 2+ 3KW Tank material: 304 Stainless steel Vacuum gauge:0.03-0.06Mpa Spraying nozzle: ABS
Haul off
Technical parameter
Four claws haul-off
Motor: 1.4×4KW Claw length:: 1800mm Claw width: 80mm Maximum traction speed: 3m/min Max traction force:2000N Pneumatic clamping: adopt anti-friction rubber block
Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

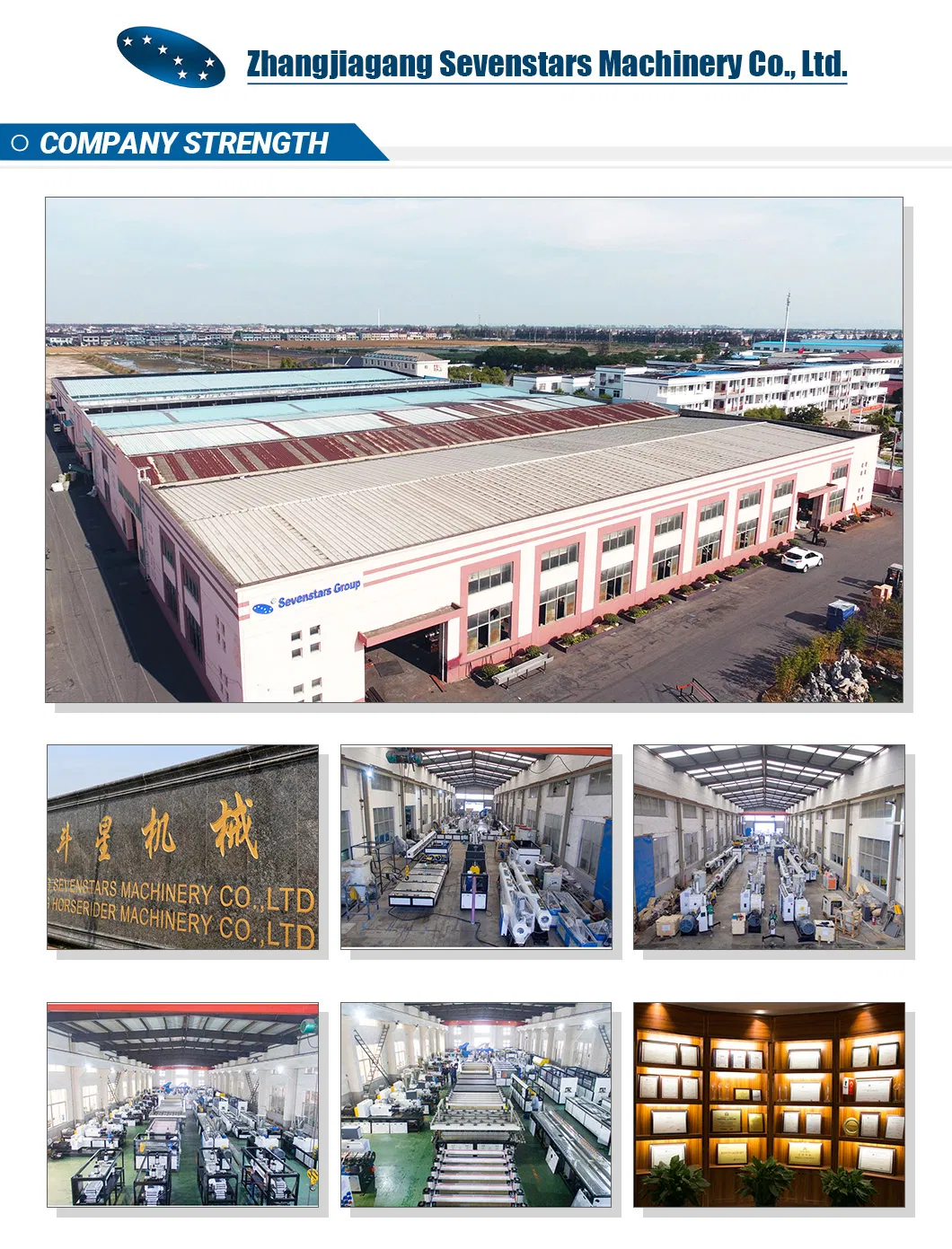

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.
As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
