Heavy Duty Pipe Welding Socket Sockets & Spigots Dvs Sockets Dados Fusion Tuberias

25mm Sockets & Spigots

Coating with PTFE

Silverstone Grey Sockets & Spigots.

25mm Non-Stick Socket faces for welding plastic pipes with heating iron.


Product Description

Each Size is sold in male and female pairs. 3 layers of Non-Stick Coating. Metric PPR pipe and fittings.

• Available sizes: 20 mm 25 mm 32 mm 40 mm 50 mm 63 mm
• Thick walls for sturdy performance

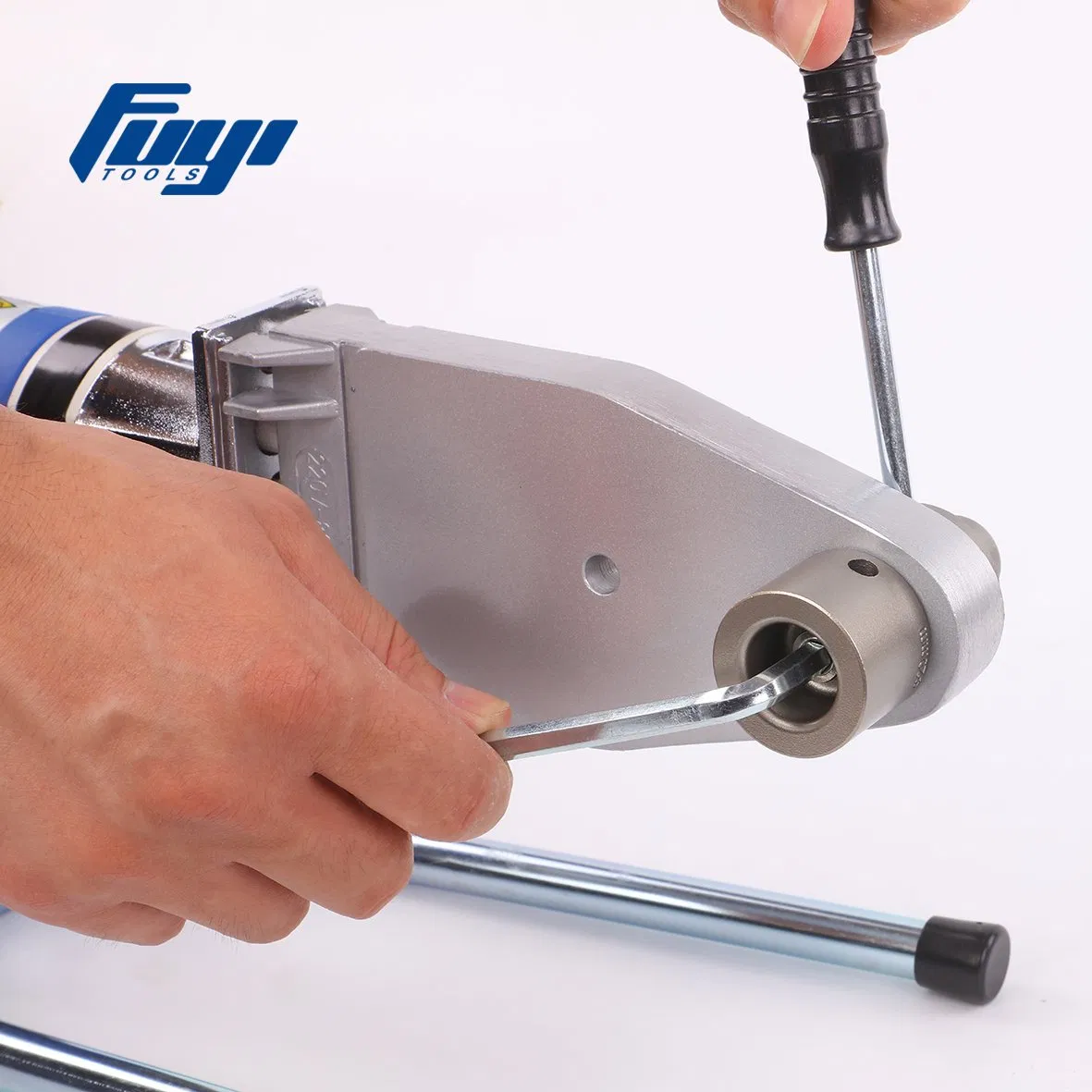

• Supplied with screw that threads on, for convenient mounting to heater face
• PTFE coated with excellent anti-stick feature
• Socket/spigot/head/adapters pair for metric pipe
• Manufactured according to the European international standard

About DVS Type A sockets and Spigots Sizes as following, at the same time we have type B sockets.

16mm , 20mm , 25mm , 32mm , 40mm , 50mm , 63mm, 75mm , 90mm , 110mm , 125mm , 140mm , 160mm.

IPS Adapters
IPS 1/2" Sockets , IPS 3/4" Sockets , IPS 1" Sockets ,  IPS 1-1/4" Sockets , IPS 1-1/2" Sockets , IPS 2" Sockets

CPS Adapters
CPS1/2" Adapters.

Socket Fusion Welding Machine use for heating and joining plastic pipes & fittings including PPR,PB and HDPE with aluminum sockets and spigots.

The quality of socekts and spigots affects the welding quality. Good quality of sockets can help you finish your job quickly and easier.

According to German Standards (DVS 2208) designed , there are two version "A" and "B" ,different in size and ewlding coupling depths.

Product Parameters

Specifications of Pipes

         Diameter Of Male Head-Sockets

                 Diameter Of Female Head-Sockets

          Heat Fusing Depth

A

B

A

B

A

B

16

16.04

15.84±0.04

15.54

15.44±0.04

13

13

20

20.05

19.78±0.04

19.53

19.38±0.04

14

14

25

25.04

24.77±0.04

24.51

24.32±0.04

15

16

The Sockets & Spigots are suitable for the socket fusion welding of the following leading systems:

Aquatherm PP-R, Wefatherm PPR, George Fischer`s PP-R, PB, PP, PE etc Pipes & Fittings.

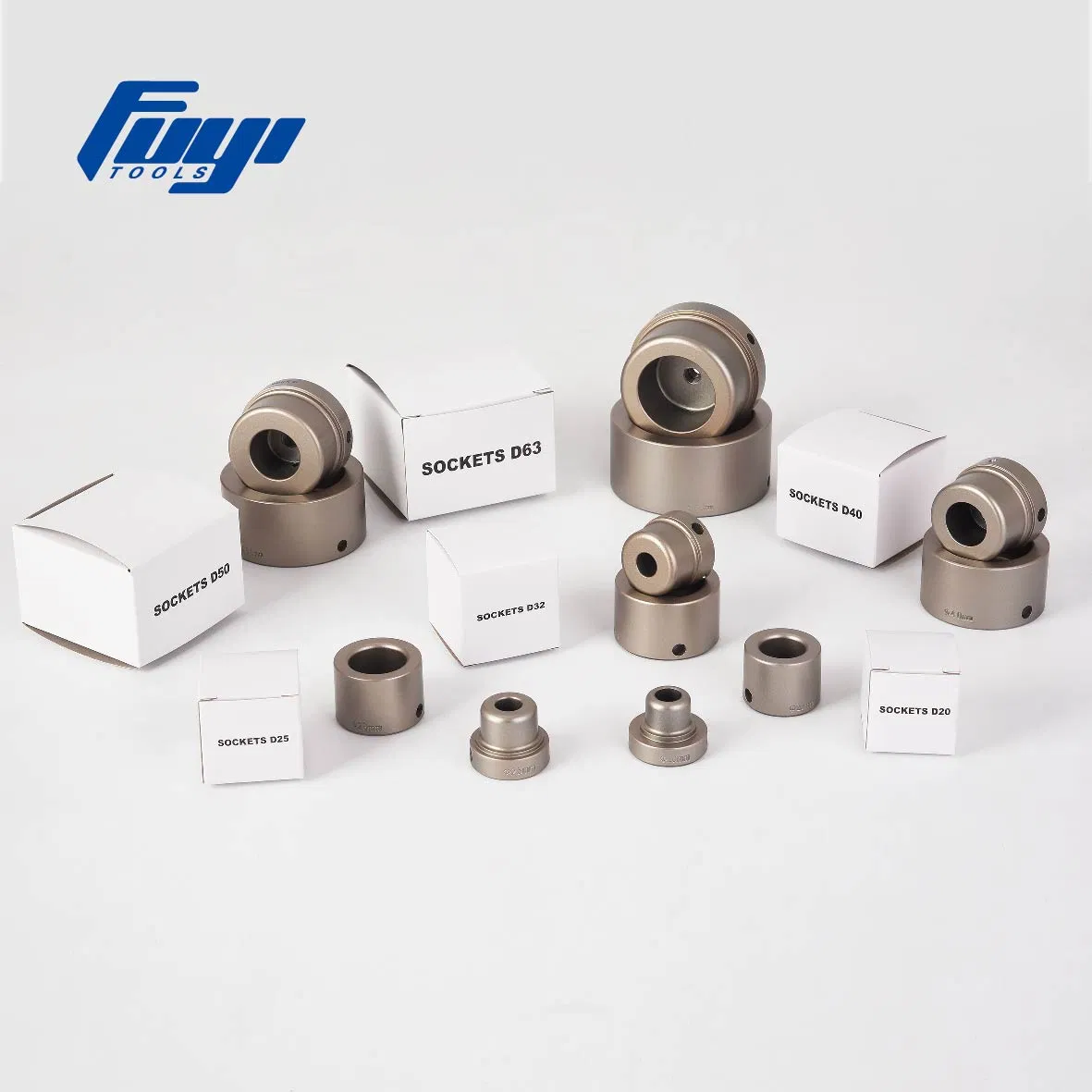

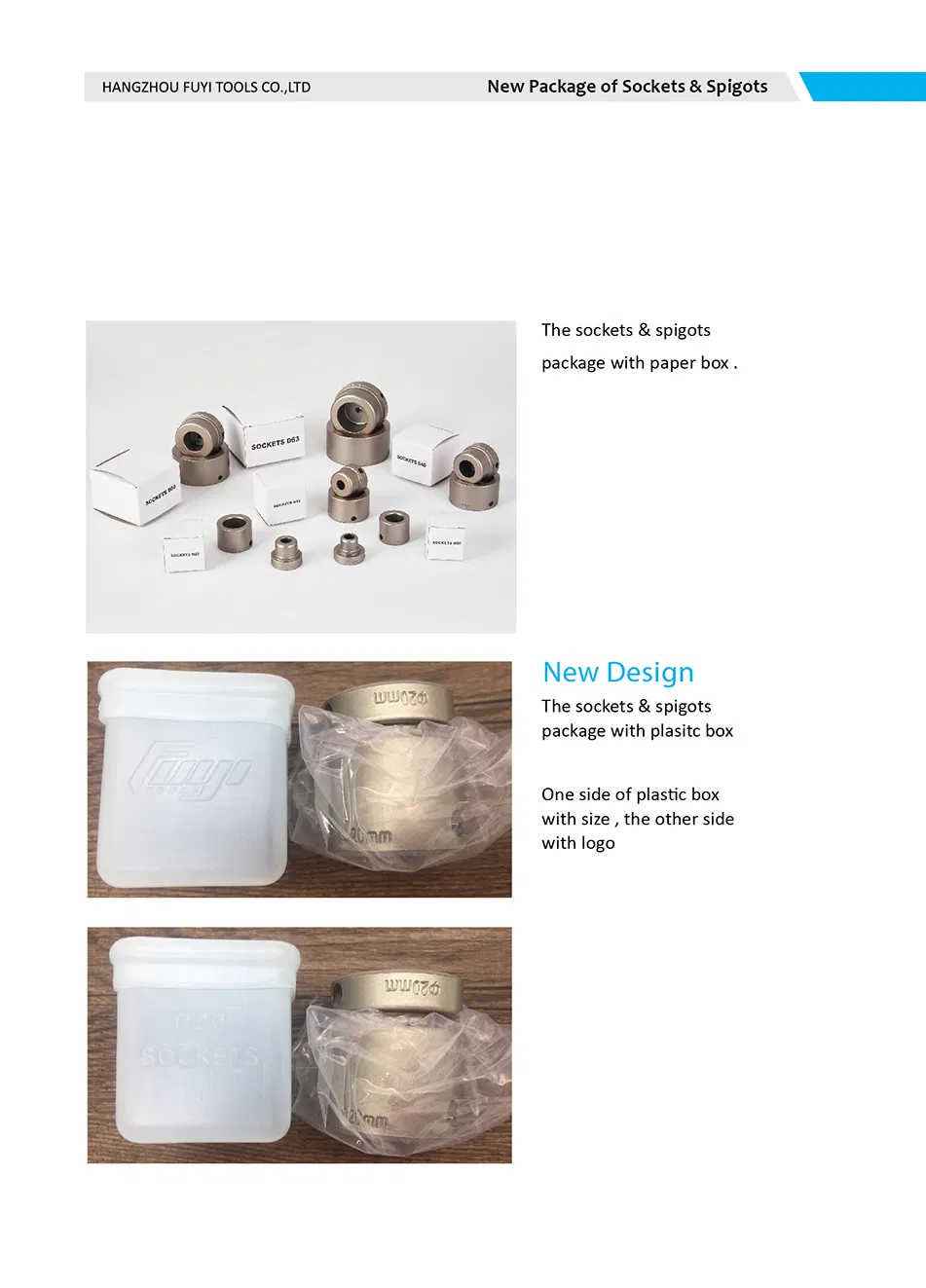

Package: each sockets & spigots packaging with nylon bag . White box package or Plasitc Box Package.

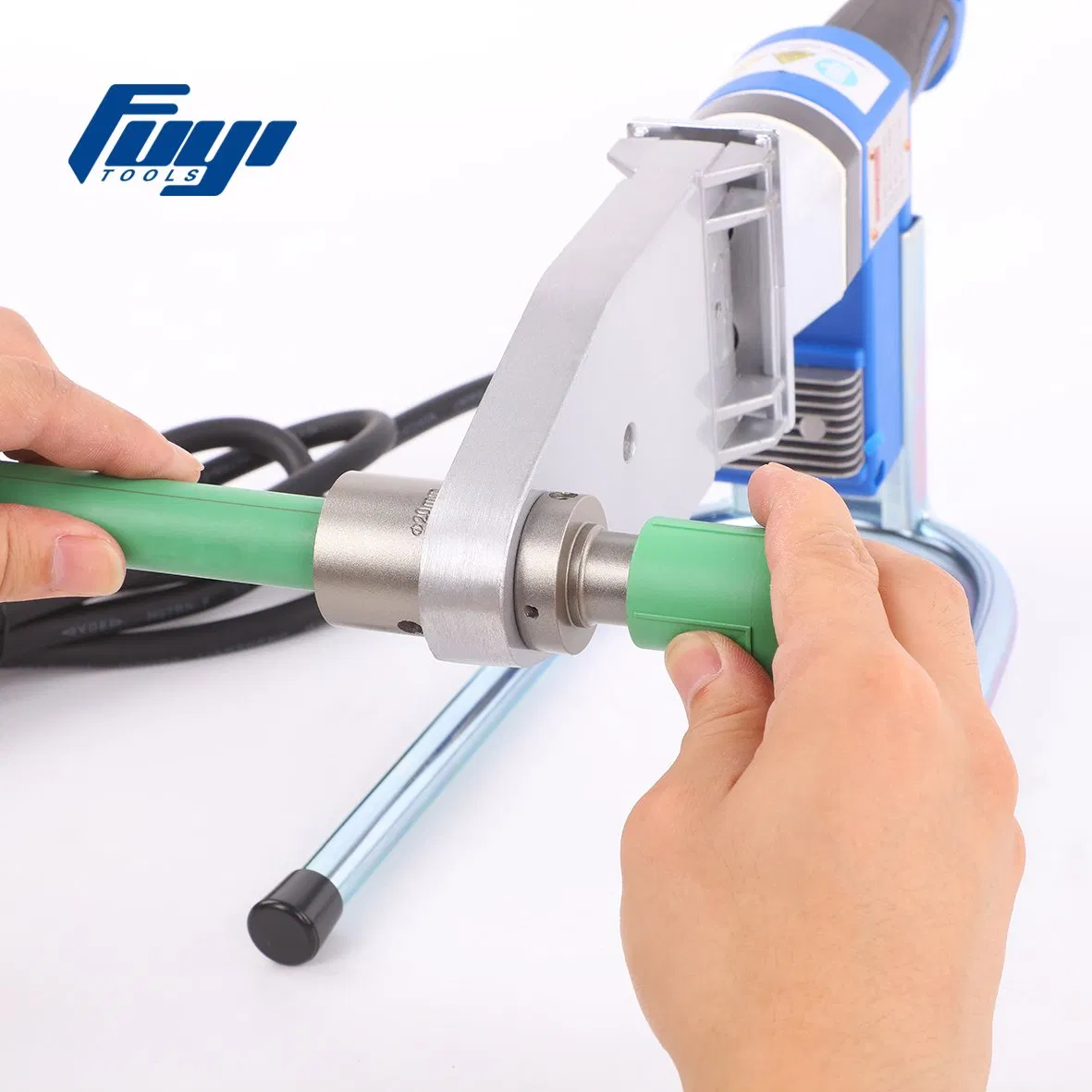

For use with the Hand Held Socket Fusion Welding Machine

Sizes available for 32mm Socket Fusion Welding Machine Welder :
• 16mm
• 20mm
• 25mm
• 32mm

Sizes available for 40mm PPR Welding Machine:
• 16mm
• 20mm
• 25mm
• 32mm
• 40mm

Sizes available for 63mm Joining Heater Machine:

• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm
• 63mm

Sizes available for 110mm Socket Fusion Welding Machine:

• 16mm
• 20mm
• 25mm
• 32mm
• 40mm
• 50mm
• 63mm
• 75mm
• 90mm
• 110mm

Sizes available for 160mm Butt/Socket Fusion Welding Machine :

25MM Sockcets &  Spogots installation Guide

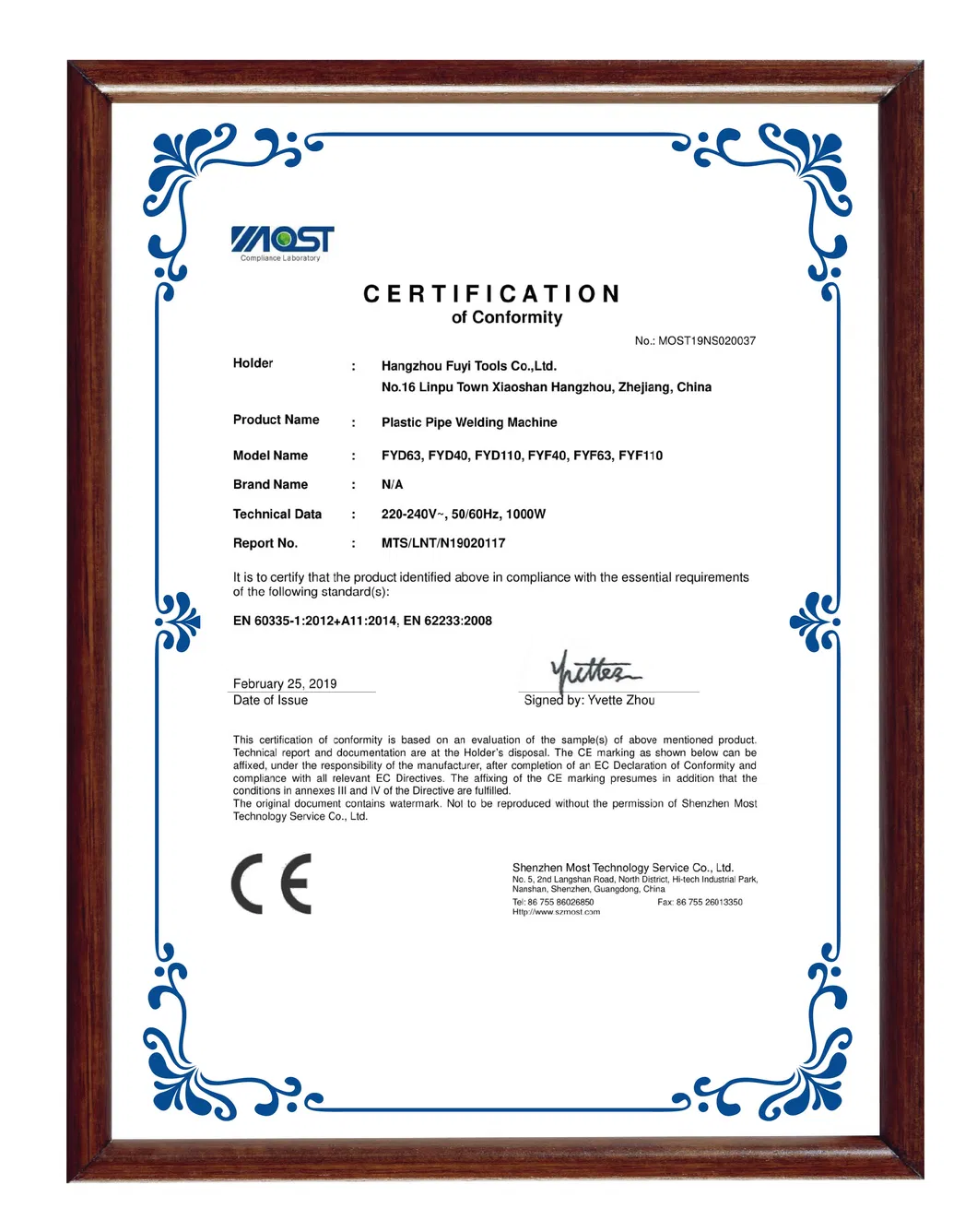

Certifications

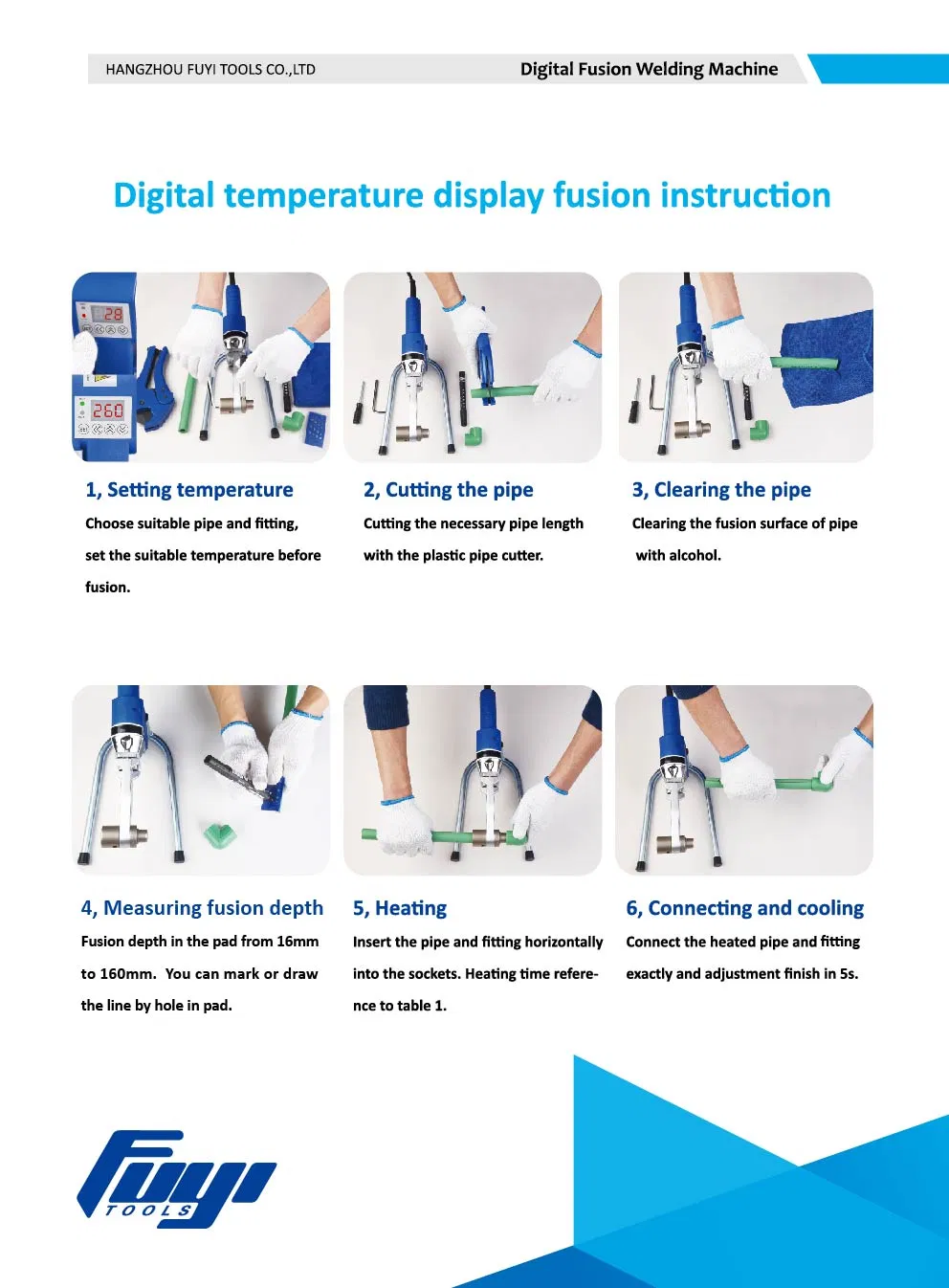

Installation Instructions
