16-40mm PVC Double Strand Electric Wire Duct / Pipe Making Machine

Model NO.	CX
Screw No.	Double-screw
Automation	Automatic
Computerized	Computerized
Certification	CE
Customized	Customized
Condition	New
After-sales Service	7*24

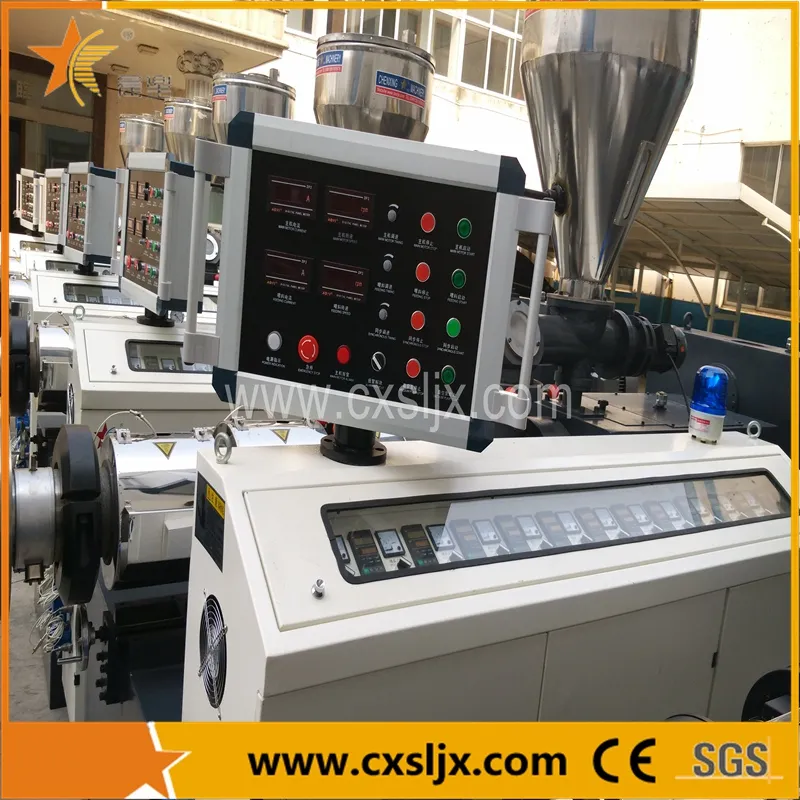

Extruder	Conical Twin Screw Extruder
Screw Barrel Raw Material	38crmoaia
Screw L/D Ration	25:1
Extruder Heater	Cast Aluminum

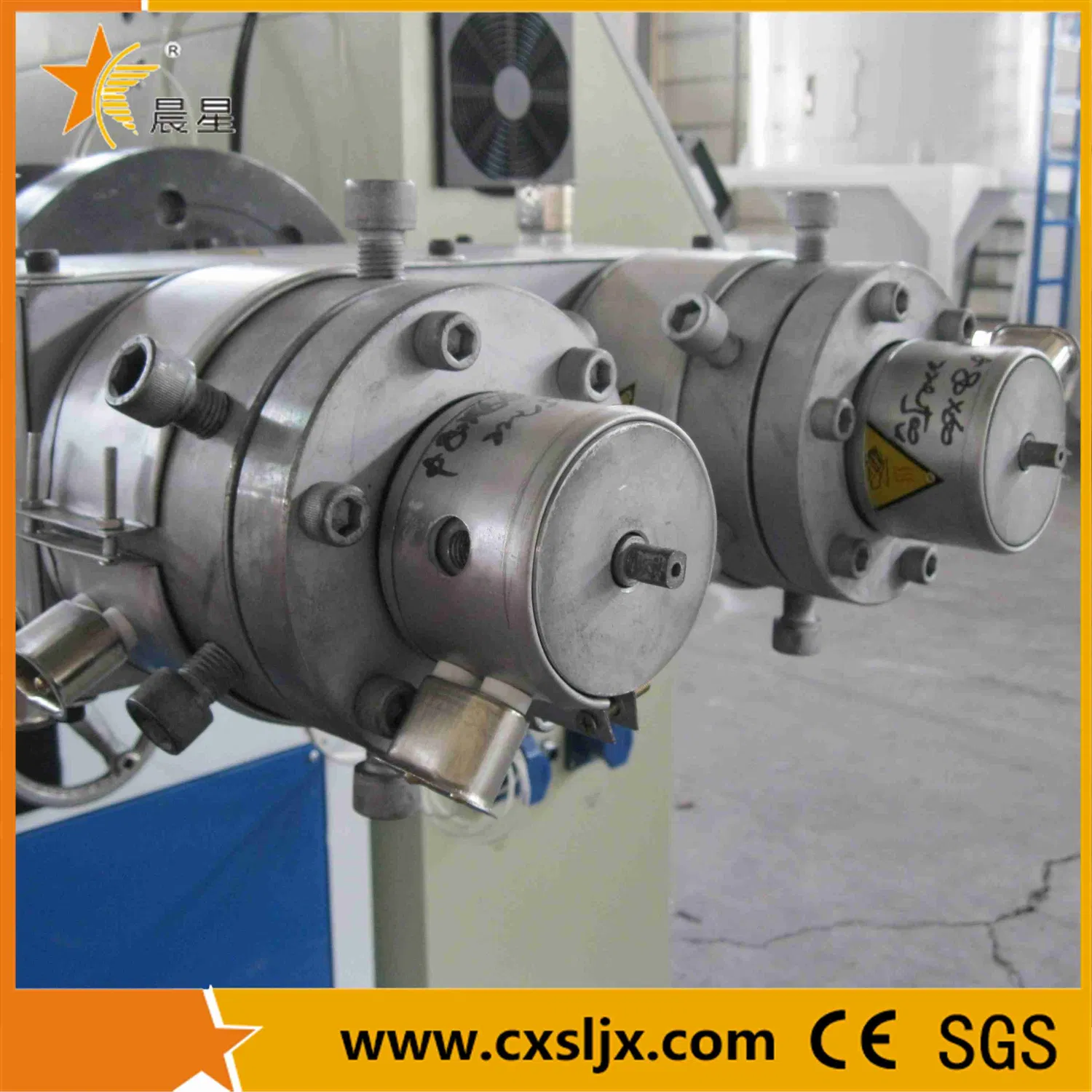

Die Head and Molds	16-630mm PVC Pipe Extrusion

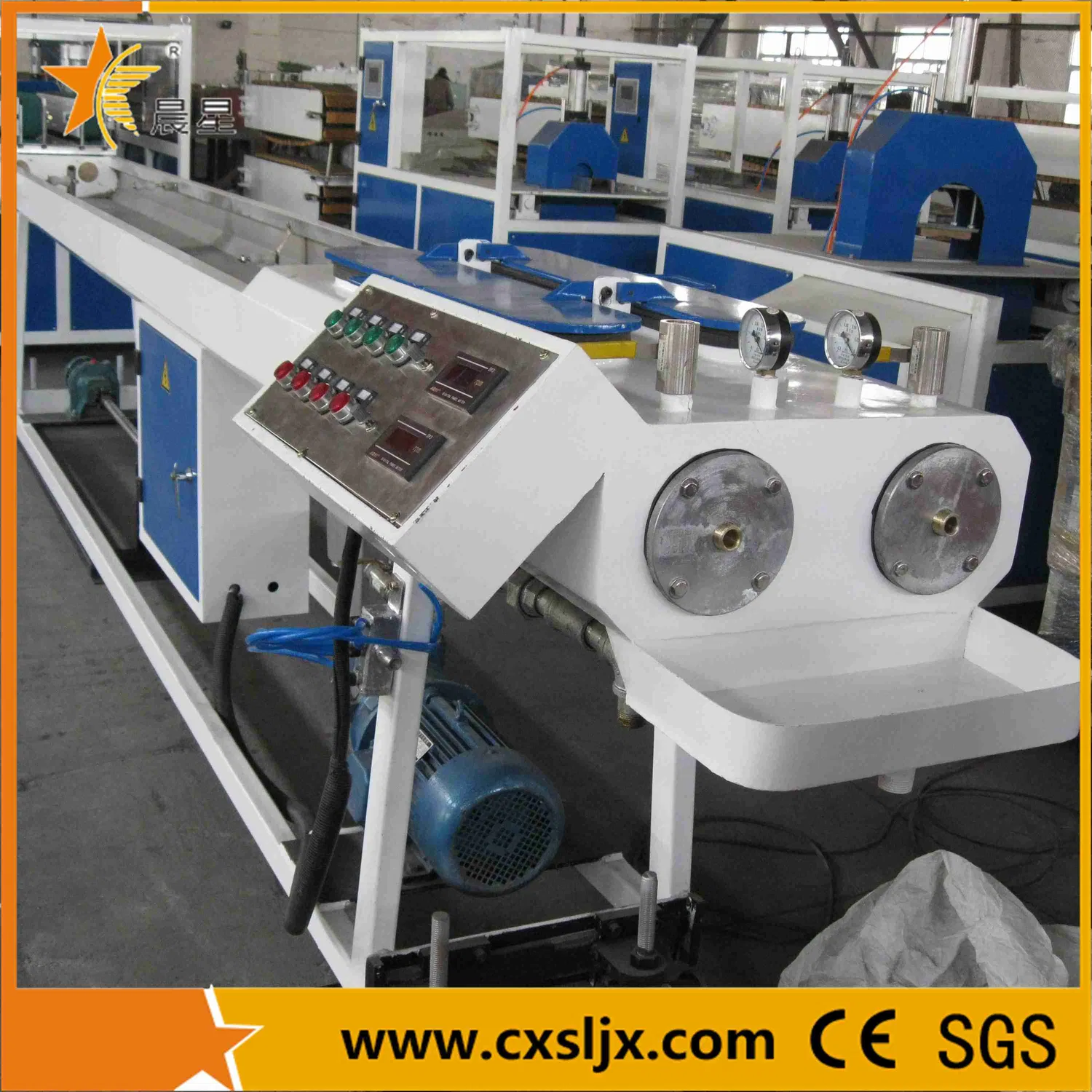

Vacuum Water Spray Tank	6 Meter Stainless Steel Making
Gearbox	Deling
Motor Brand	Simo
Inverter Brand	ABB
Transport Package	Wooden Case
Specification	GF
Trademark	chenxing
Origin	Zhangjiagang of China
HS Code	84778000

Product Description

PVC pipe extrusion line
1. Performance & Advantages:
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing,cable laying etc.
This set is composed of the conical twin-screw extruder,vacuum calibration tank,printer,haul-off,cutter,stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model,such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
We also can offer some auxiliary machine about the pipe extrusion line.
With  its  wide  range  including  various  technical  solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion  lines,  tailor-made  according  to  the  customers' requirements,  still  assuring  high  performances  and competitive prices.
PVC pipe extrusion  lines  can  produce  pipes  in  pvc  materials,  with  diameters  starting  from  16mm  up  to 630 mm.
2. Technical parameters of PVC pipe extrusion line


Product Parameters

ItemPVC63PVC160PVC250PVC315PVC450PVC630 Pipe dia.(mm)16-6375-160125-250180-315200-450355-630 Vacuum tank length(m)666999 Pressure of vacuum0.03-0.80 Max hauling force(N)100001500020000250003000050000 Hauling speed(m/min/max)1064321.4 Refilled water volume (m3/h)5678912 Production Line
length(m)202230303642

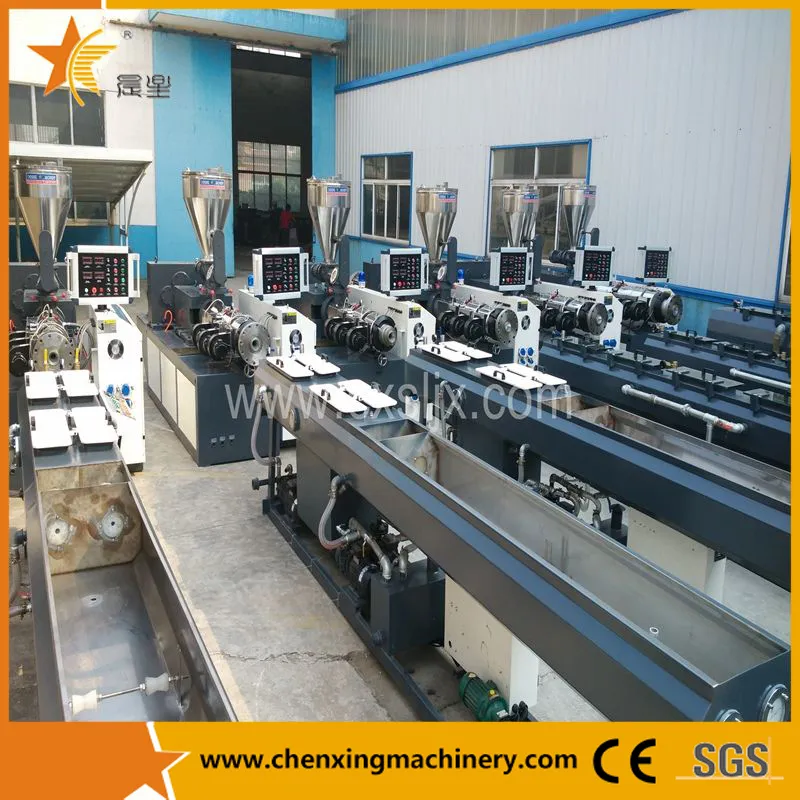

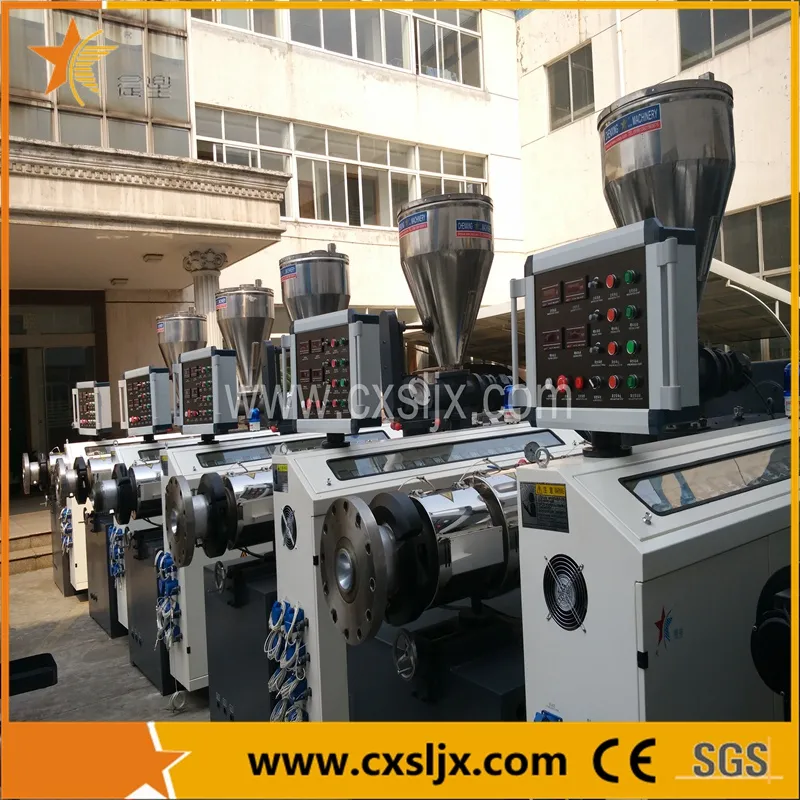

Detailed Photos
